Ultra compact MeshCore / Meshtastic Companion
Print Profile(1)
Description
This project was created with the aim of developing the most compact and practical everyday case possible for a mobile MeshCore/Meshtastic node.
The combination of Seeed Studio XIAO nRF52840 and Wio-SX1262 enables a powerful LoRa mesh node with minimal dimensions and low power consumption.

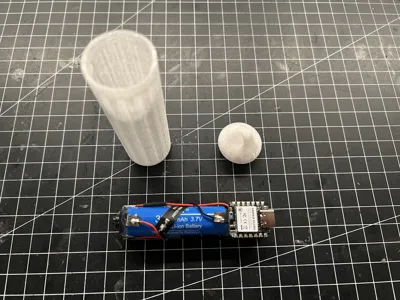

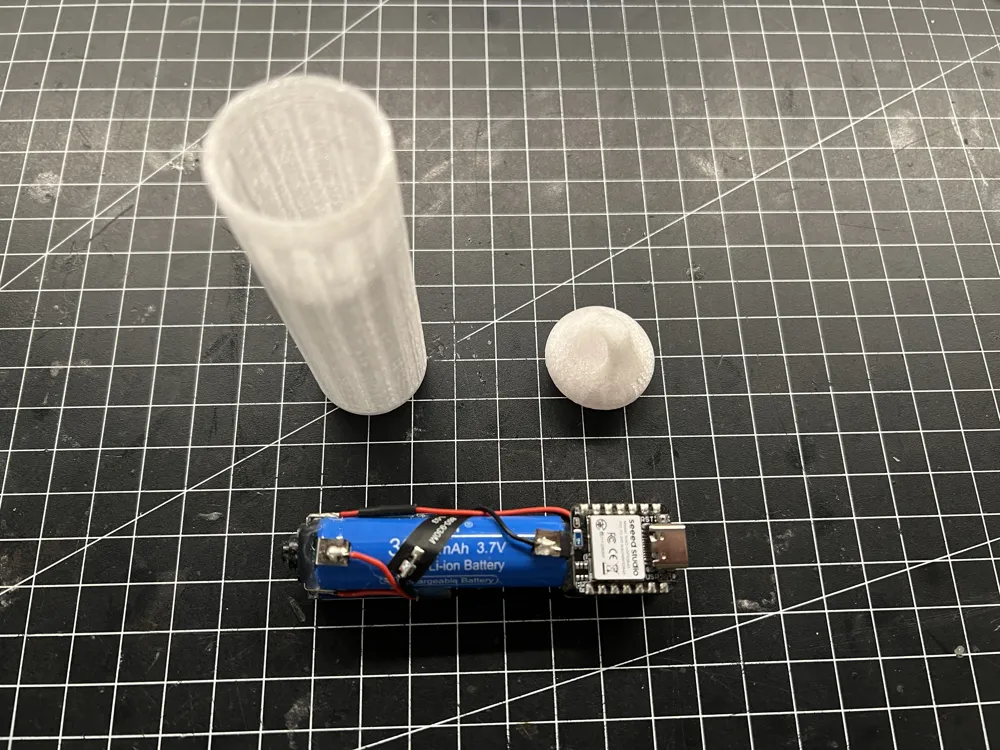

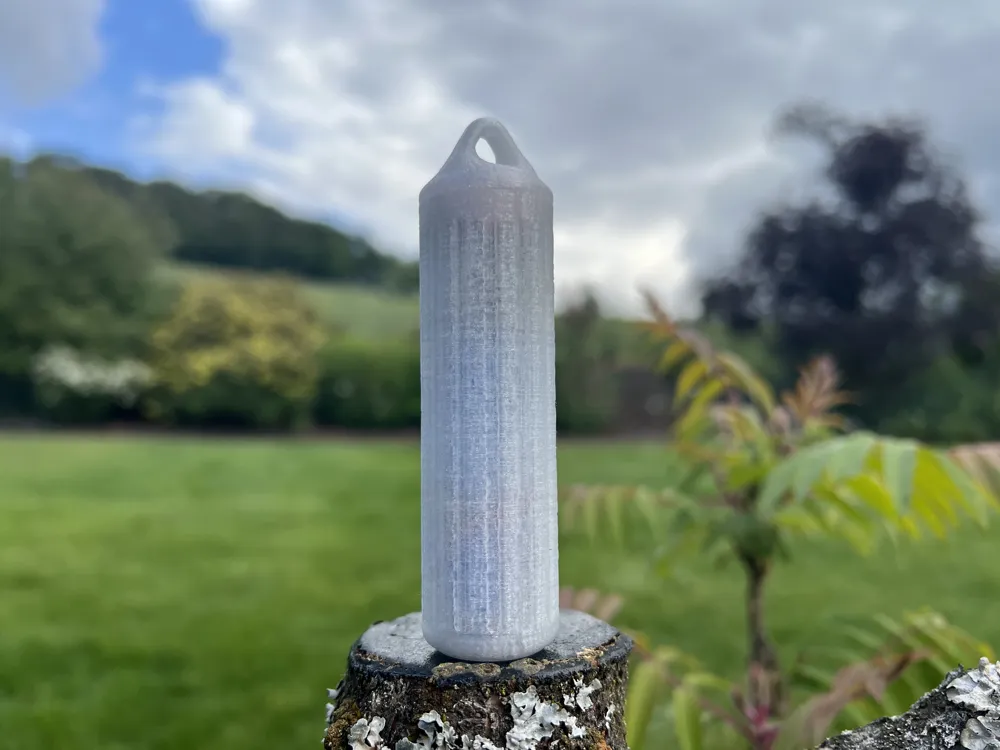

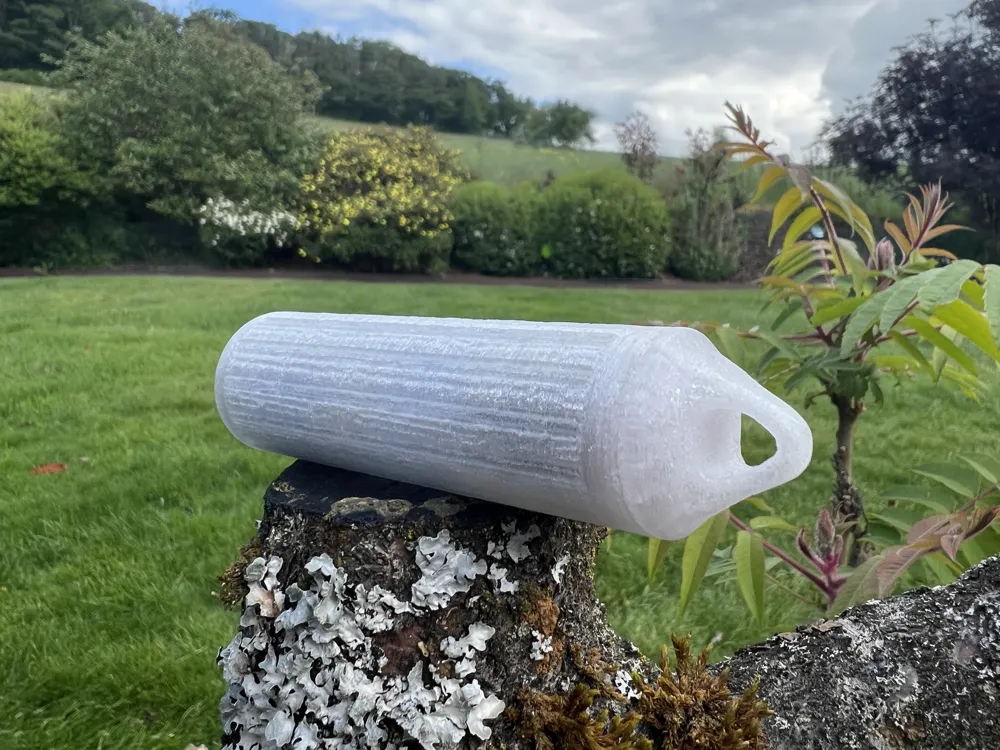

The complete system is housed in a cylindrical, screw-together case measuring only 26 × 100 mm and has a total weight of only about 40 g. This allows the device to be carried easily and discreetly in a pocket, backpack or EDC setup.
Technical Features
- Compact screw-together case in tube design
- Dimensions: 26 mm × 100 mm
- Total weight: approx. 40 g
- Base: XIAO nRF52840 + Wio-SX1262 LoRa module
- Power supply via 14500 Li-Ion cell
- Integrated lithium charging board for convenient USB charging
- Optimized for mobile and discreet use
- Designed as a portable MeshCore Companion
Design Focus
The design focused on:
- maximum miniaturization
- low weight
- easy assembly
- robust suitability for everyday use
- clean integration of all components

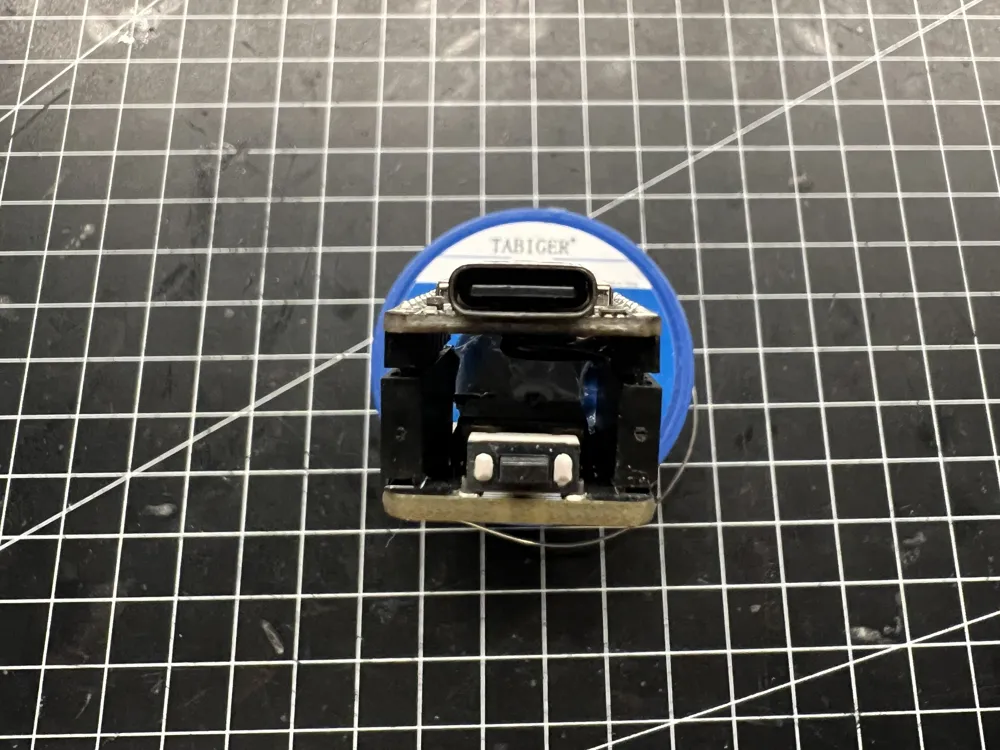

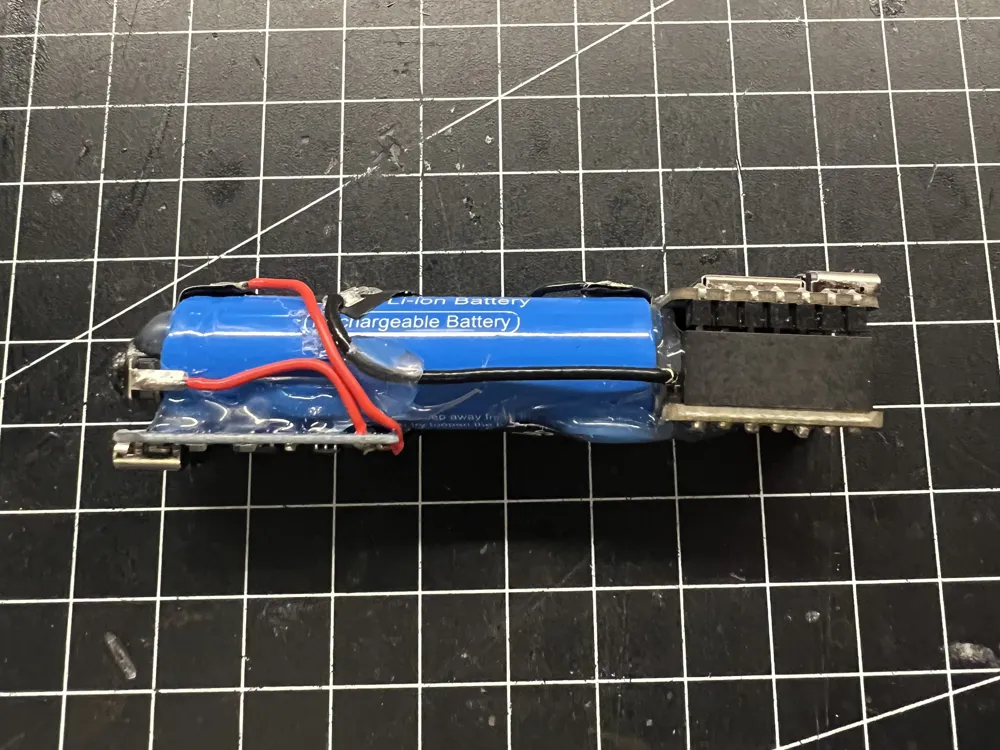

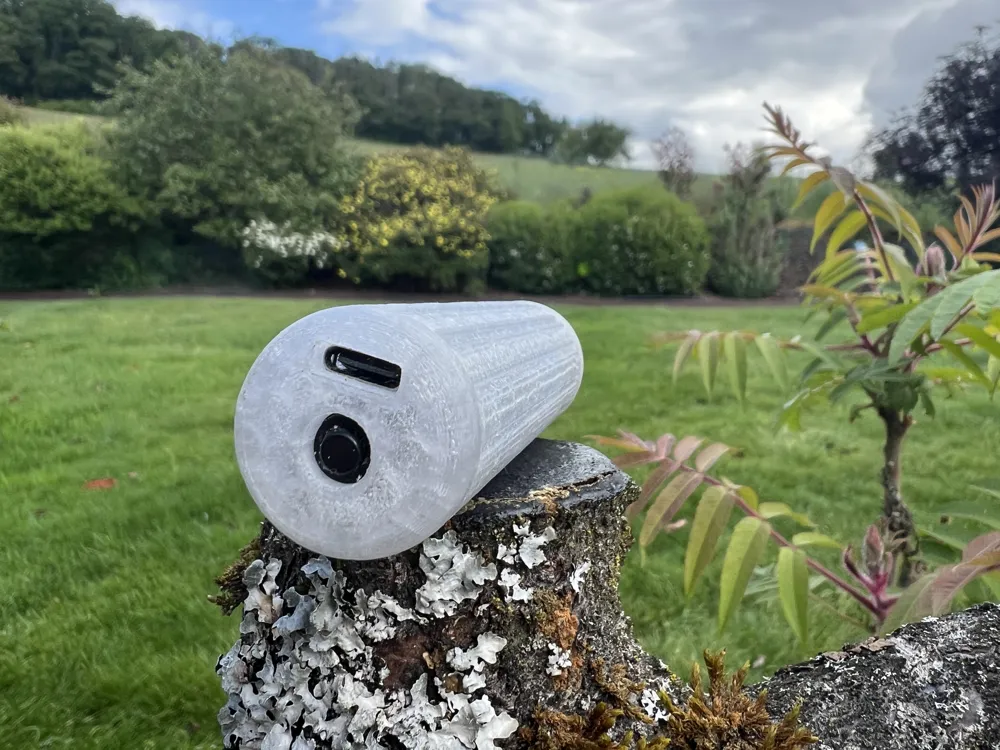

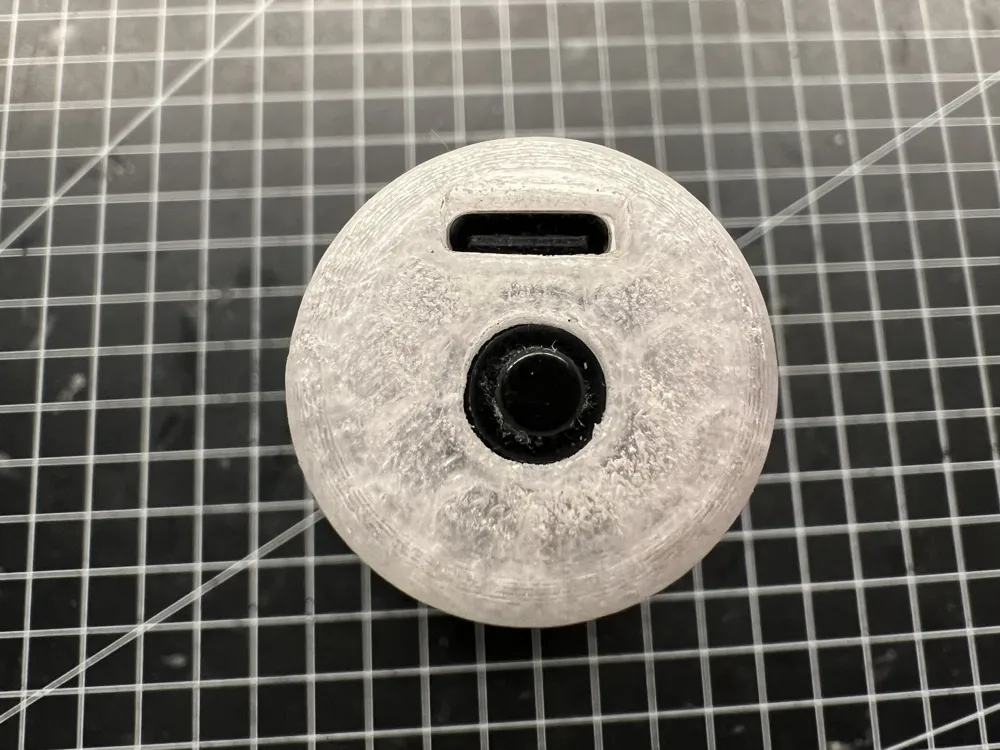

The screw-together housing reliably protects the electronics while allowing quick access to the battery and hardware. The round design results in comfortable handling and high pocket-friendliness.
Area of Application
The device is particularly suitable for:
- mobile MeshCore nodes
- portable LoRa mesh communication
- Outdoor and EDC applications
- discreet long-term deployments
- experiments and development projects related to Meshtastic / MeshCore
Hardware Bill of Materials

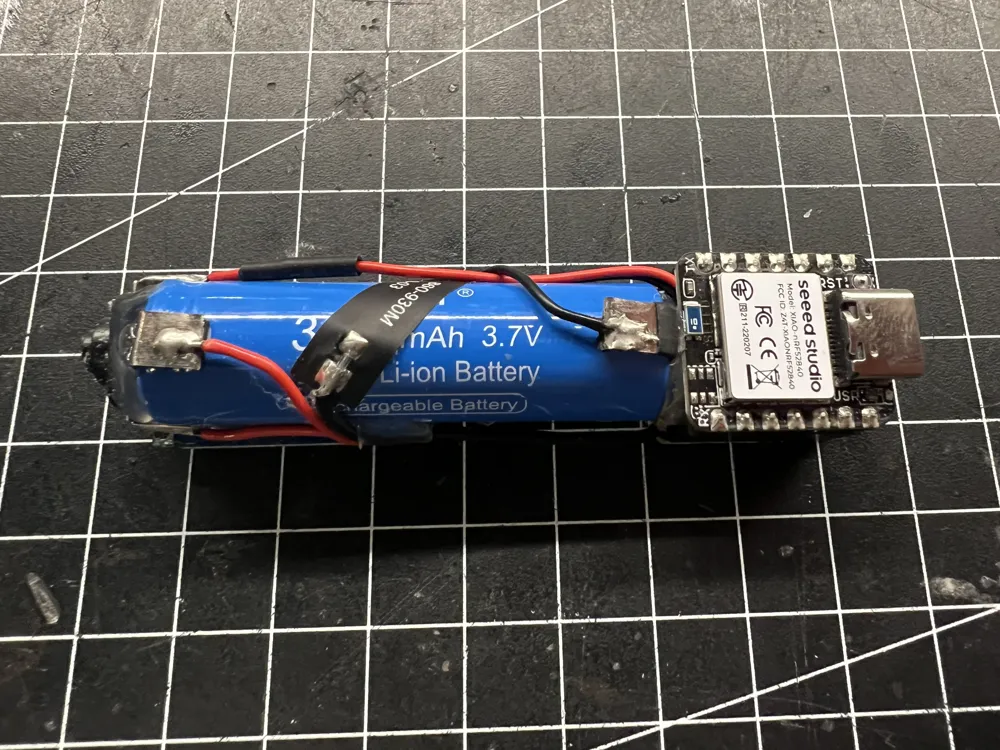

- 1x XIAO nRF52840 & Wio-SX1262 Kit (Seeedstudio)

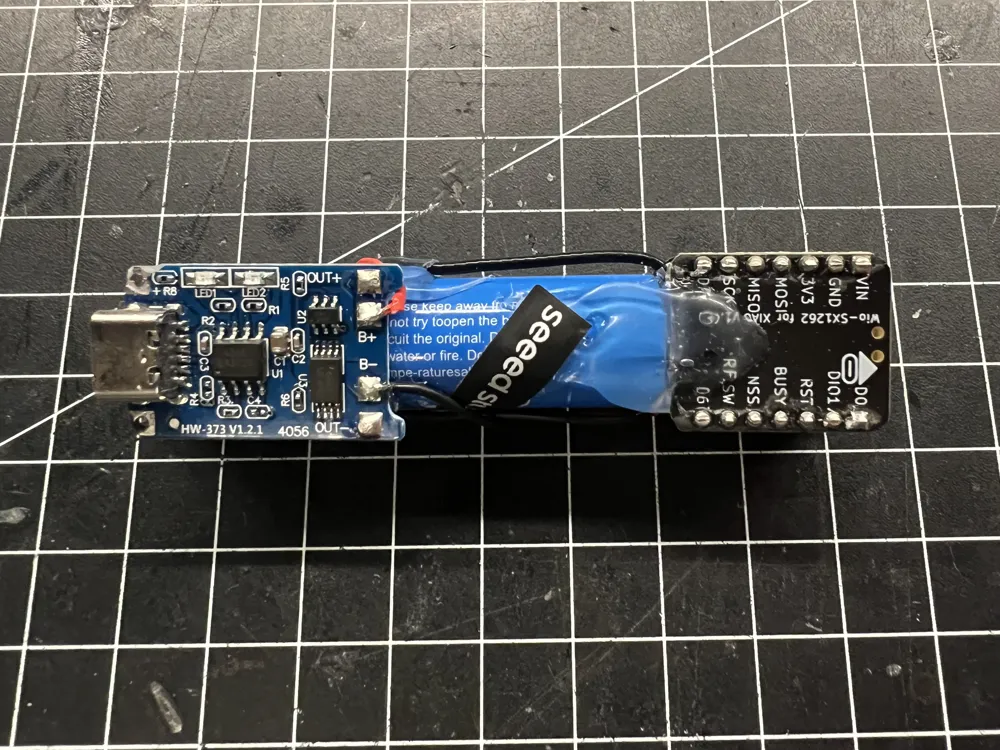

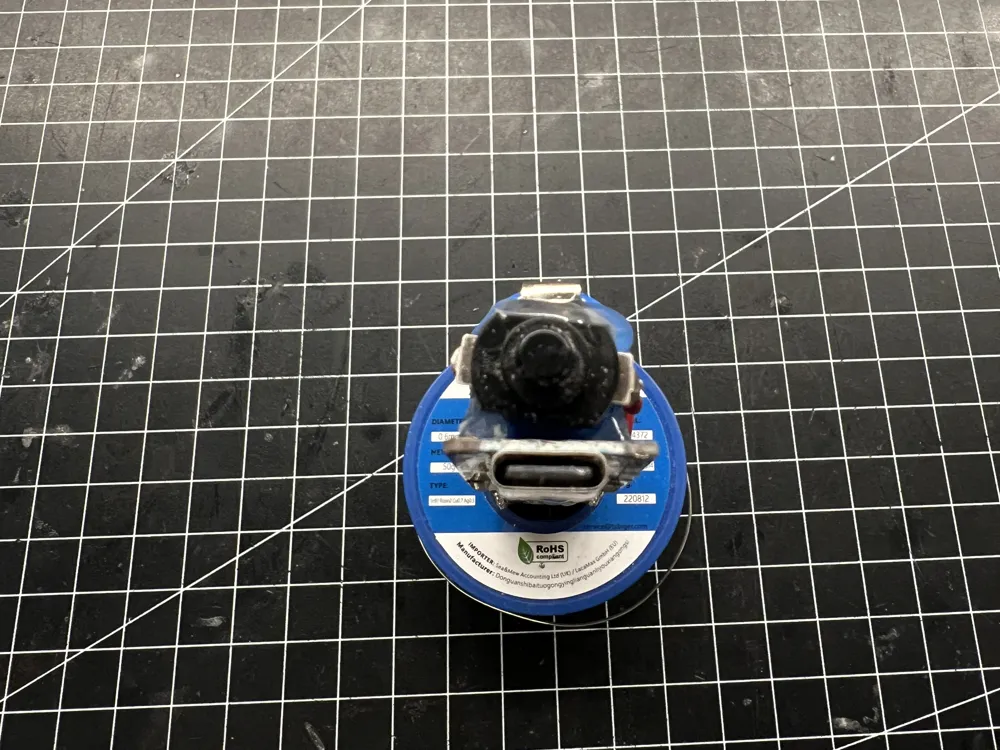

- 1x USB-C TC4056 5V 1A Li-Ion Lithium Battery Charging Board (Amazon)
- 1x 12x8mm Micro Mini ON/OFF Self-Locking Switch (Amazon)

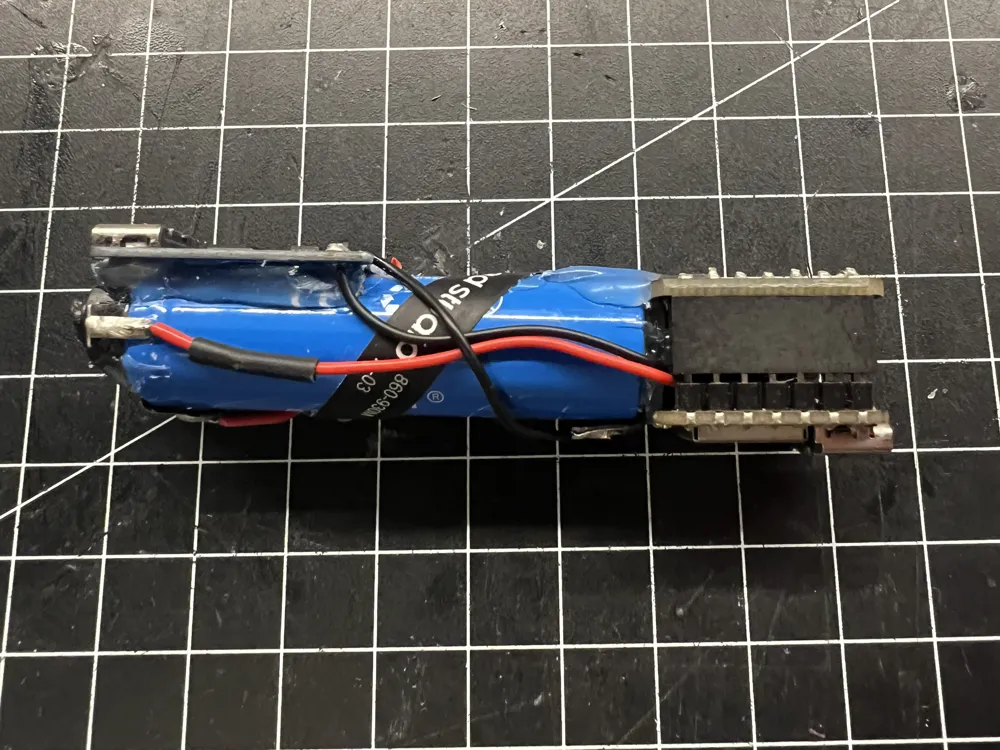

- 1x 14500 3.7v Li-ion Battery (Amazon)
