Description

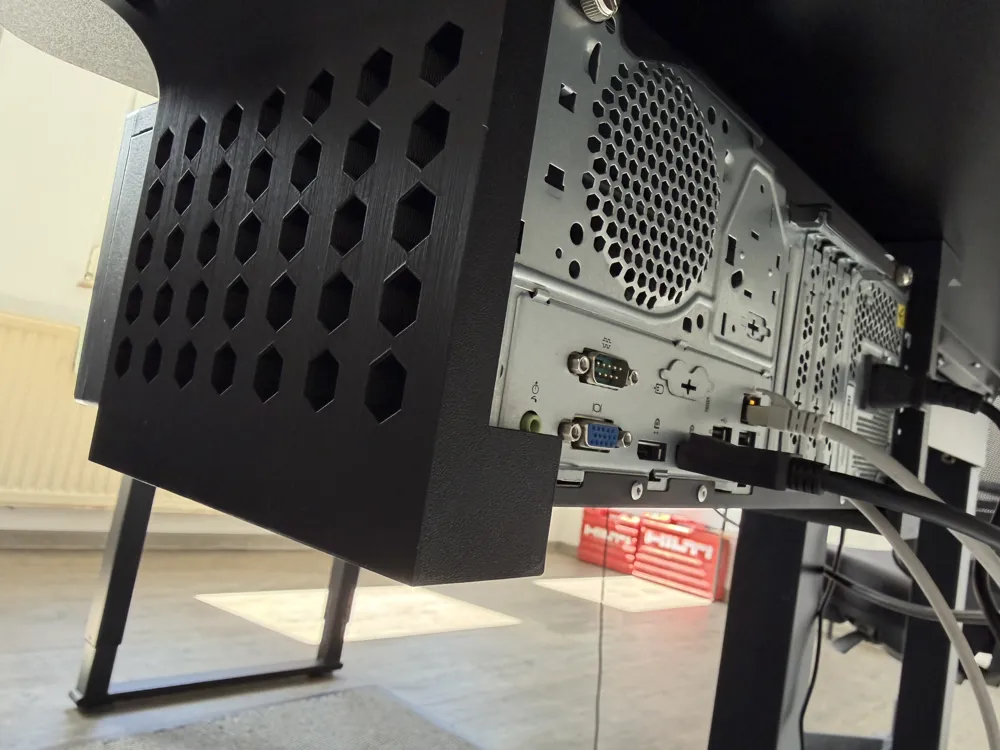

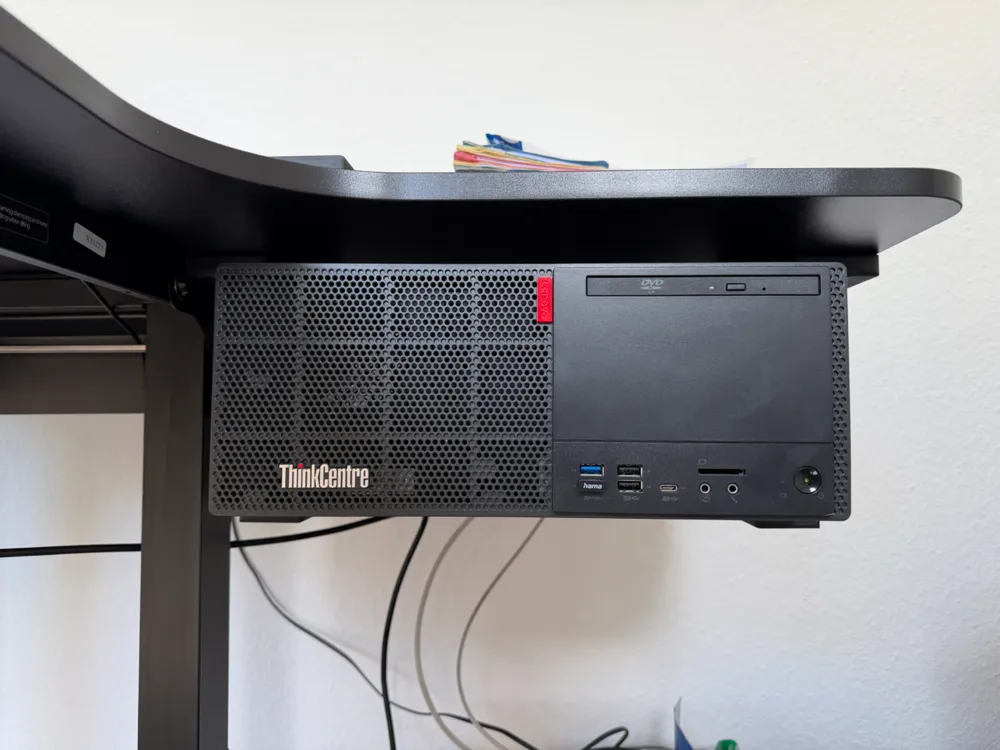

This mount secures a desktop PC under the desk to save space – ideal for height-adjustable desks, where cables would otherwise always be too short when adjusting. The PC simply moves with the table, no more loose cables.

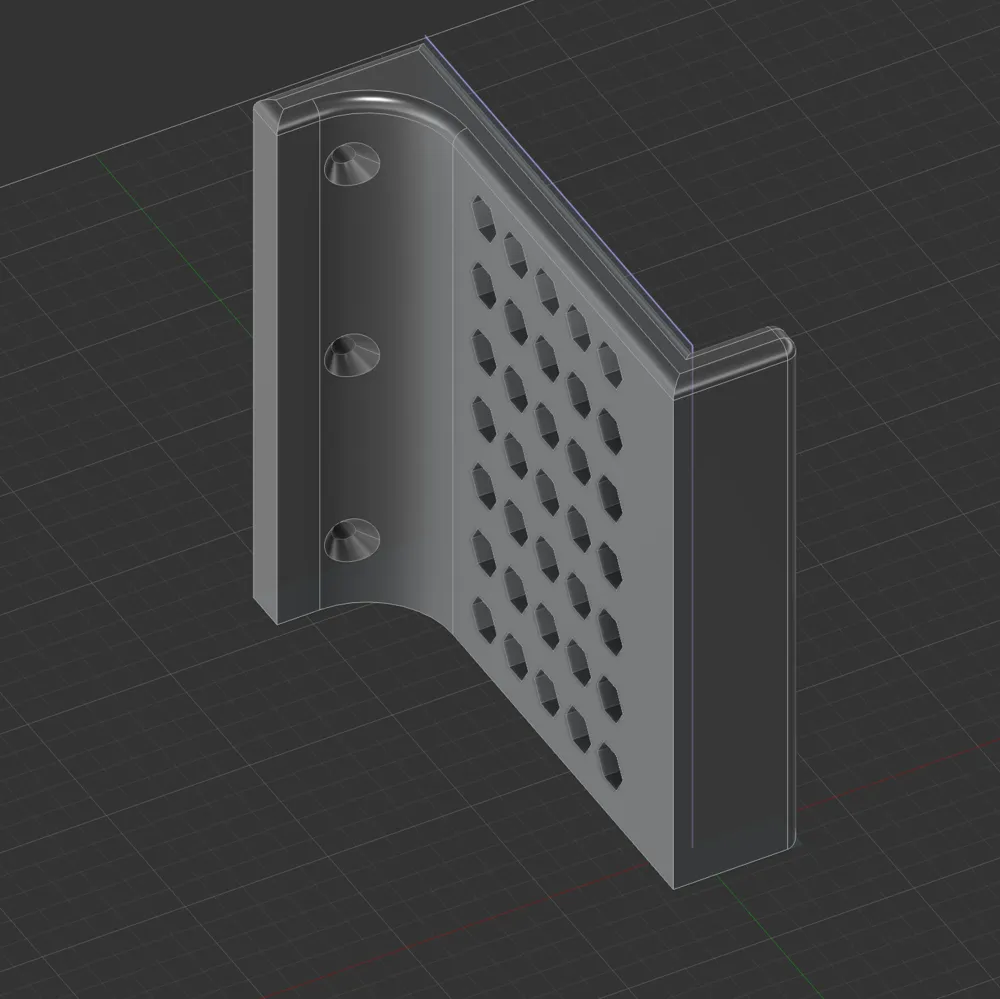

The design consists of two individual parts (left & right) that are screwed on independently. This allows the distance between the two mounts to be freely selected – the mount thus fits PCs of various lengths without the need for adapted files. Simply position the parts at the correct distance, screw them on, done.

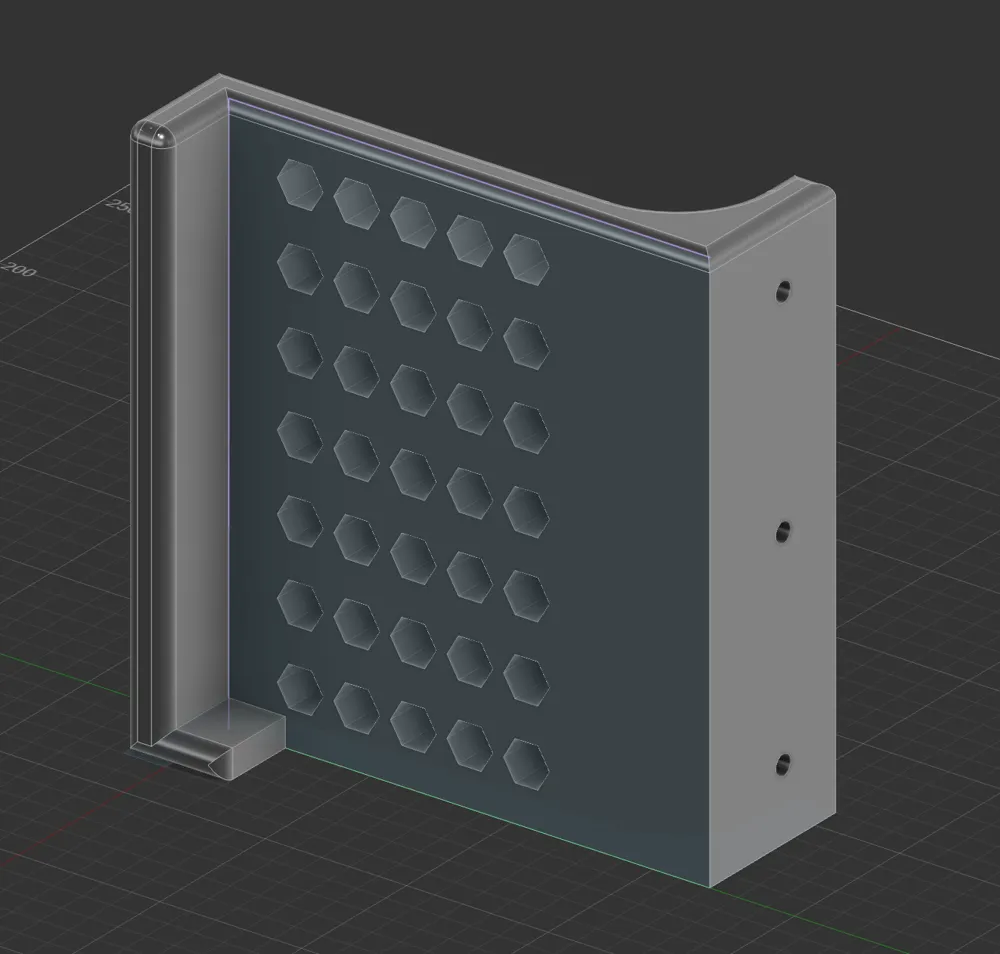

Each mount is approximately 18 cm deep and has a raised edge at the back to prevent the case from sliding out backwards. The maximum case width is 16.5 cm. Tested with a PC case of approximately 4 kg – holds without problems.
Printed in PETG.
Tested with a PC case of approx. 4 kg – holds without problems.

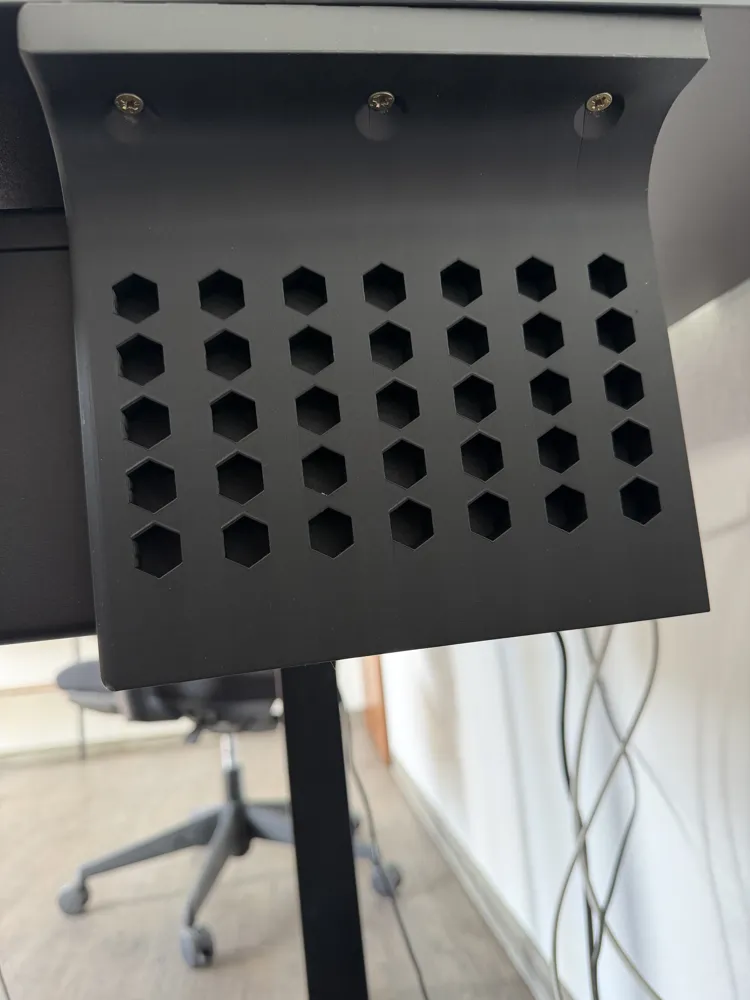

🔩 Attachment: 3 × M4×25 screws per mount
✅ no supports
