Lightweight Classic Pegboard 240x240mm
Print Profile(1)
Description

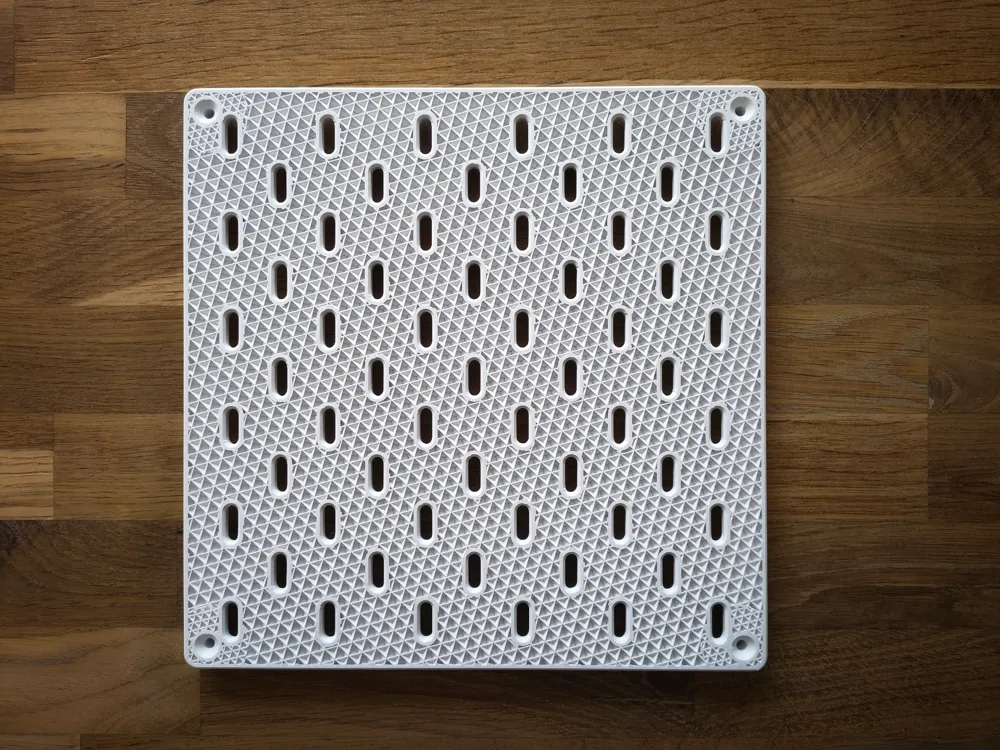

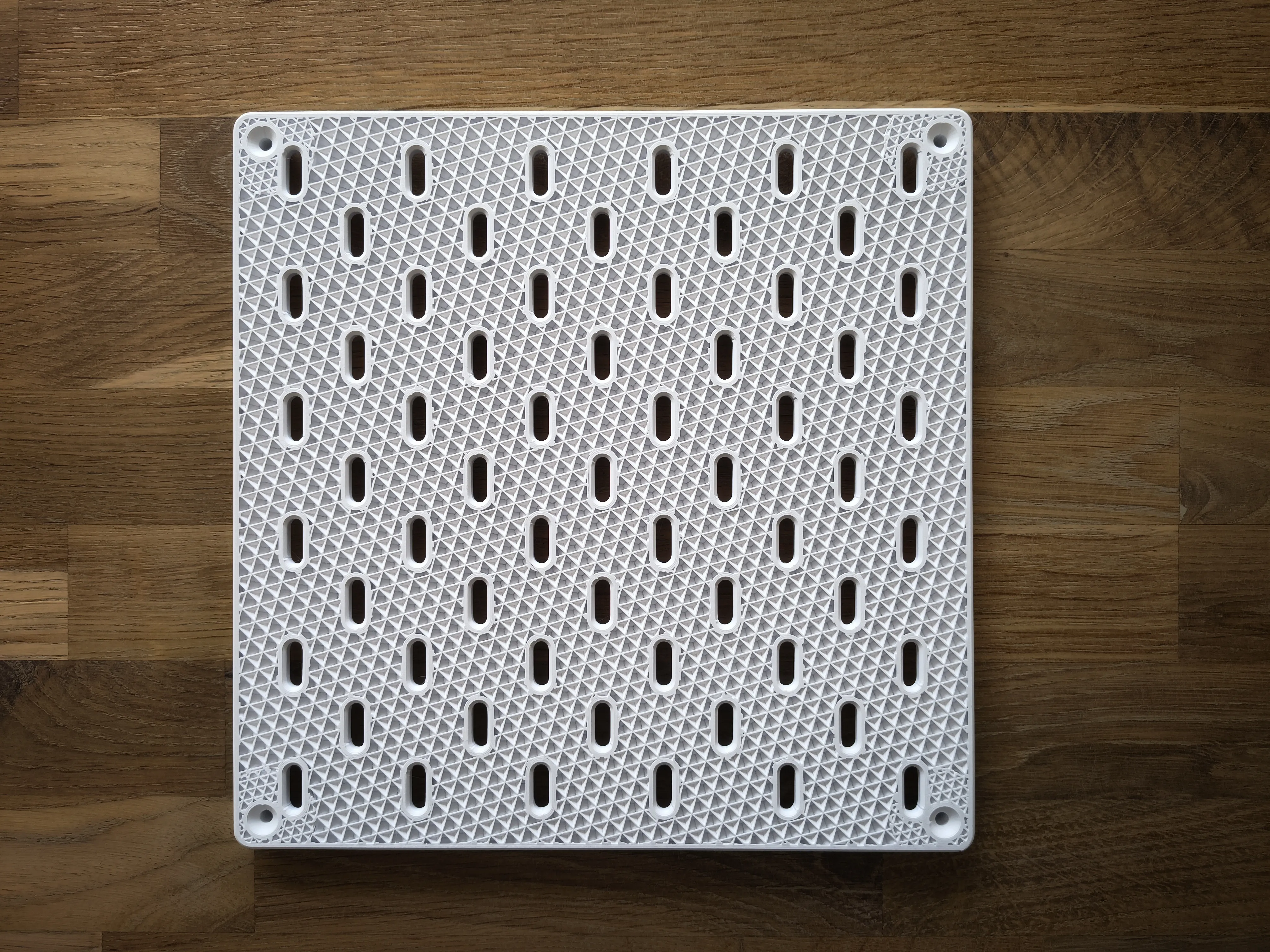

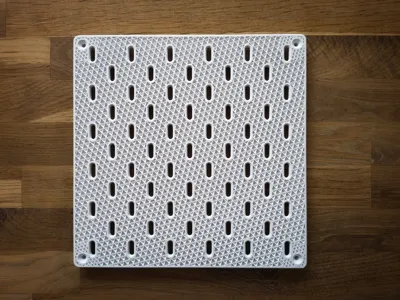

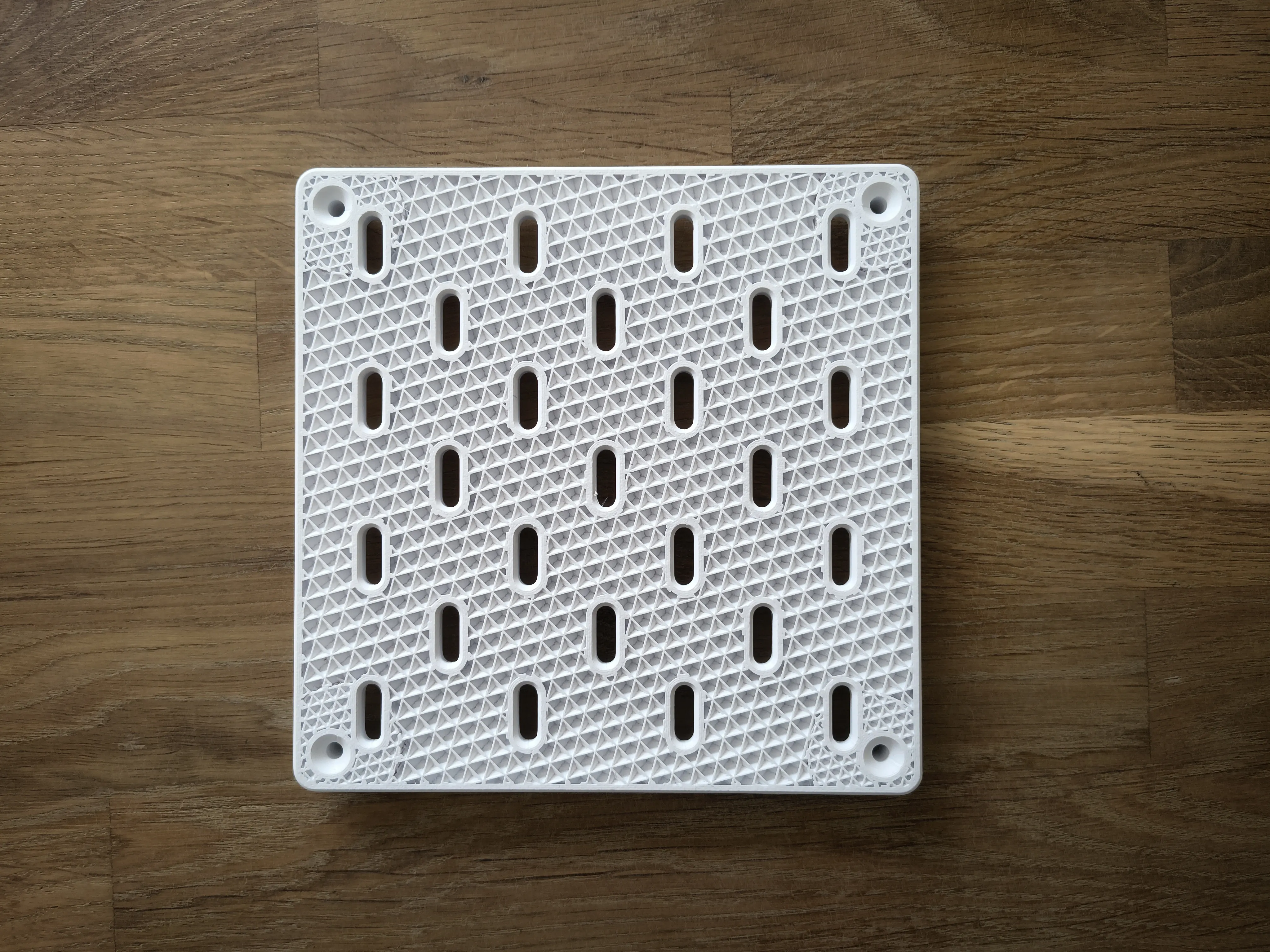

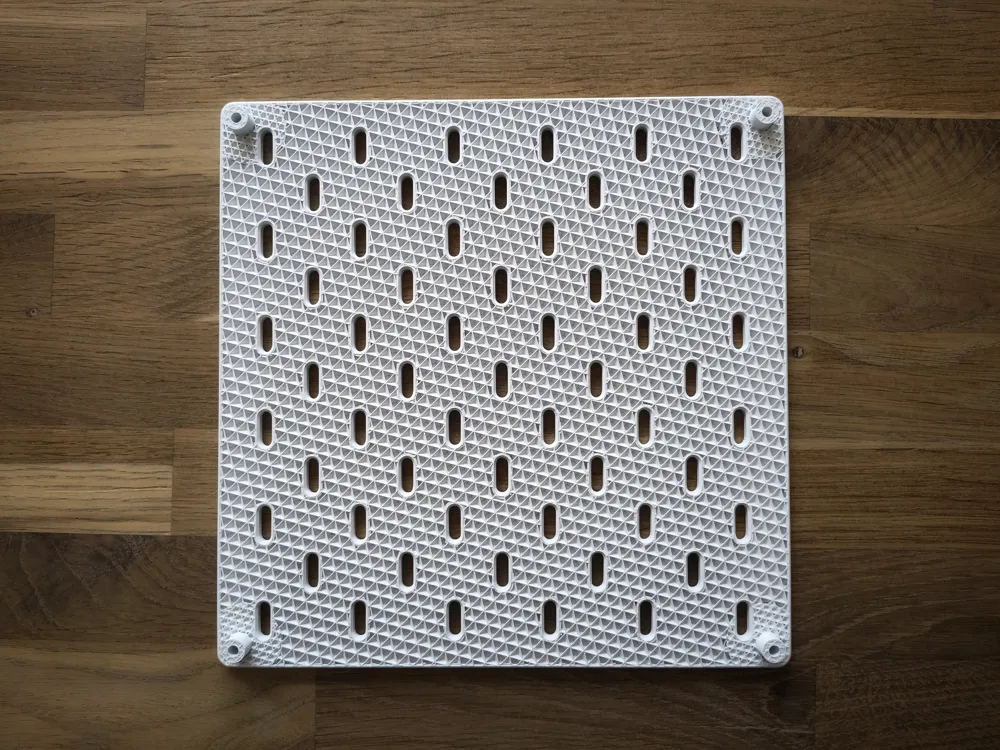

A compact pegboard panel that prints in one piece. Fully compatible with standard IKEA Skadis hooks and accessories. Panels connect edge to edge, mount as many as you need to cover any wall space.
Panel size: 240x240x5mm. Nine mounting points for better stability. The infill pattern is fully visible from the front, so your choice of pattern (honeycomb, cross hatch, triangles) directly affects the look of the board. Cubic infill cuts print time almost in half compared to honeycomb. A print profile for it is included.
For easy alignment just check: Infinite skadis Alignment Tool
Prefer a more open, frameless design with hooks across the entire surface? Check out the Lightweight Infinite Skadis 240x240mm, same size but without the border frame.
Five variants included
| Variant | Holes | Standoffs |
|---|---|---|
| 4 holes + 4 hollow standoffs | Yes | 4x hollow |
| 4 holes + 4 full standoffs | Yes | 4x solid |
| 8 standoffs (reinforced) | Yes | 8x for heavier loads |
| Holes only | Yes | No |
| No holes, no standoffs | No | No |
Standoffs add 7mm of depth, resulting in 12mm total offset from the wall (standoff + panel thickness). Useful for cable management or airflow behind the board. The no-holes variant is ideal for decorative use or when you prefer a cleaner look.
Customization
For Bambu Studio, check the Strength tab, under Sparse infill:
- Sparse infill density controls how dense the grid is.
- Sparse infill pattern allows you to choose the visual style (e.g., honeycomb, cross hatch, triangles).
Important Note

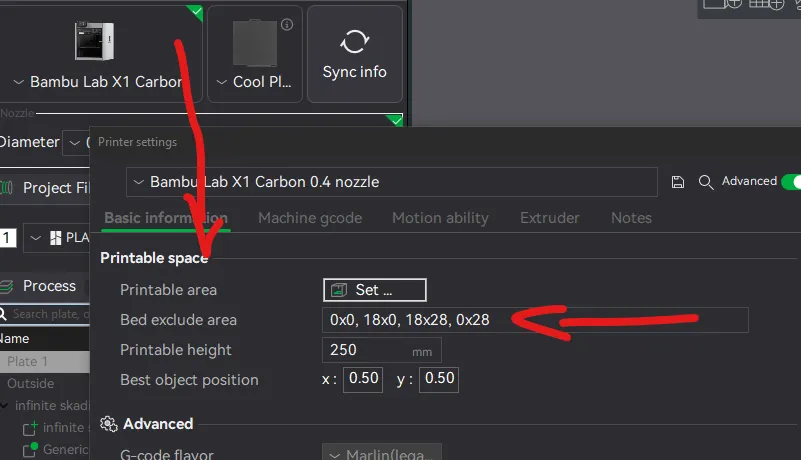

On Bambu Lab P1 and X1 series printers, there is a print volume limitation. To print this model, you need to disable the print volume limit. More details can be found on the official wiki: Bambu Lab – Print Volume Limitations
More sizes in this series
More Skadis models: IKEA Skadis collection
If you print it, please leave a rating - it helps a lot.
