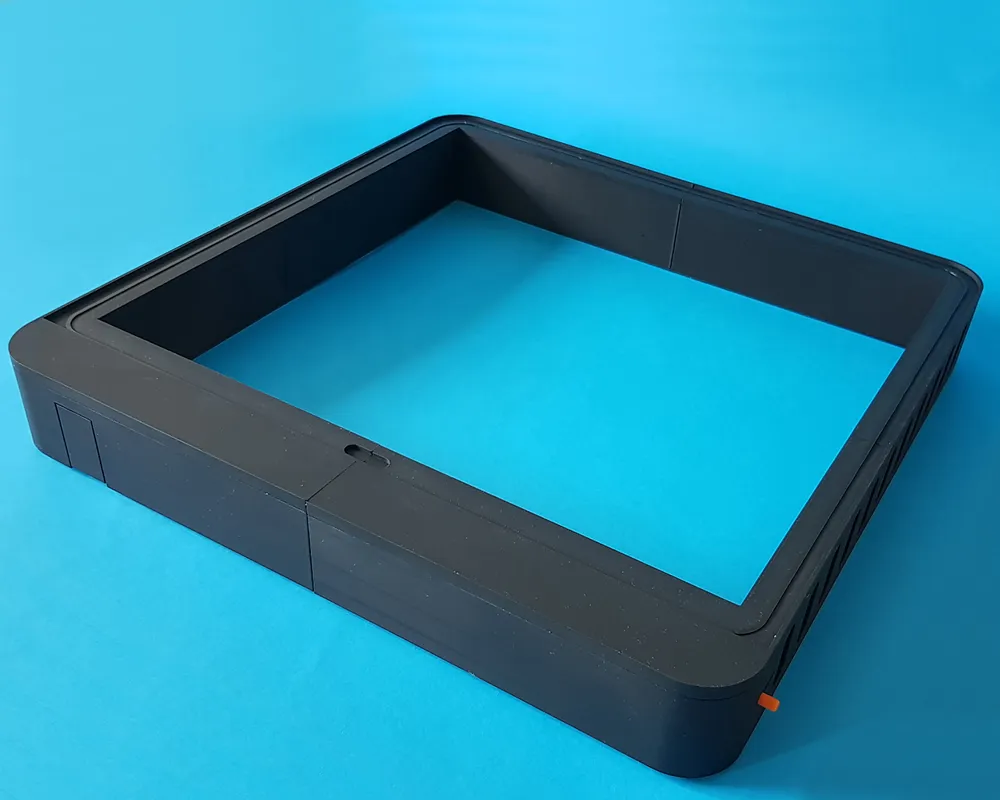

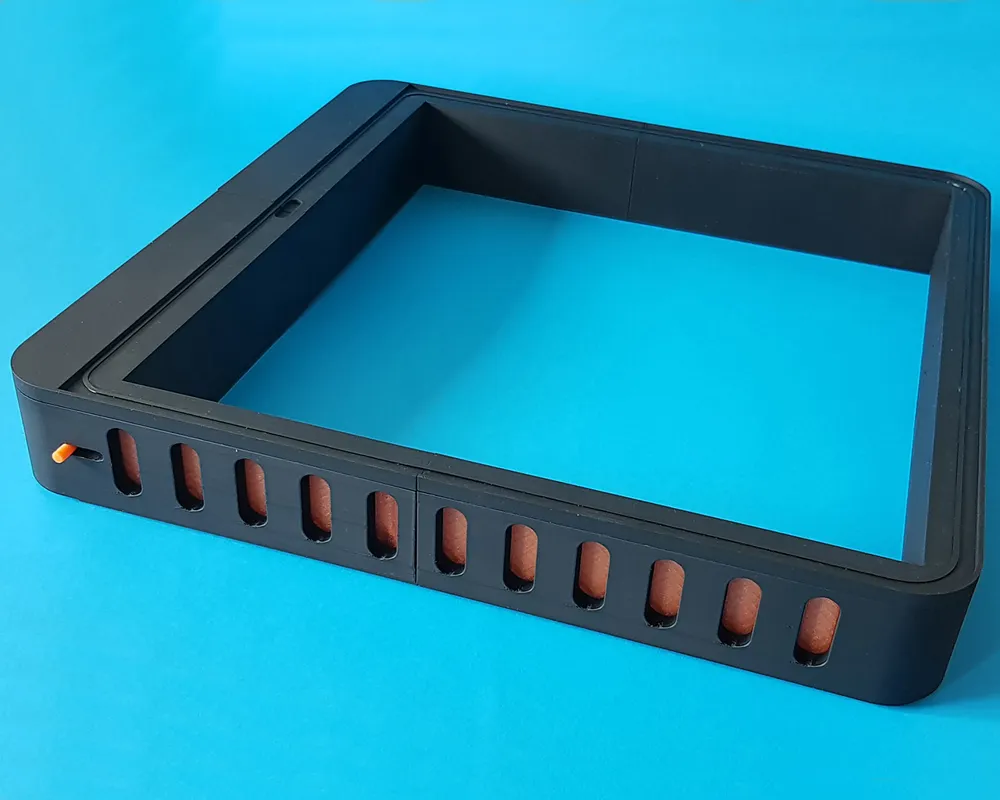

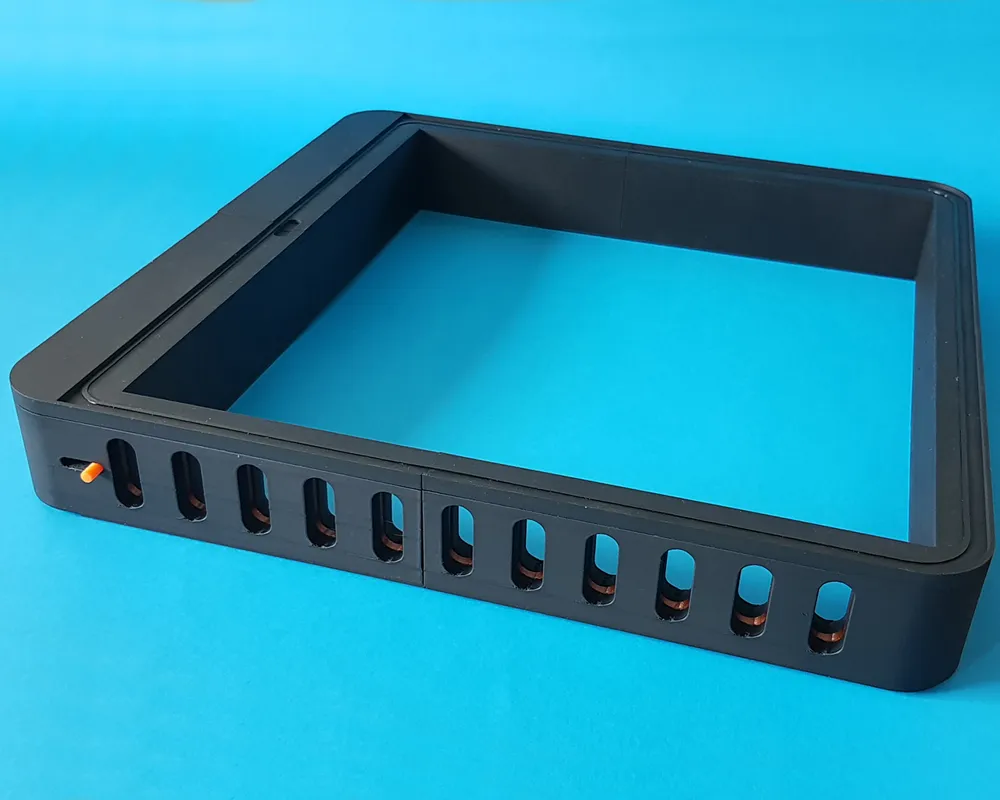

P1S TOP GLASS RISER WITH VENT

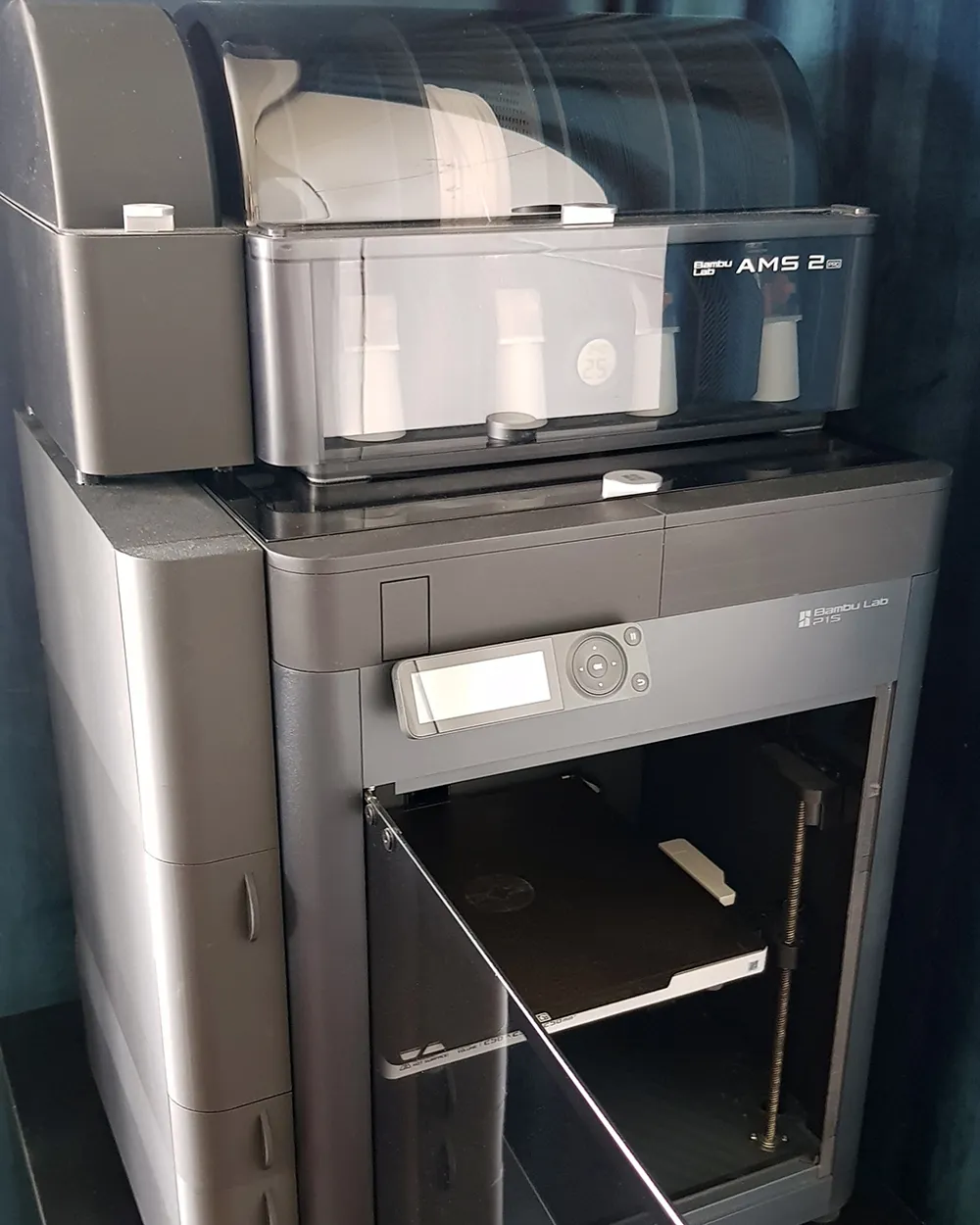

I present another improvement for the P1S printer.
During the design process, I was guided by the following guidelines:

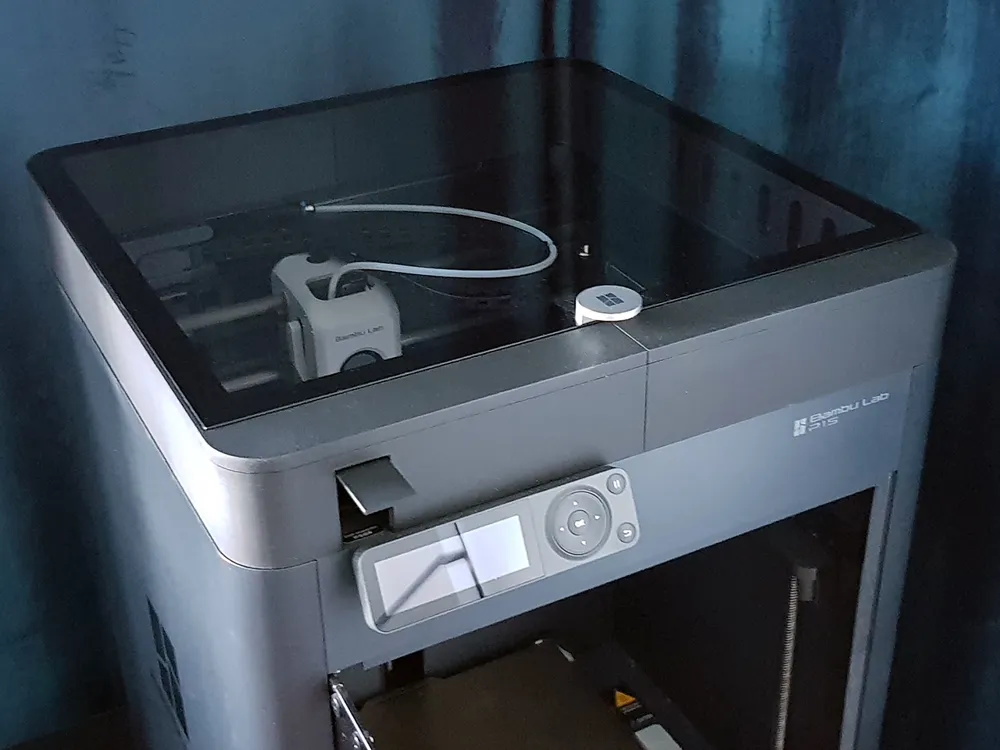

- raised top cover to prevent the PTFE tube from rubbing against it
- ability to print PLA with the door closed
- shape adapted to the printer body

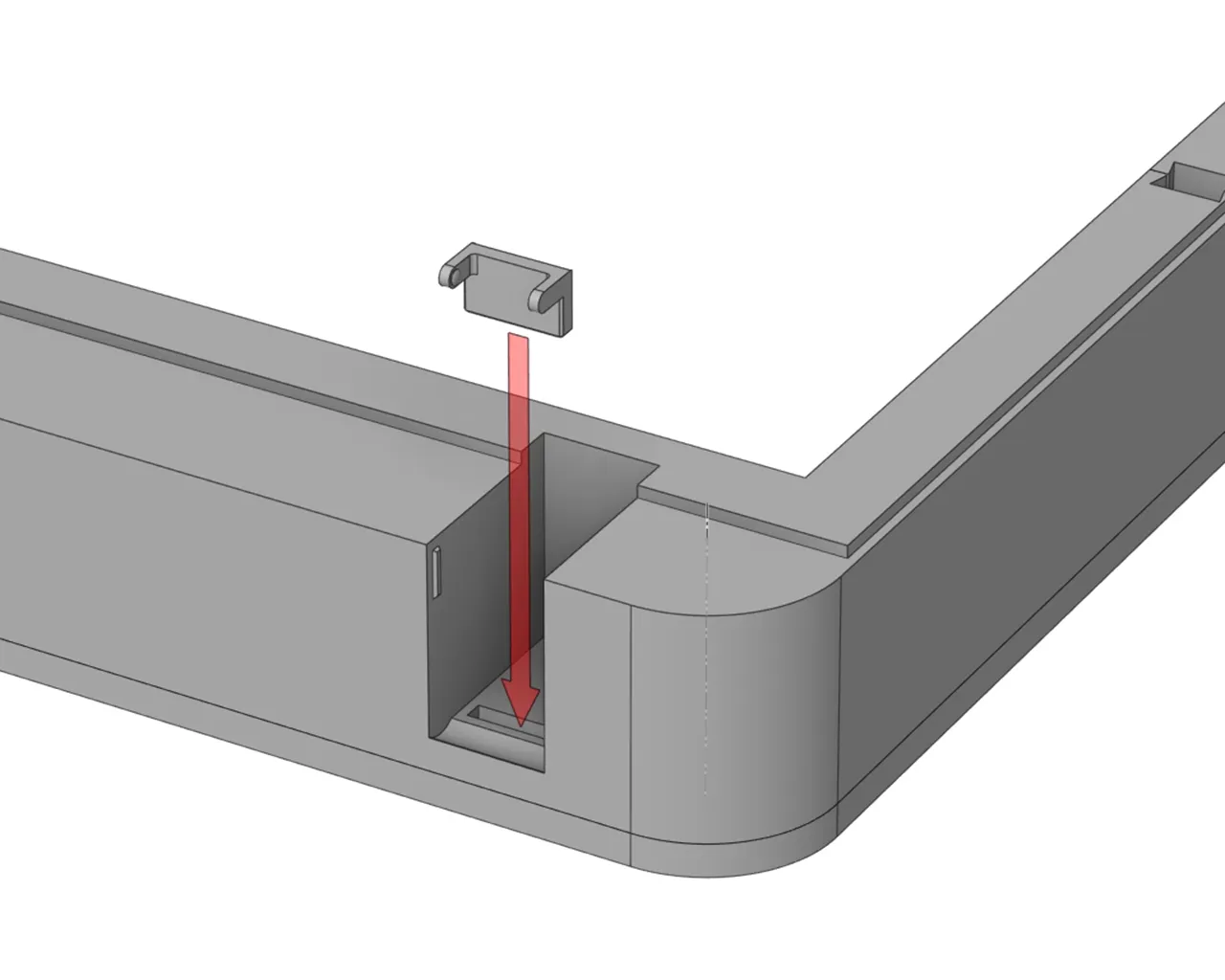

- SD card access
When printing PLA with the door open, the chamber temperature increased from 24°C to 32°C. With the door closed and the vent open, the temperature reached 37°C. A 5-degree temperature increase did not affect print quality, but noise decreased significantly.
To avoid risk of deformation due to temperature, I printed the riser from PETG.

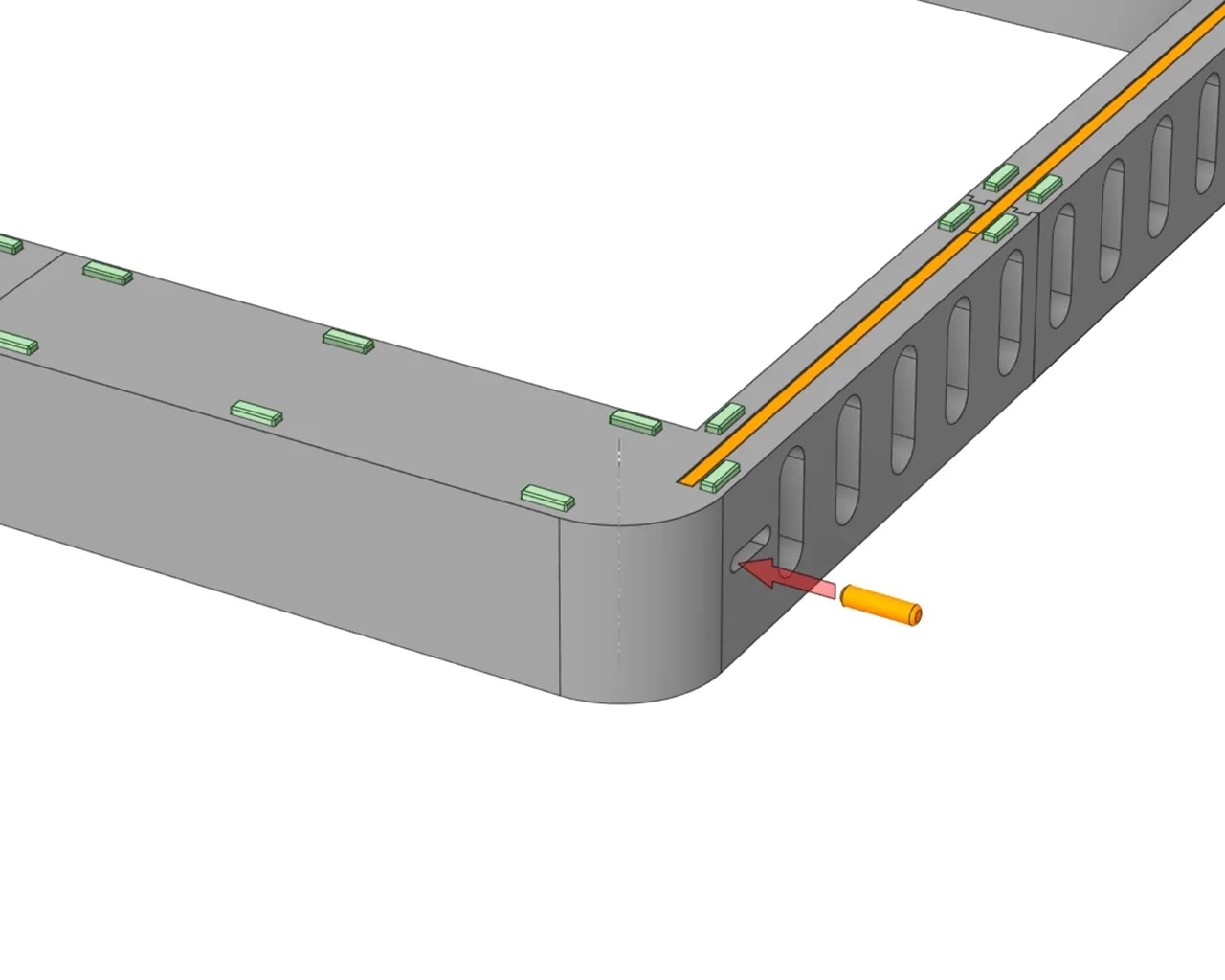

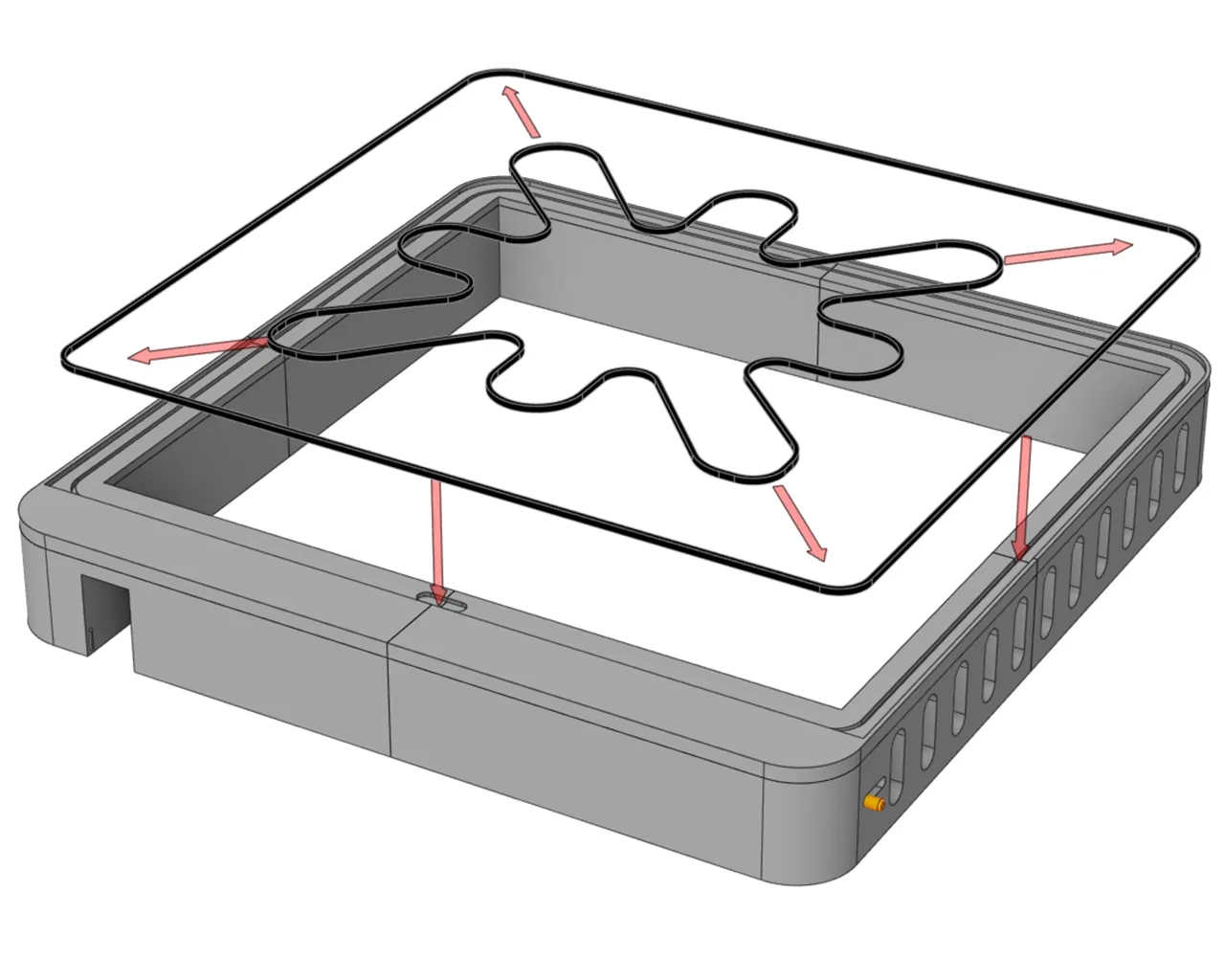

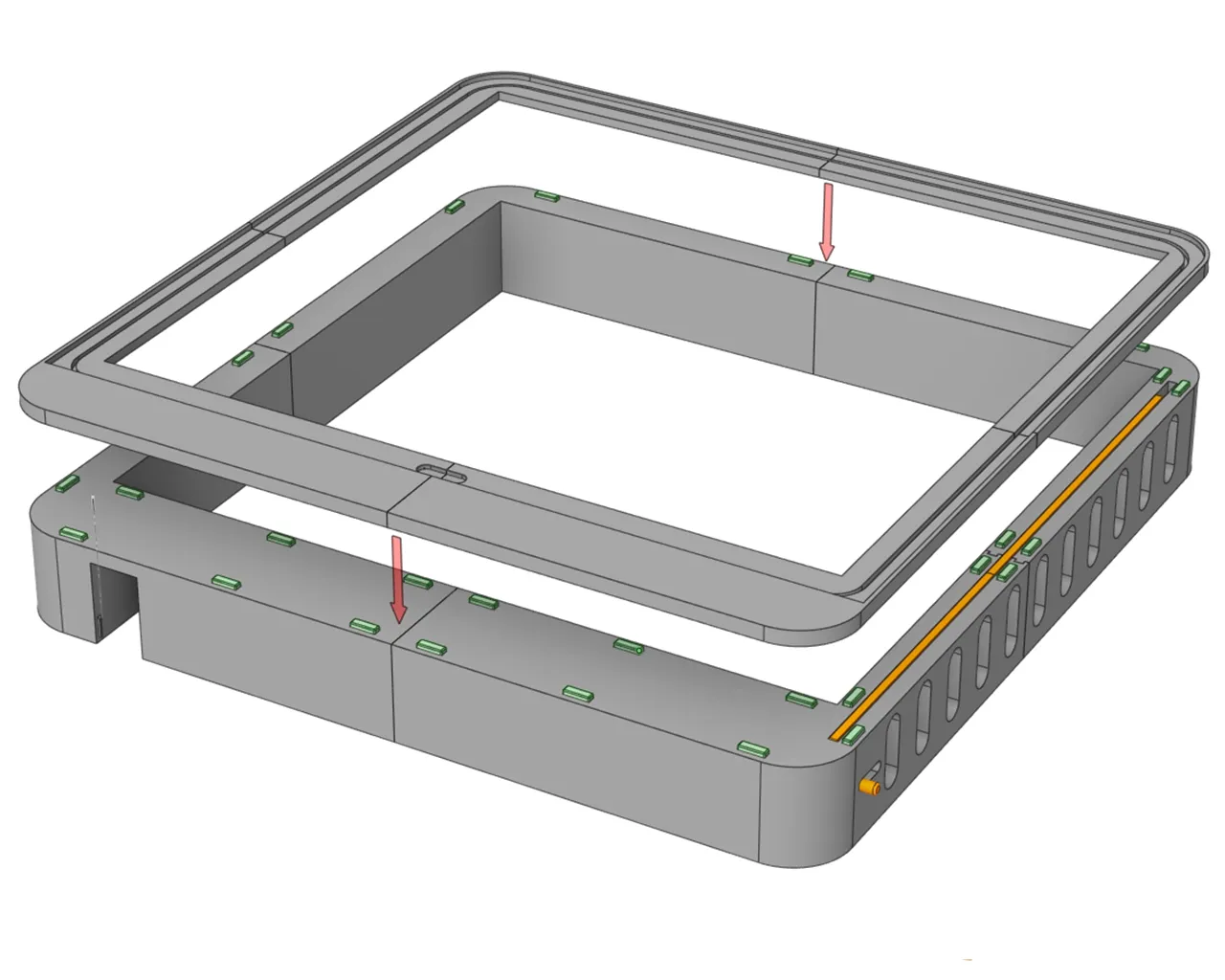

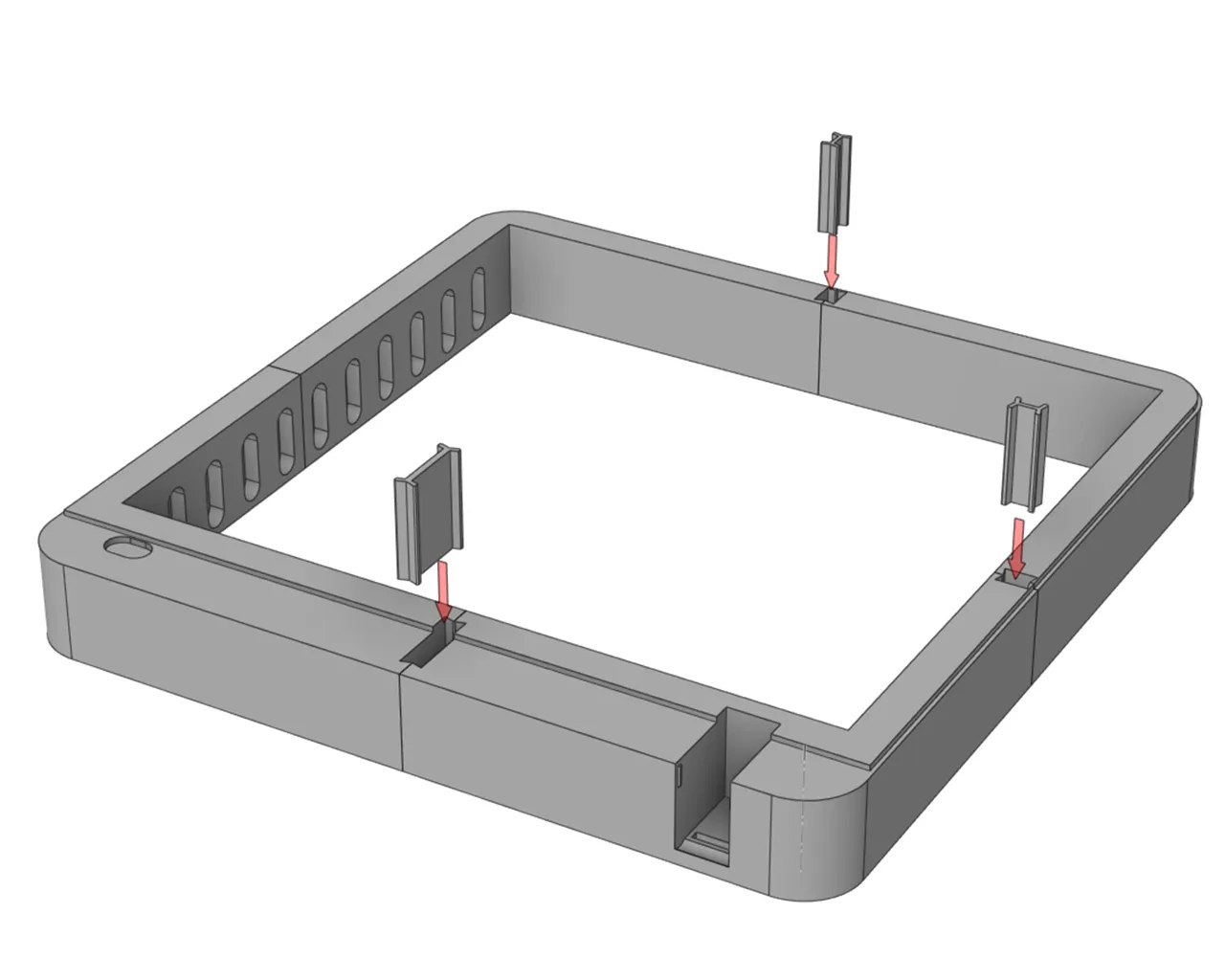

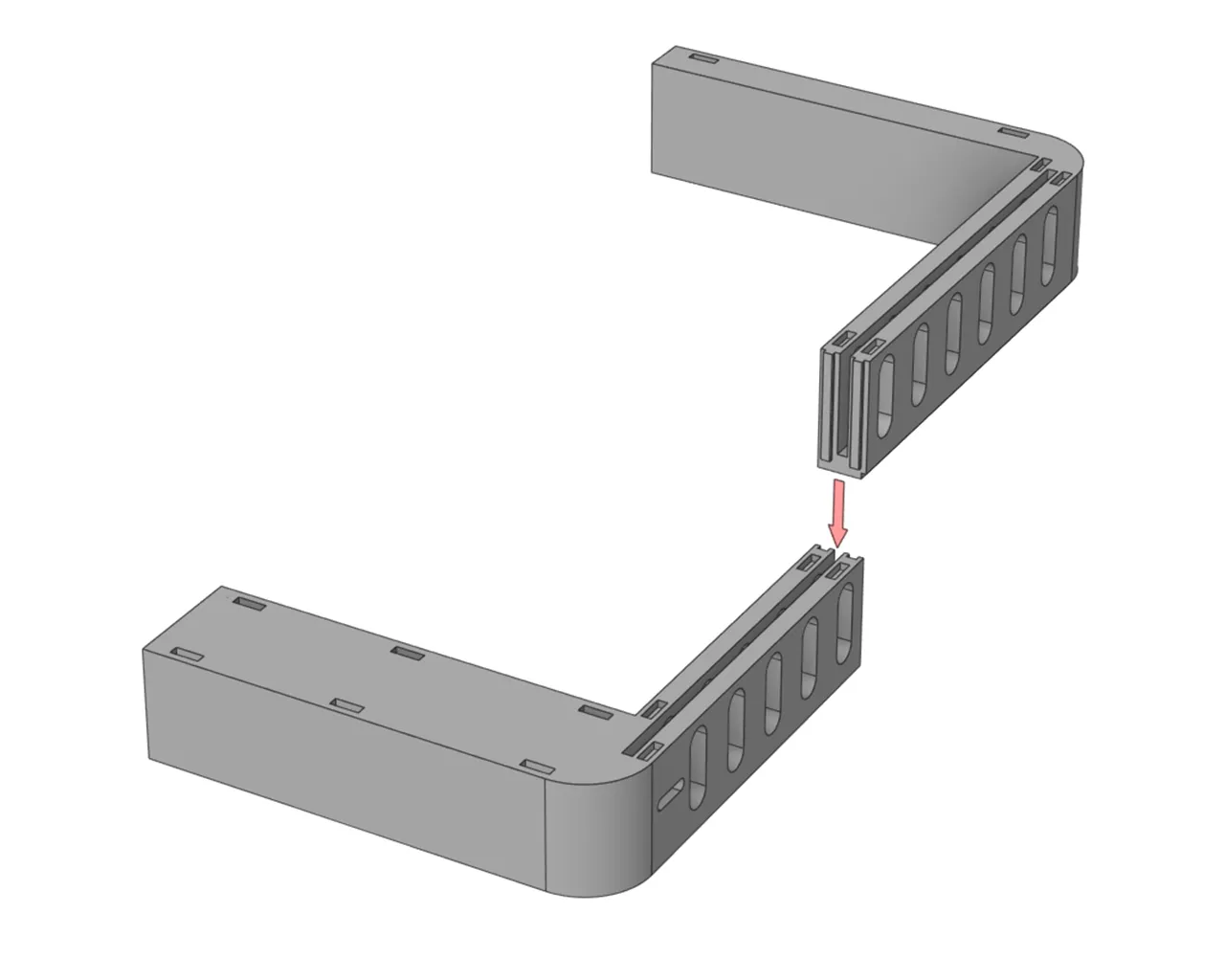

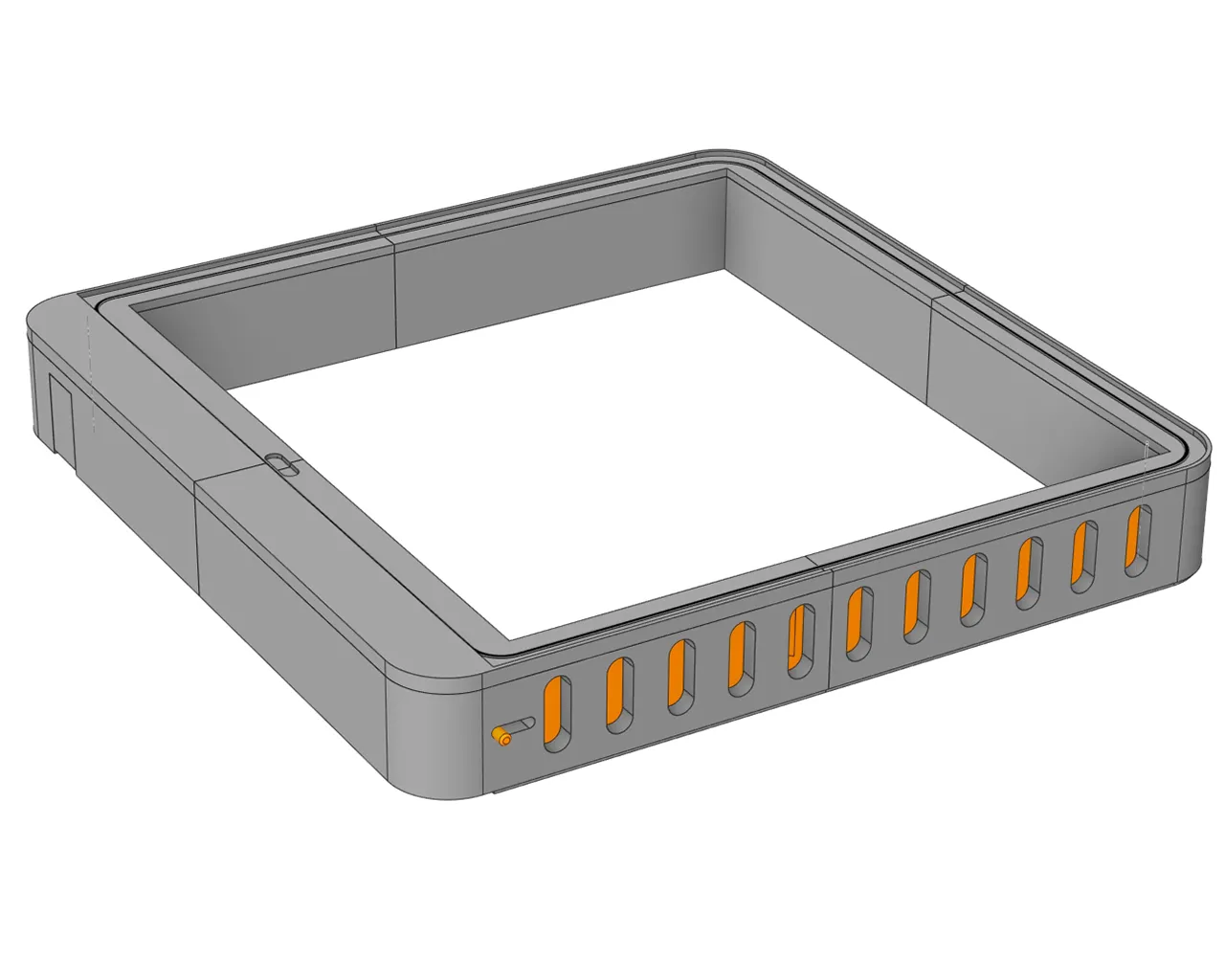

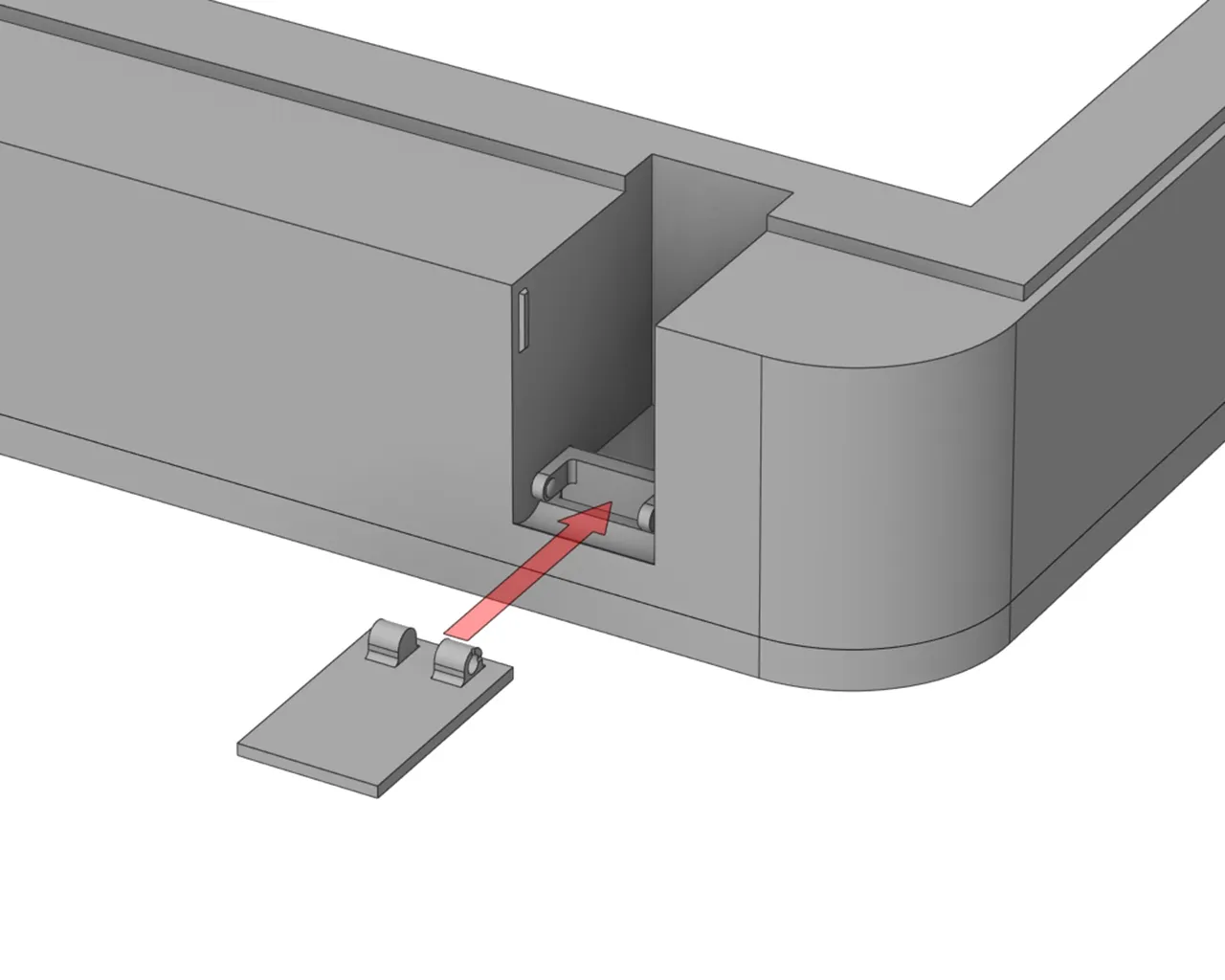

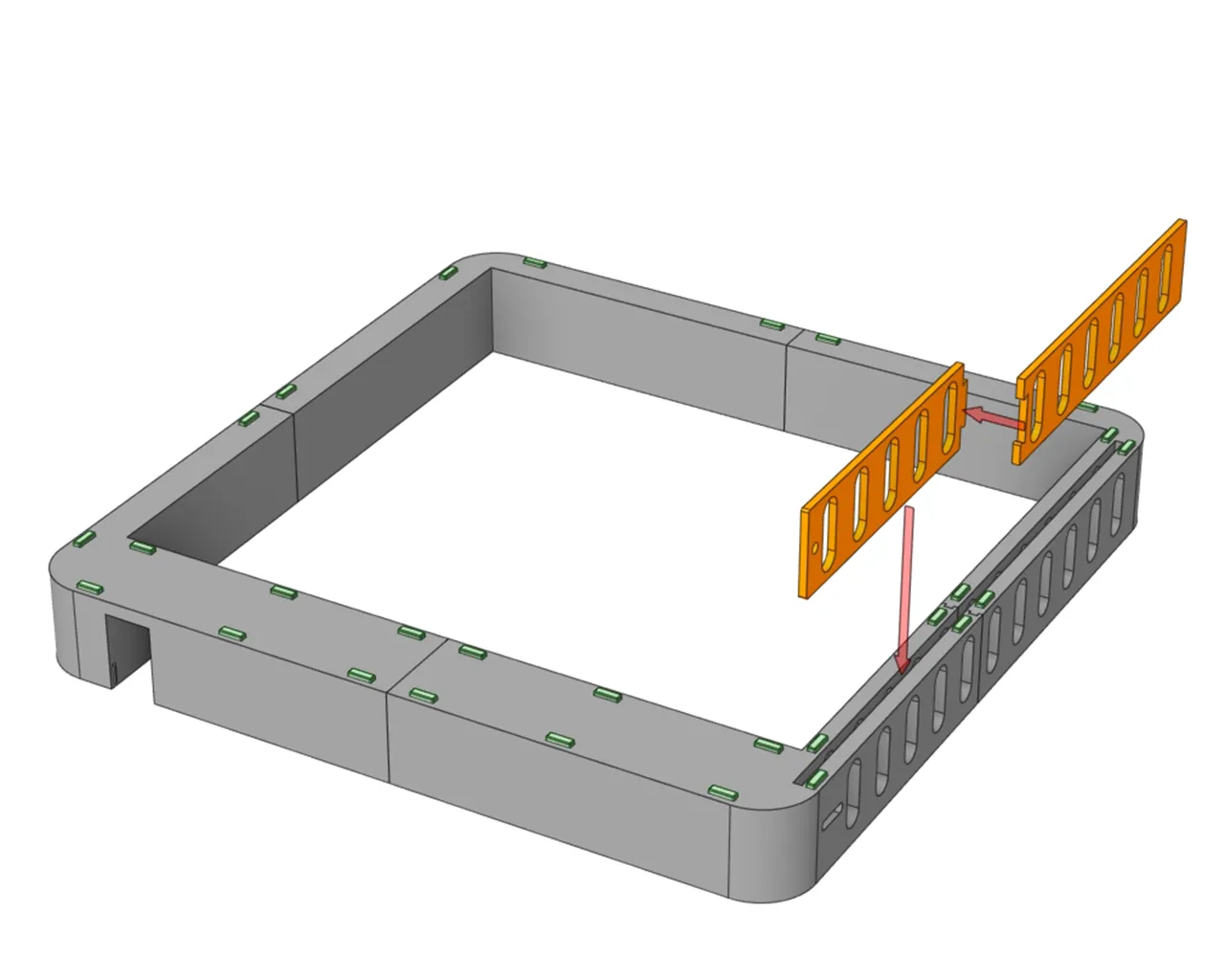

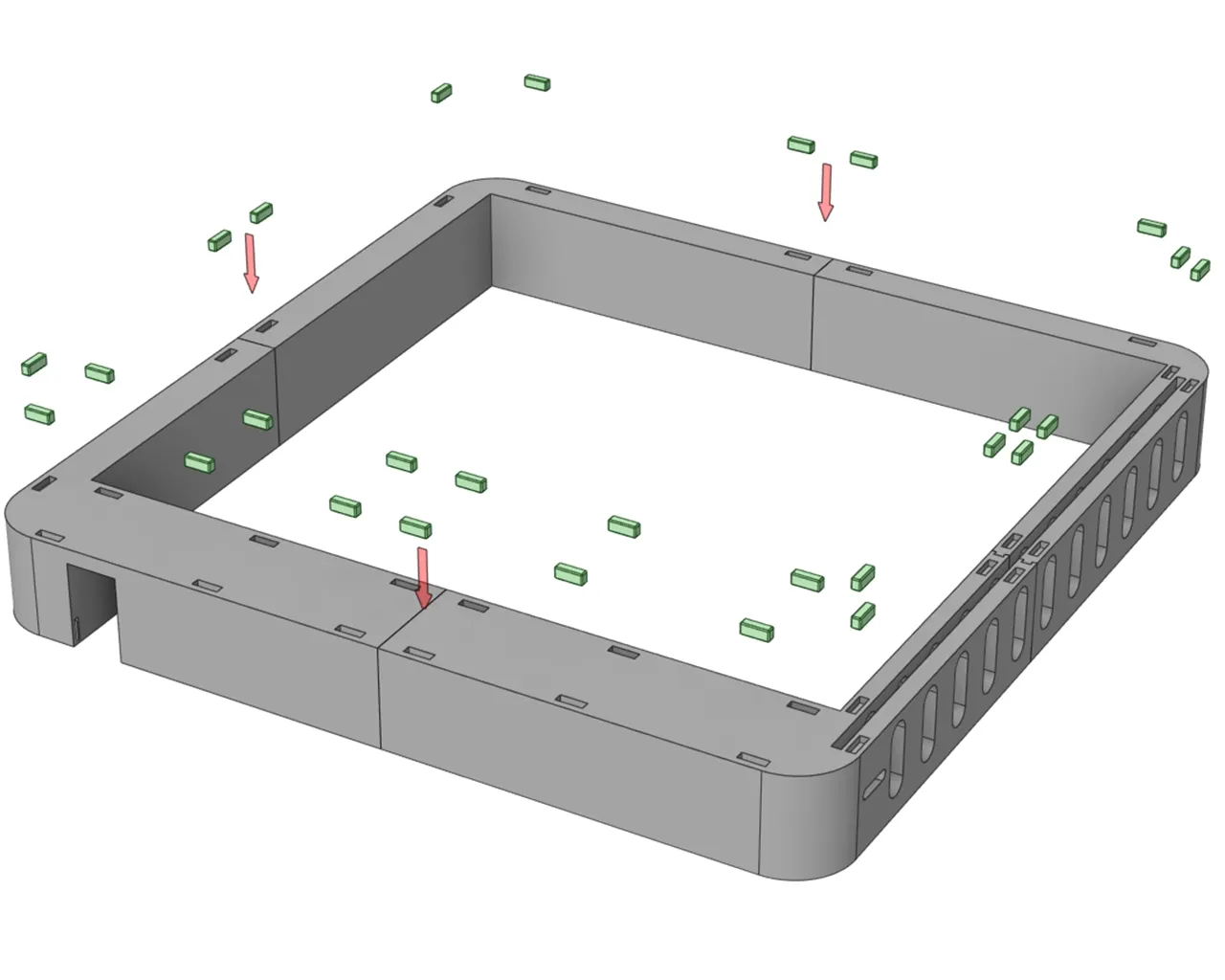

Assembly is so simple that drawings are sufficient without any description.
