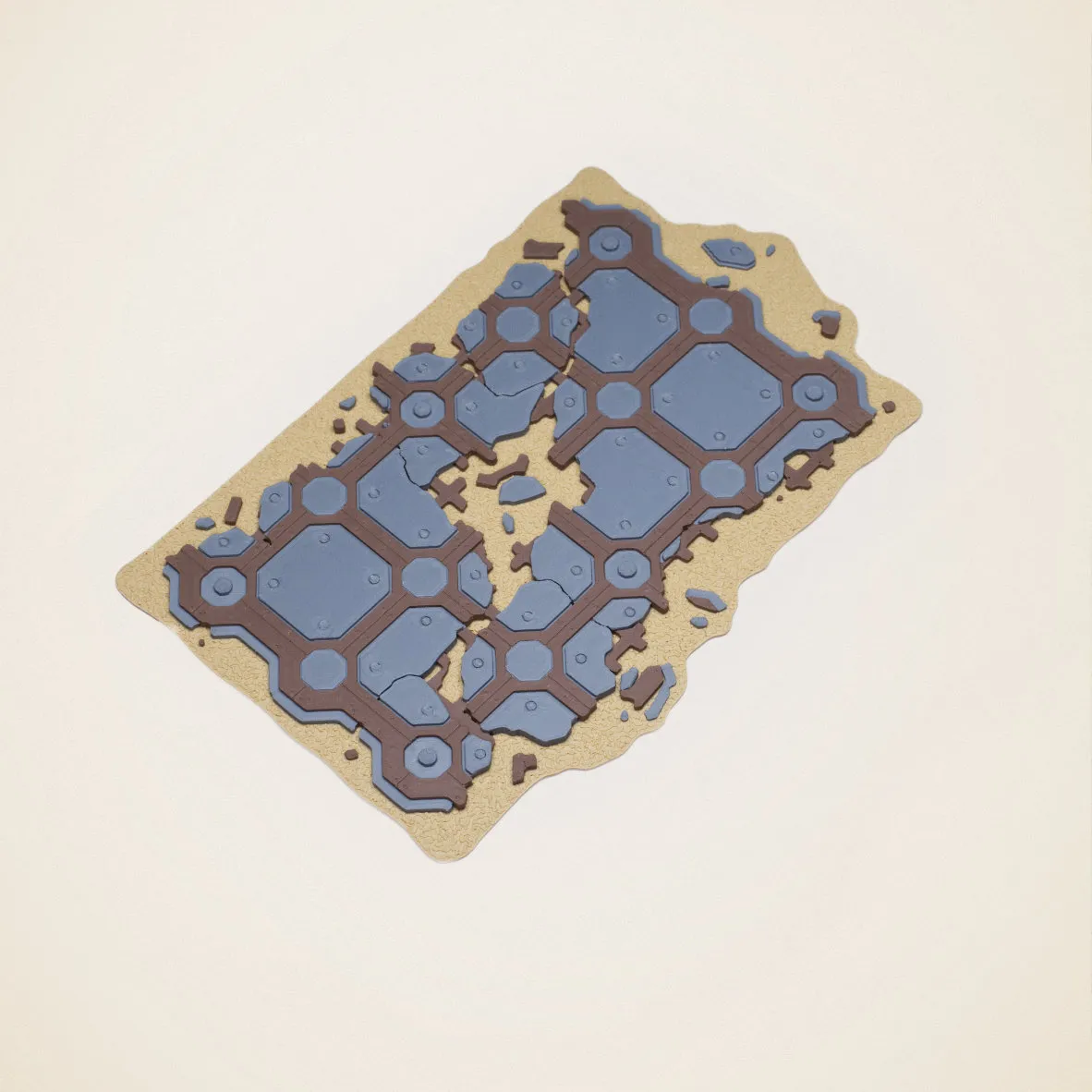

Sculpted area terrain footprint for 40K 11th Edition.
Designed to match official footprint sizes while adding surface detail that looks good when FDM printed.
⠀
Sizes
 | Large Triangles - 8” x 11.5” |

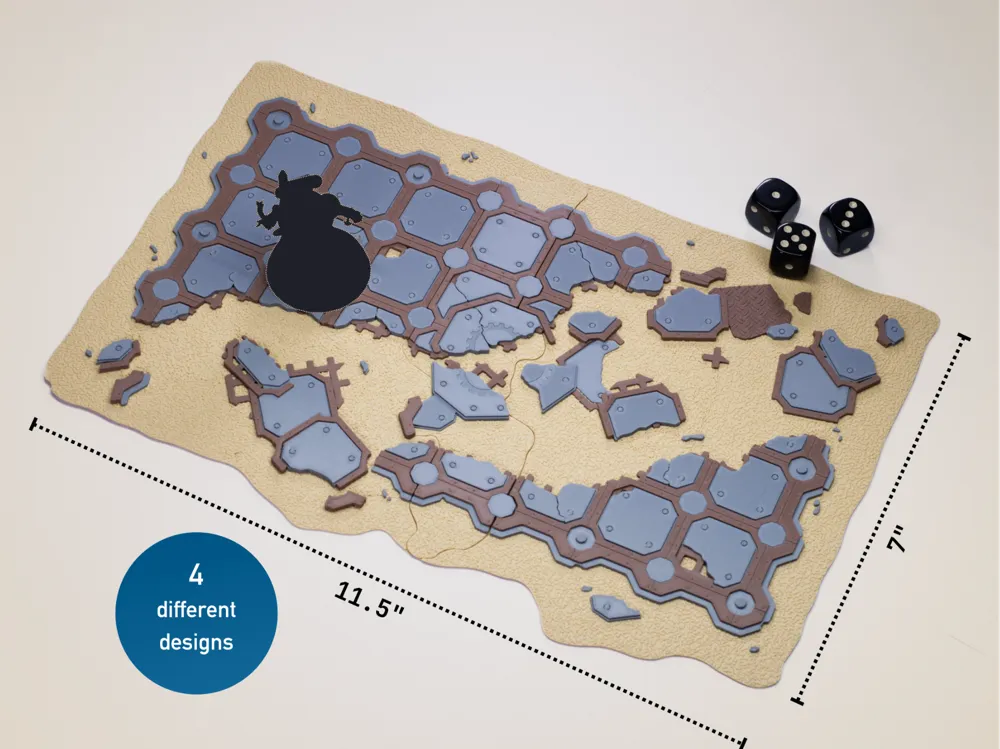

 | 📍 Large Rectangles - 7” x 11.5” |
 | Medium Rectangles - 6” x 4” |
 | Long Lines - 10” x 2.5” |
 | Short Lines - 6” x 2” |
⠀
Boost Me (for free)
If you like the model, a boost is greatly appreciated - it helps support further designs and iterations!
⠀
Features
- Custom design made to be compatible with Battlezone Manufactorum and Sector Imperialis buildings, but can be used with other terrain

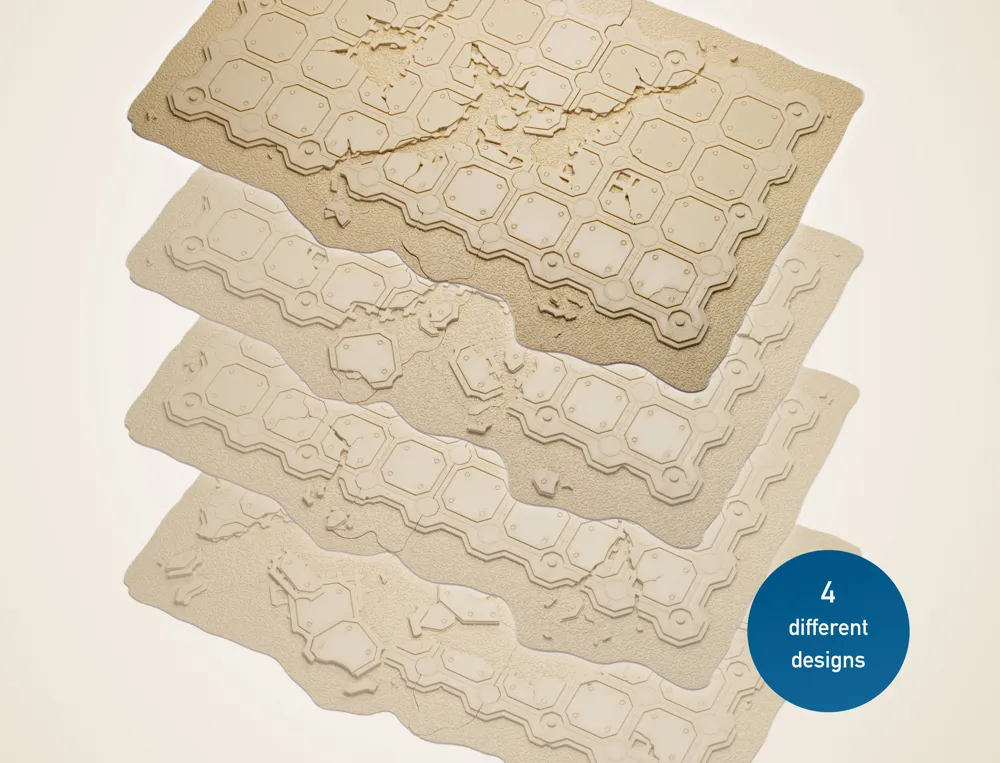

- 4 different designs for variety on the gaming table
- Optimised for 0.2mm layers and fast prints
- Flat top surfaces minimise visible layer lines

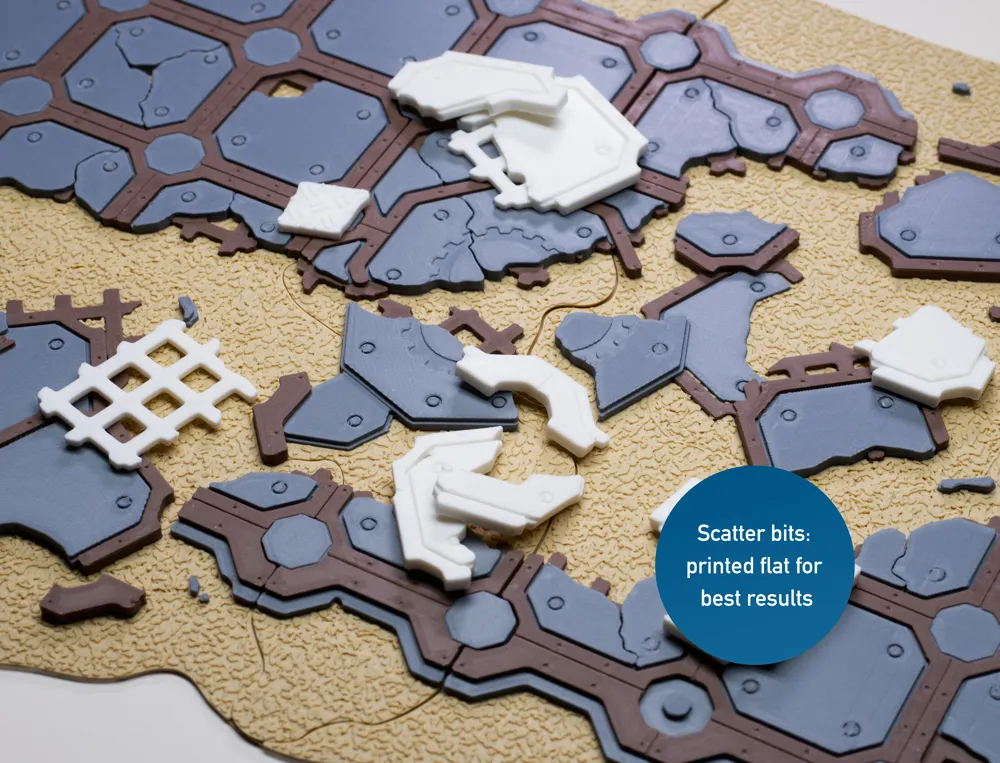

- Scatter bits can be placed at an angle but are printed flat

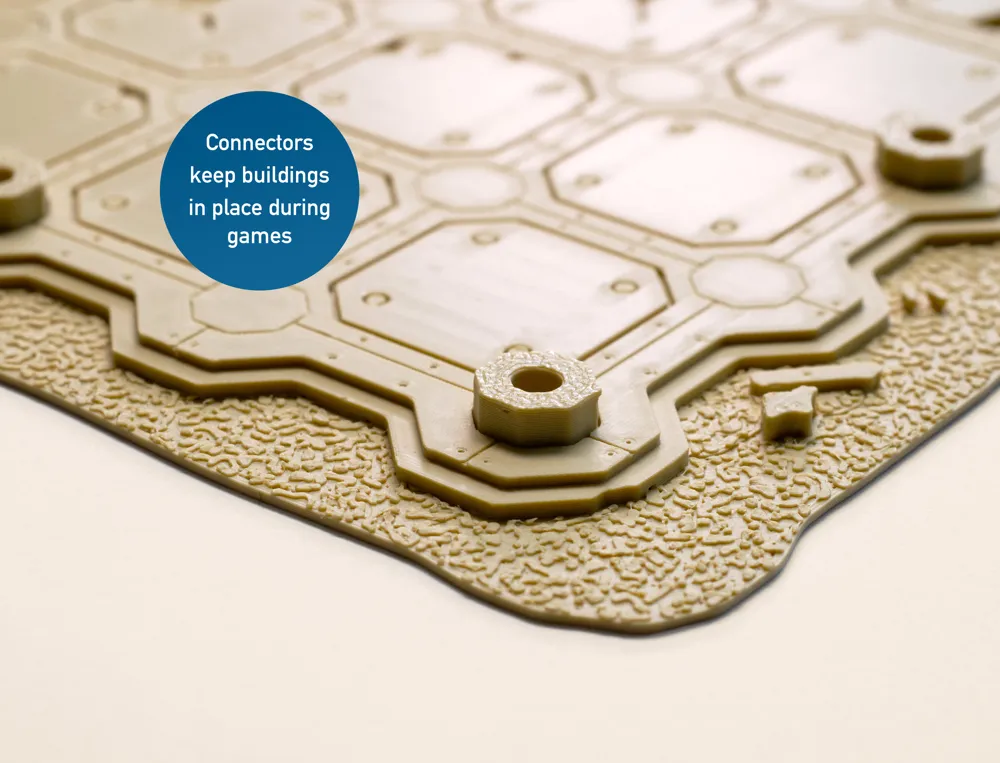

- Prevent compatible buildings from sliding around using included connectors
- Anti-Slip solution: add 0.9x16mm rubber bands to prevent your bases from sliding on the table
⠀
Printing notes
- Make sure you have good bed adhesion! Please clean your plate with dish soap before printing.
- Let the model cool completely before removing it from the build plate.

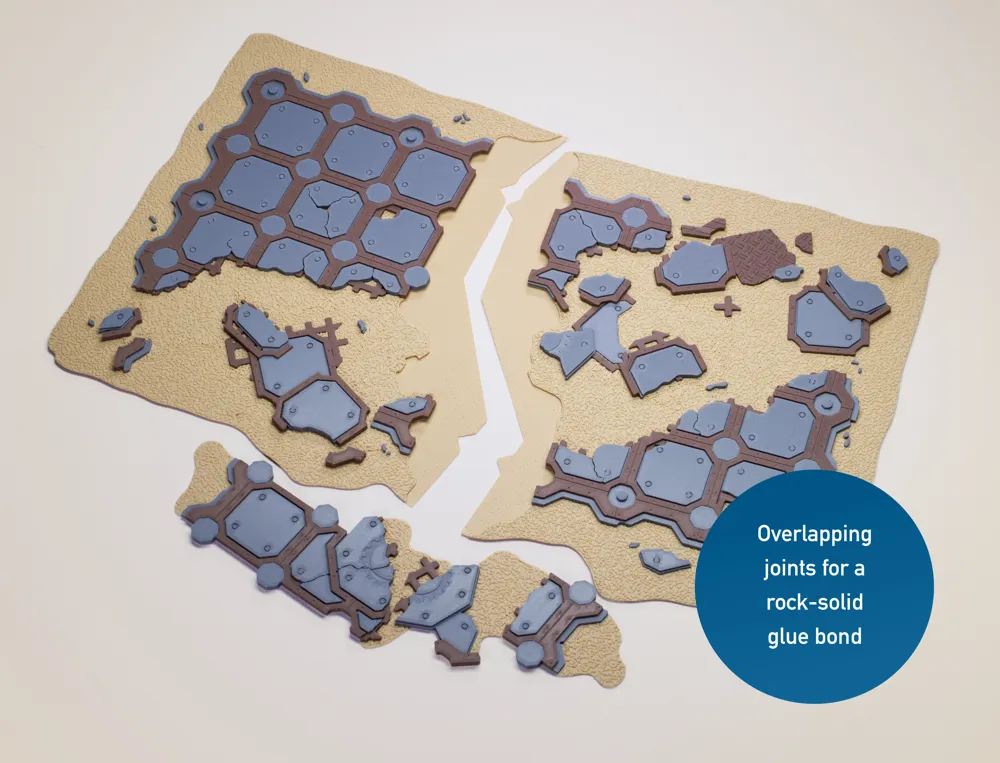

Overlapping joints are only 2 layers thick to keep the base slim. Remove carefully!
⠀
⁉️
Which plates should I print?
How do I mirror a footprint?Can I print without the sand texture?
How can I reduce slicing/print time?
→ Check the FAQ PDF below in the Documentation section
⠀
Assembly
P1S equivalent or larger
- A, B and C parts form one Rectangle (e.g. A1, B1 and C1 for design 1)
- Align A and B using the triangle cutout
- Glue C on top using CA (superglue)
- Add scatter pieces wherever you want!
A1 mini
- 1A Top, 1A Bottom, 1A Con form one subassembly (1B Top, 1B Bottom, 1B Con form another, and so on)
- Use these subassemblies as parts A and B and follow P1S assembly guide
The base includes a subtle textured top surface on the ground. You can enhance it further with sand, rocks, or tufts!
⠀
⠀
➡️ Follow me for other sizes and designs.
Have fun printing and let me know your ideas!
⠀
⠀
⠀
If you want to follow my progress, join me for free on patreon.com/marcorei.
A commercial license is also available if you want to print and sell my original models.
