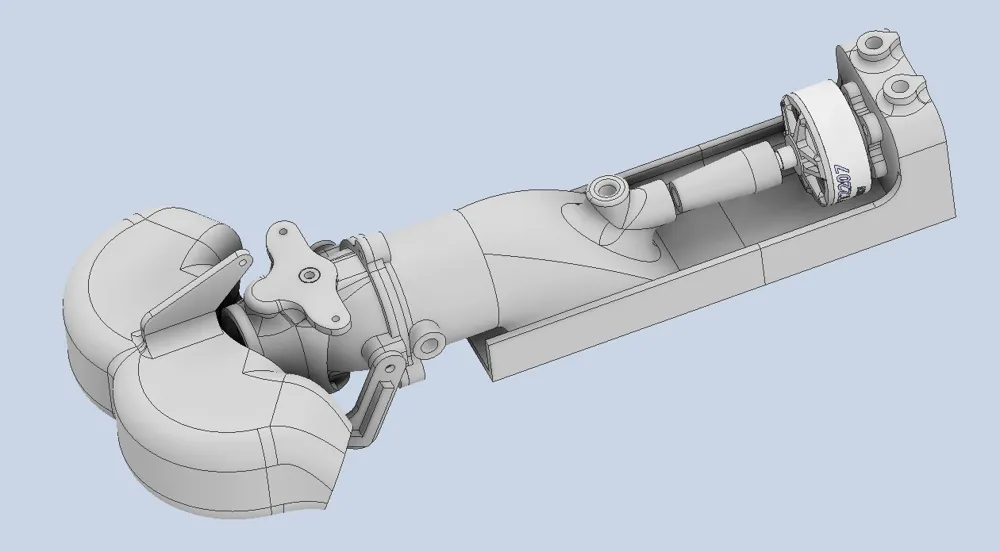

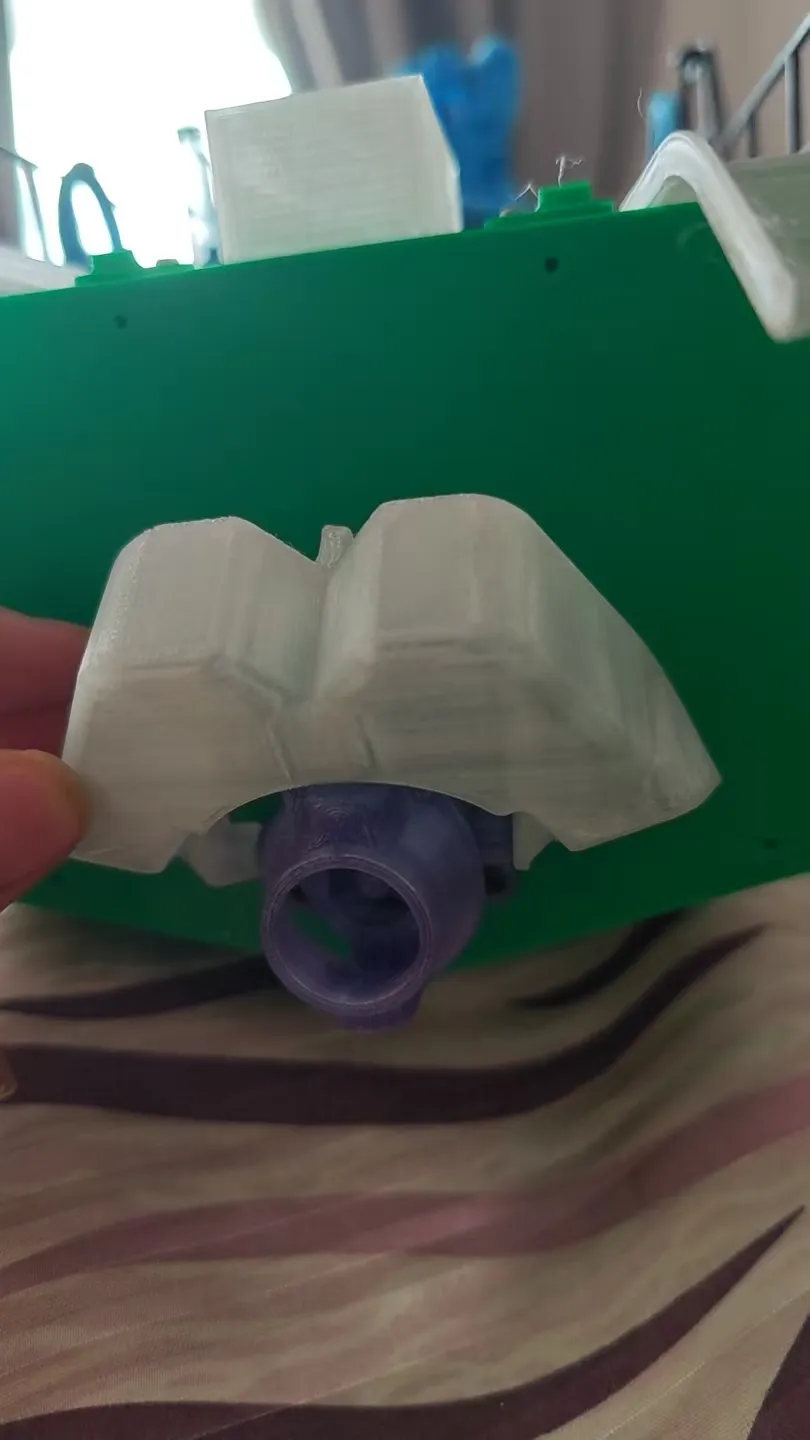

24mm Jet Thruster for 5-inch FPV Drone Power (Bucket Reverse)

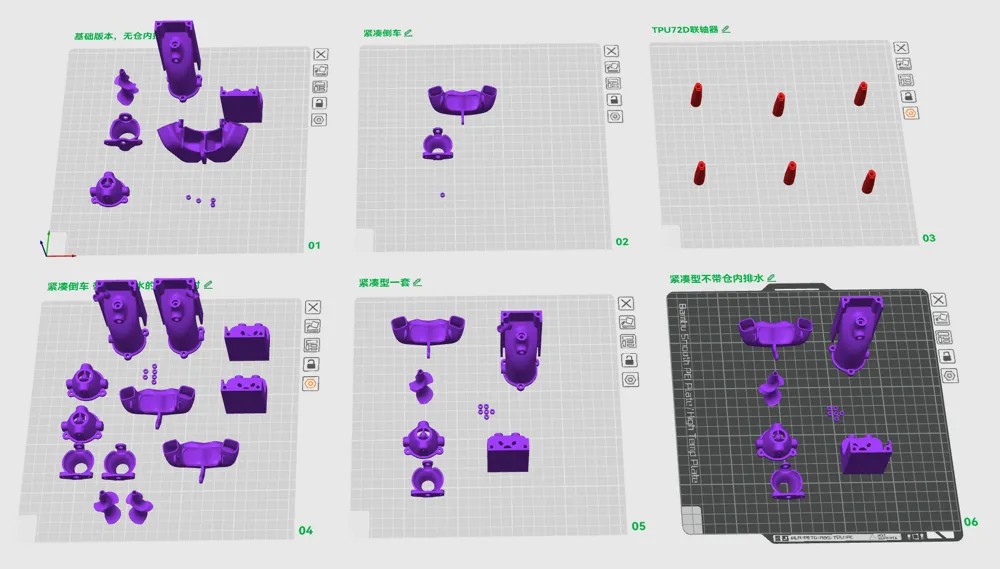

Print Profile(2)
Description

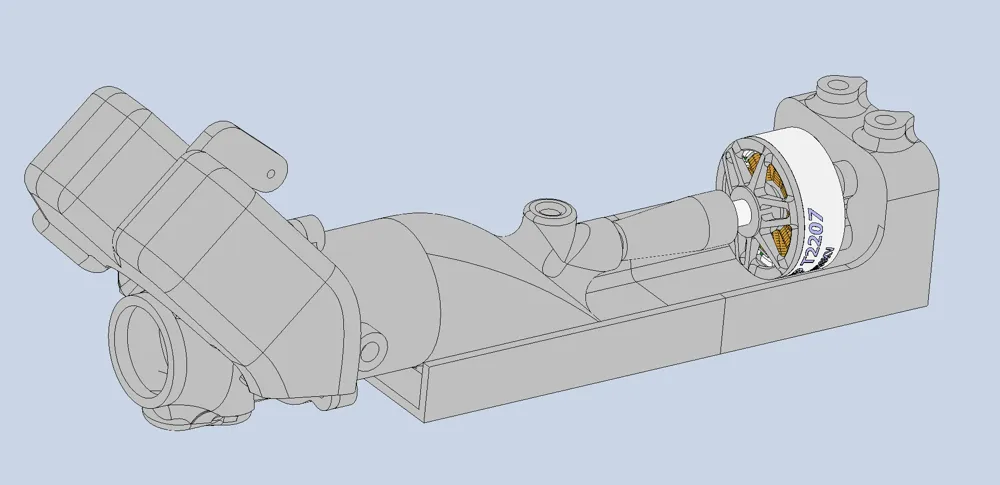

Jet thruster for 5-inch FPV drone power
5-inch power refers to common 2306, 2205, 2207, etc outer rotor brushless motors used in FPV drones or RC aircraft with an M5 output shaft suitable for 5-inch propellers and an outer diameter of less than 30mm
3~4S 2000~2700KV
5~6S 1700~2000KV
It is recommended to use PETG, ABS, and their CF varieties, which are relatively strong filaments for printing The coupler uses TPU72D filament, or Bambu Lab's official TPU AMS filament can also be tried
Two 3*6*2.5 bearings stainless steel ones are recommended
3mm diameter 100mm long stainless steel main shaft
3*5 coupler, although a TPU coupler is included, it is not recommended for use
Three M2*3*3 heat set inserts
Three M2*8 screws
Four M2*8 self-tapping screws

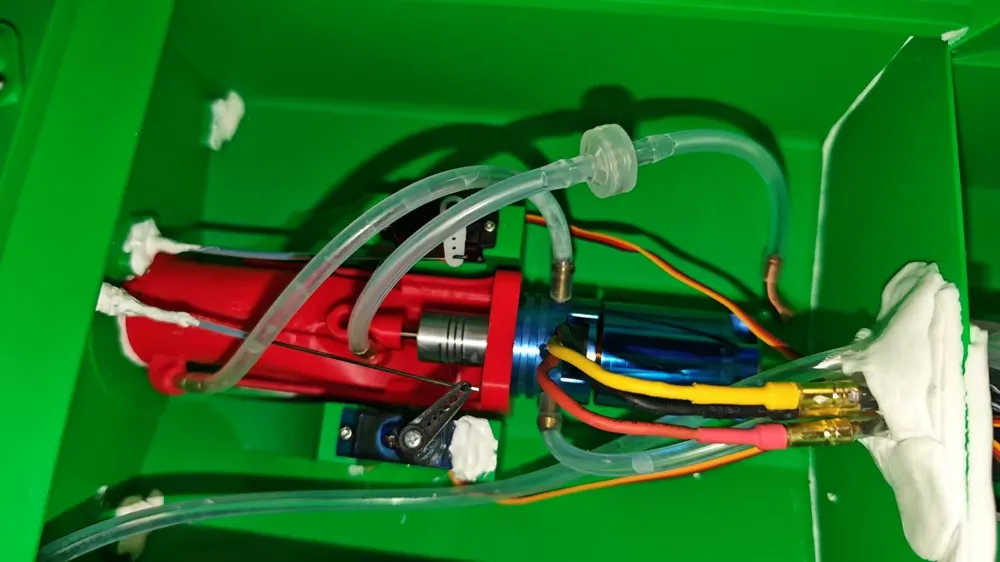

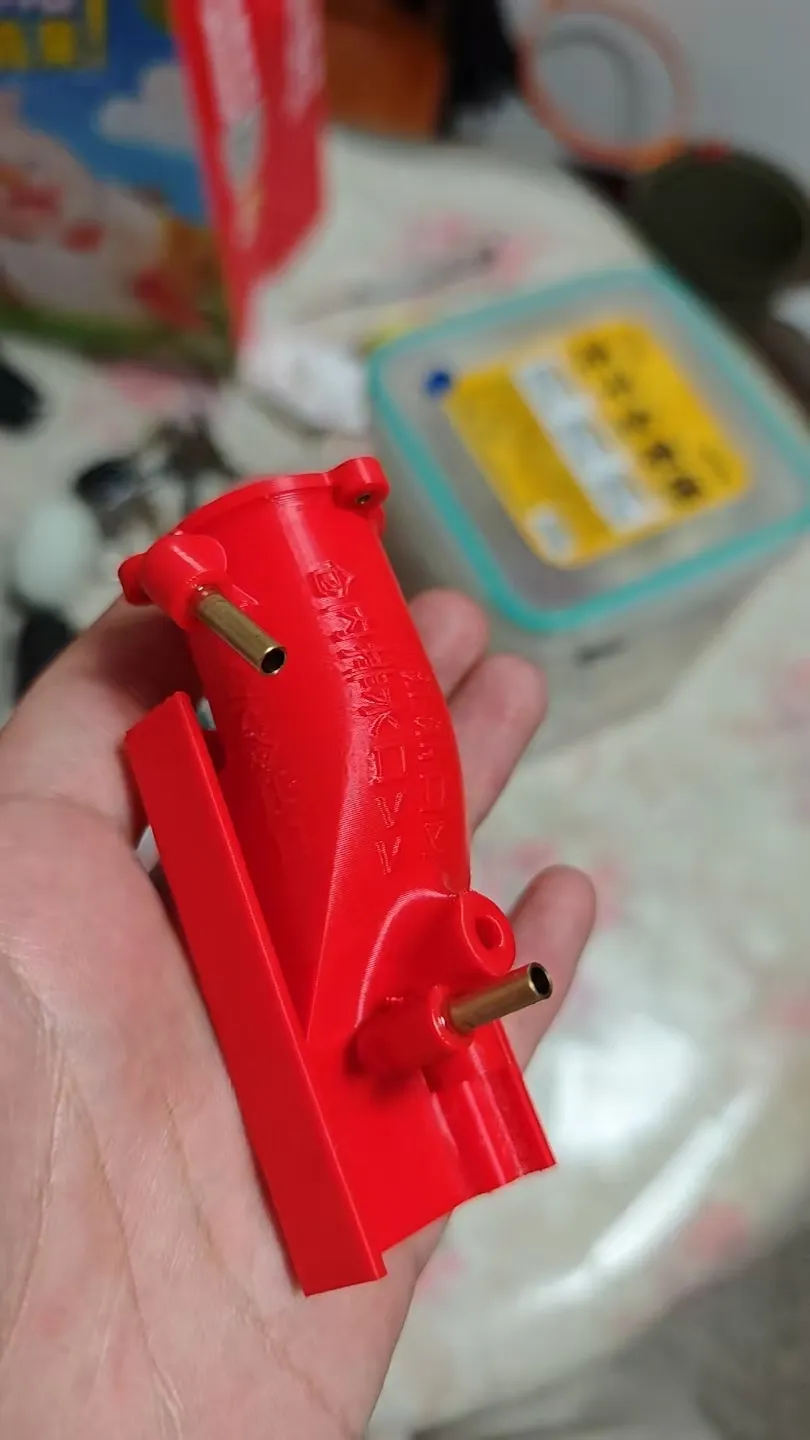

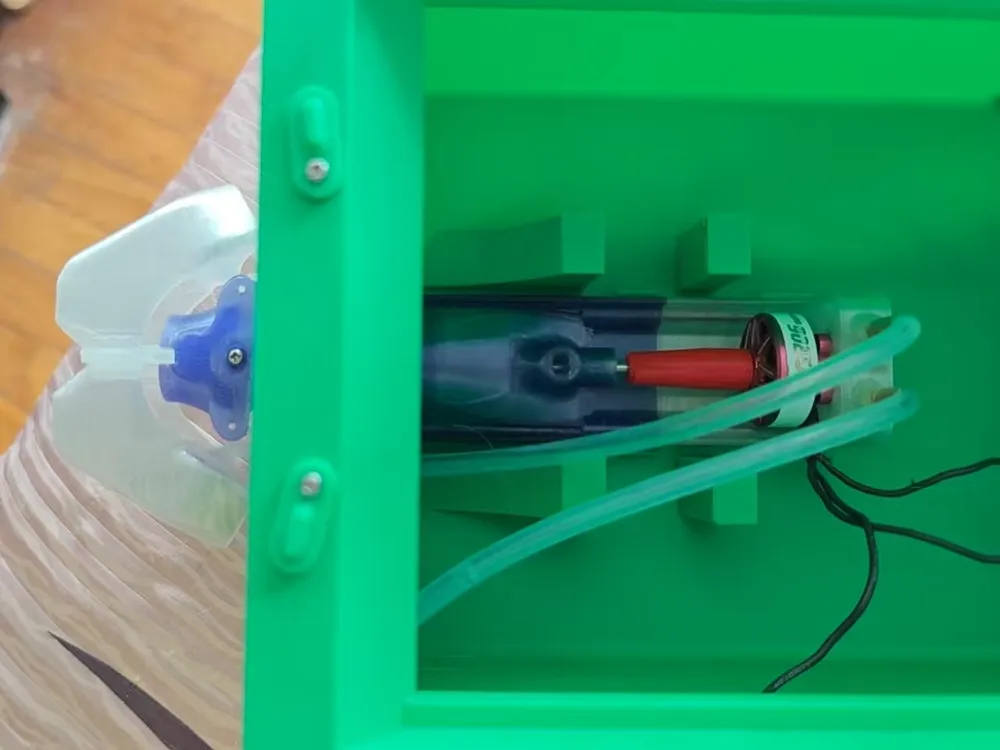

Two copper tubes 3mm inner diameter 4mm outer diameter 15mm length for water cooling connections
Do not run at high throttle for extended periods without load, the material will not hold up, Also do not expect this power system to provide high speeds, as it is mainly adapted for some realistic boat models to be released later, such as the CB90 assault boat
