120mm Fan To 100mm Pipe Adaptors
IP Report
Print Profile(5)

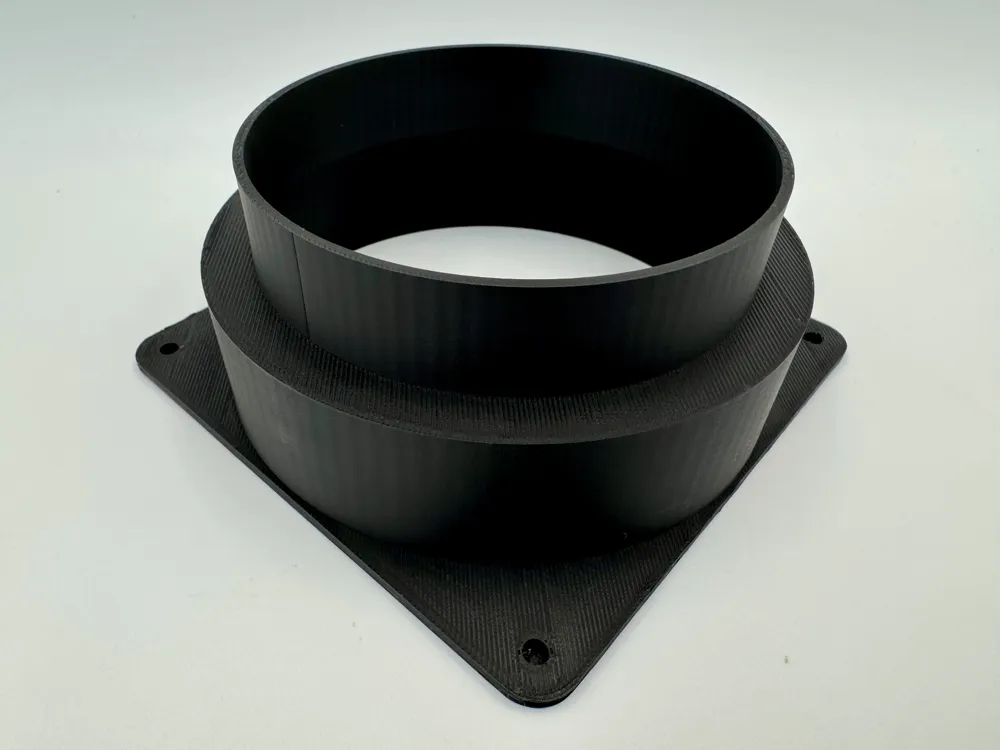

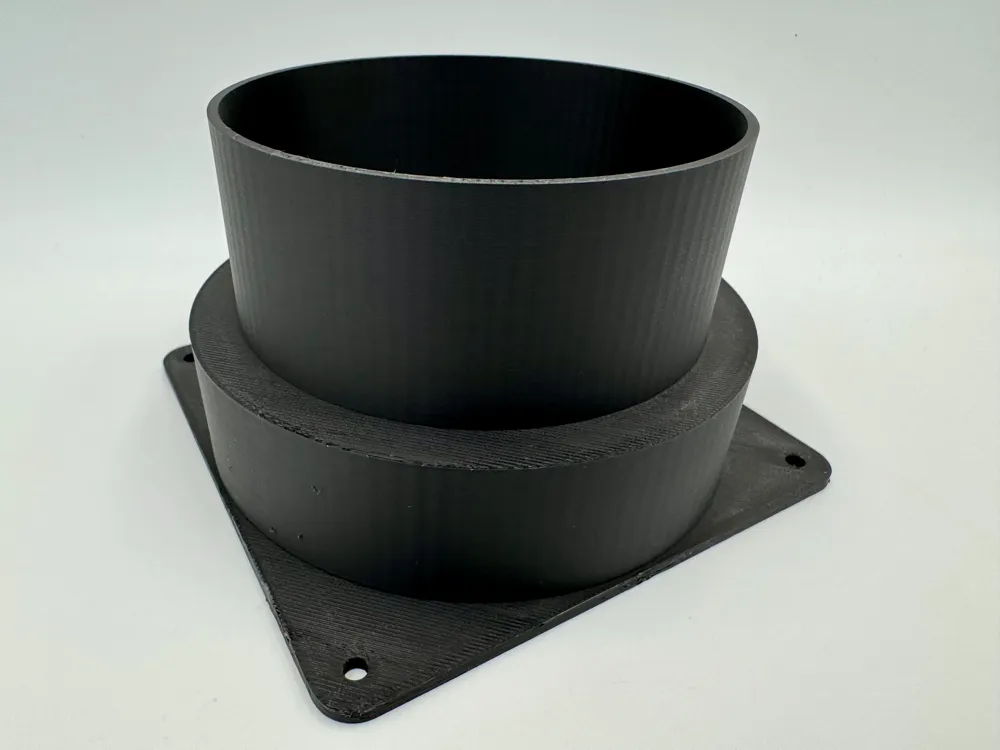

Basic, long clamp section
Designer
1.6 h
1 plate
Basic, short clamp section
Designer
1.3 h
1 plate

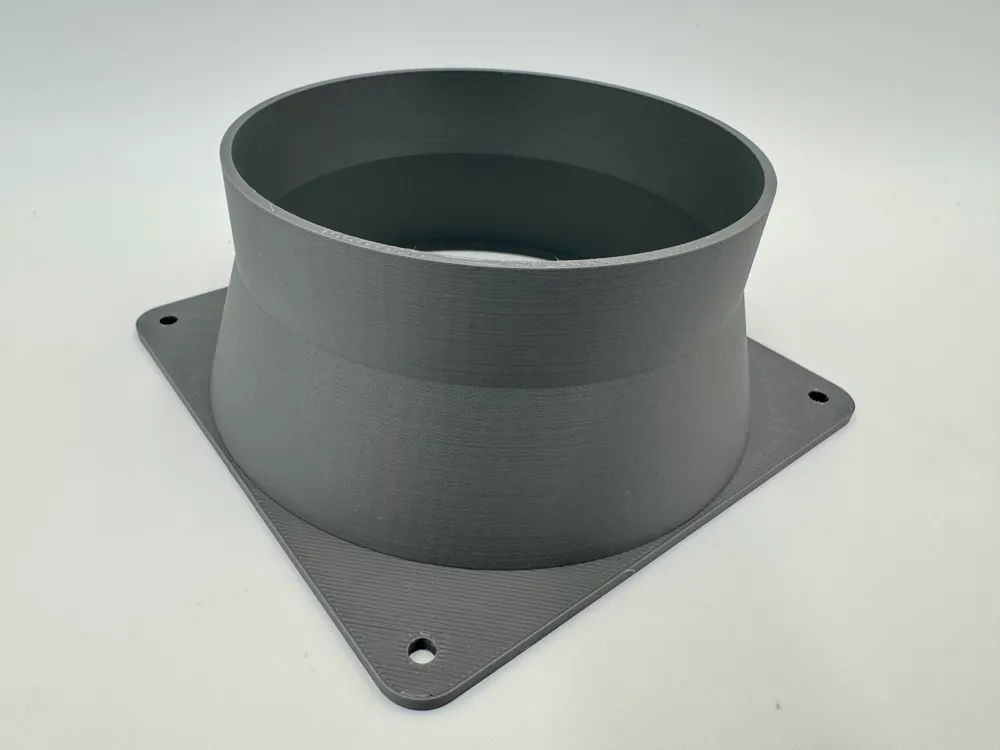

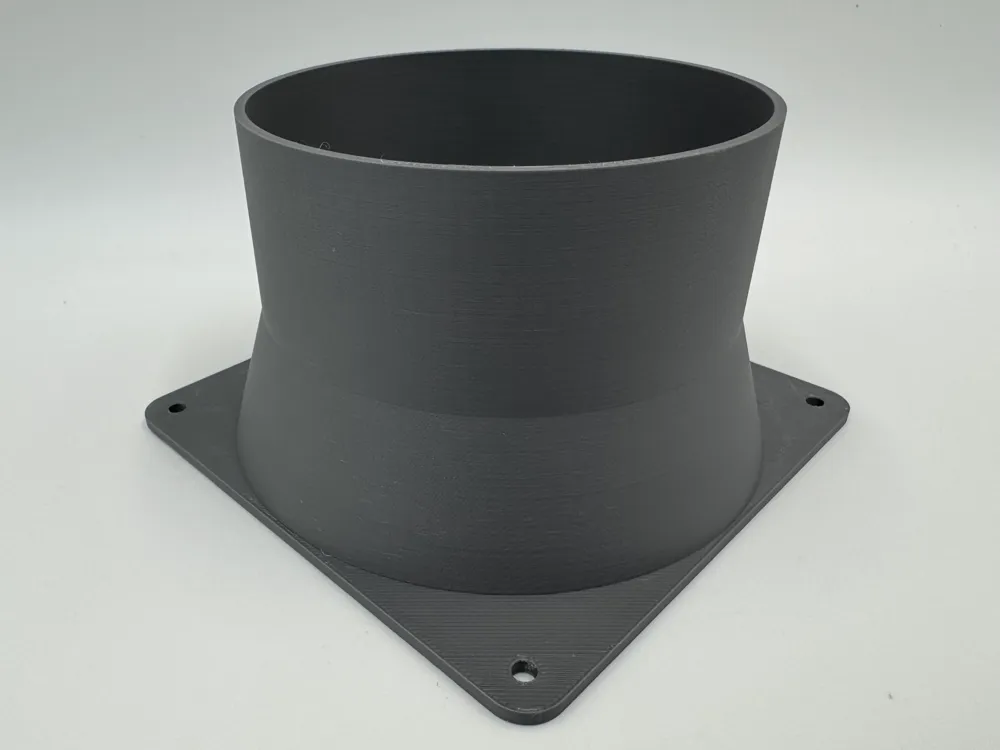

Modern, long clamp section
Designer
2.1 h
1 plate
Modern, short clamp section
Designer
1.8 h
1 plate
Click to see more
Open in Bambu Studio
Boost
427
1230
94
28
1.4 k
779
Released
Description
Design
These items are made to fit to standard 120mm fans commonly made by computer, chassis and rack fan manufacturers to connect to a 100mm flexible ventilation pipe with a clamp.

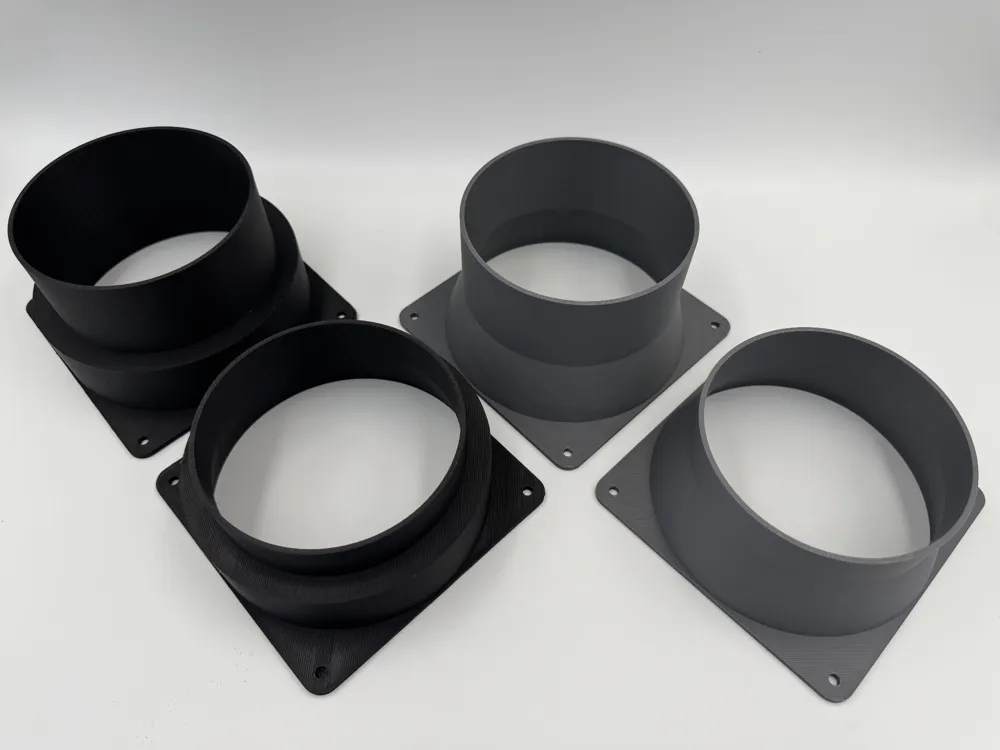

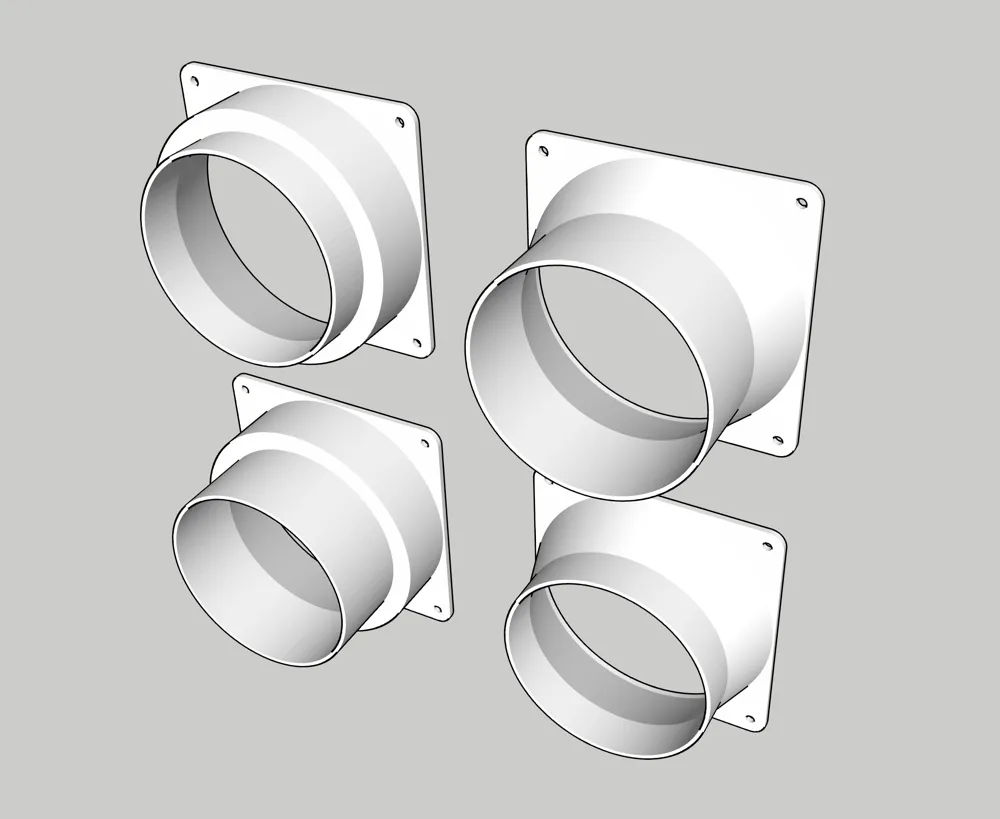

There are two different looks available. The basic versions use much less plastic.
There are also two sizes of each design available. The short variant has a 20mm section to clamp the pipe, the long version has a 40mm section for clamping which is easier especially if you do not cut your pipe exactly evenly, but uses a bit more plastic.
Printing
The adaptor models are designed to be printed with the side that connects to the fan flat on the print bed with no supports. I used PLA which worked fine.
