Drilling jig template confimator for cabinets
IP Report
Print Profile(1)
0.24mm layer, 2 walls, 15% infill
Designer
1.1 h
1 plate
Open in Bambu Studio
Boost
13
22
0
0
7
3
Released
Description

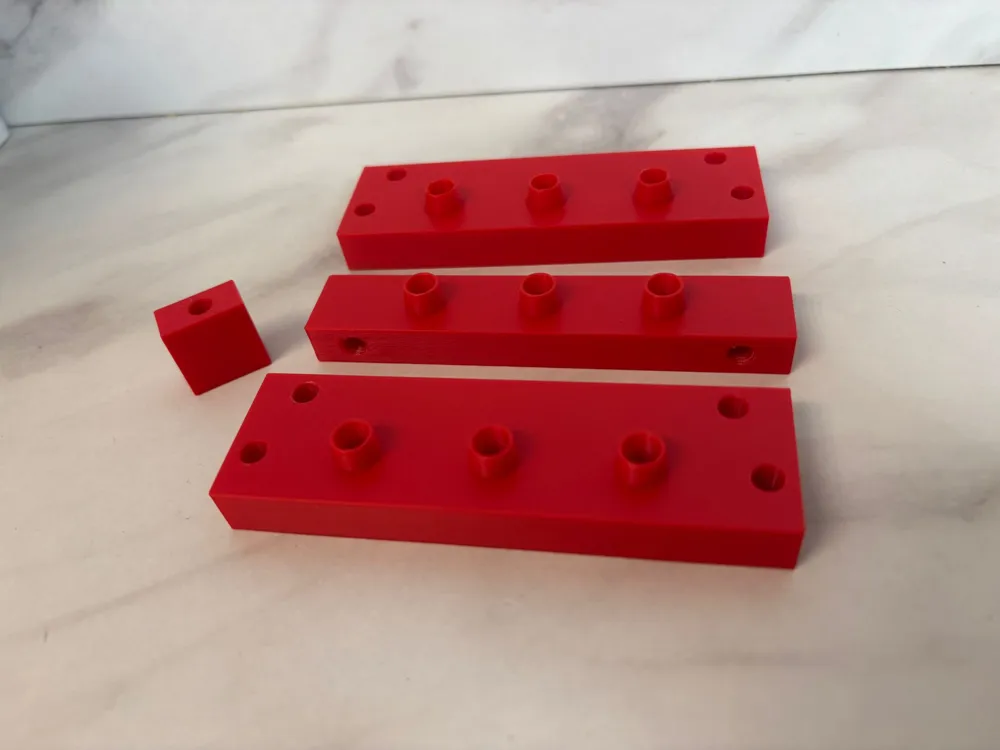

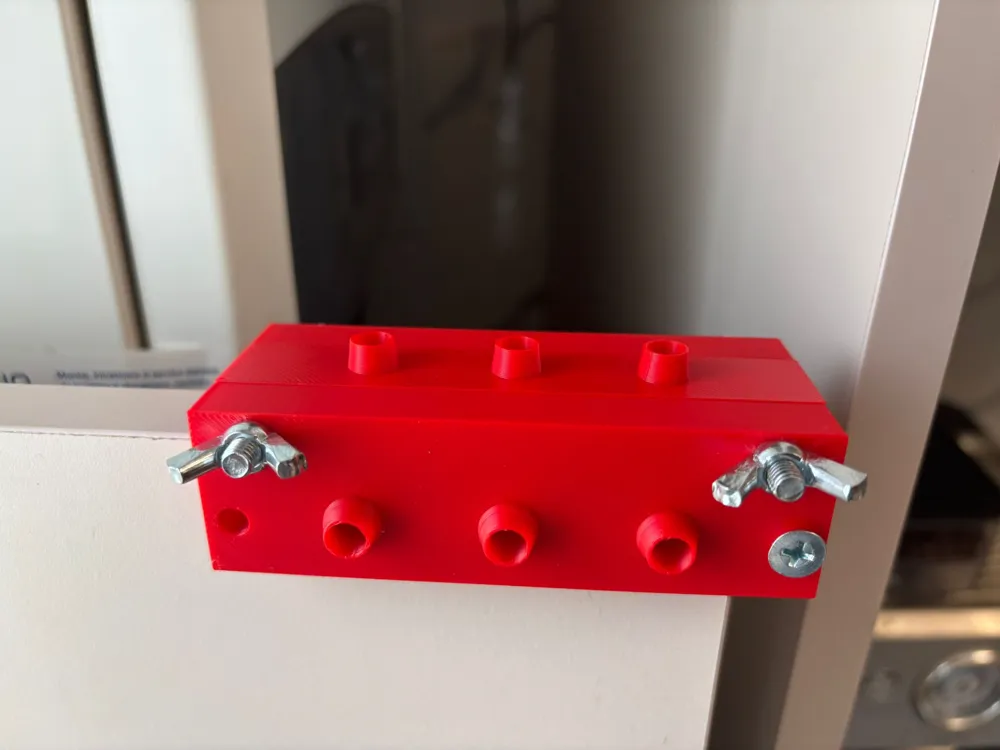

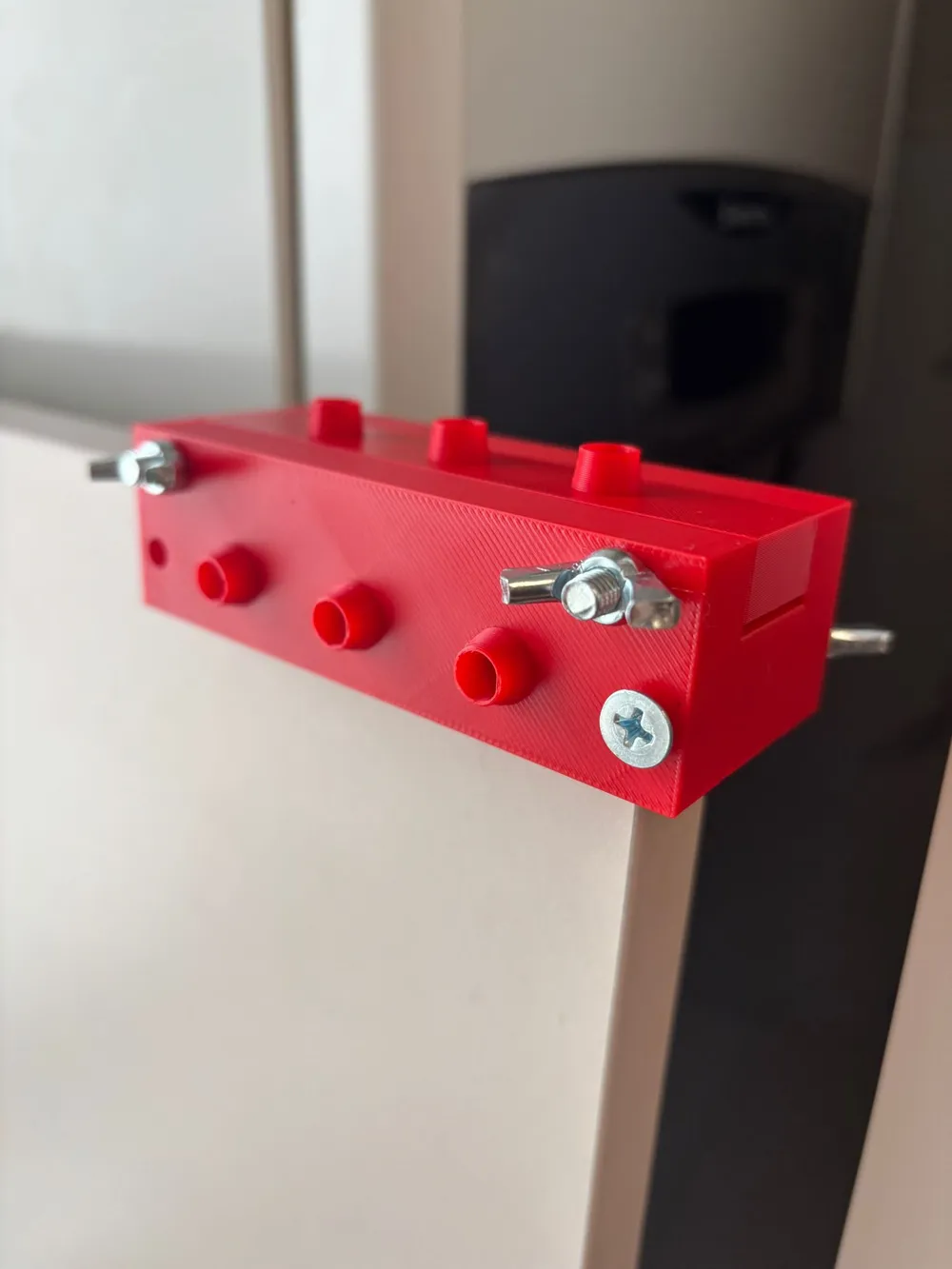

Precision drilling jig designet to make the cabinets assembly easier, fast and accurate.
Best for 18mm wood sheets. 25, 50, 75 mm holes (perfect for 6mm/5.5mm drill) on the center and edges and can be used with/without fixed margin.

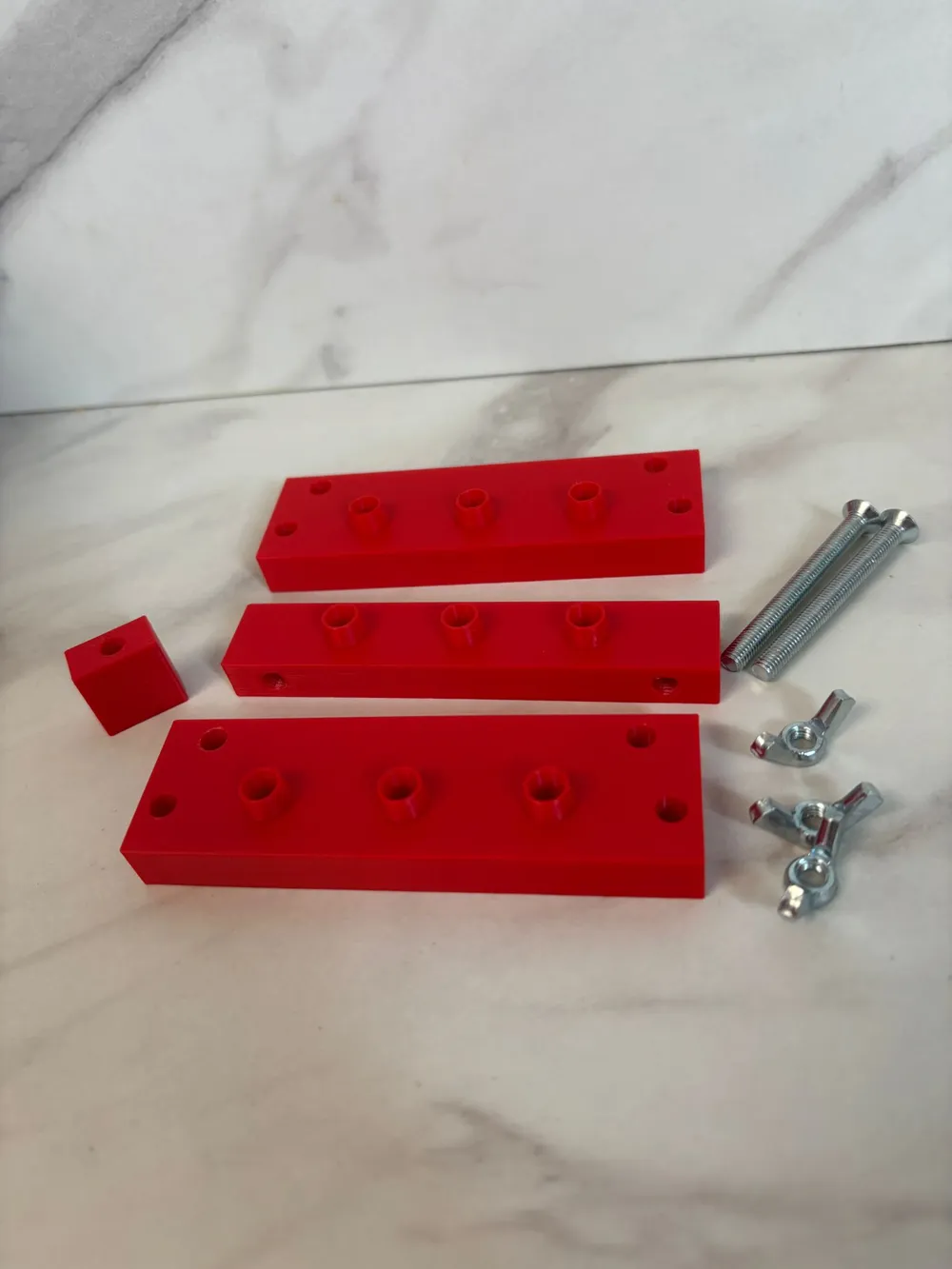

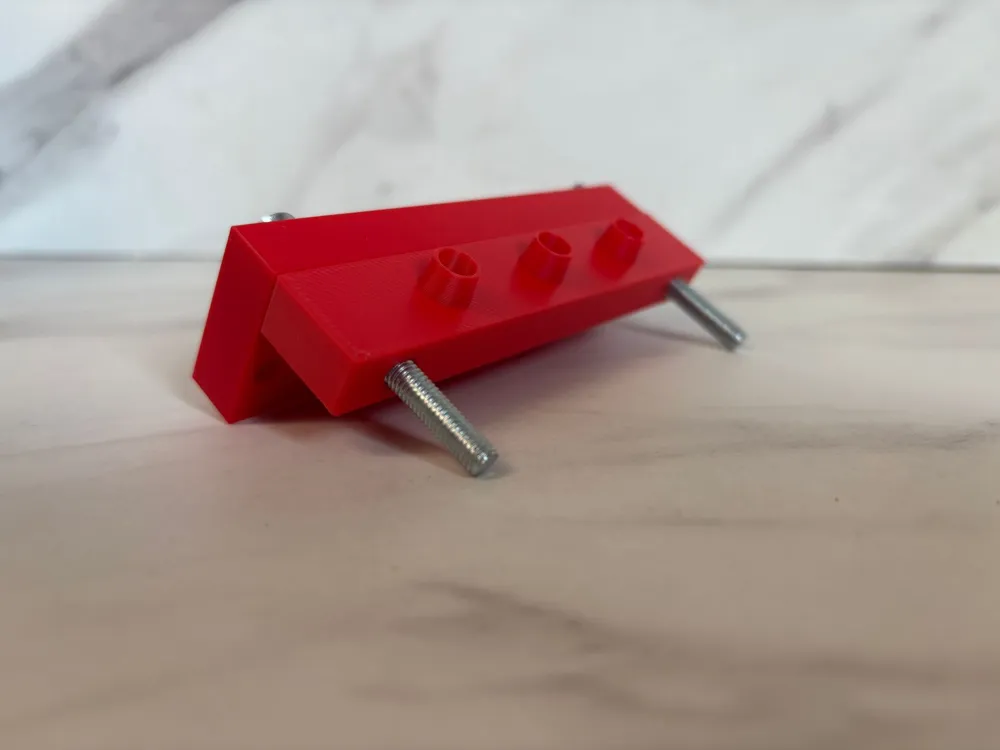

Assembly with 2 (or 3 with margin) M5x50 screw and corresponding butterfly nuts.
