Parkside X20V LED Work Light – XT60H System
Print Profile(1)
Description

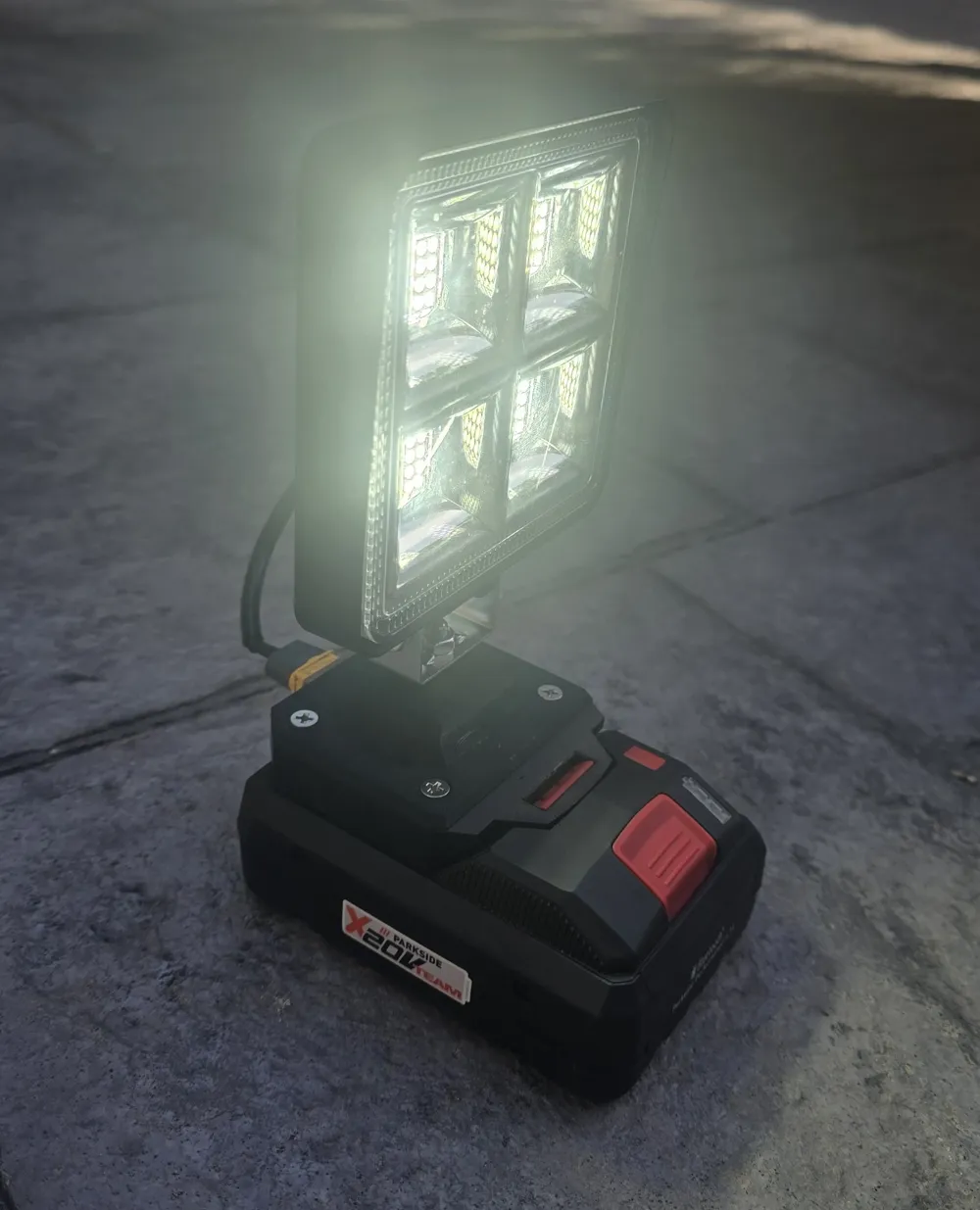

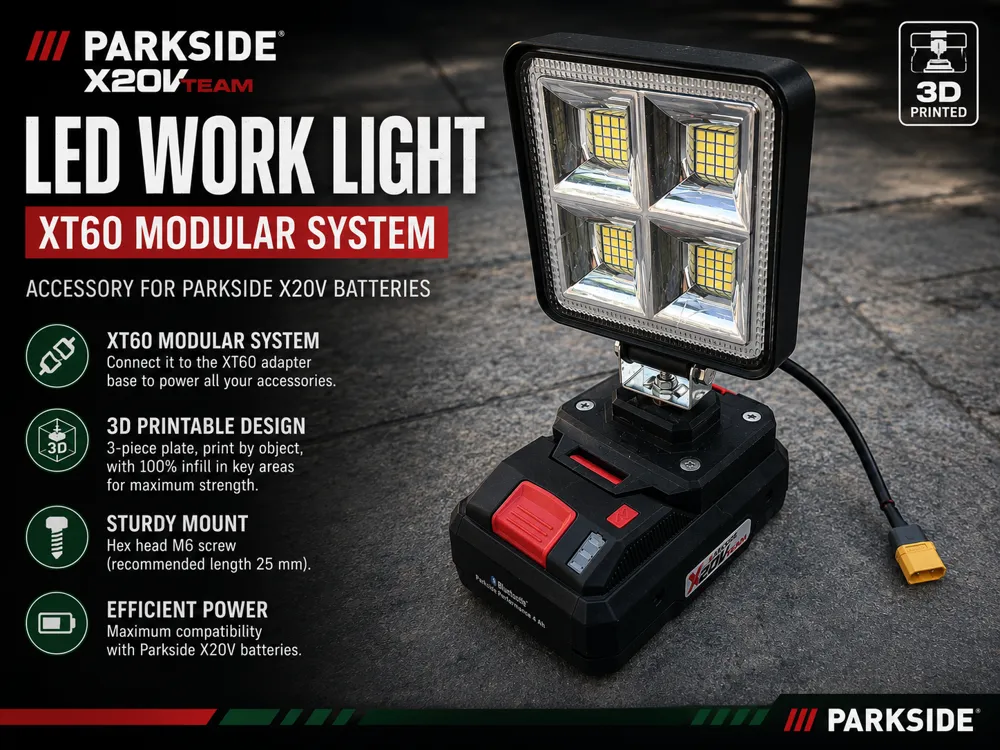

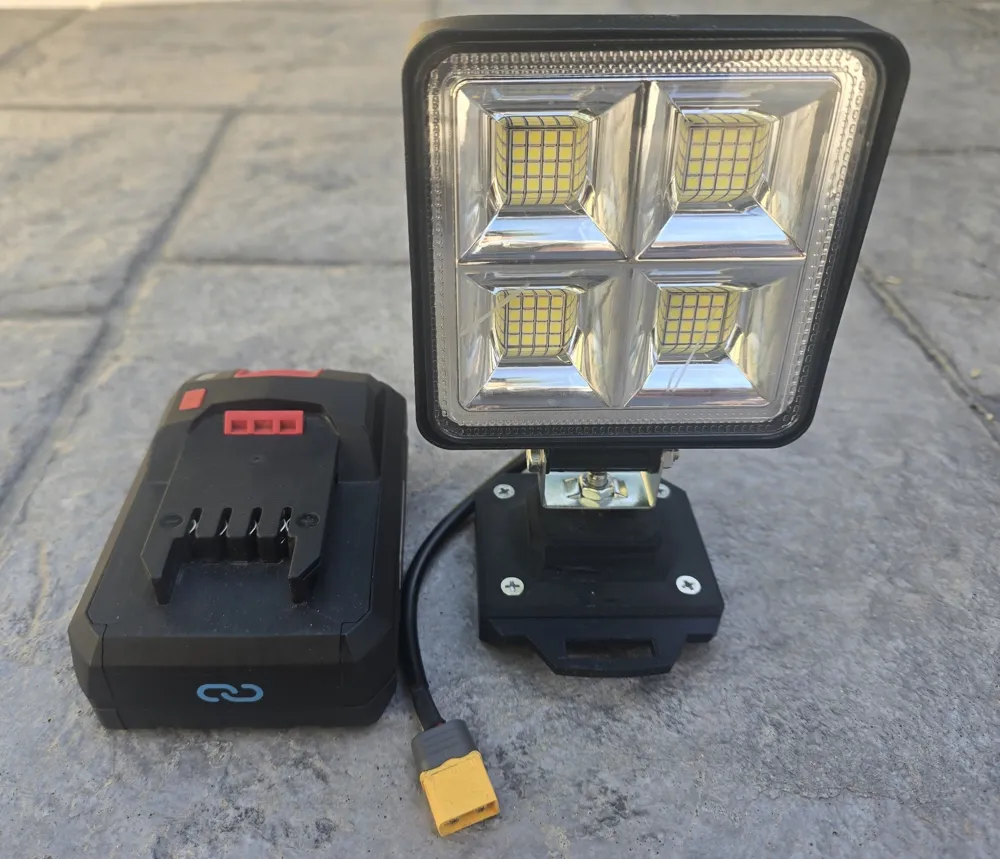

Compact and powerful LED work light accessory for the Parkside X20V battery platform.
This model is designed to work with the XT60H modular adapter system from my previous project, allowing you to reuse the same battery interface across multiple accessories.
The print plate includes:
- Battery adapter base

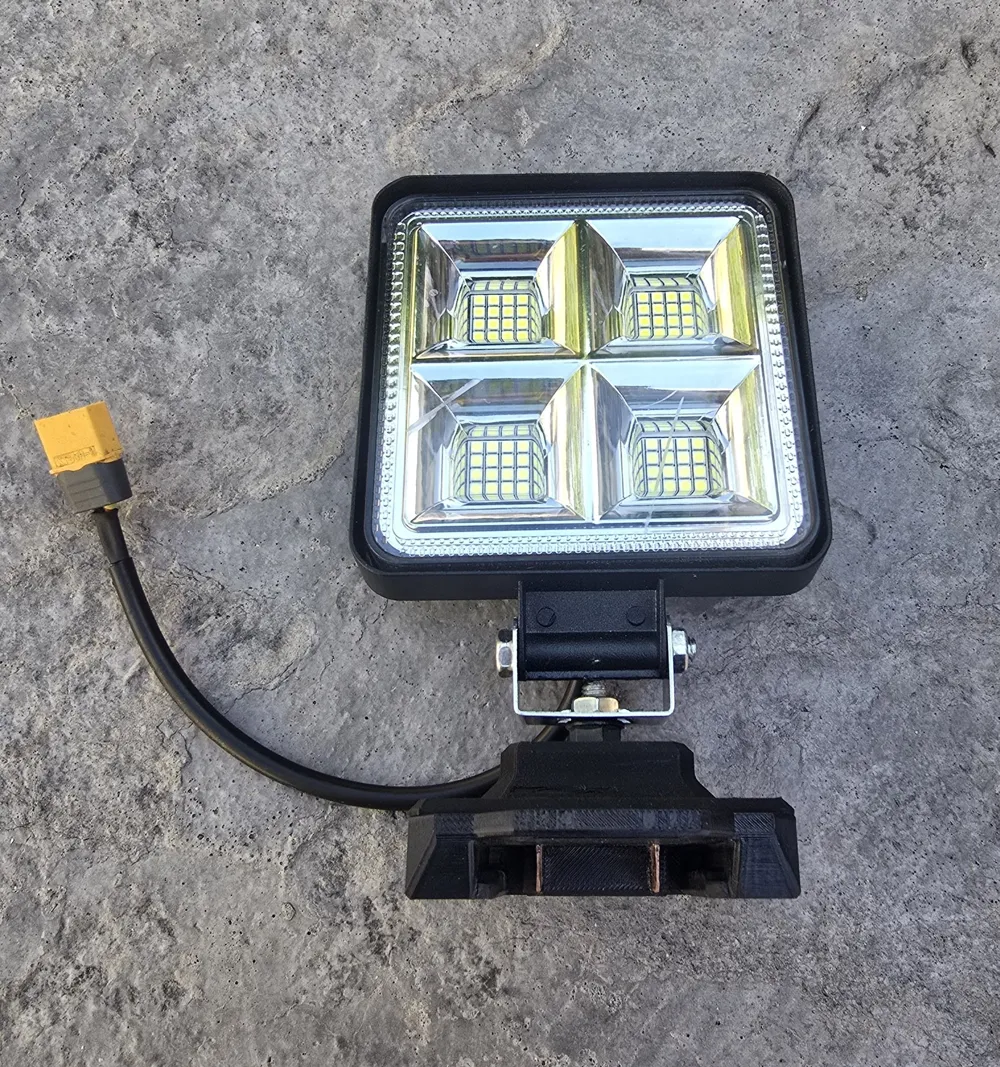

- Adjustable spotlight support

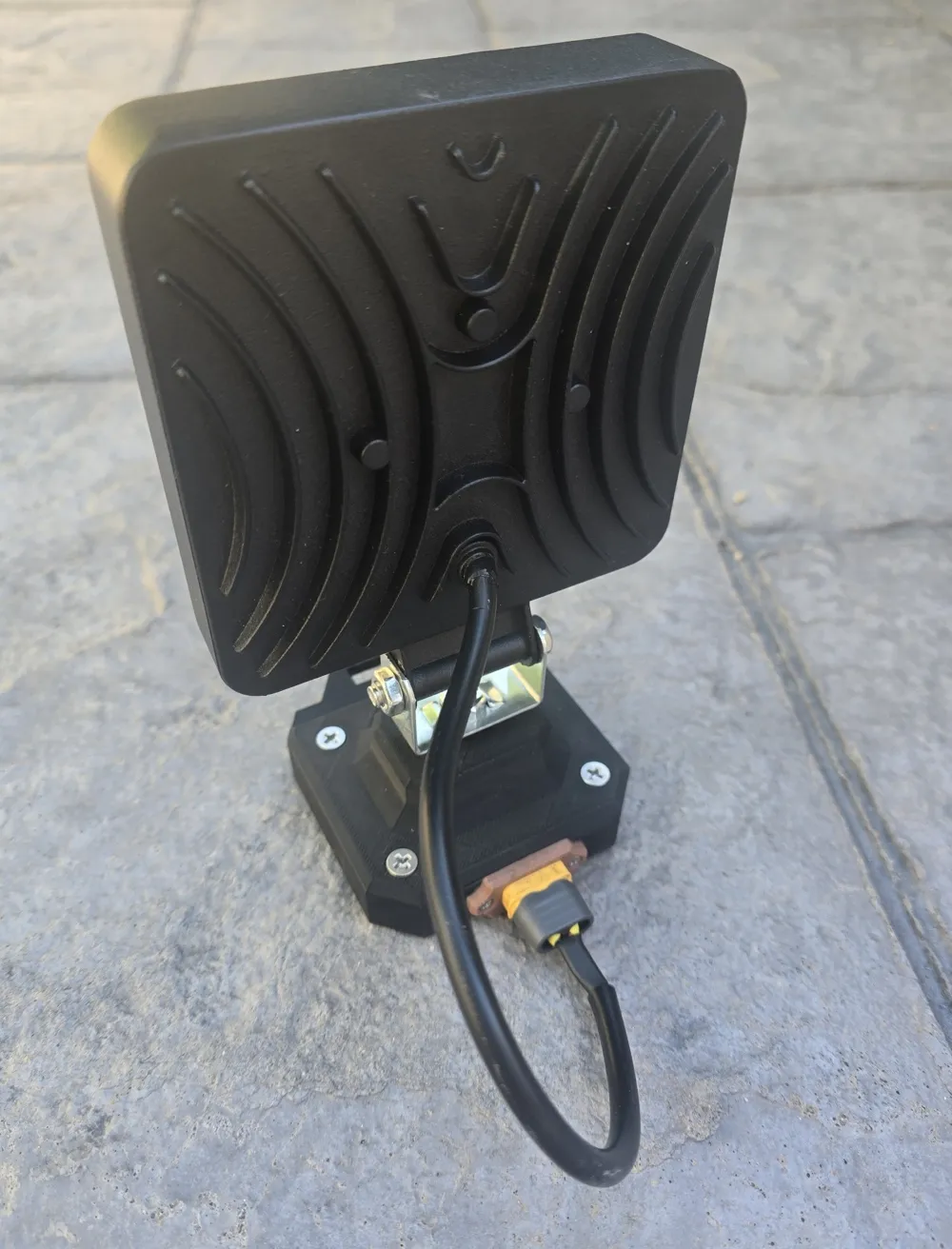

- XT60H female connector housing
The plate is configured to print by object for safer and cleaner printing.
Additional modifiers have been added in critical areas to apply 100% infill reinforcement where extra strength is needed.
For the copper contact plates, XT60 wiring, soldering process and battery adapter assembly, please check the previous build guide here:
👉"PARKSIDE X20V XT60H Power Adapter"
The LED spotlight used in this project was purchased separately 👉 here
Required Components
- 1 M6 hex head screw length 25mm
- 2 M6 hex nut
- XT60H female and male (for the spotlight) connector
- 4 M3.5 × 13 mm screws
- 2 M2 × 8 mm screws for XT60 support mounting
- 2-component adhesive or epoxy putty
