Description

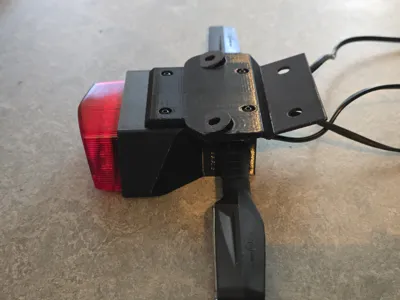

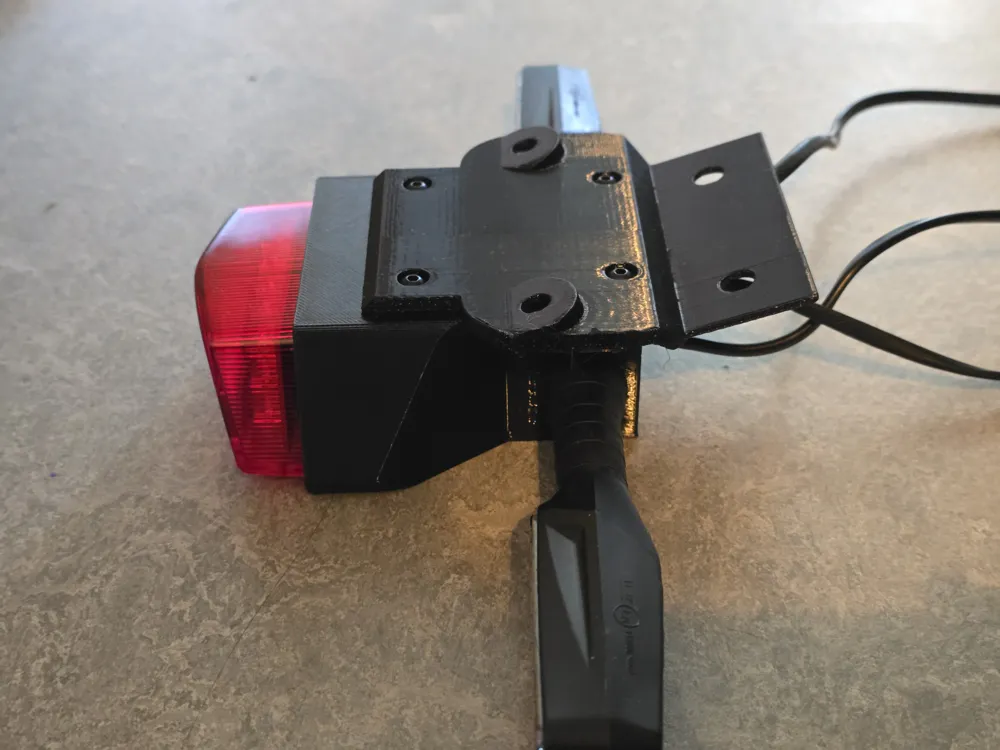

Talaria Tail Tidy Rear Light & Indicator Bracket

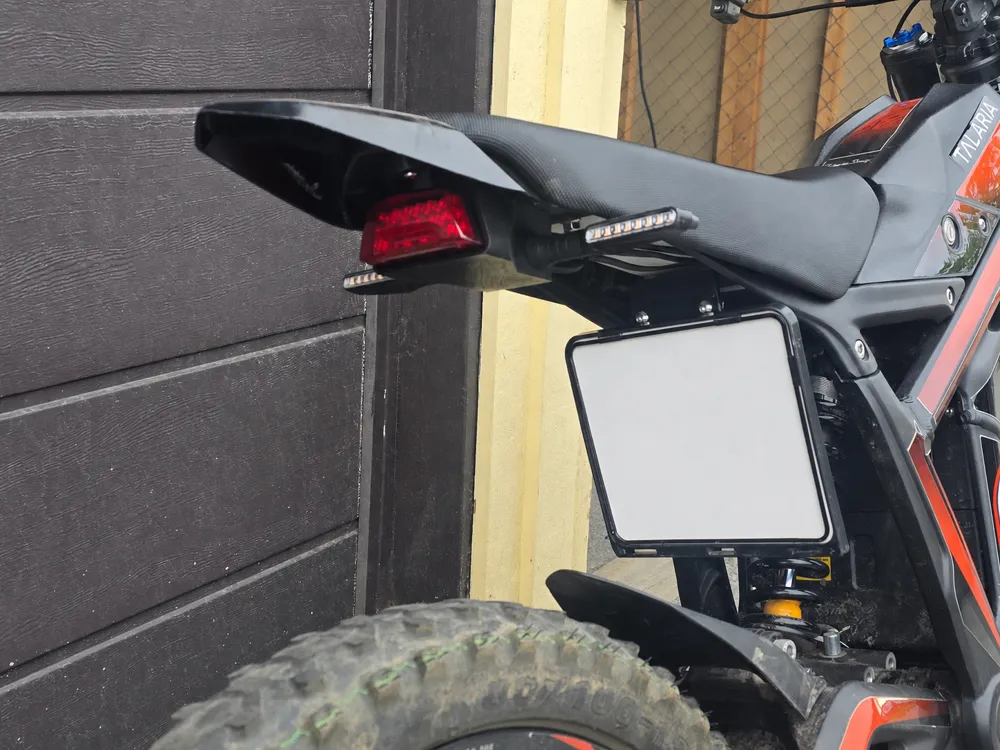

A clean and compact rear light and indicator bracket designed to tidy up the rear end of the Talaria.
This part is made for relocating and mounting the rear light and indicators in a cleaner, more compact position. It is intended to be used together with a separate license plate mount, which is uploaded as a separate file.
The goal was to remove the bulky factory rear setup and create a cleaner tail tidy solution while still keeping the lighting functional and practical.
Membership
Boost Me (for free)
Features
- Cleaner and more compact rear-end setup
- Designed for Talaria-style rear fender assemblies

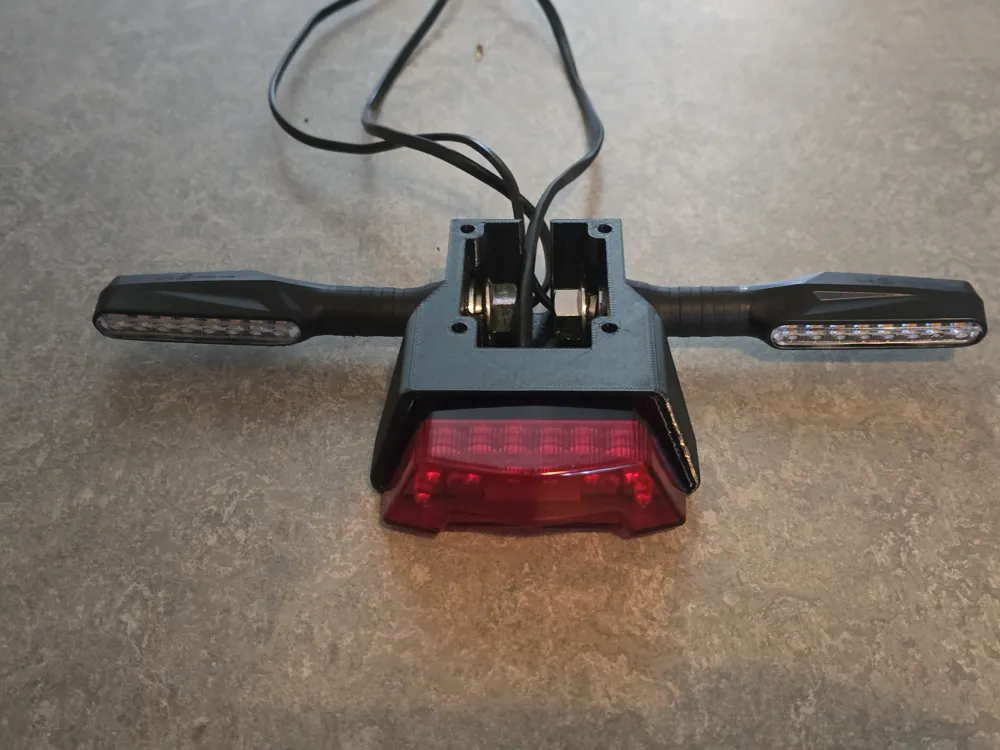

- Mounts the rear light and indicators in a tidy position
- Uses the original screws from the bike for the main mounting points
- Designed to work together with a separate license plate bracket
- Easy to print and install
- Great upgrade for a cleaner street/legal-style build
Important note
This file is only for the rear light and indicator bracket.
The license plate mount is not included in this file and is uploaded separately.
Required hardware
This design uses the original screws from the bike for the main mounting points.
Additional hardware needed:

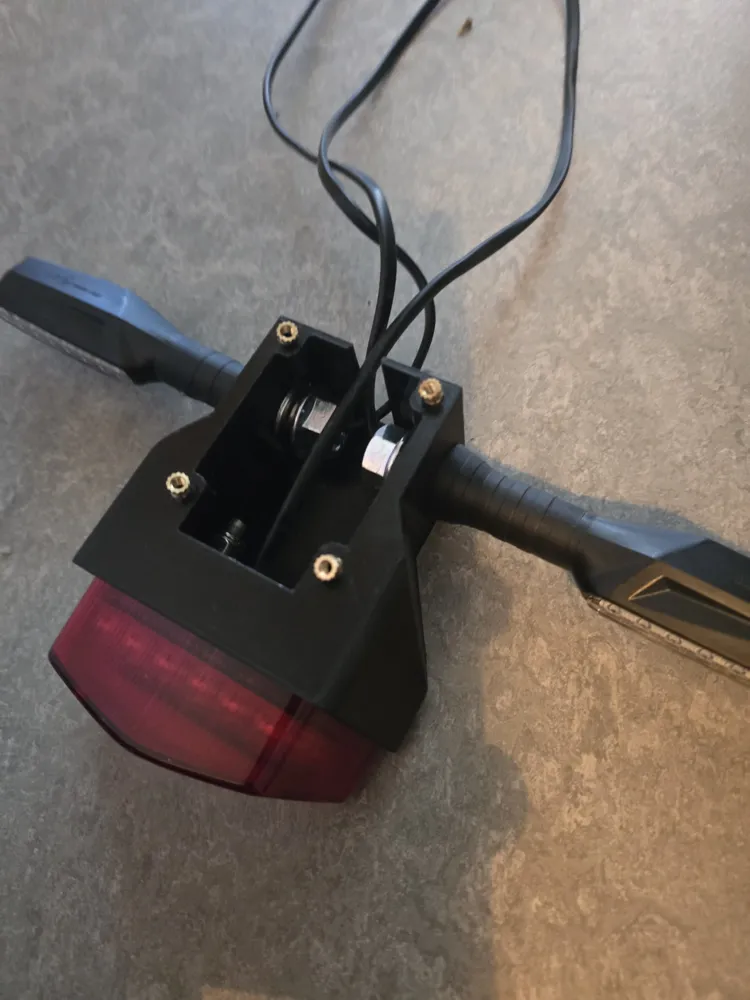

- 4 × M3 heat-set inserts
- 4 × M3 × 6 mm hex socket screws
Recommended print settings
For best results, print in a strong and heat-resistant material.
Recommended materials:
- PETG
- ASA
- ABS
