Slim Can 12 oz Koozie
Print Profile(1)
Bill of Materials
Description
This can koozie I designed to keep your White Claw 12 oz slim can, or other beverages cold during the summer time.
Great for BBQs, family gatherings, parties, the lake, etc.

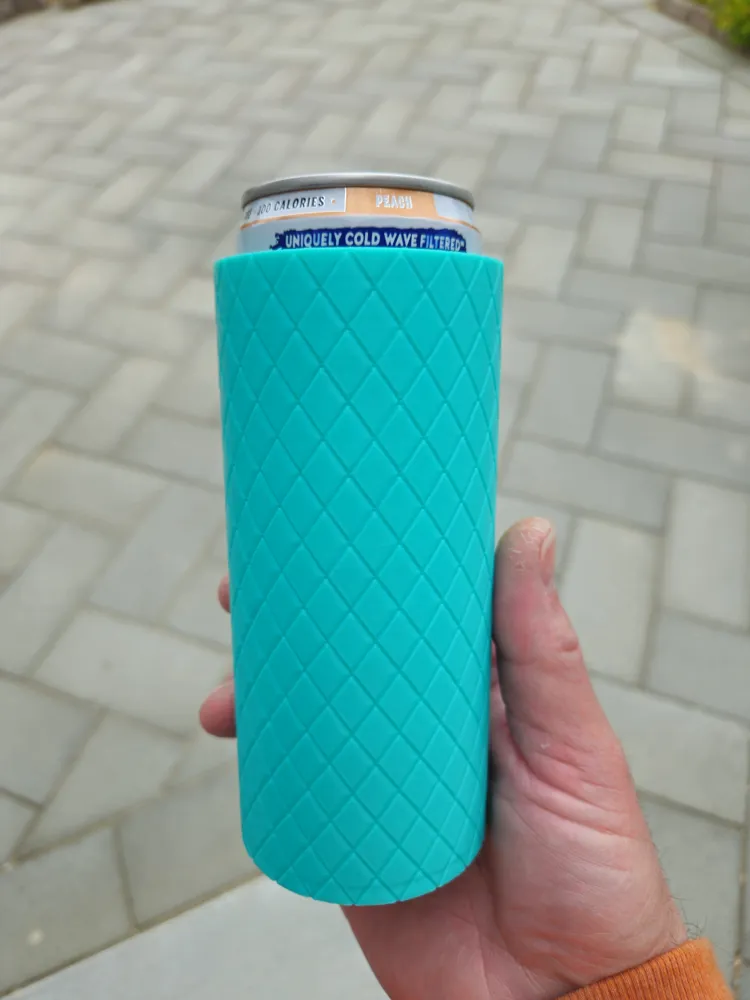

Designed to keep your can cold longer. A simplistic design with a diamond pattern on the outside, a vent hole in the bottom to allow for easy insertion and removal of the can.
SEE Design Features. In the short gif video the can was opened when trying to remove from the koozie and causes a small amount of resistance when removing the can.
If you prefer a different type of drink, please use my measurements below.
Design Features:
- Double insulated to keep your can cold longer
- Unopened can is loose to fit

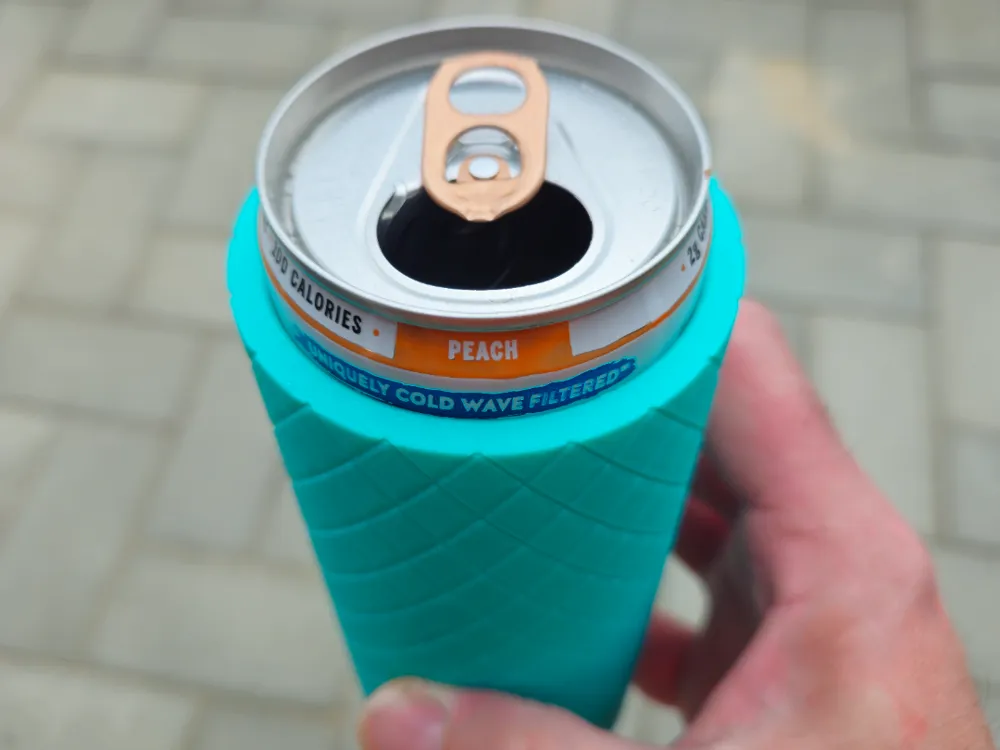

- When the can is inserted and opened this creates a snug fit
- Empty can is loose to remove

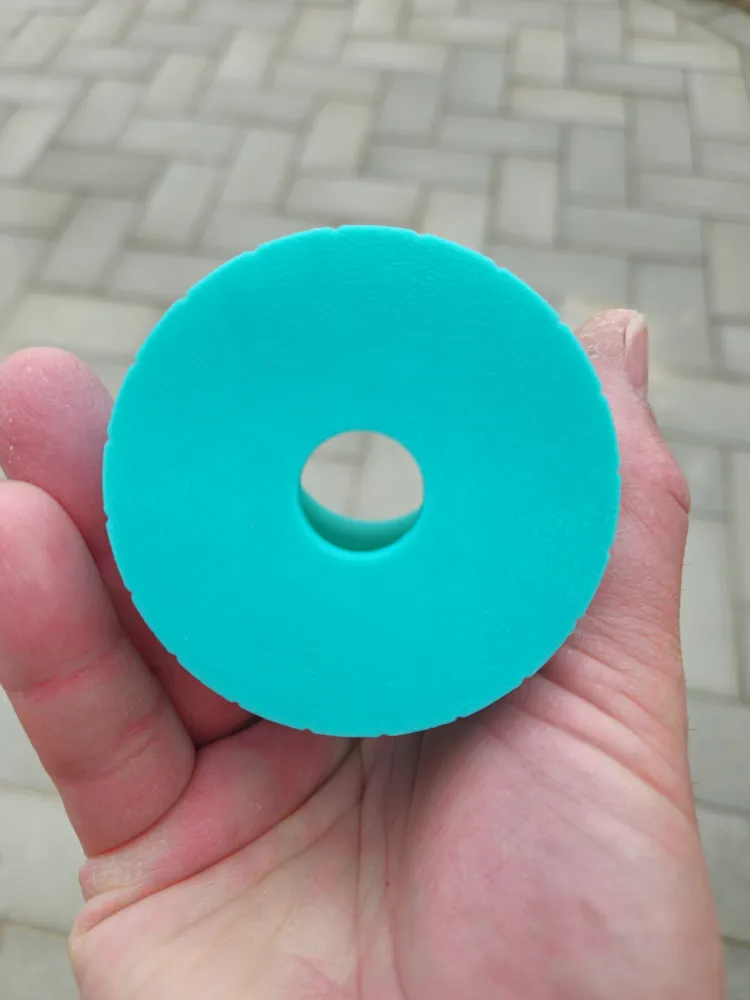

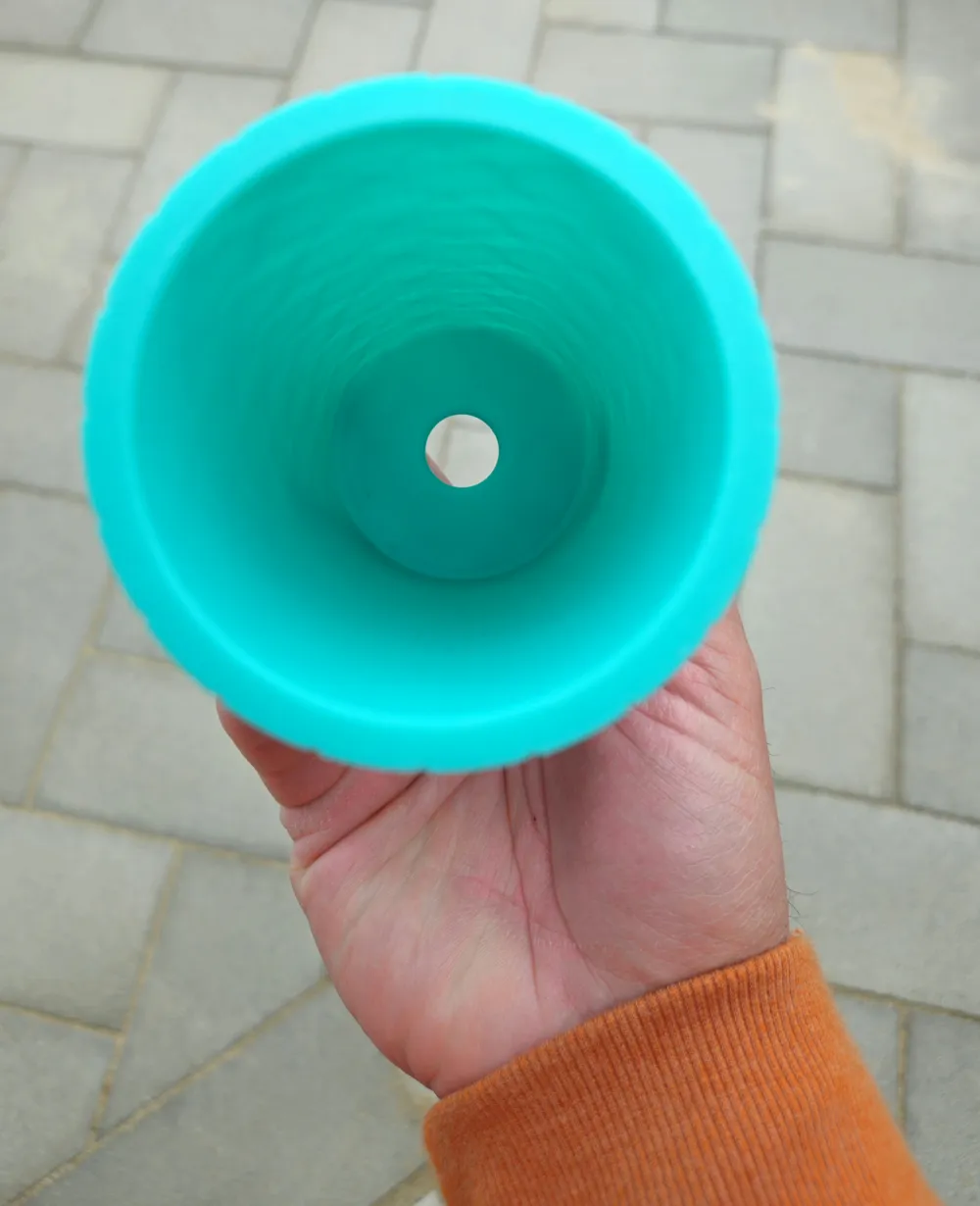

- Vent hole to prevent a vacuum affect when inserting and can removal
- Custom print profile to help insulate the drink longer and less chance of print failure
- No supports required
I added a 0.2 tolerance increase on the X and Y axis for this koozie to help with easy can insertion and removal. This should help with different printers and filaments used in case of shrinkage during printing. Please let me know if this helped or didn't and I will do my best to accommodate for any changes needed to be updated.
This has only been tested on a White Claw 12 oz slim can dimensions.
- Height 6.125 in. or 155.575 mm
- Diameter 2.25 in. or 57.15 mm
Model Dimensions approx. based on my printer, though everyone's printer and filament is different.
- Height 146 mm
- Outside Diameter 67.5 mm
- Inside Diameter 57.6 mm
Make sure your printer is calibrated and filament is dry before printing. Custom profile for optimal printing. I had done several print tests to get the perfect tolerances for you to enjoy!
Cheers and bottoms up!
