Soldering Iron Case (Various sizesSizes)

NO commercial uses!!!

This model repeats the idea of organizing the interior space. But it is re-modeled and is not based on digital model files: https://makerworld.com/en/models/388049-soldering-iron-case#profileId-288731

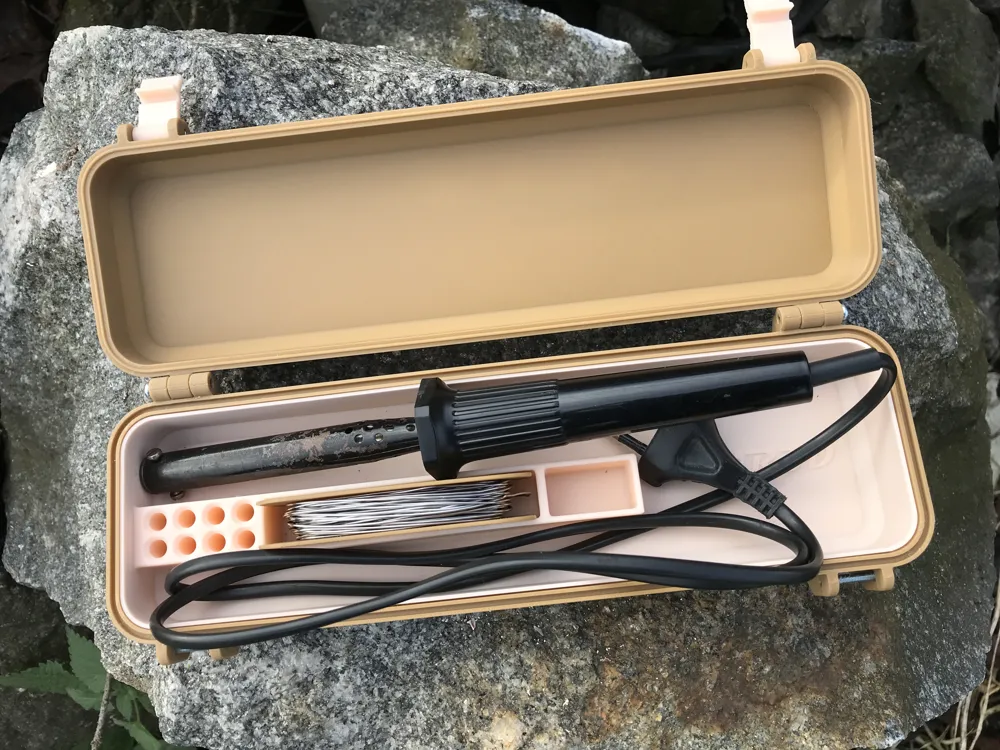

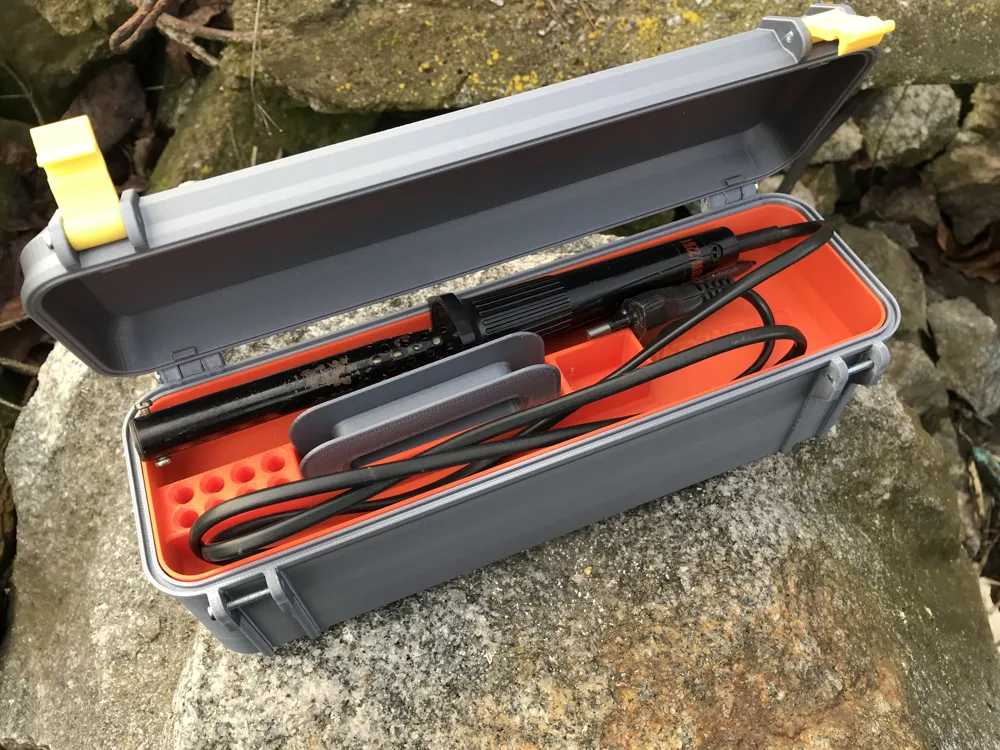

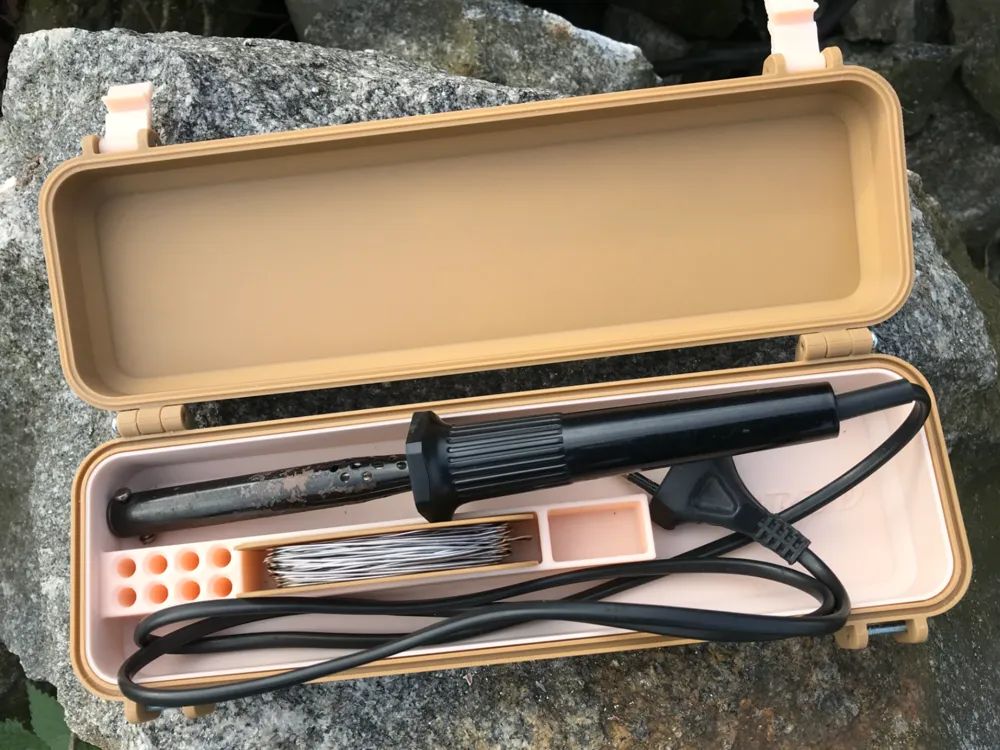

Cases for soldering irons (Universal). Suitable for all mains and conventional soldering irons.

No print profile for A1 mini, , due to the size of the case.

Dimensions of the place for the soldering iron: 252 x 28 x 45 mm (L x W x H);

Total internal dimensions of the case: 255 x 70 mm (L x W);

Three sizes of cases are available:

• Small: Without additional internal compartment

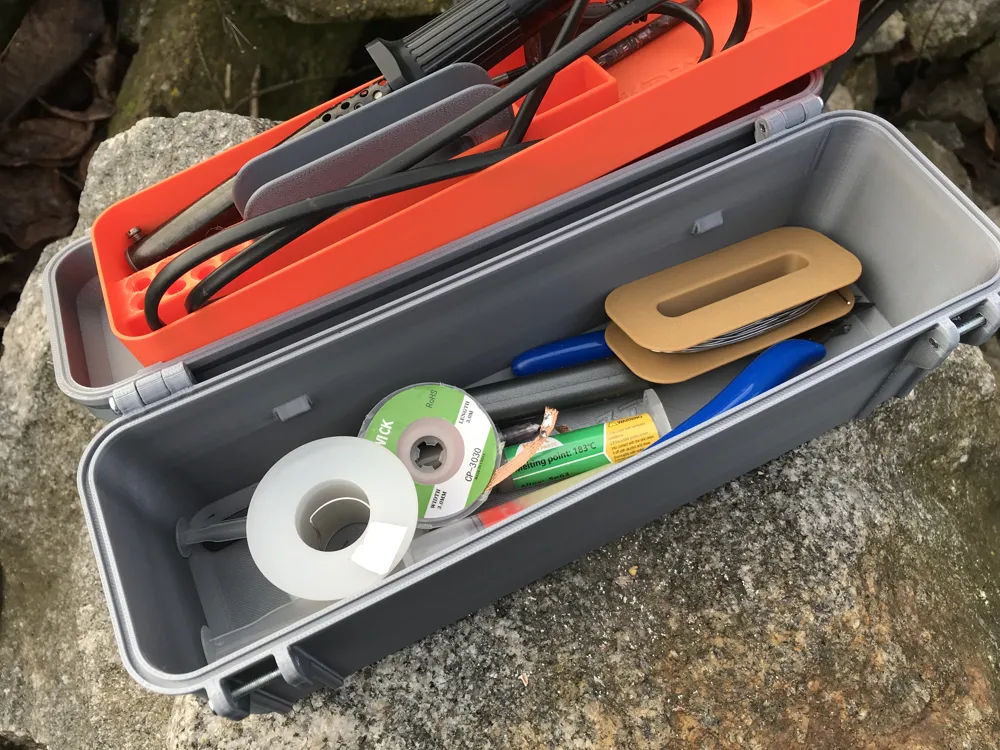

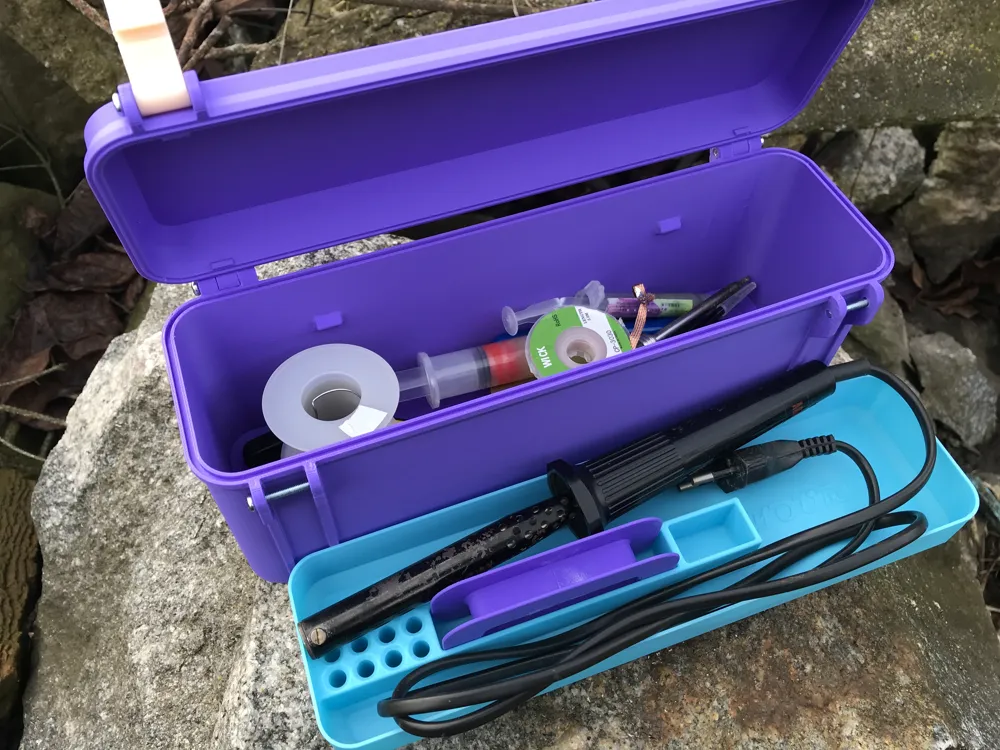

• Standard: Additional compartment measuring 255 x 70 x 40 mm (where 40 mm is the depth of the compartment)
• Large: Additional compartment measuring 255 x 70 x 60 mm (where 60 mm is the depth of the compartment)

Components:

• Case
• Internal insert
• Reel for winding solder

Materials:

• PETG or PLA (depends on the conditions of use)
• 6pc m3x20 screws (With any head, not self-tapping)
