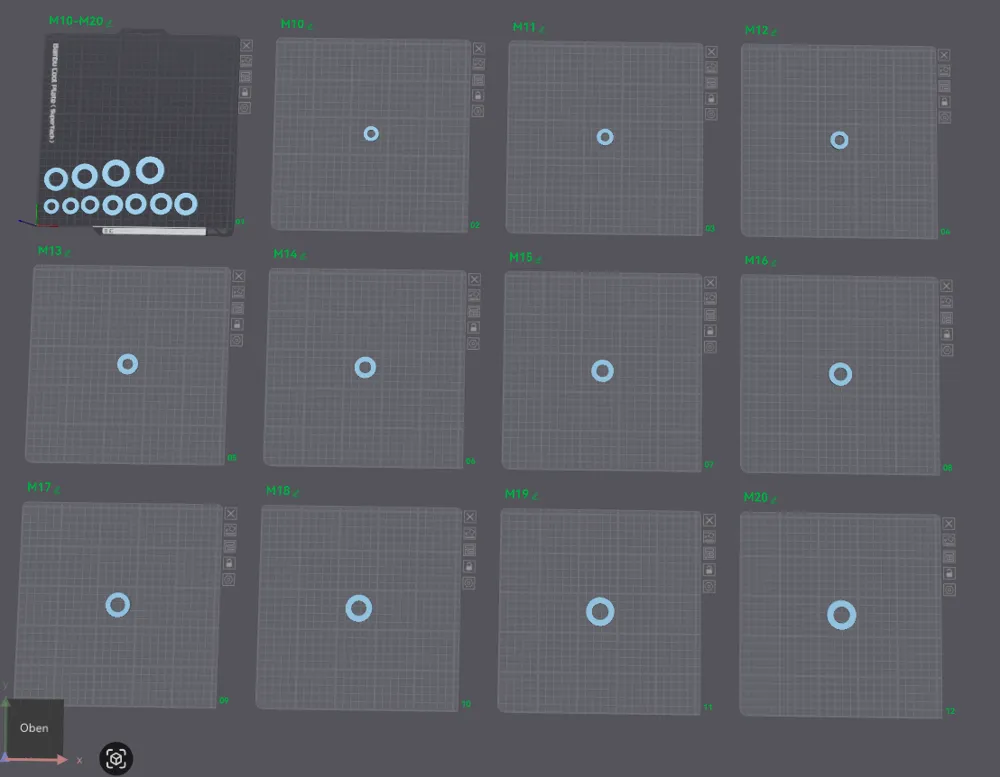

2026-05-20 13_44_31-M10 - BambuStudio.png














<h3>Maße für Unterlegscheiben (M10 bis M20)</h3><figure class="table"><table><thead><tr><th>Nenngröße</th><th>Innendurchmesser (d1)</th><th>Außendurchmesser (d2)</th><th>Dicke (h)</th><th>Typ / Status</th></tr></thead><tbody><tr><td>M10</td><td>10,5 mm</td><td>20,0 mm</td><td>2,0 mm</td><td>Standard (DIN 125)</td></tr><tr><td>M11</td><td>11,5 mm – 11,8 mm</td><td>22,0 mm</td><td>2,0 mm</td><td>Exot (KFZ / Zylinderkopf)</td></tr><tr><td>M12</td><td>13,0 mm</td><td>24,0 mm</td><td>2,5 mm</td><td>Standard (DIN 125)</td></tr><tr><td>M13</td><td>13,5 mm – 14,0 mm</td><td>26,0 mm – 28,0 mm</td><td>2,0 mm – 2,5 mm</td><td>Exot (Fahrradachse / Ölwanne)</td></tr><tr><td>M14</td><td>15,0 mm</td><td>28,0 mm</td><td>2,5 mm</td><td>Standard (DIN 125)</td></tr><tr><td>M15</td><td>15,2 mm – 15,5 mm</td><td>22,0 mm – 24,0 mm</td><td>1,0 mm – 2,0 mm</td><td>Exot (Fahrrad-Kurbelschrauben)</td></tr><tr><td>M16</td><td>17,0 mm</td><td>30,0 mm</td><td>3,0 mm</td><td>Standard (DIN 125)</td></tr><tr><td>M17</td><td>18,0 mm – 18,5 mm</td><td>30,0 mm – 32,0 mm</td><td>2,5 mm – 3,0 mm</td><td>Exot (KFZ-Getriebe / Radnaben)</td></tr><tr><td>M18</td><td>19,0 mm</td><td>34,0 mm</td><td>3,0 mm</td><td>Standard (DIN 125)</td></tr><tr><td>M19</td><td>20,0 mm – 20,5 mm</td><td>36,0 mm – 38,0 mm</td><td>3,0 mm</td><td>Exot (KFZ-Fahrwerk)</td></tr><tr><td>M20</td><td>21,0 mm</td><td>37,0 mm</td><td>3,0 mm</td><td> </td></tr></tbody></table></figure>

<h3>Dimensions for Washers (M10 to M20)</h3><figure class="table"><table><thead><tr><th>Nominal Size</th><th>Inner Diameter (d1)</th><th>Outer Diameter (d2)</th><th>Thickness (h)</th><th>Type / Status</th></tr></thead><tbody><tr><td>M10</td><td>10.5 mm</td><td>20.0 mm</td><td>2.0 mm</td><td>Standard (DIN 125)</td></tr><tr><td>M11</td><td>11.5 mm – 11.8 mm</td><td>22.0 mm</td><td>2.0 mm</td><td>Exotic (Automotive / Cylinder Head)</td></tr><tr><td>M12</td><td>13.0 mm</td><td>24.0 mm</td><td>2.5 mm</td><td>Standard (DIN 125)</td></tr><tr><td>M13</td><td>13.5 mm – 14.0 mm</td><td>26.0 mm – 28.0 mm</td><td>2.0 mm – 2.5 mm</td><td>Exotic (Bicycle Axle / Oil Pan)</td></tr><tr><td>M14</td><td>15.0 mm</td><td>28.0 mm</td><td>2.5 mm</td><td>Standard (DIN 125)</td></tr><tr><td>M15</td><td>15.2 mm – 15.5 mm</td><td>22.0 mm – 24.0 mm</td><td>1.0 mm – 2.0 mm</td><td>Exotic (Bicycle Crank Bolts)</td></tr><tr><td>M16</td><td>17.0 mm</td><td>30.0 mm</td><td>3.0 mm</td><td>Standard (DIN 125)</td></tr><tr><td>M17</td><td>18.0 mm – 18.5 mm</td><td>30.0 mm – 32.0 mm</td><td>2.5 mm – 3.0 mm</td><td>Exotic (Automotive Gearbox / Wheel Hubs)</td></tr><tr><td>M18</td><td>19.0 mm</td><td>34.0 mm</td><td>3.0 mm</td><td>Standard (DIN 125)</td></tr><tr><td>M19</td><td>20.0 mm – 20.5 mm</td><td>36.0 mm – 38.0 mm</td><td>3.0 mm</td><td>Exotic (Automotive Chassis)</td></tr><tr><td>M20</td><td>21.0 mm</td><td>37.0 mm</td><td>3.0 mm</td><td> </td></tr></tbody></table></figure>

0.2mm layer, 2 walls, 15% infill

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.

This user content is licensed under a Standard Digital File License.

Verschiedene M10 bis M20 Scheiben&nbsp;<boostme><boosttitle>Boost Me</boosttitle></boostme>&nbsp;<h3>Maße für Unterlegscheiben (M10 bis M20)</h3><figure class="table"><table><thead><tr><th>Nenngröße</th><th>Innendurchmesser (d1)</th><th>Außendurchmesser (d2)</th><th>Dicke (h)</th><th>Typ / Status</th></tr></thead><tbody><tr><td>M10</td><td>10,5 mm</td><td>20,0 mm</td><td>2,0 mm</td><td>Standard (DIN 125)</td></tr><tr><td>M11</td><td>11,5 mm – 11,8 mm</td><td>22,0 mm</td><td>2,0 mm</td><td>Exot (KFZ / Zylinderkopf)</td></tr><tr><td>M12</td><td>13,0 mm</td><td>24,0 mm</td><td>2,5 mm</td><td>Standard (DIN 125)</td></tr><tr><td>M13</td><td>13,5 mm – 14,0 mm</td><td>26,0 mm – 28,0 mm</td><td>2,0 mm – 2,5 mm</td><td>Exot (Fahrradachse / Ölwanne)</td></tr><tr><td>M14</td><td>15,0 mm</td><td>28,0 mm</td><td>2,5 mm</td><td>Standard (DIN 125)</td></tr><tr><td>M15</td><td>15,2 mm – 15,5 mm</td><td>22,0 mm – 24,0 mm</td><td>1,0 mm – 2,0 mm</td><td>Exot (Fahrrad-Kurbelschrauben)</td></tr><tr><td>M16</td><td>17,0 mm</td><td>30,0 mm</td><td>3,0 mm</td><td>Standard (DIN 125)</td></tr><tr><td>M17</td><td>18,0 mm – 18,5 mm</td><td>30,0 mm – 32,0 mm</td><td>2,5 mm – 3,0 mm</td><td>Exot (KFZ-Getriebe / Radnaben)</td></tr><tr><td>M18</td><td>19,0 mm</td><td>34,0 mm</td><td>3,0 mm</td><td>Standard (DIN 125)</td></tr><tr><td>M19</td><td>20,0 mm – 20,5 mm</td><td>36,0 mm – 38,0 mm</td><td>3,0 mm</td><td>Exot (KFZ-Fahrwerk)</td></tr><tr><td>M20</td><td>21,0 mm</td><td>37,0 mm</td><td>3,0 mm</td><td> </td></tr></tbody></table></figure>

Various M10 to M20 Washers&nbsp;<boostme><boosttitle>Boost Me</boosttitle></boostme>&nbsp;<h3>Dimensions for Washers (M10 to M20)</h3><figure class="table"><table><thead><tr><th>Nominal Size</th><th>Inner Diameter (d1)</th><th>Outer Diameter (d2)</th><th>Thickness (h)</th><th>Type / Status</th></tr></thead><tbody><tr><td>M10</td><td>10.5 mm</td><td>20.0 mm</td><td>2.0 mm</td><td>Standard (DIN 125)</td></tr><tr><td>M11</td><td>11.5 mm – 11.8 mm</td><td>22.0 mm</td><td>2.0 mm</td><td>Exotic (Automotive / Cylinder Head)</td></tr><tr><td>M12</td><td>13.0 mm</td><td>24.0 mm</td><td>2.5 mm</td><td>Standard (DIN 125)</td></tr><tr><td>M13</td><td>13.5 mm – 14.0 mm</td><td>26.0 mm – 28.0 mm</td><td>2.0 mm – 2.5 mm</td><td>Exotic (Bicycle Axle / Oil Pan)</td></tr><tr><td>M14</td><td>15.0 mm</td><td>28.0 mm</td><td>2.5 mm</td><td>Standard (DIN 125)</td></tr><tr><td>M15</td><td>15.2 mm – 15.5 mm</td><td>22.0 mm – 24.0 mm</td><td>1.0 mm – 2.0 mm</td><td>Exotic (Bicycle Crank Bolts)</td></tr><tr><td>M16</td><td>17.0 mm</td><td>30.0 mm</td><td>3.0 mm</td><td>Standard (DIN 125)</td></tr><tr><td>M17</td><td>18.0 mm – 18.5 mm</td><td>30.0 mm – 32.0 mm</td><td>2.5 mm – 3.0 mm</td><td>Exotic (Automotive Transmission / Wheel Hubs)</td></tr><tr><td>M18</td><td>19.0 mm</td><td>34.0 mm</td><td>3.0 mm</td><td>Standard (DIN 125)</td></tr><tr><td>M19</td><td>20.0 mm – 20.5 mm</td><td>36.0 mm – 38.0 mm</td><td>3.0 mm</td><td>Exotic (Automotive Suspension)</td></tr><tr><td>M20</td><td>21.0 mm</td><td>37.0 mm</td><td>3.0 mm</td><td> </td></tr></tbody></table></figure>

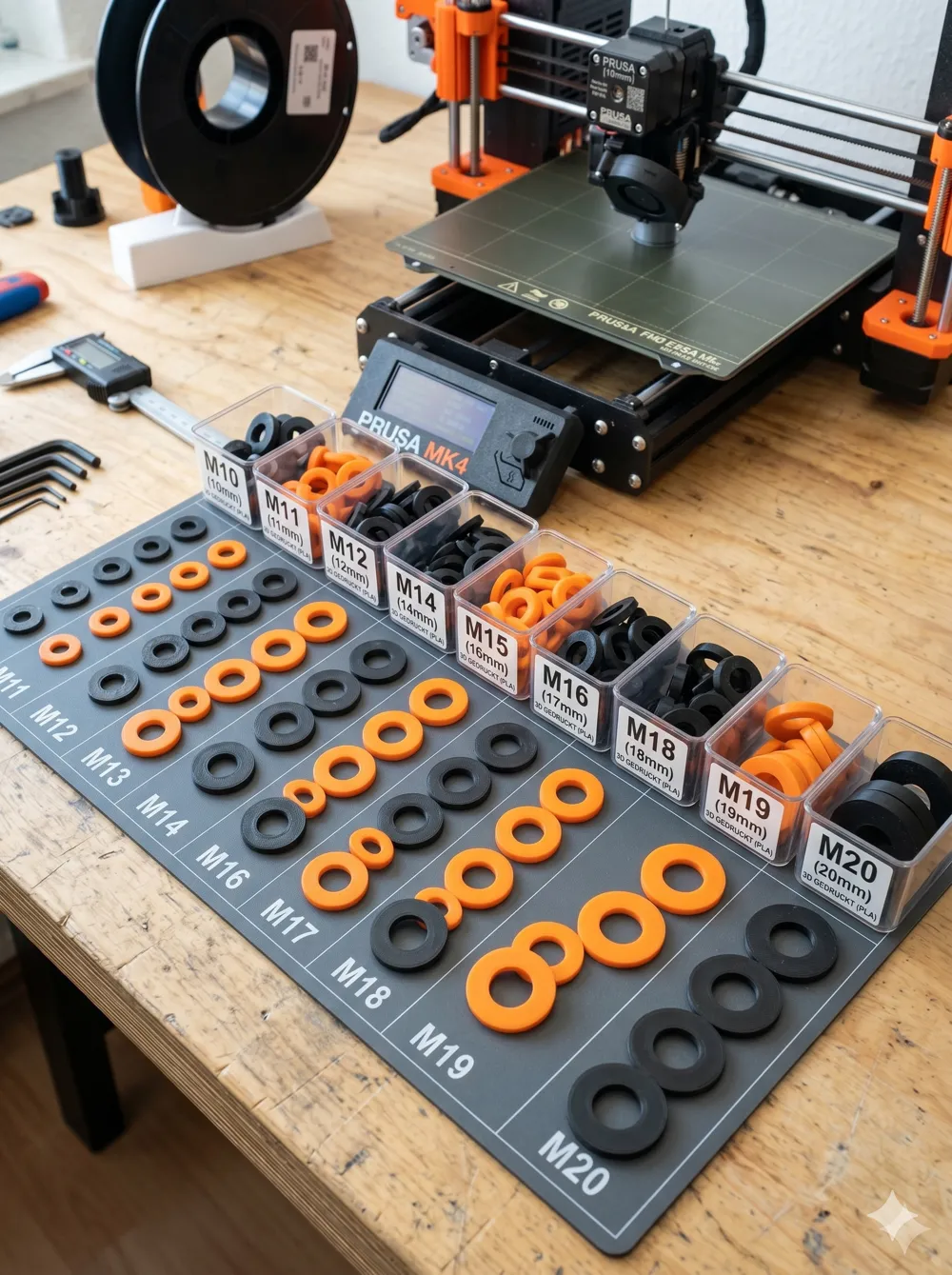

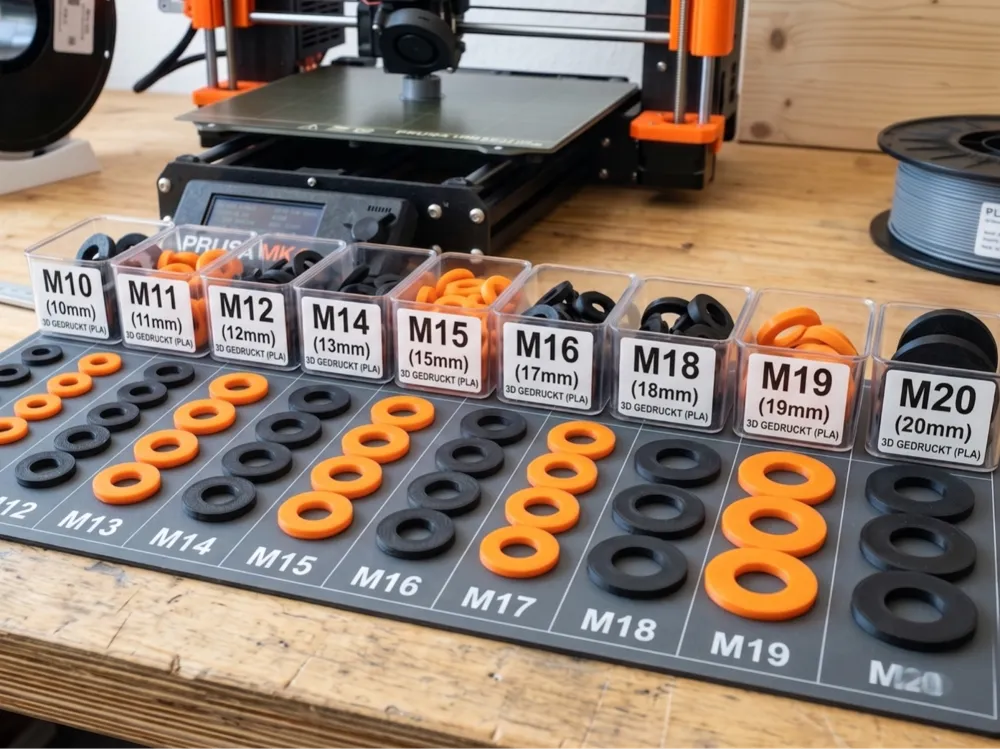

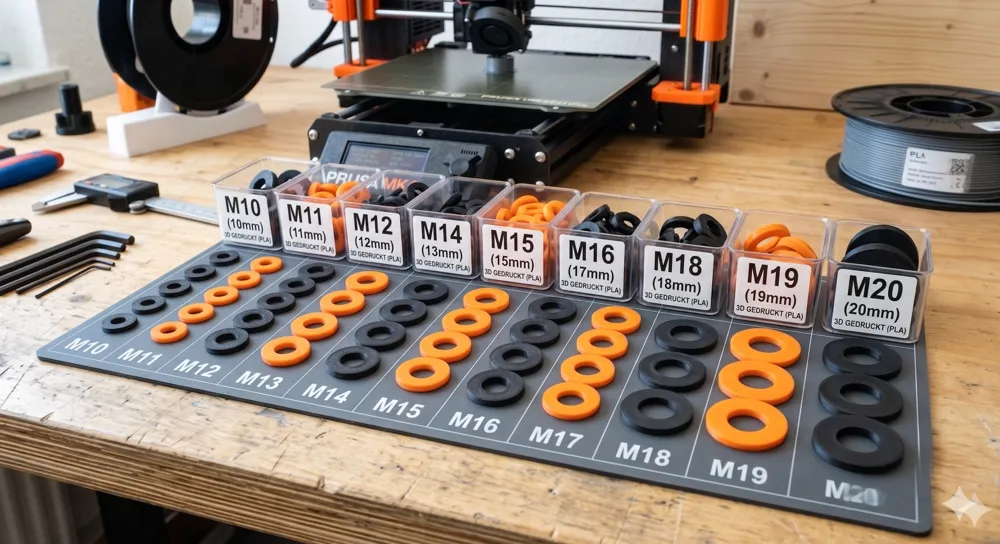

M10 M11 M12 M13 M14 M16 M18 M20 Washers

ASIA

Print Profile(1)

Bill of Materials

Description

Dimensions for Washers (M10 to M20)

Comment & Rating (1)

License

Related Models

Nominal Size	Inner Diameter (d1)	Outer Diameter (d2)	Thickness (h)	Type / Status
M10	10.5 mm	20.0 mm	2.0 mm	Standard (DIN 125)
M11	11.5 mm – 11.8 mm	22.0 mm	2.0 mm	Exotic (Automotive / Cylinder Head)
M12	13.0 mm	24.0 mm	2.5 mm	Standard (DIN 125)
M13	13.5 mm – 14.0 mm	26.0 mm – 28.0 mm	2.0 mm – 2.5 mm	Exotic (Bicycle Axle / Oil Pan)
M14	15.0 mm	28.0 mm	2.5 mm	Standard (DIN 125)
M15	15.2 mm – 15.5 mm	22.0 mm – 24.0 mm	1.0 mm – 2.0 mm	Exotic (Bicycle Crank Bolts)
M16	17.0 mm	30.0 mm	3.0 mm	Standard (DIN 125)
M17	18.0 mm – 18.5 mm	30.0 mm – 32.0 mm	2.5 mm – 3.0 mm	Exotic (Automotive Transmission / Wheel Hubs)
M18	19.0 mm	34.0 mm	3.0 mm	Standard (DIN 125)
M19	20.0 mm – 20.5 mm	36.0 mm – 38.0 mm	3.0 mm	Exotic (Automotive Suspension)
M20	21.0 mm	37.0 mm	3.0 mm
