FarmLoop Stage 2 H2S/H2D/H2C - Automatic Printing

Introducing 3D Farmers FarmLoop Stage 2, the most advanced automatic printing system for the Bambu Lab H Series, compatible with the H2S, H2D, and H2C.

Stage 2 takes automation to a new level by combining intelligent build-plate wave bending, automatic door opening, and force-sensing safety. This enables reliable detachment of virtually any print, even large, flat-surface parts that challenged Stage 1.

How to Start

All 3D-printed parts for this module are available here on MakerWorld, but to make the system work you'll also need the Stage 2 Hardware Kit from our Shopify store:

🛒 Get the Hardware Kit → https://3d-farmers.com/products/farmloop-stage-2-h-series

The Stage 2 hardware works exclusively with the FarmLoop Pro App.

👉 FarmLoop Pro App → https://app.3d-farmers.com/

How It Works

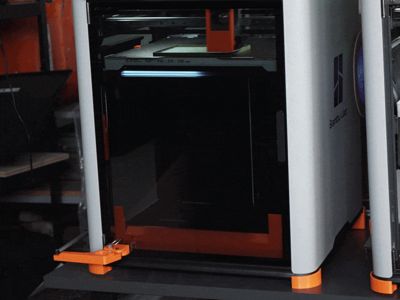

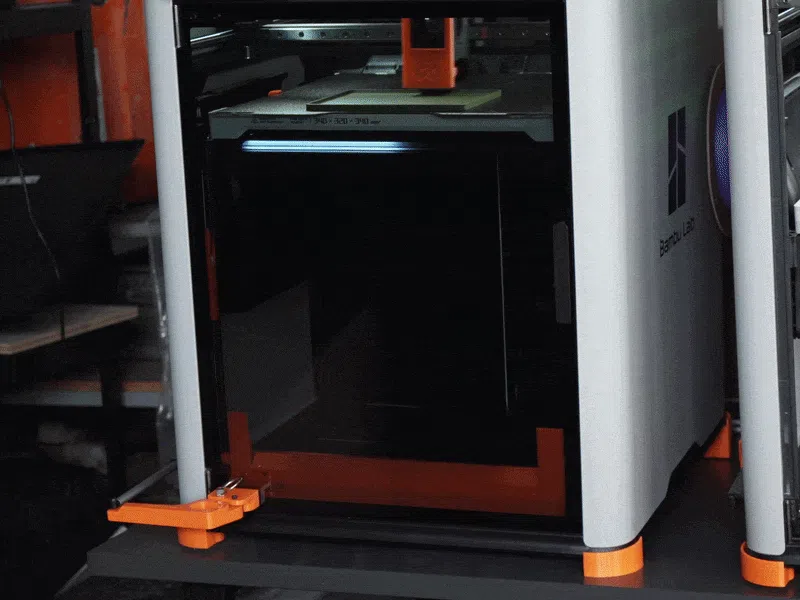

• Automatic Door Opening: One of the first automatic door opening systems for the Bambu Lab H Series you can buy. 64N of motorized force opens and closes your door on command, with a push of a button or fully automatic when in looping mode. Keep your chamber heated. Print any material. No more choosing between enclosure and automation.

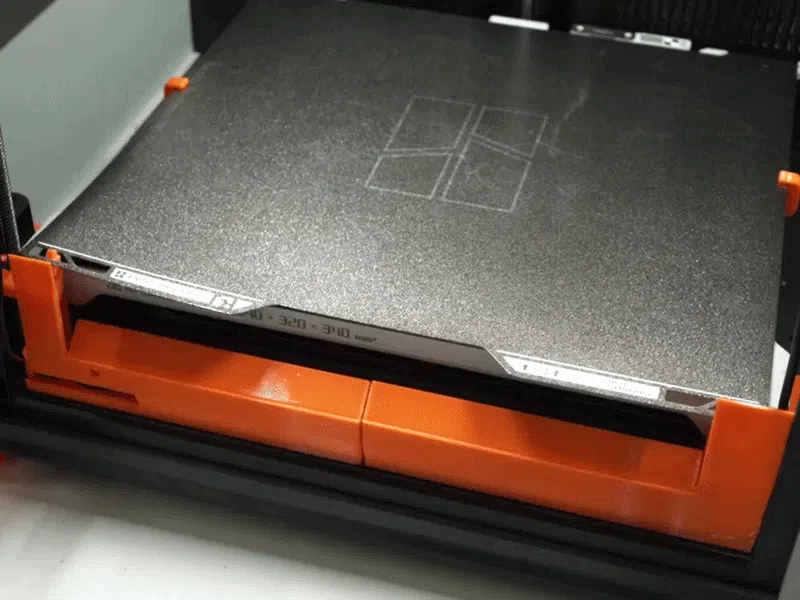

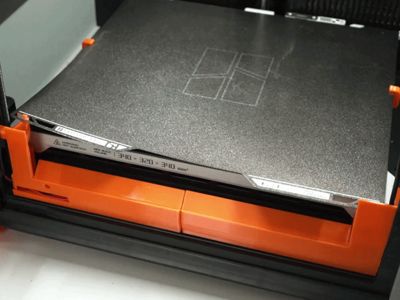

• Active Wave Bending: Two precision linear actuators clip directly into the slots on the H Series build plate and lift it up to 75mm. They can fire together for a synchronized bend, or out of sync at different stroke lengths and timings, sending a rolling wave across the plate that progressively breaks adhesion from edge to edge. Parts that might survive a one-sided bend can't survive a wave. Because bending only engages after the print finishes, the Z axis stays locked, so you keep the full printable height of the H Series with no risk of crushing the plate (a limitation of passive Stage 1 designs). This is the first time wave-style bending has been implemented on any 3D printer we know of.
• Smart Safety System: Force-sensing technology detects obstacles instantly, whether it's overflowing prints, a forgotten tool, or your fingers. If something blocks the door, the system triggers an error and stops your printer before damage occurs. No runaway prints. No disasters.

What's Included in the Hardware Kit

• Custom FarmBoard PCB
• 3× High-force linear actuators (64N each)
• Limit switch for activation
• Button for door activation
• AMS/Molex cables
• Screw set
• Cable management clips and adhesive tapes

Join Our Community If you want to start and grow a profitable 3D print business, join us to unlock CAD courses, business playbooks, and a network of makers scaling their farms.

→ https://www.skool.com/3dfarmers

Happy looping, 3D Farmers!
