Dragon Boat Mechanical Device

Dragon Boat Mechanical Device

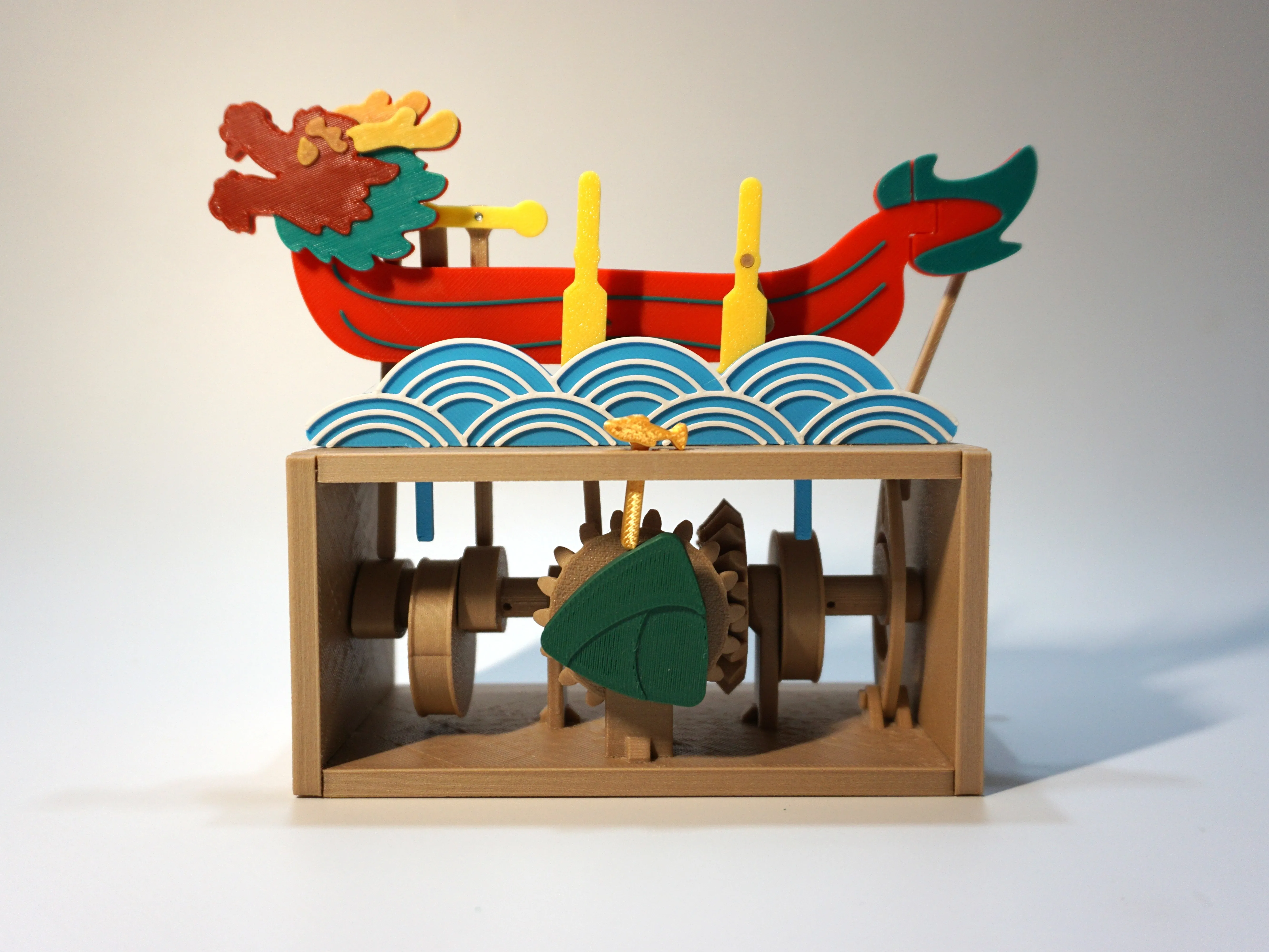

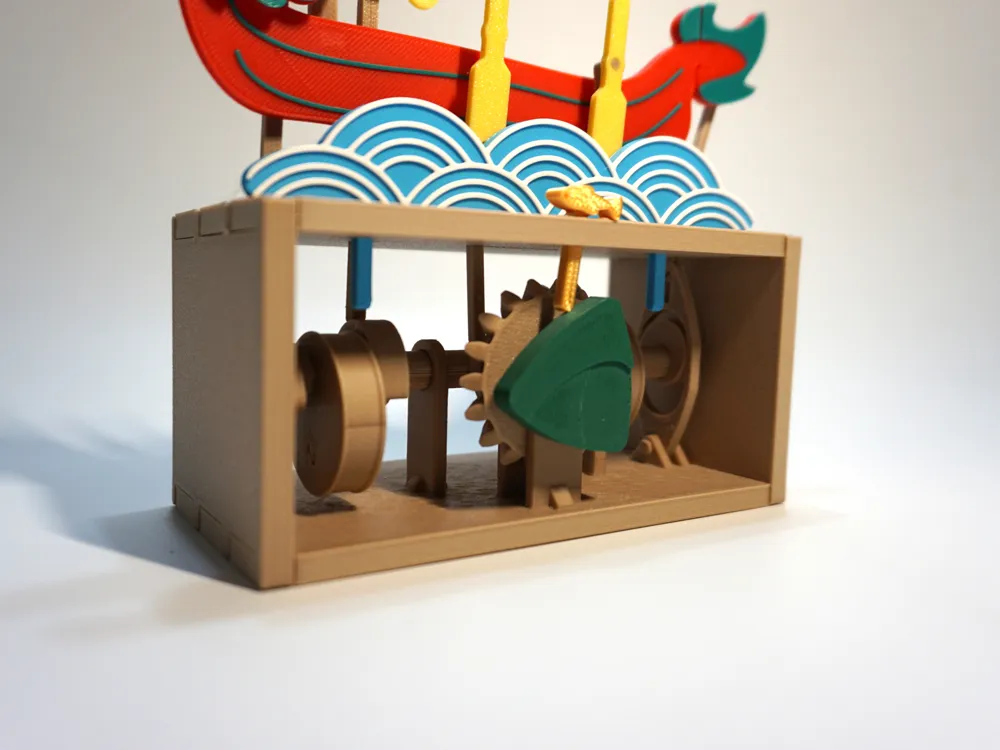

Assembled dimensions approximately 160*60*132mm

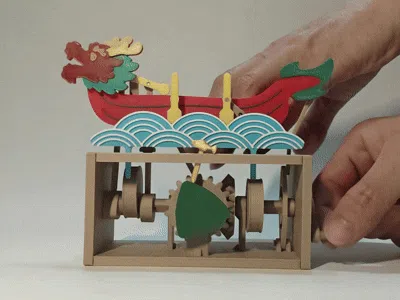

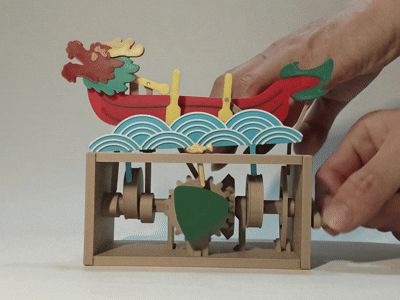

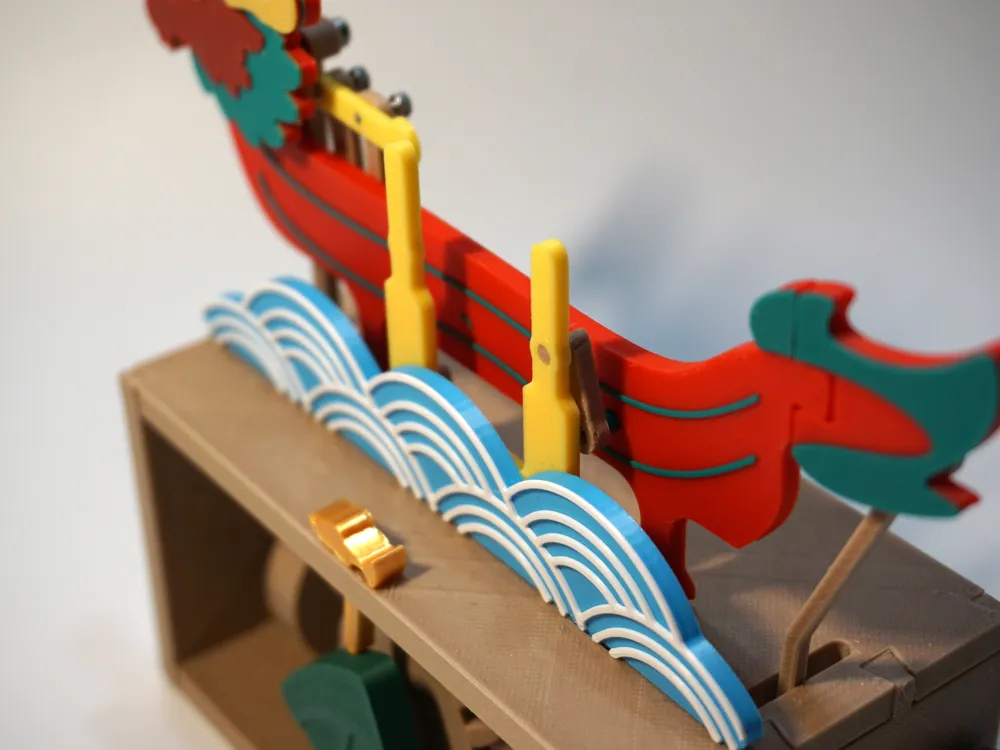

Head, tail, drumstick, paddles, water waves, small fish, rice dumplings are movable

Please rotate clockwise (backward), reverse rotation will cause the drumstick's crankshaft to jam

(Of course, the drumstick's crankshaft can be installed in reverse for counter-clockwise rotation, which actually seems to make the paddles and drumstick work better together, the best finished product seems a bit different from my test)

The sinkage rate difference between Wood PLA and other materials is quite large, the tolerance is a compromise, so if using wood it will be slightly tight, some parts may need light sanding or hole enlargement

Non-printed parts require 4 M2*6 screws and 1 M2.5*10 screw, please do not overtighten the screws

If you encounter any assembly issues or anything gets stuck, please leave a comment

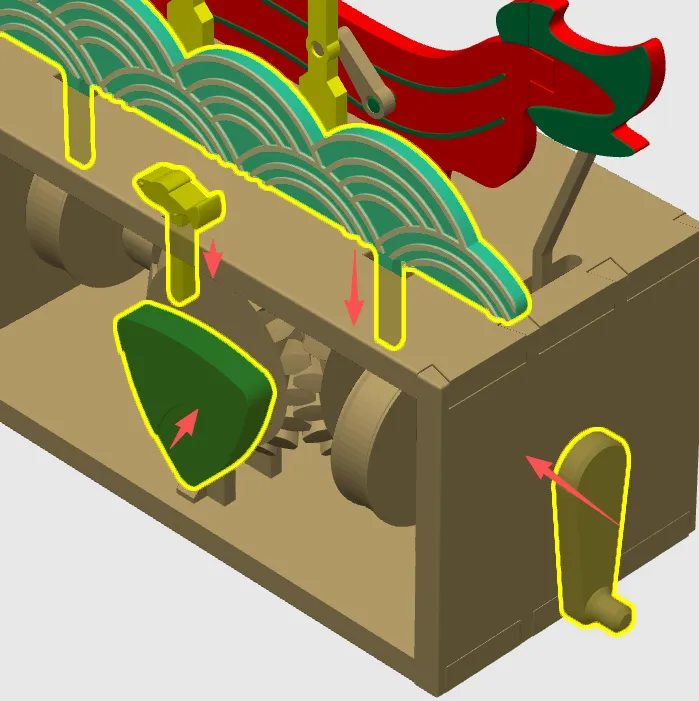

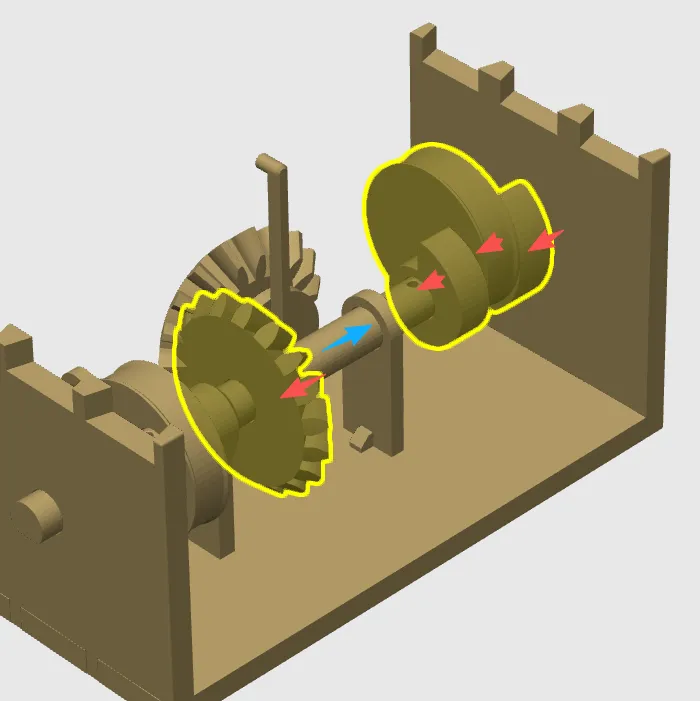

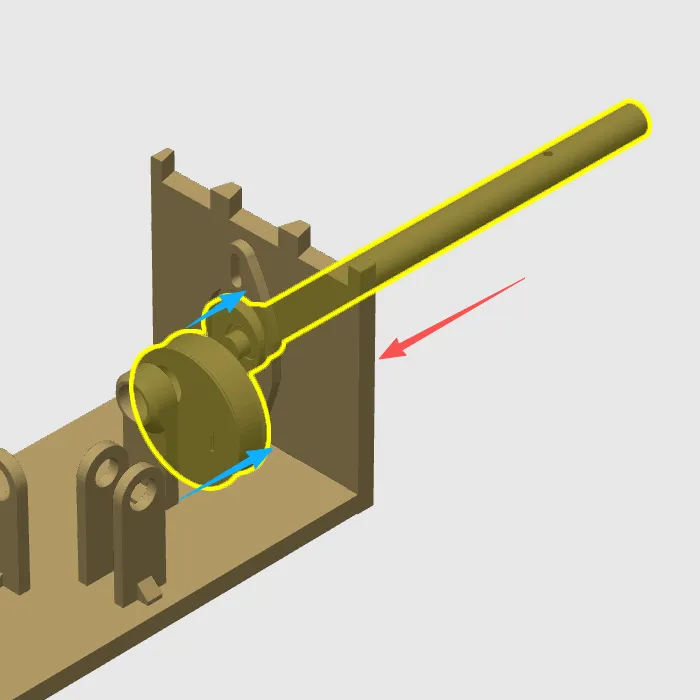

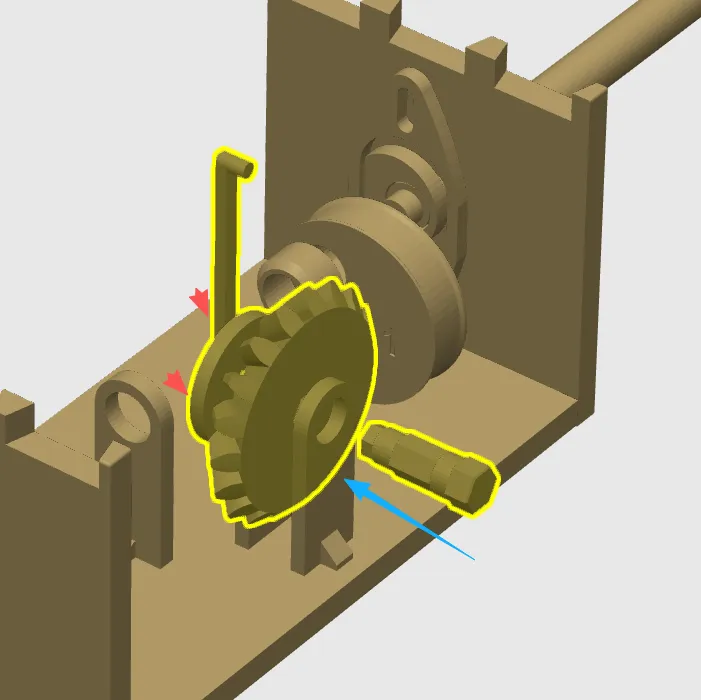

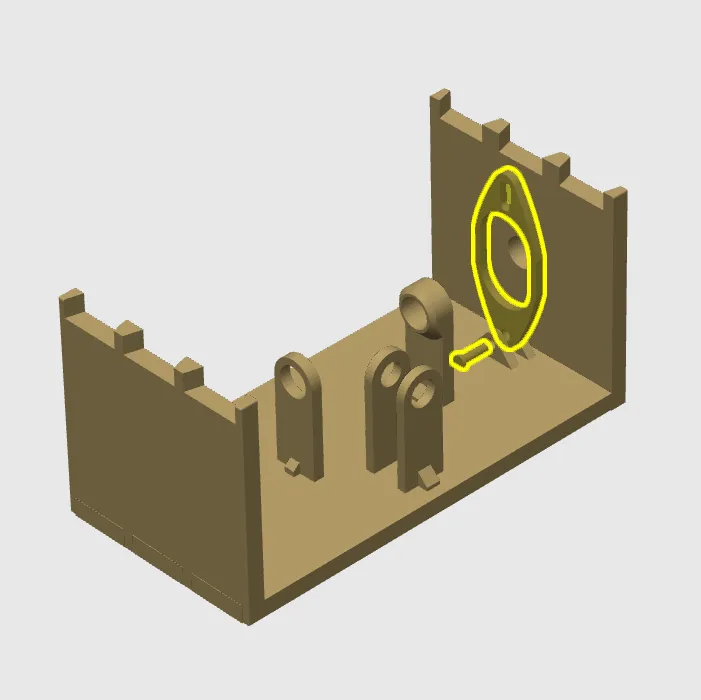

Assembly instructions are as follows

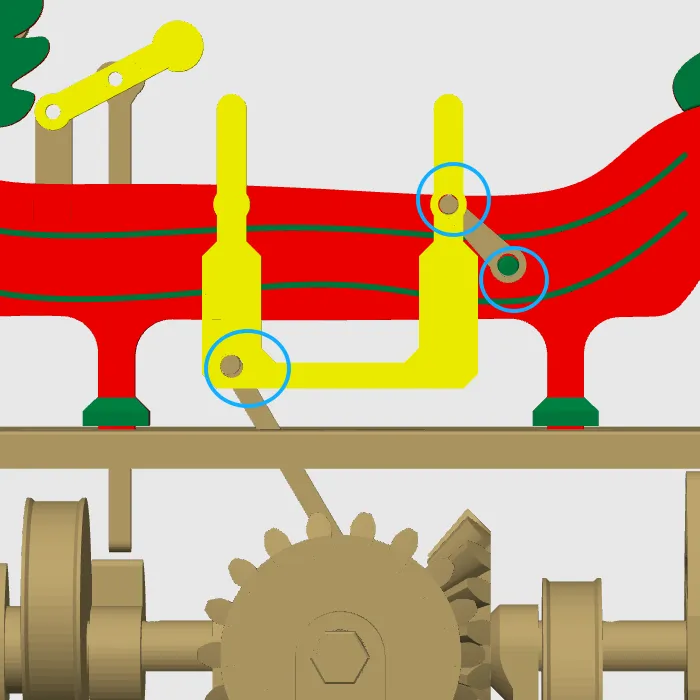

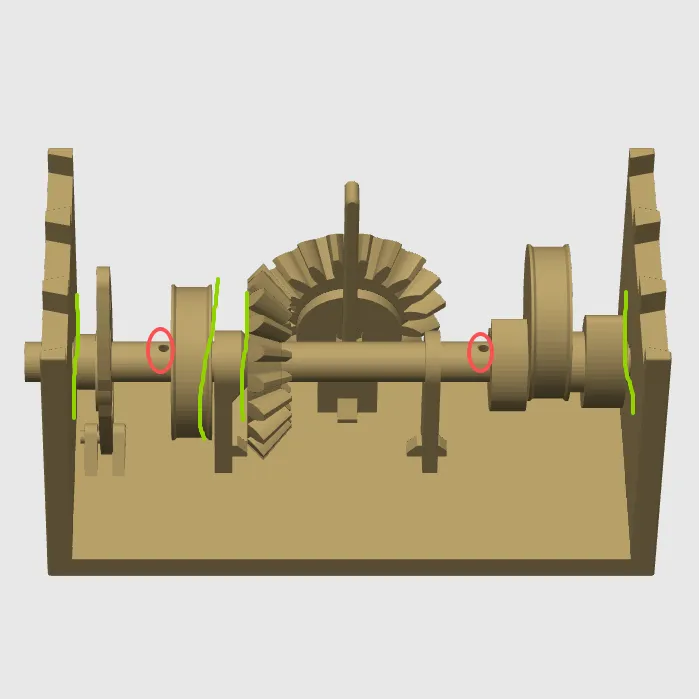

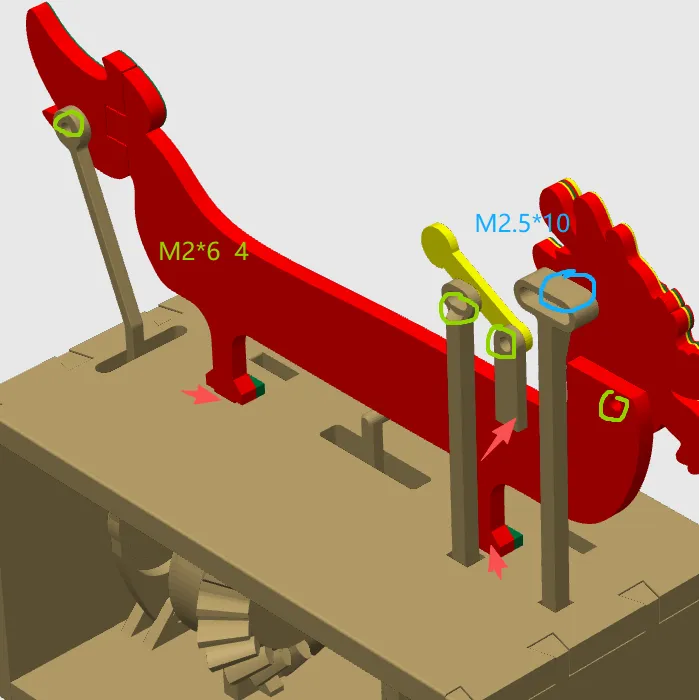

Green lines indicate alignment, holes are left at the red circle locations, if too loose, you can use glue or insert a piece of filament

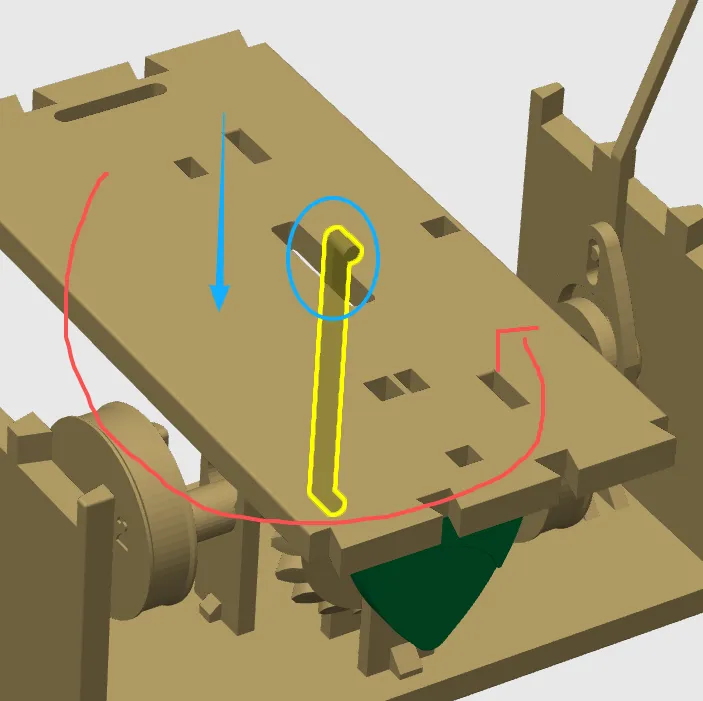

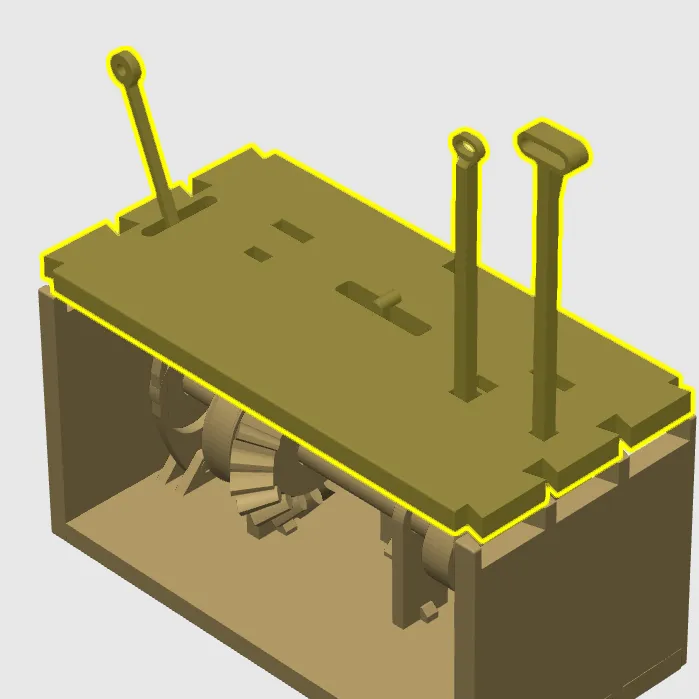

The top cover needs to be inserted horizontally first then rotated 90 degrees, the tail rod is similar
