3D-Scan Turntable Attachment 460mm with Scan Markers
Print Profile(1)
Bill of Materials
Description
ScanEinst3D-Scanner Turntable Attachment for IKEA SNUDDA Turntable with Scan Markers
Diameter 460mm

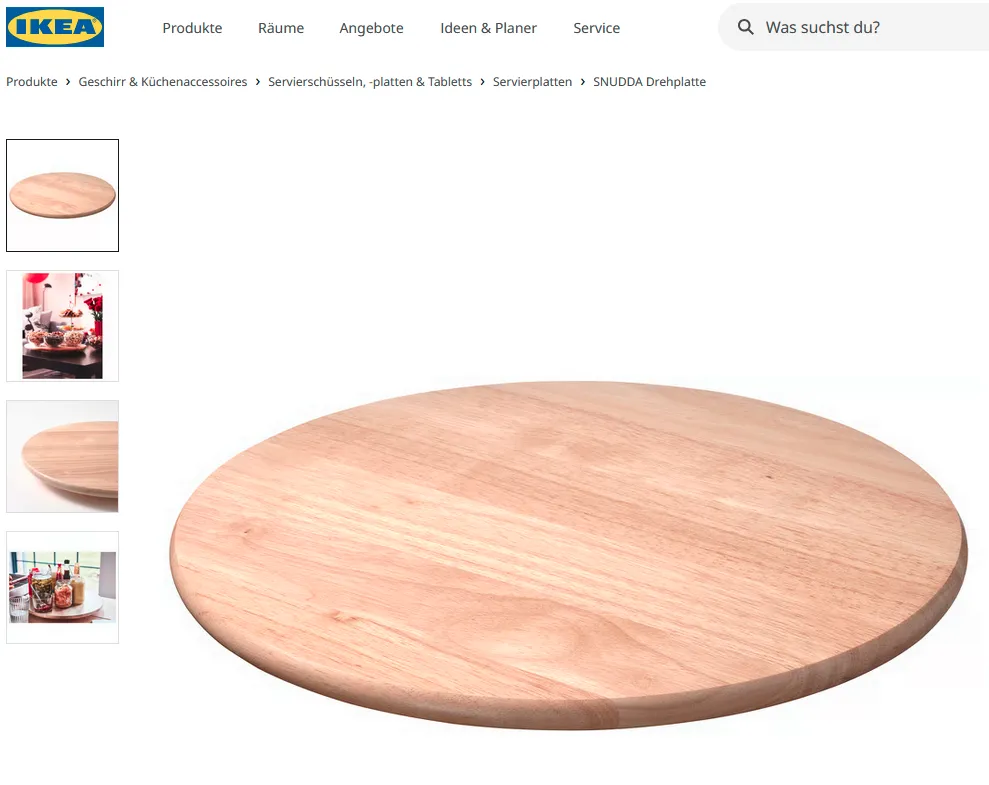

The turntable is designed for the IKEA SNUDDA turntable, but other similar turntables will also work. The turntable has a diameter of approx 39cm and I have provided a corresponding frame so that the attachment does not slip. This can be adjusted with slicer functions.

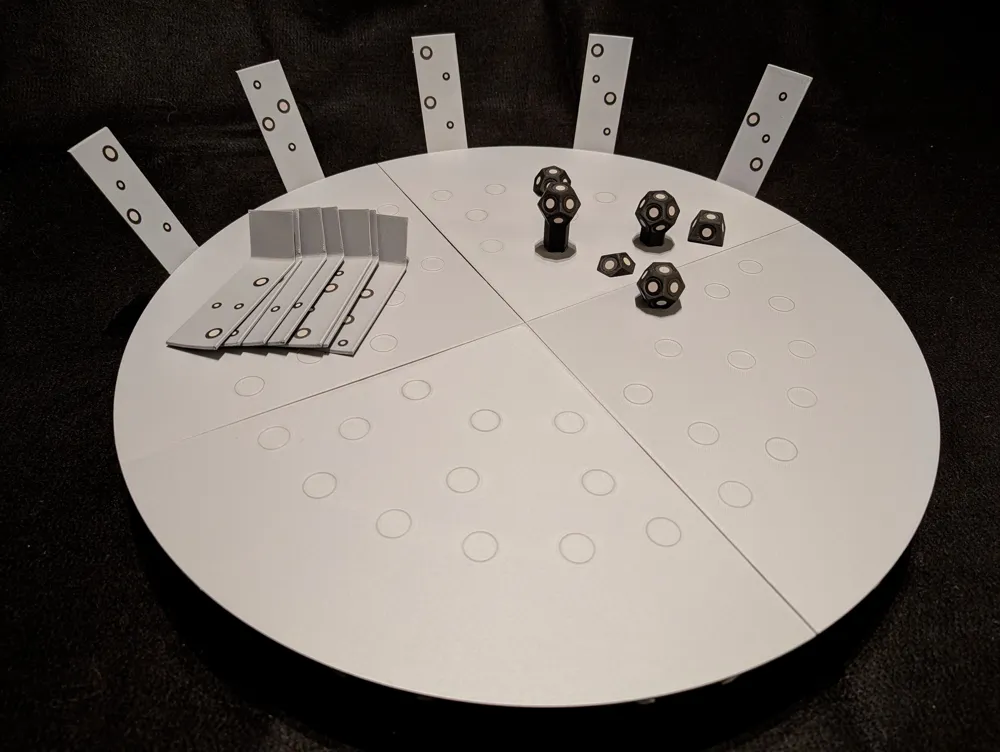

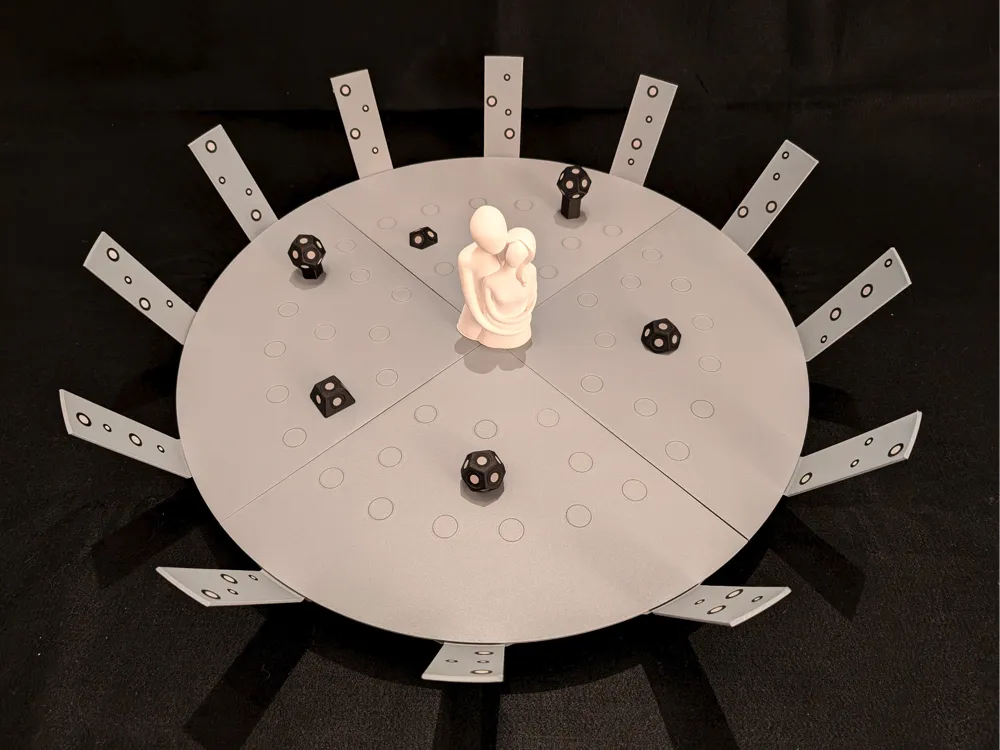

The turntable attachment has integrated magnets (h=3mm,d=8mm) for flexible attachment of the markers. These have the same magnets. The magnets are inserted during printing (Pay attention to polarity!!!) 48 pieces are needed for the turntable (48 x 8x3 mm magnets) For the markers as needed.
Flexible Magnet Sizes:
I implemented the magnet holes with negative parts in the slicer. They can be adjusted to a certain extent for other magnet sizes. I recommend 2 layers under the magnets to the print bed. For good magnet adhesion, I recommend magnets > N48

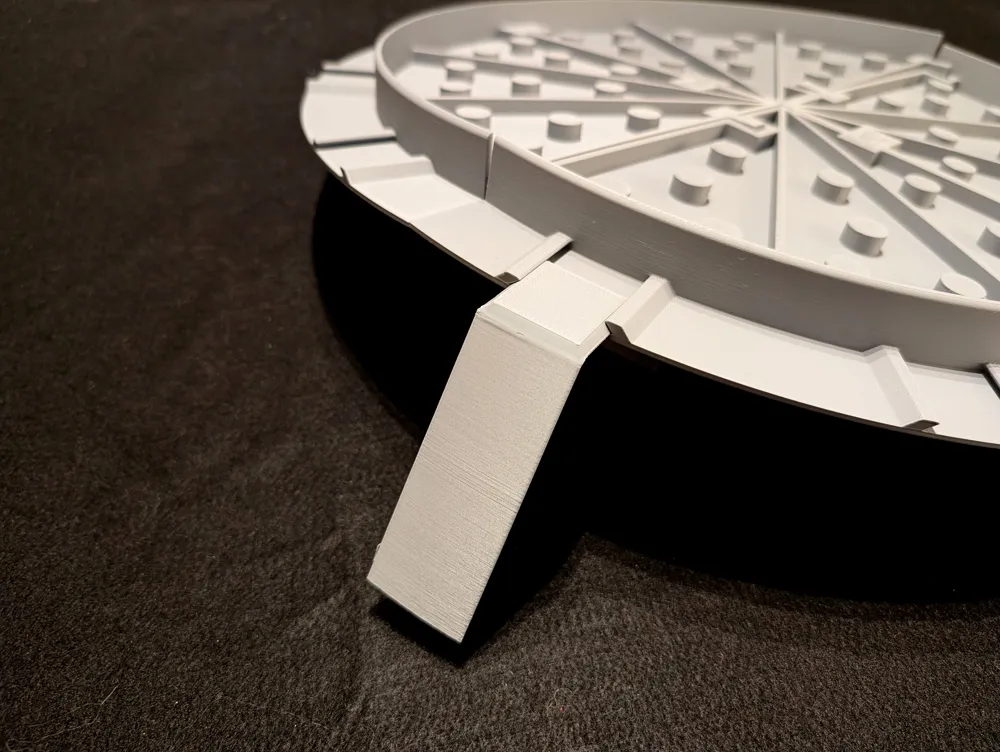

The side plates are only pushed in. I designed them to fit snugly. Depending on the filament, slight deburring can make the inserts smoother.

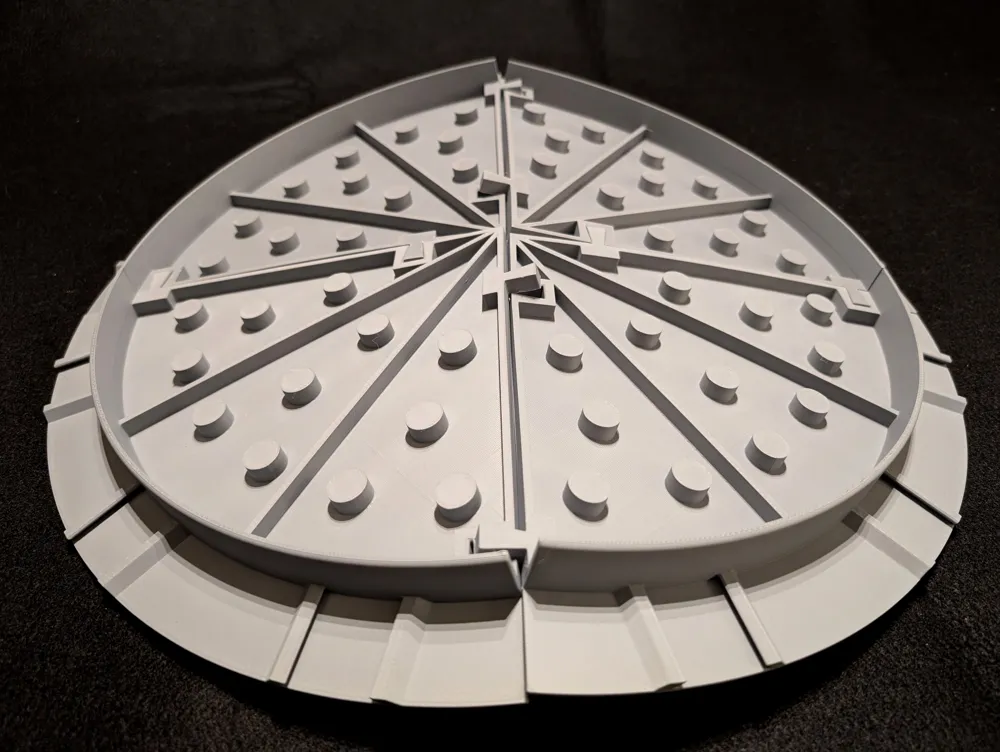

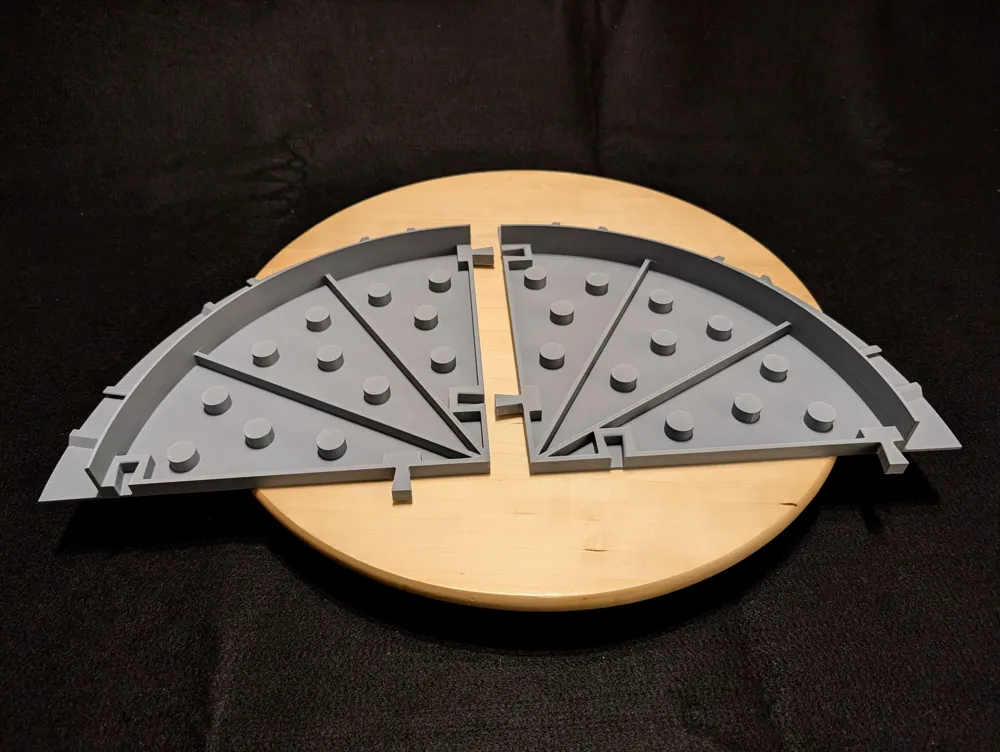

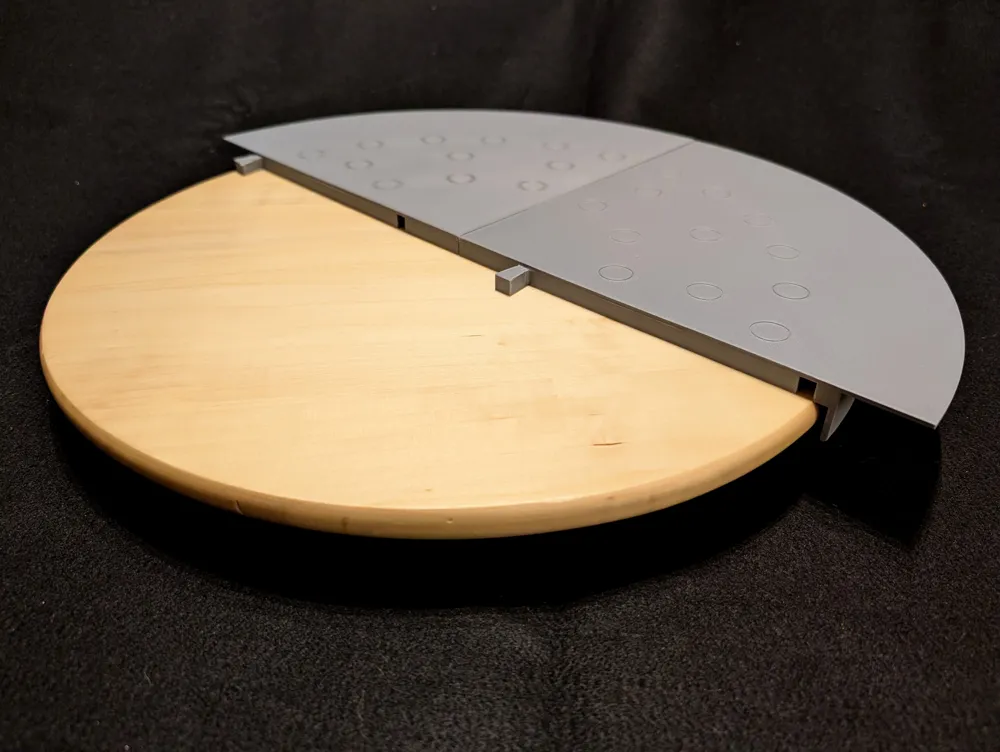

The 4 parts of the turntable are only interlocked (see pictures). I planned the printing of the quarter pieces with support filament. If necessary, please adjust the settings in the profile.
