Parametric Cup Holder for Desk

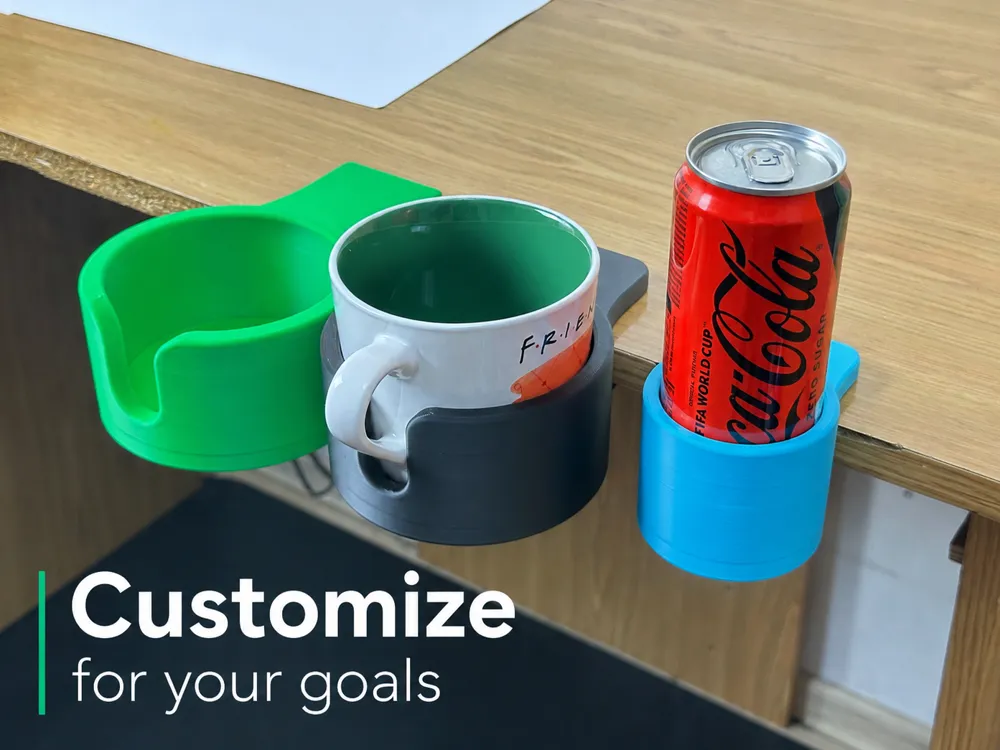

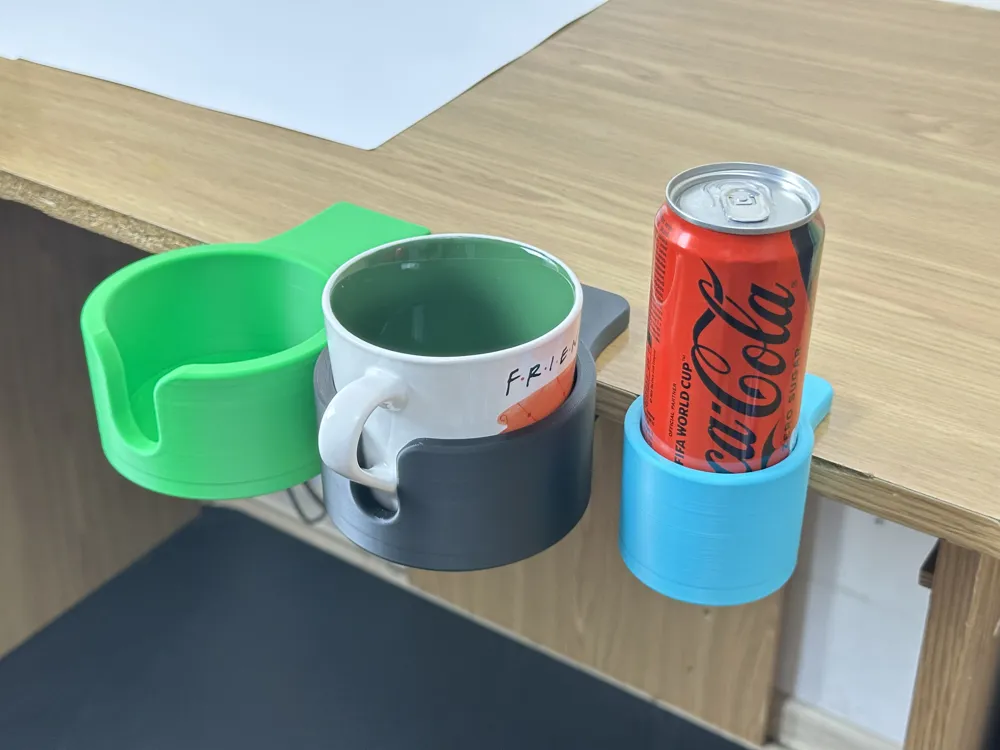

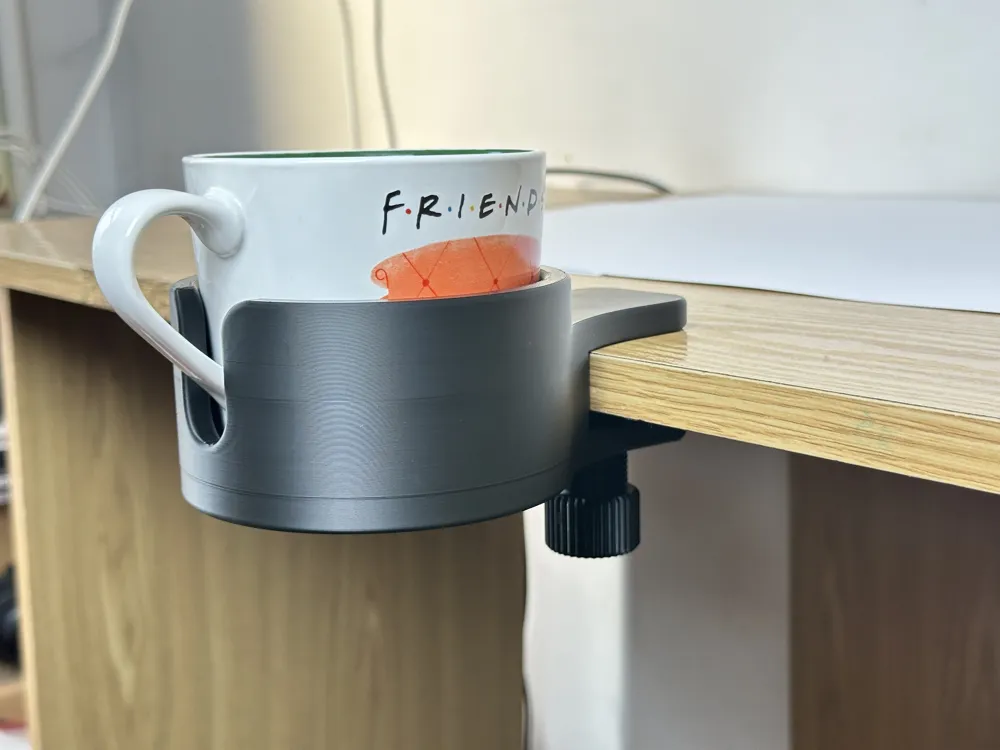

A customizable clamp-on cup holder for desks, shelves, and workbenches.
The model is fully parametric and can be adjusted directly in MakerWorld Customizer, but it also includes ready-to-print profiles for the most common cup and can sizes.

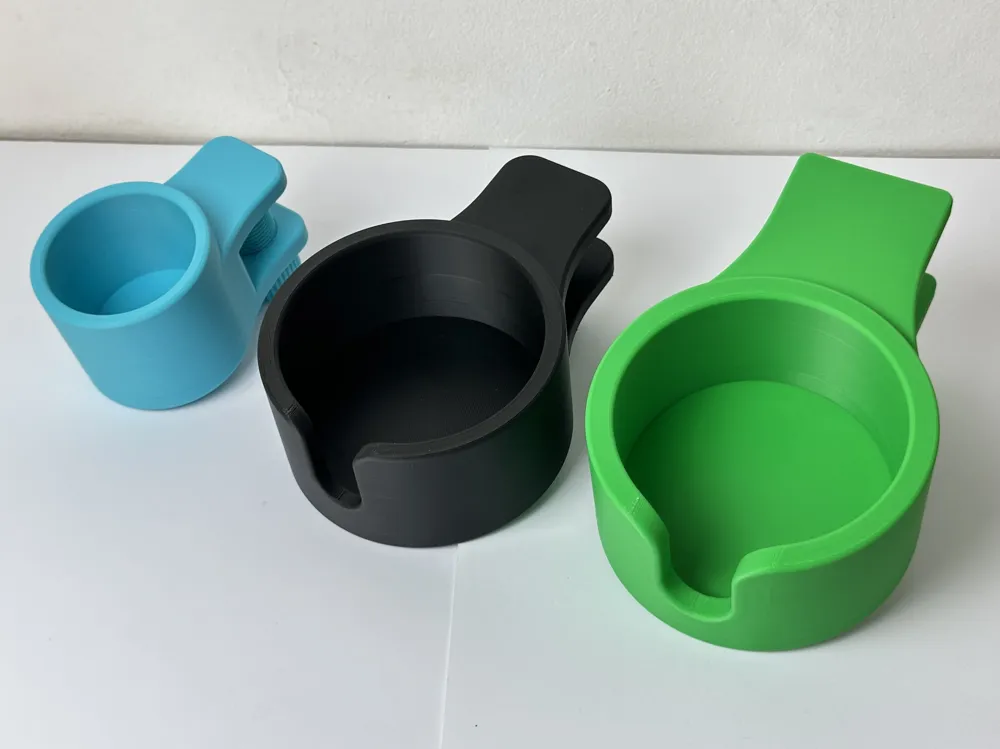

Ready-to-print profiles included:

• Mug Large — 100 mm diameter
  For large mugs, wide cups, and bigger drink containers.
• Mug Standard / Small — 70 mm diameter
  For smaller mugs, cups, and compact drink containers.
• Standard Can — 66 mm diameter
  For standard aluminum cans and many energy drink cans.
• Small Can 330 ml — 58 mm diameter
  For slim 330 ml cans and smaller beverage cans.

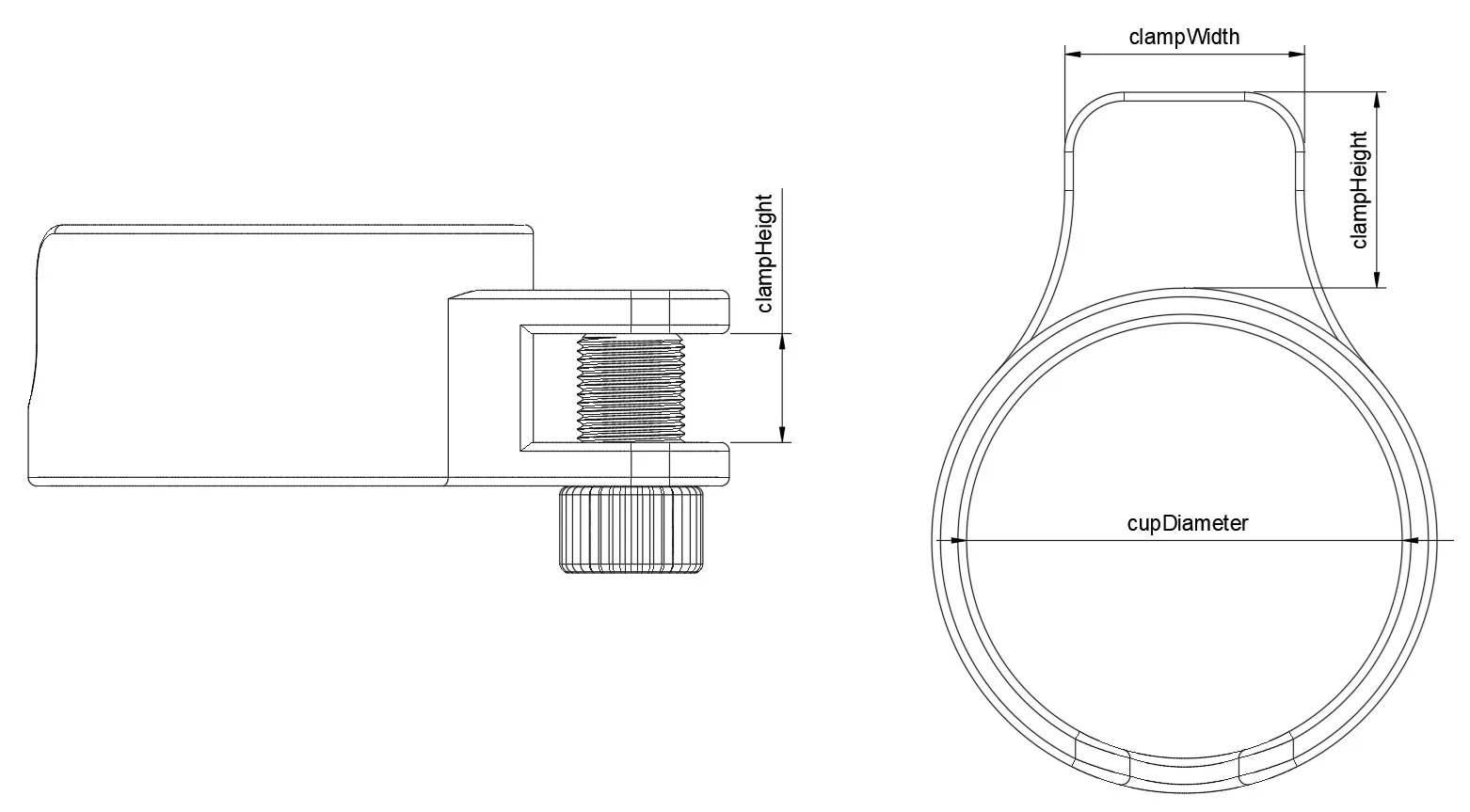

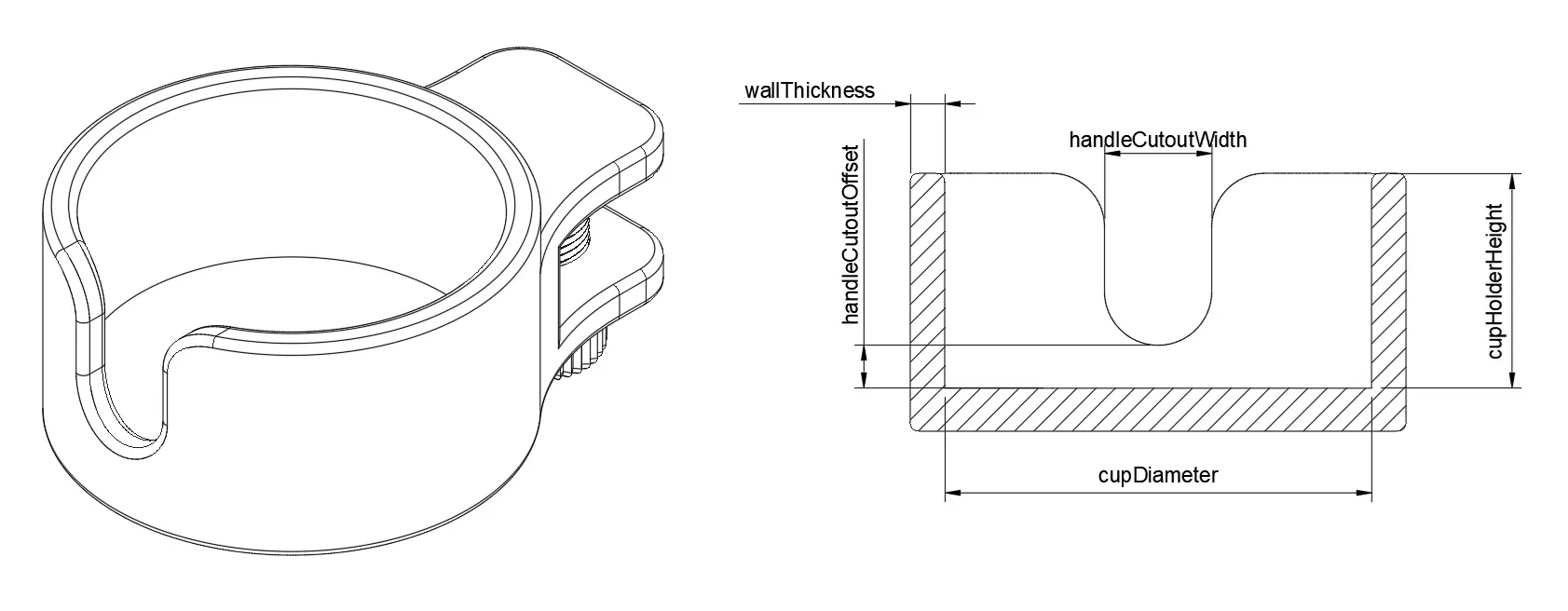

Customizable parameters:

• cupDiameter
• cupHolderHeight
• wallThickness
• clampWidth
• clampLength
• clampHeight
• handleCutoutWidth
• handleCutoutOffset


Use the “Customize” feature to create your own design:

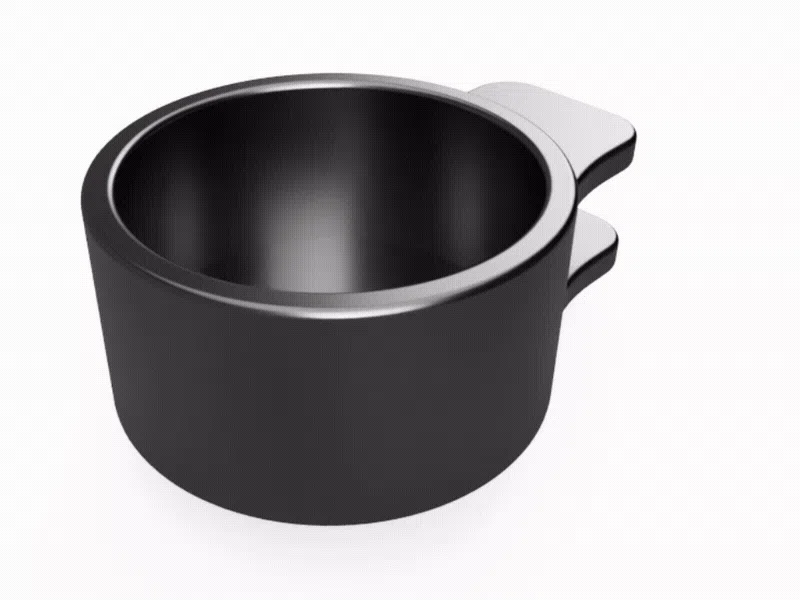

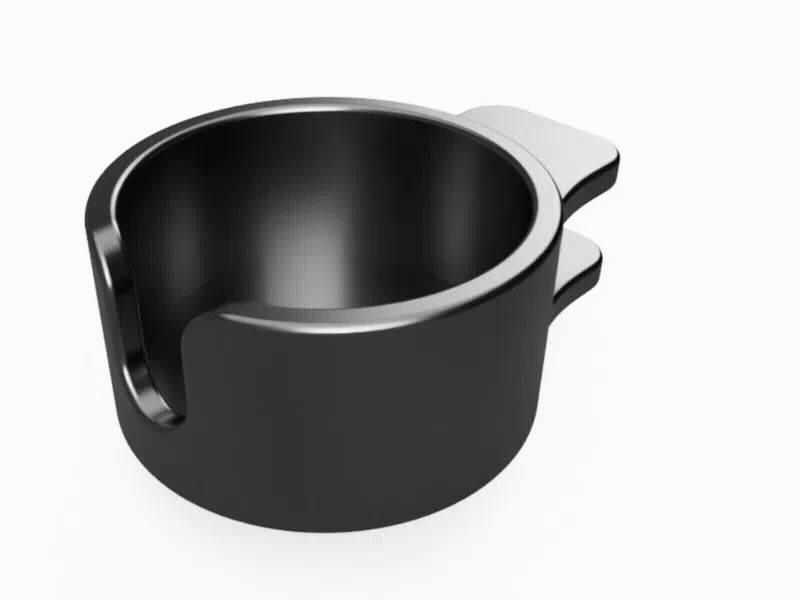

You can completely remove the handle cutout by setting handleCutoutOffset to a value greater than cupDiameter (for example, if cupDiameter = 100 mm, then setting handleCutoutOffset = 101 mm will move the cut outside the model, resulting in a cylindrical cup holder without a handle cutout):
