Description

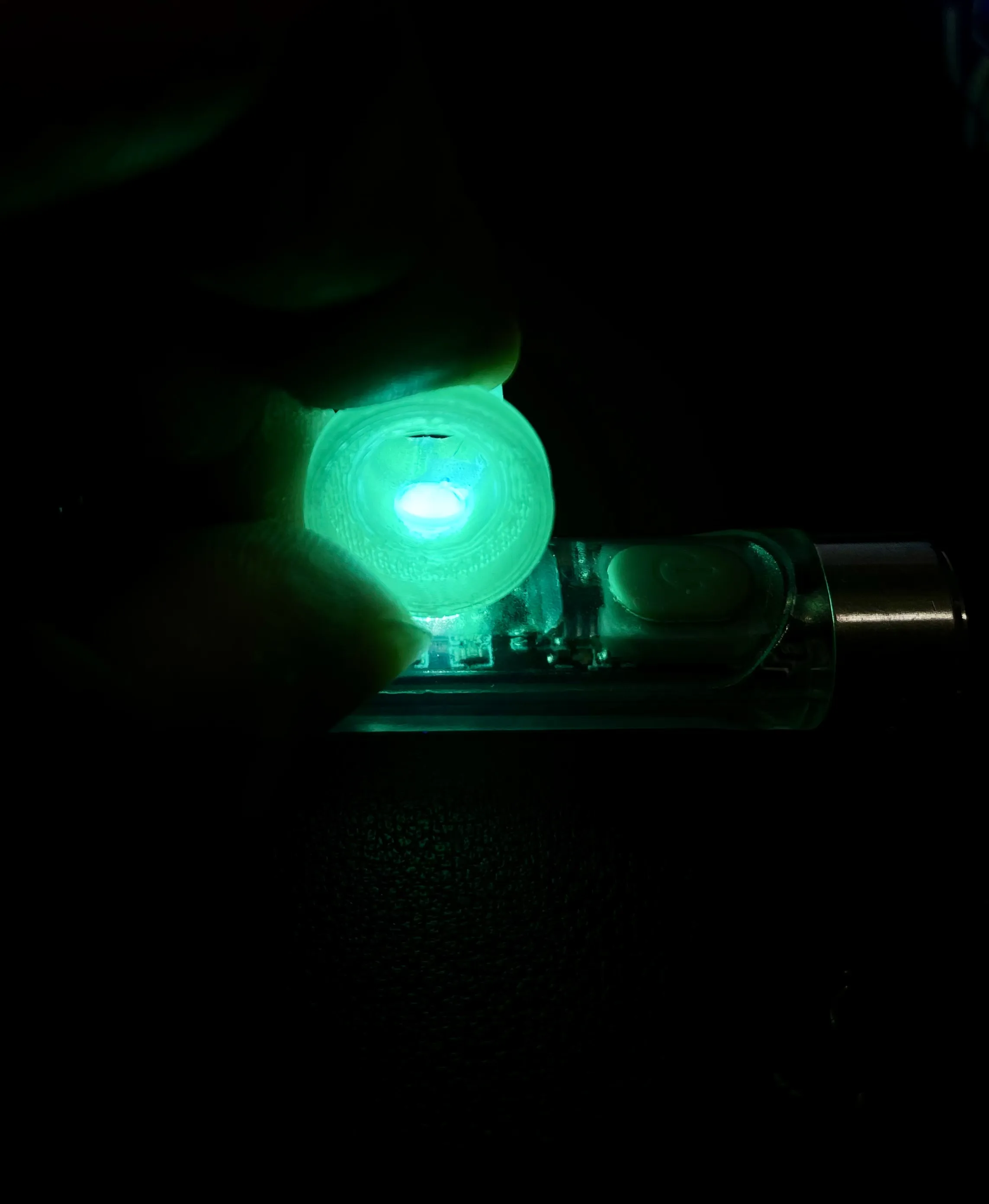

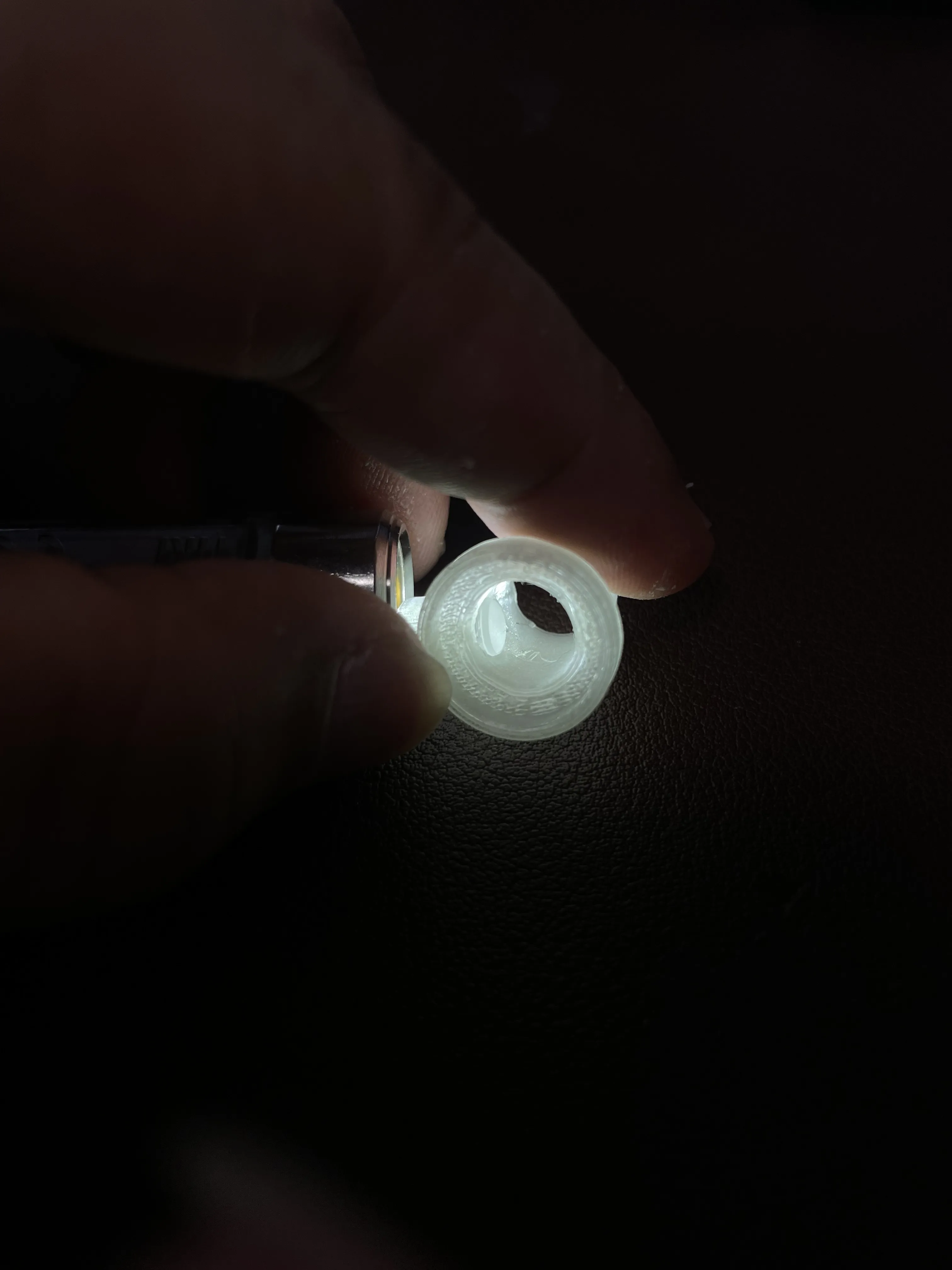

Adding a light guide column does not affect ammunition feeding, concentrates light, and reduces brightness loss

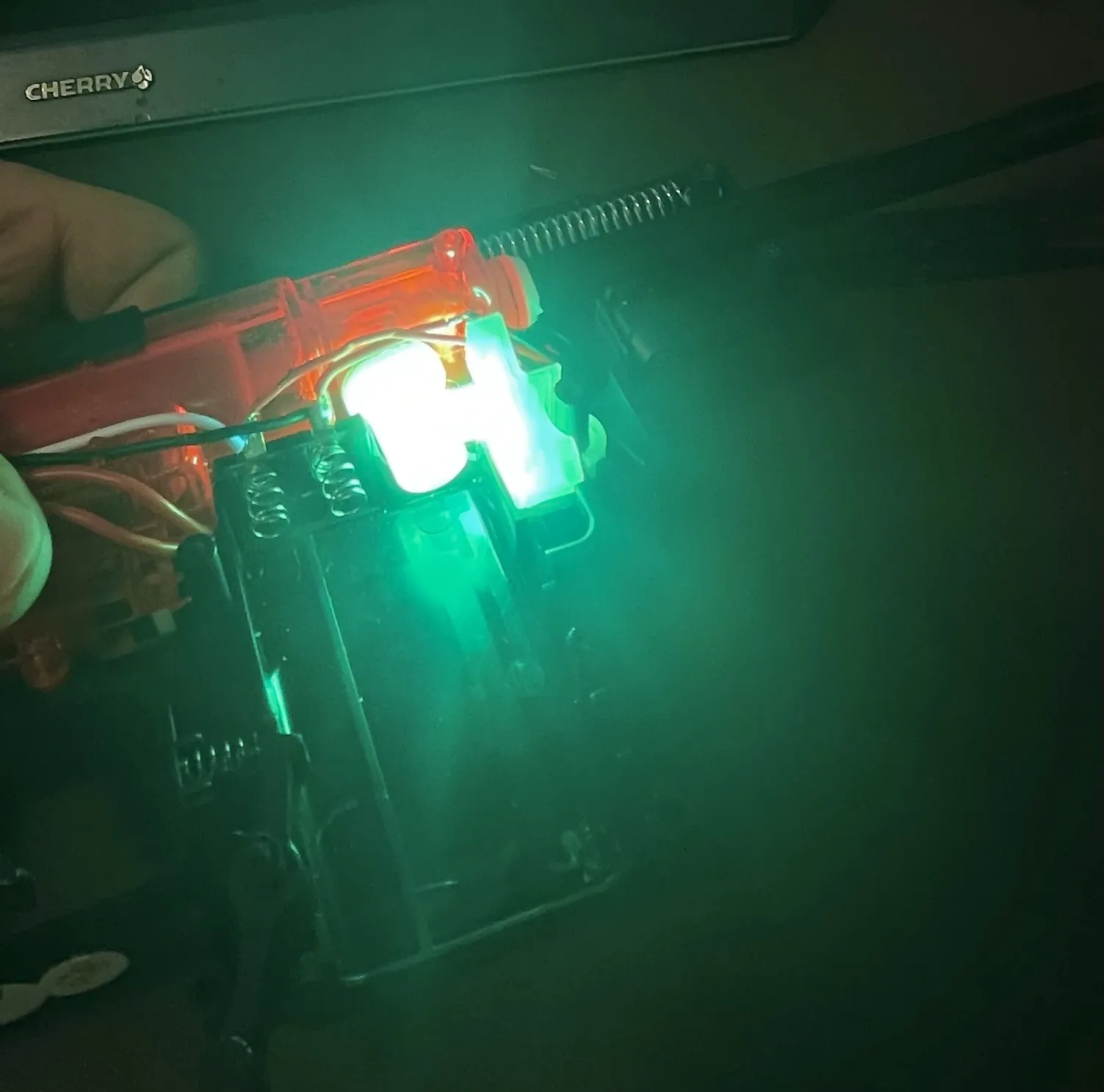

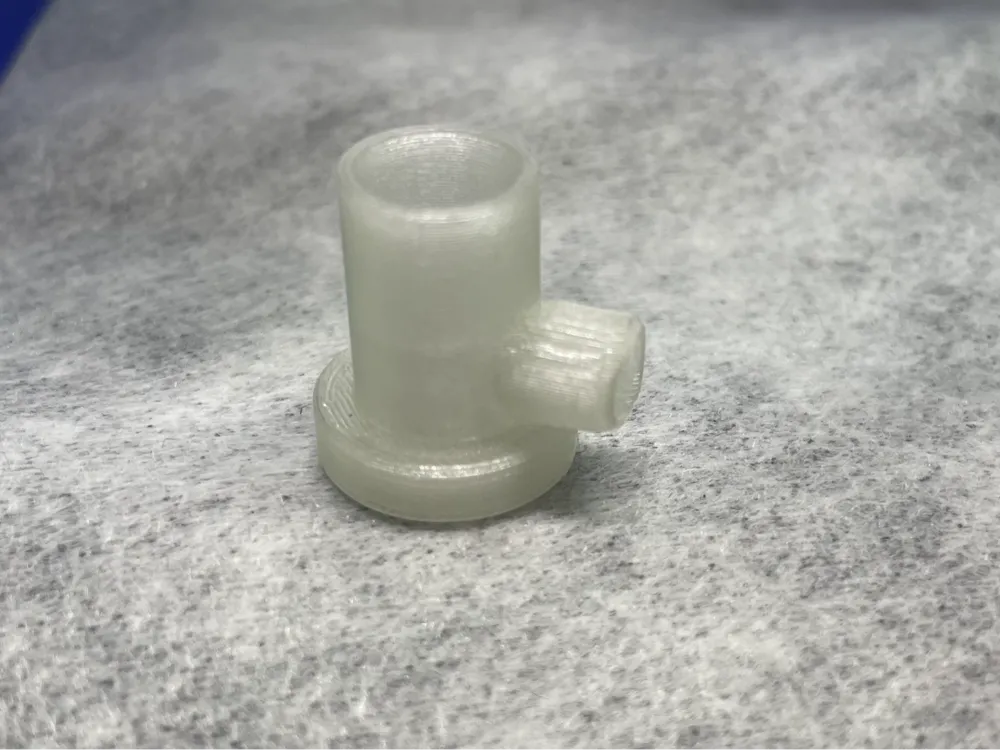

Modified the feeding port, added a light guide column, significantly improving night glow efficiency,

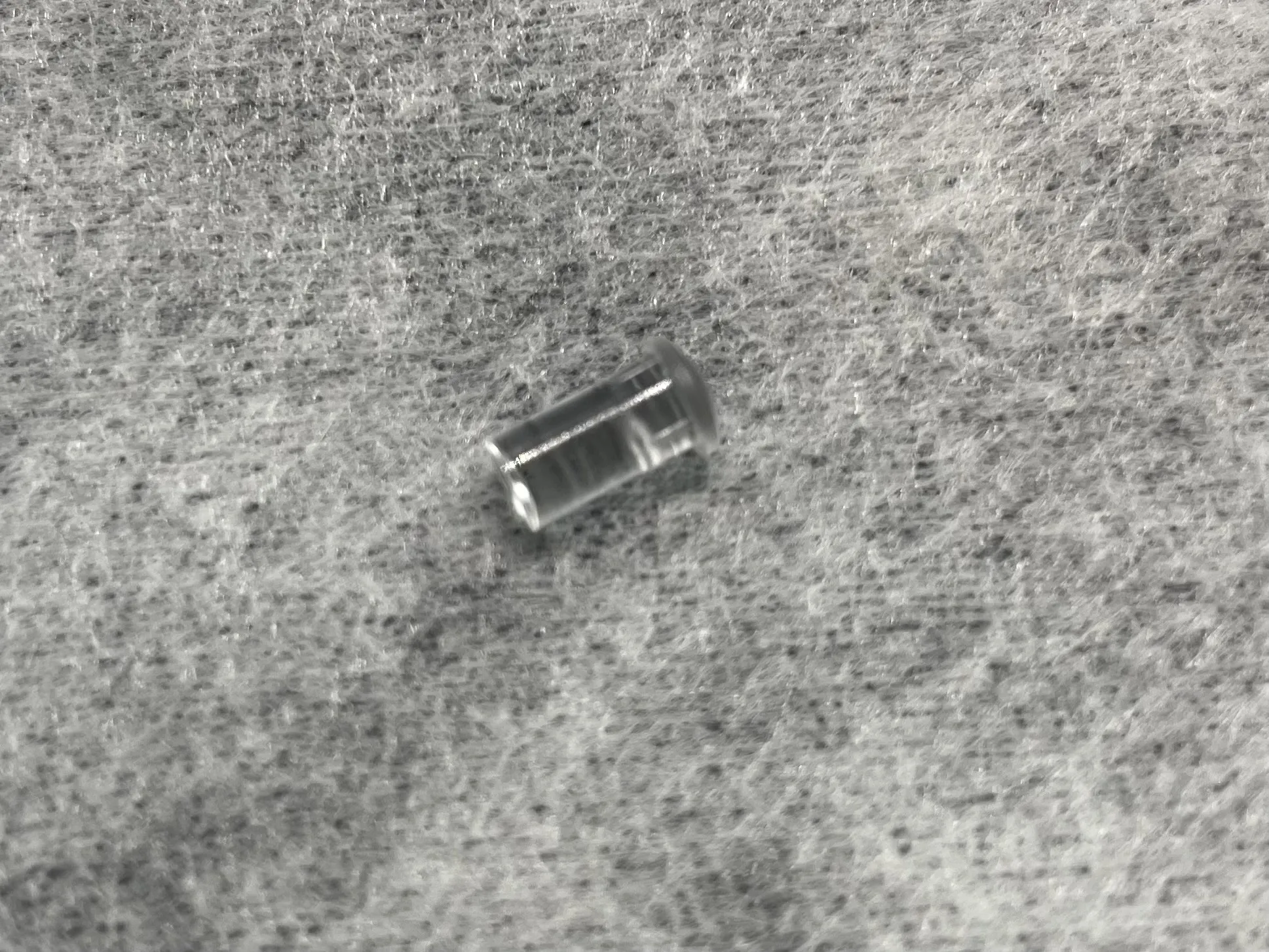

You need to purchase 4-7mm light guide columns yourself, with a diameter of 4mm and a length of 7mm

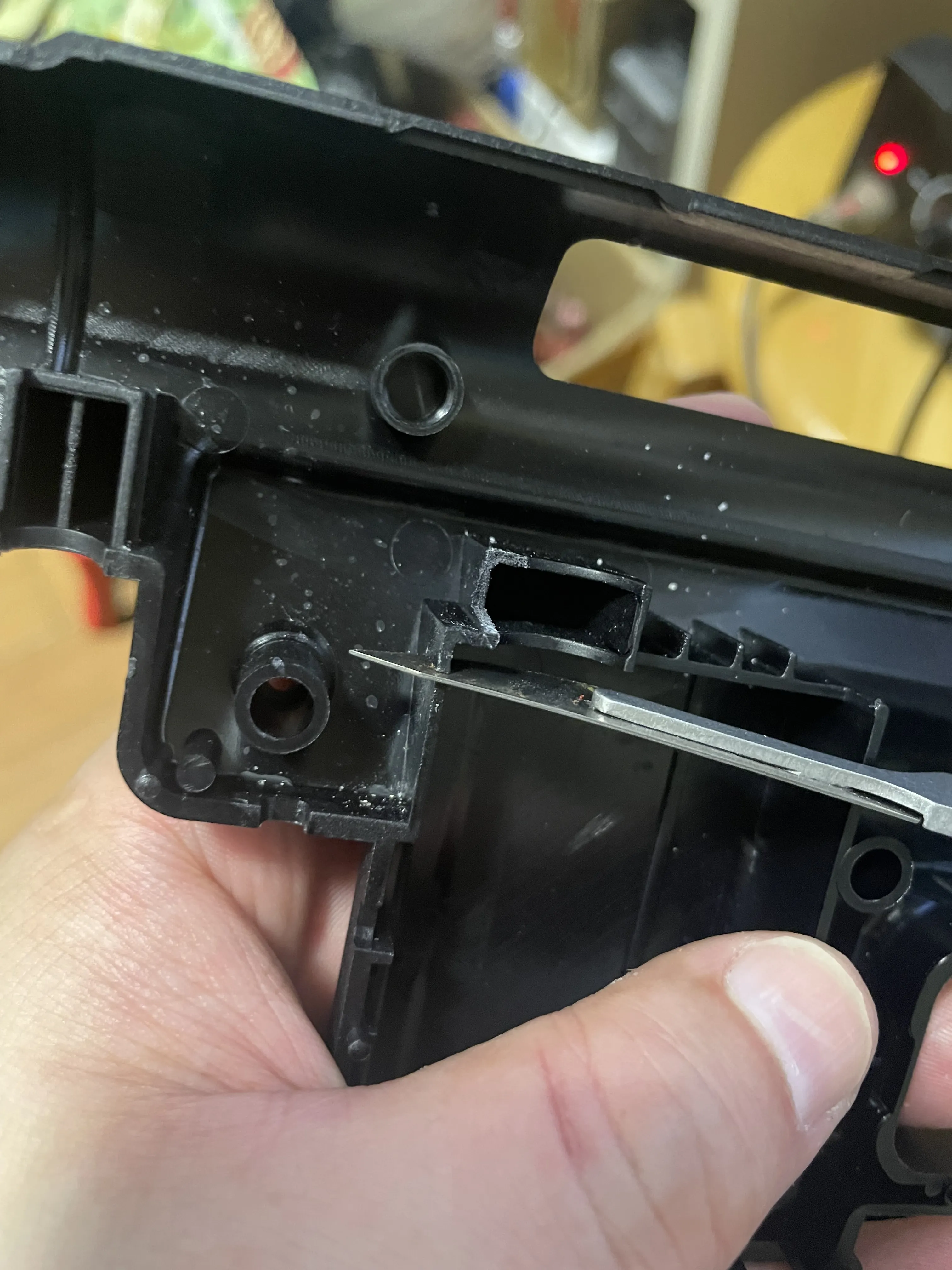

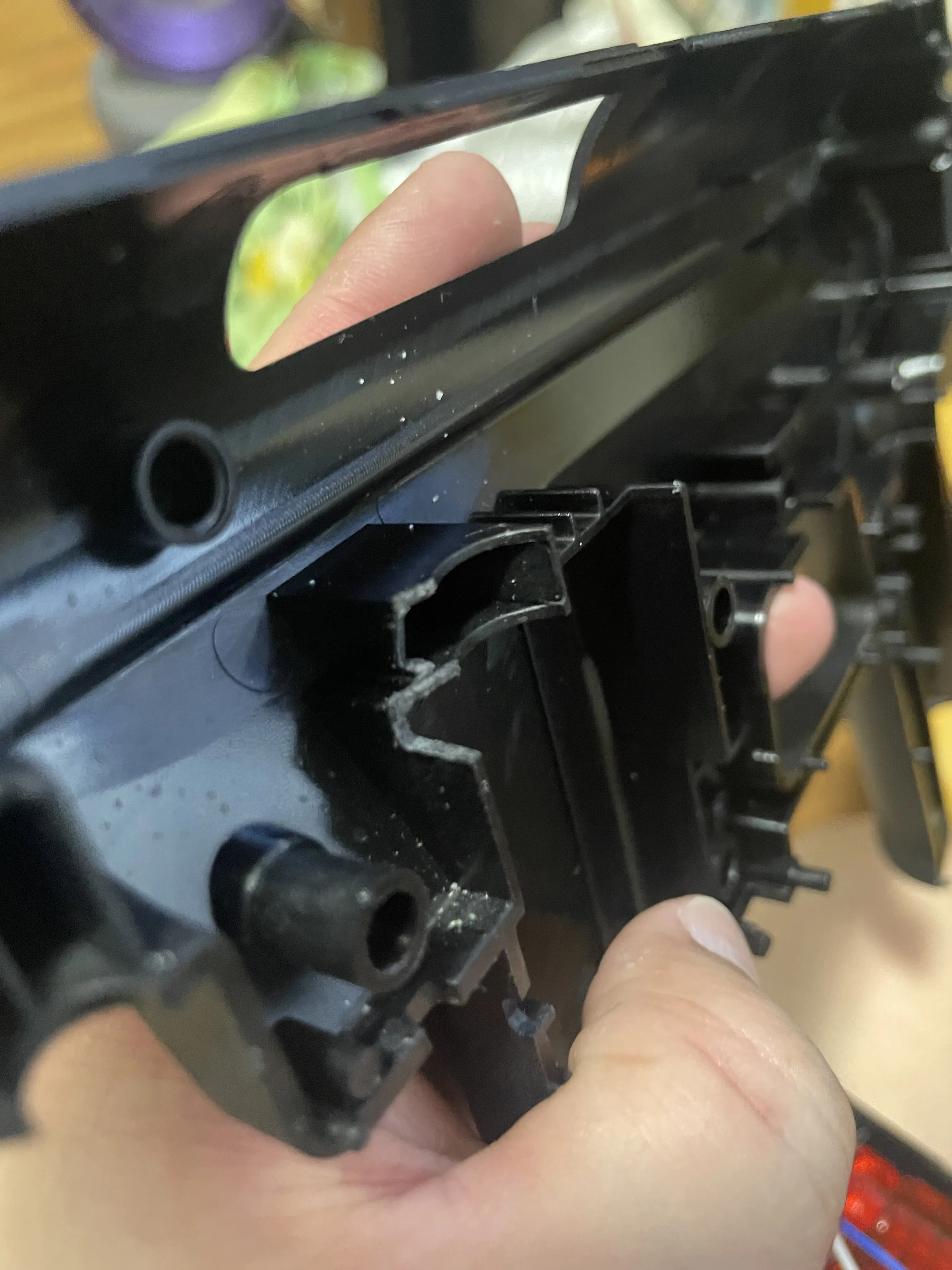

A portion of the casing needs to be cut
Approximately this width, adjust as needed based on actual conditions

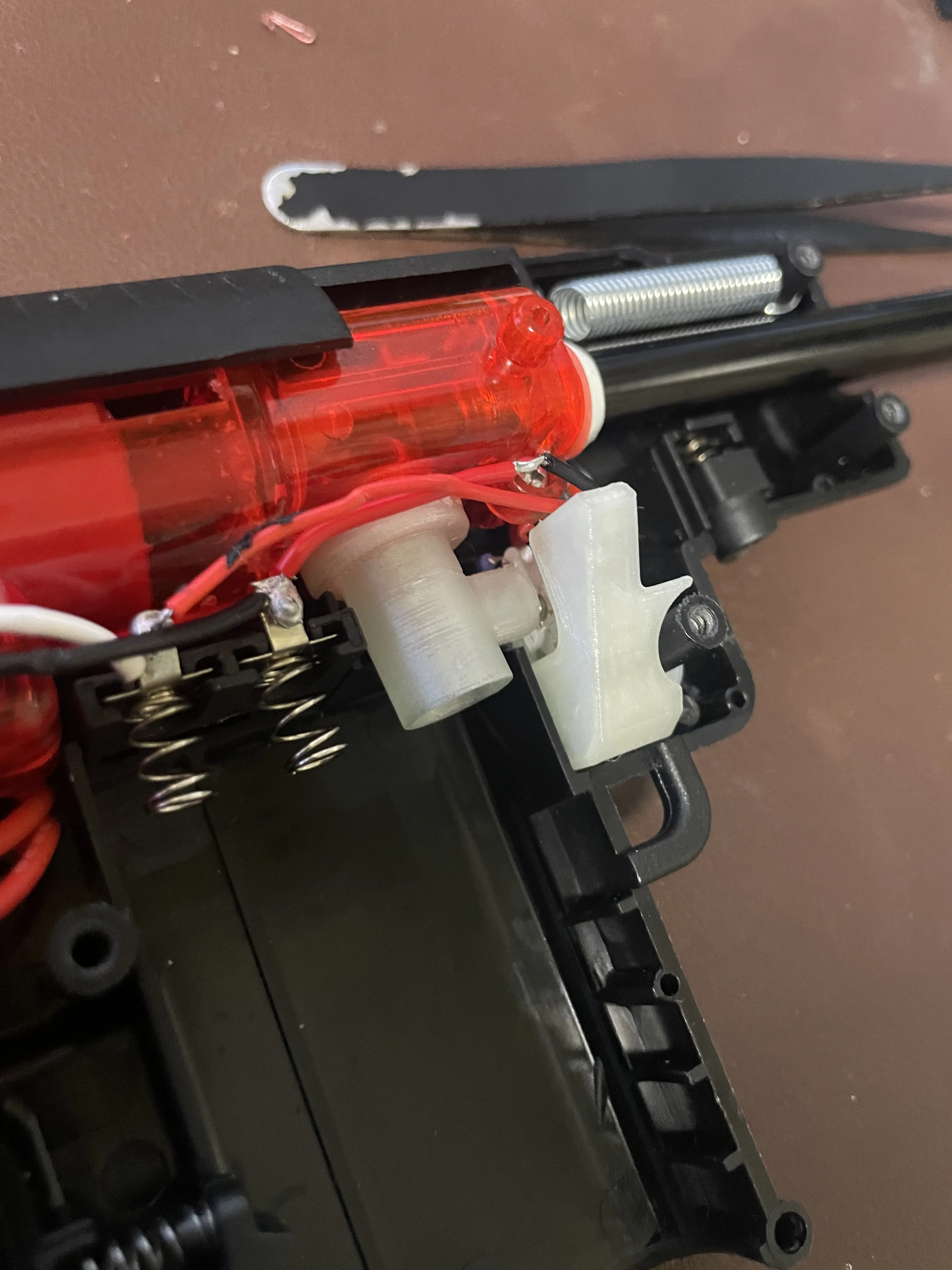

The light board used is 16mm; the depth has been adjusted, so there's no need to cut the aluminum substrate. I didn't install a switch; a piece was cut from the bottom of the light board holder to facilitate switch installation there.
