Circle and square tolerance test
Print Profile(1)
Description

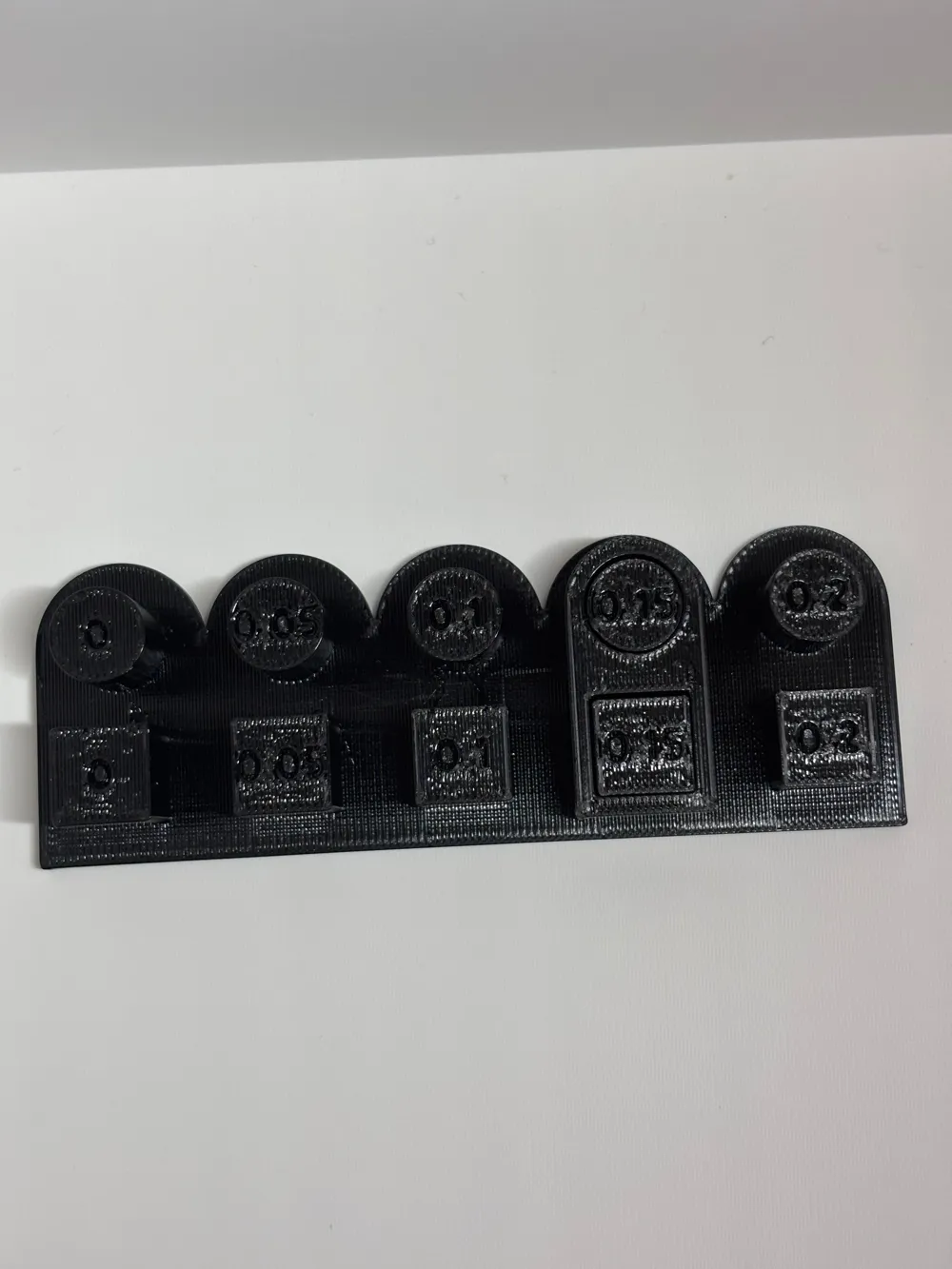

Tolerance test formed by a base on which pairs of cylinders and square prisms are arranged in columns, each column identified with a clearance value ranging from 0 to 0.2 mm in 0.05 mm increments.

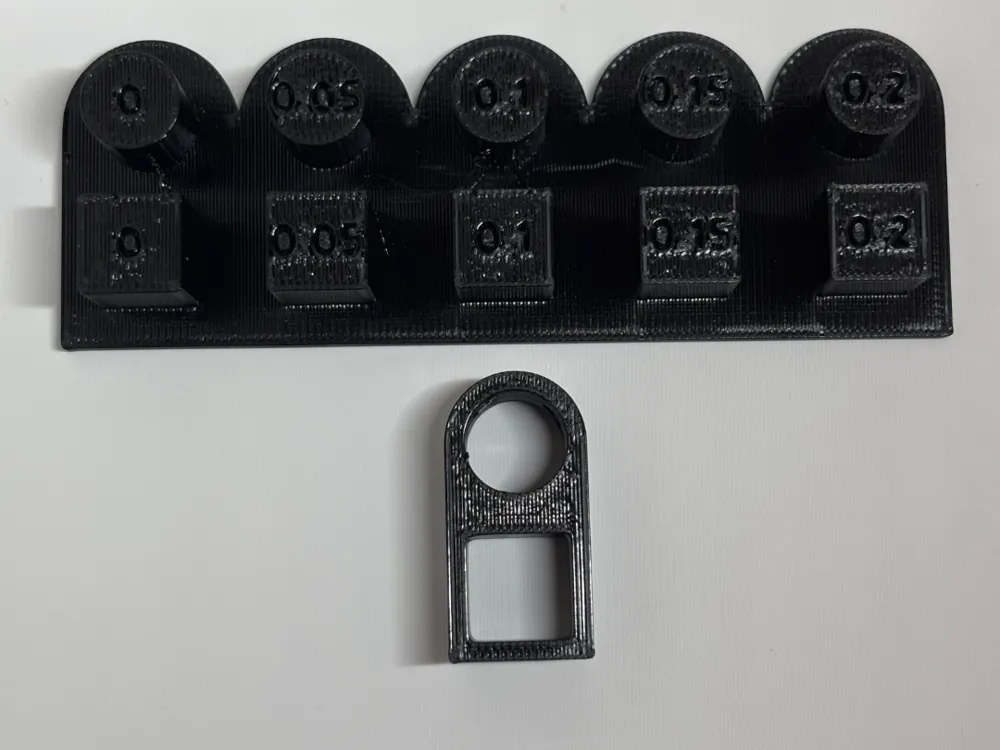

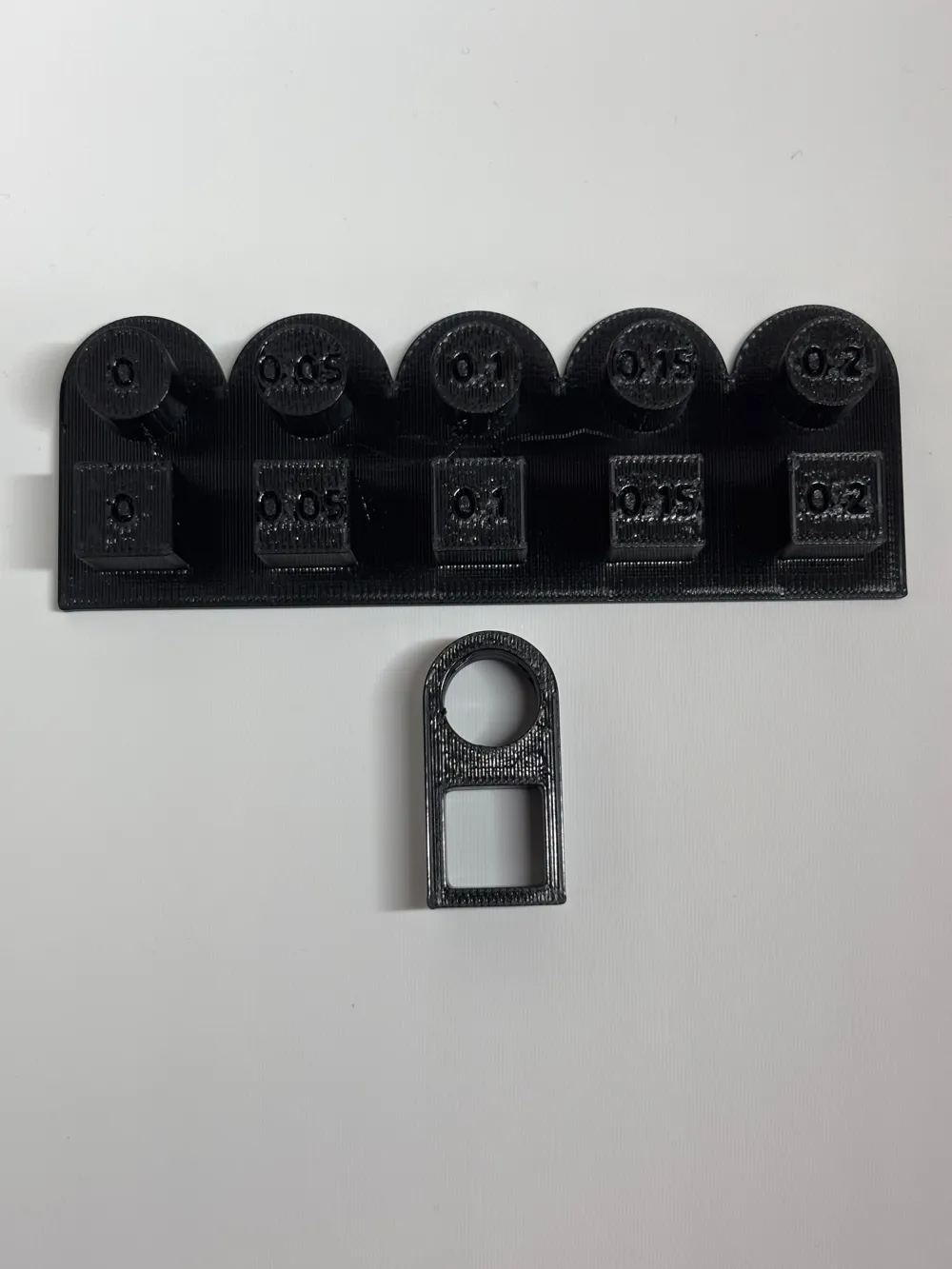

It is accompanied by an independent mating piece that integrates, joined in a single geometry, a circular hole and a square hole, so that it must fit simultaneously over the cylinder and prism at the same level.
