Description

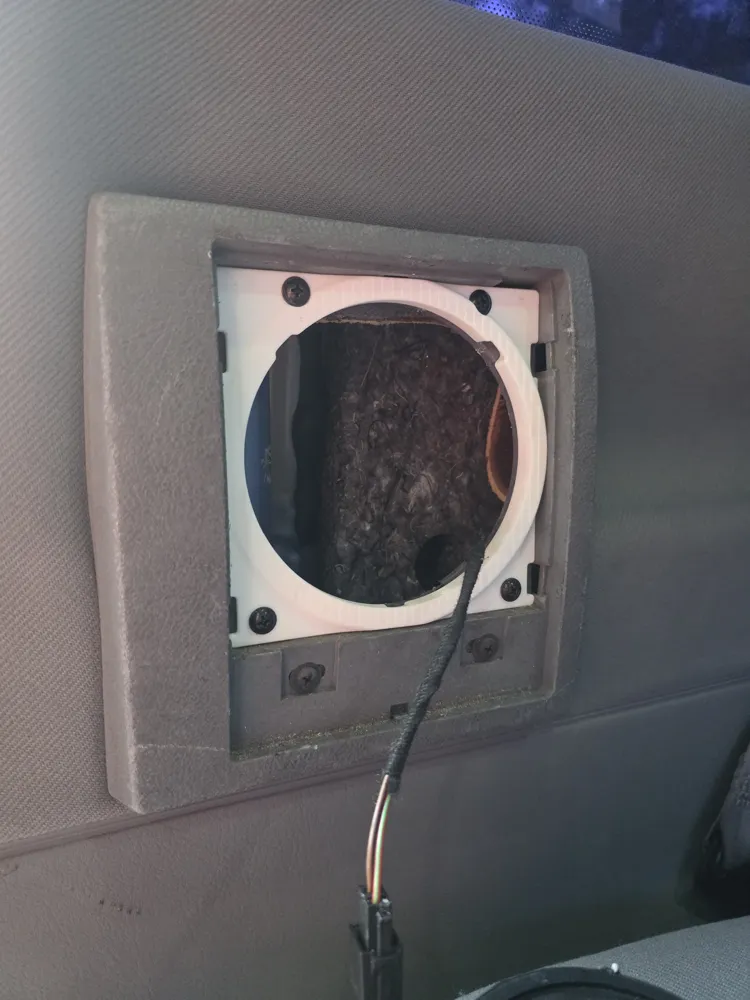

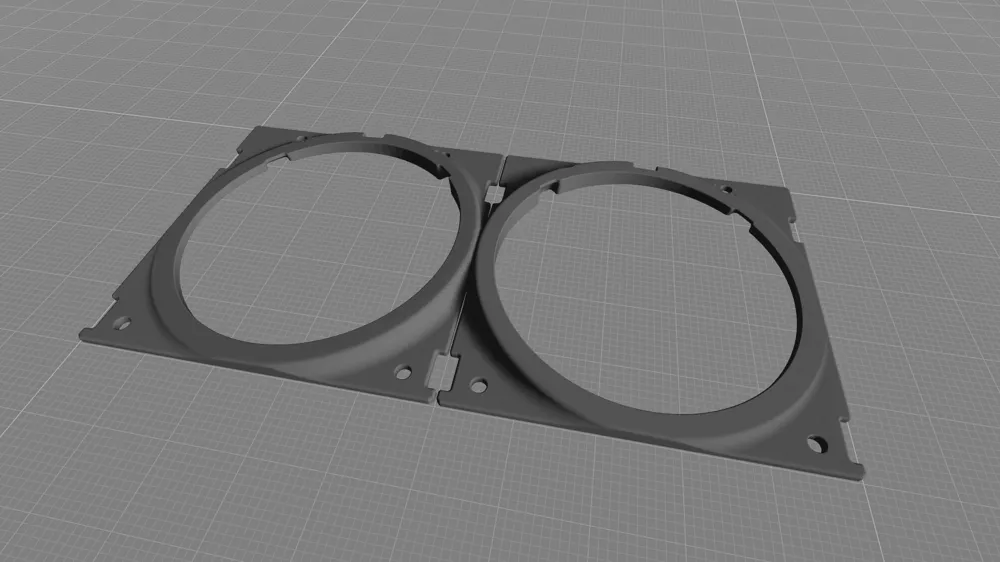

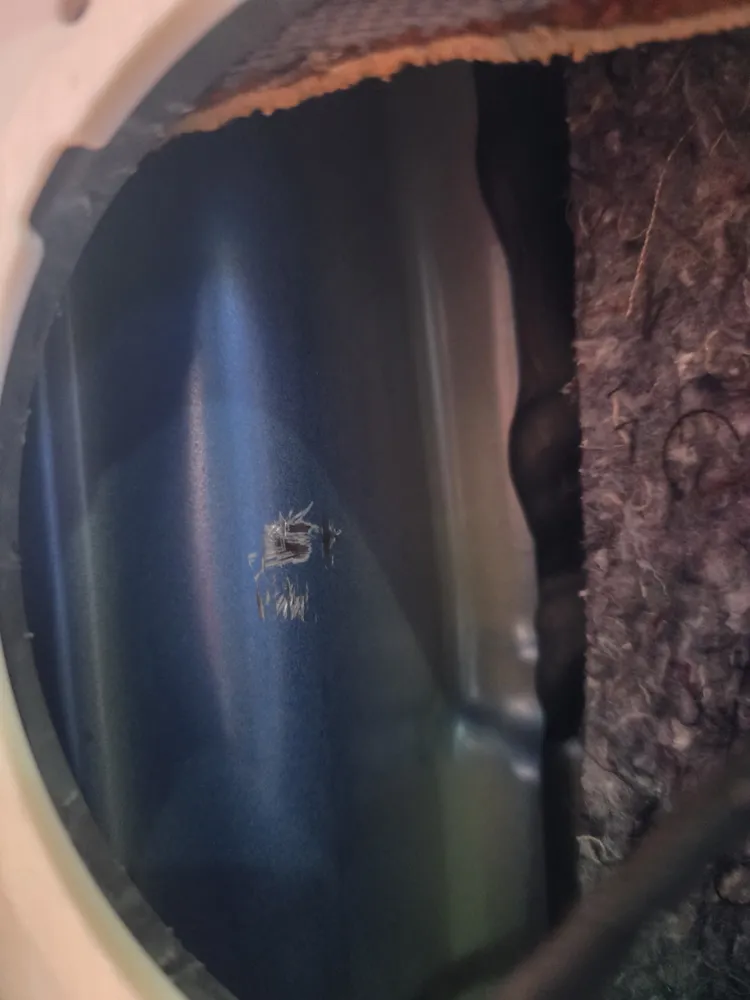

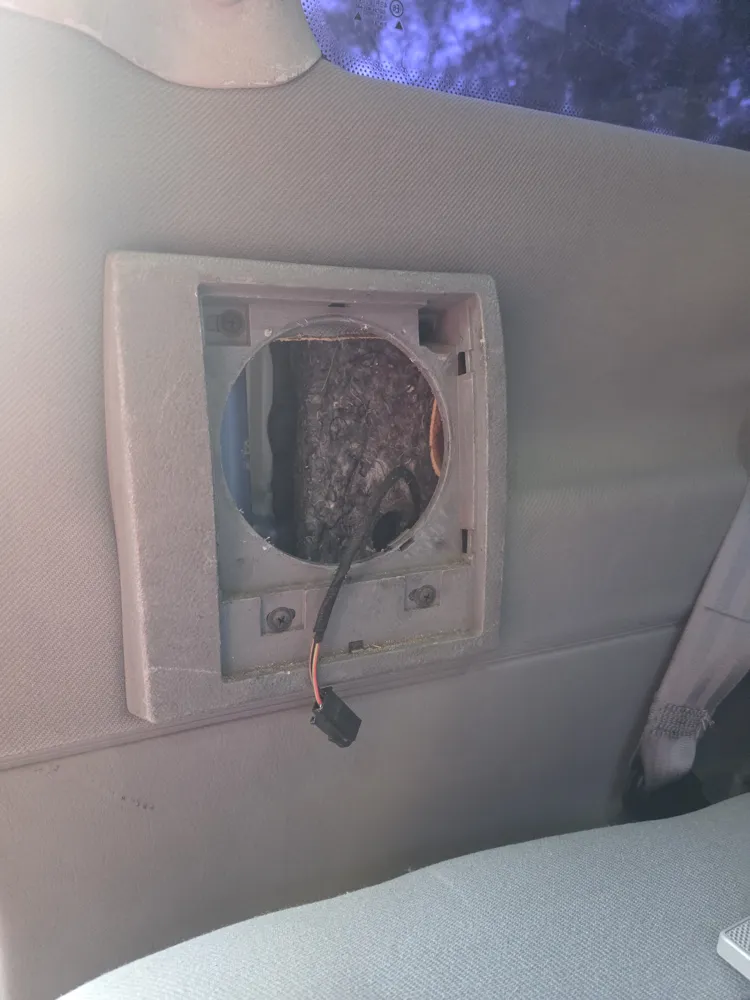

I created these adapters for my T4 Multivan to eliminate the problem of the speaker hitting the vehicle frame, as shown in the picture. A positive side effect is that the speaker is slightly directed towards the driver.
I believe I can perceive this difference as well.

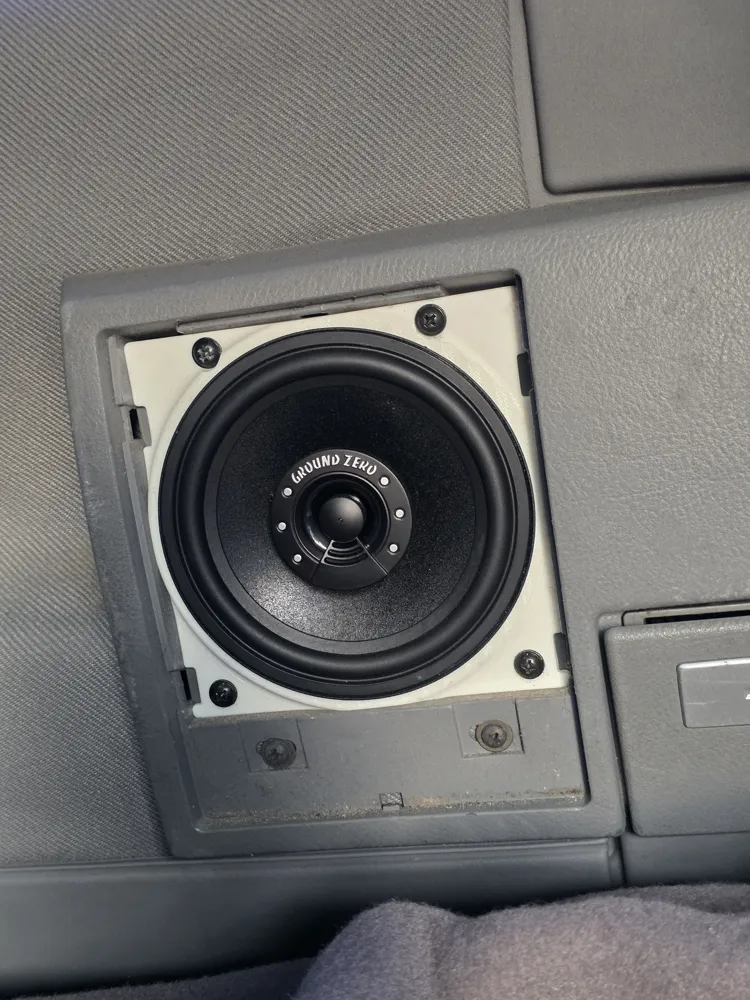

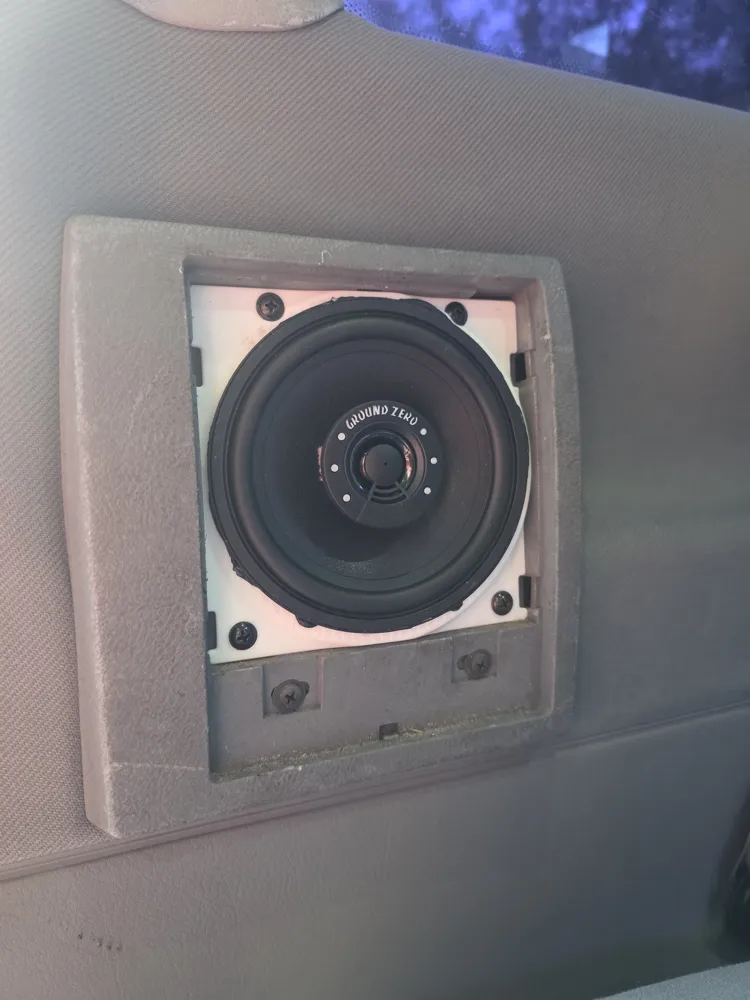

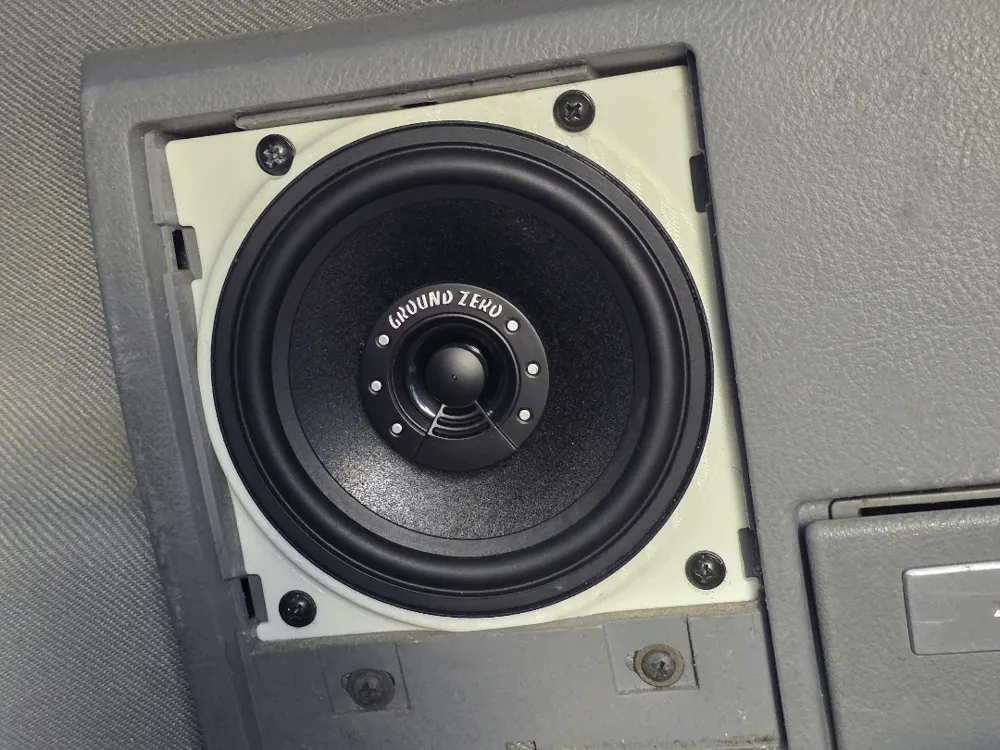

I personally used the Ground Zero GZCS 12CX for this. However, other speakers with a clamping system should also fit.
It's also possible that the original speakers fit into this frame, but I can't guarantee that because I haven't tested it.
Feel free to print and try it out.
I fastened it with self-tapping screws.
I printed the adapters from ASA so that they can withstand the heat in summer.
I think PETG could also work, but it hasn't been tested.
I would appreciate feedback.
