Speaker wall bracket, Fyne Audio 300/301 speakers
Print Profile(2)
Description

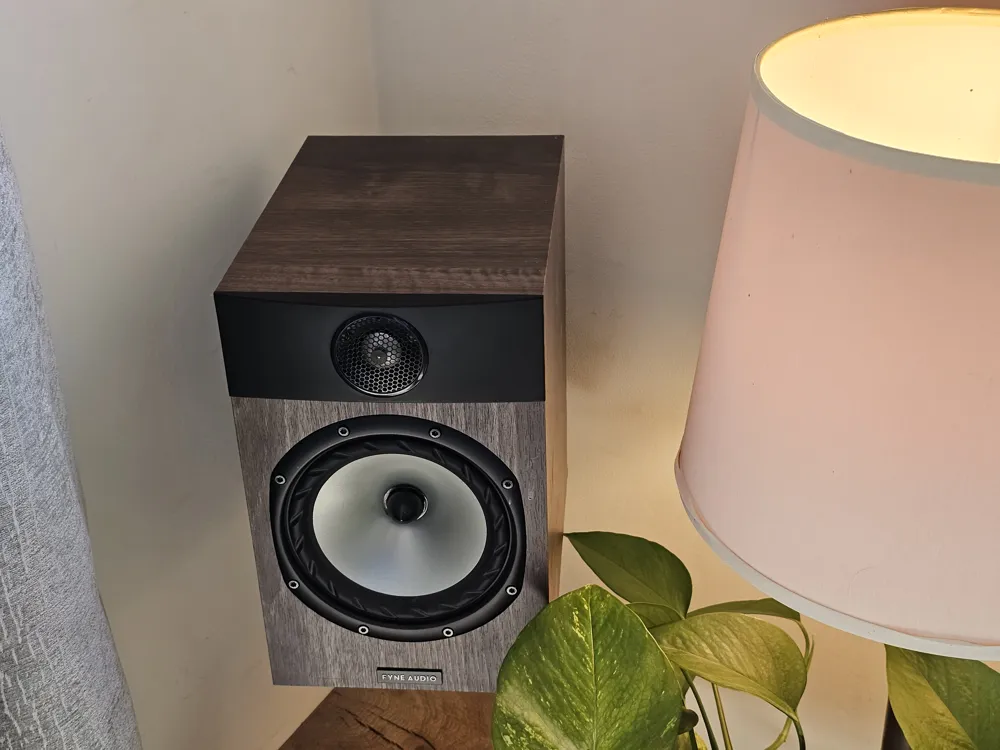

Speaker bracket specifically for Fyne Audio 300 and 301 bookshelf speakers.
Allows for up to 50° of angle either side of straight.

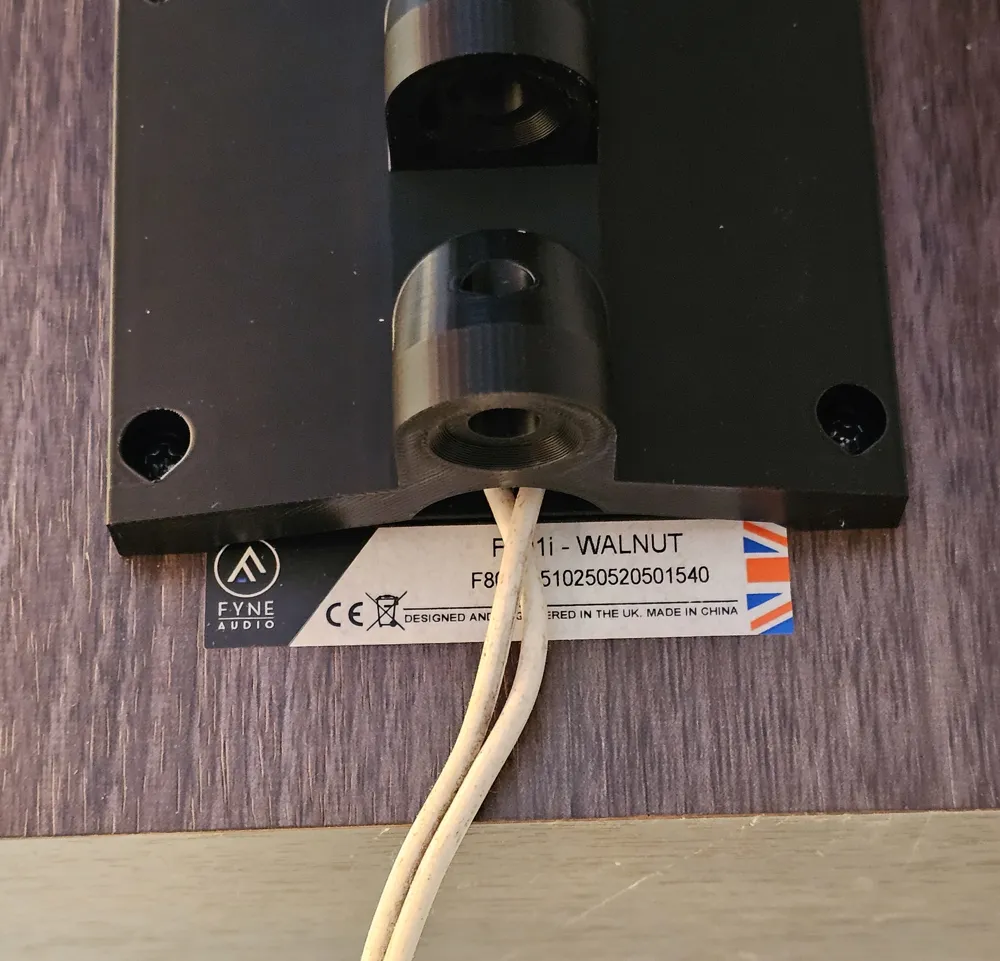

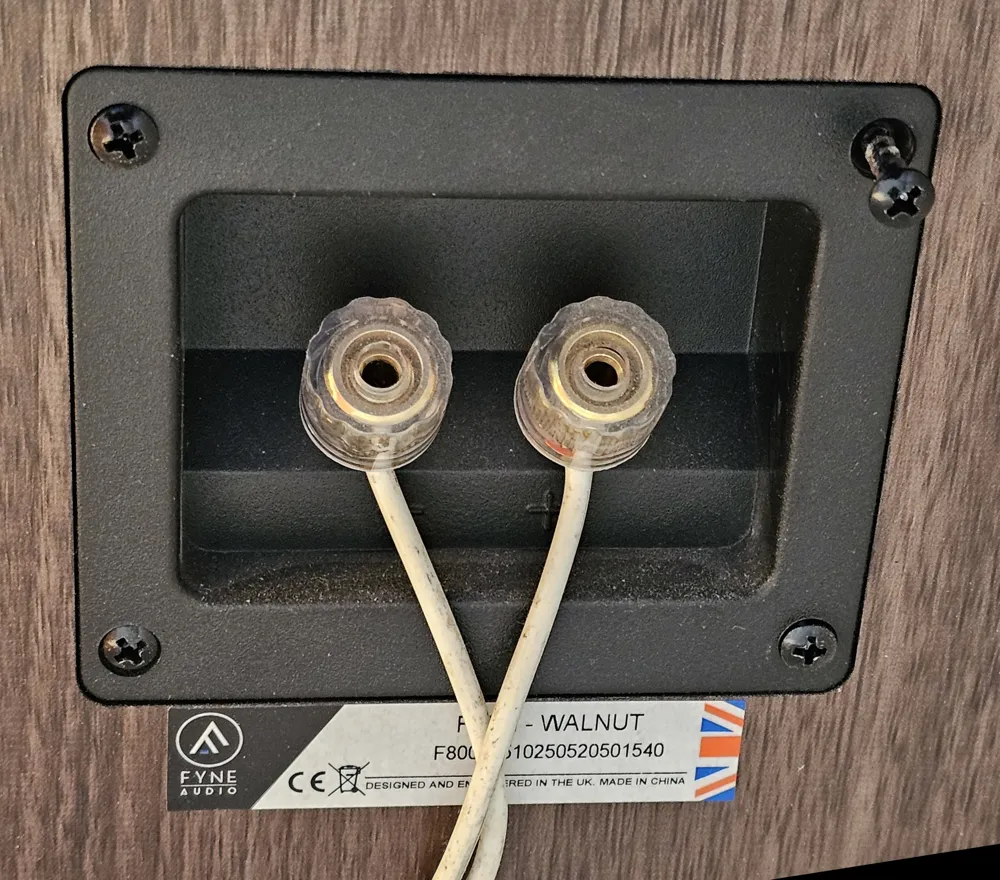

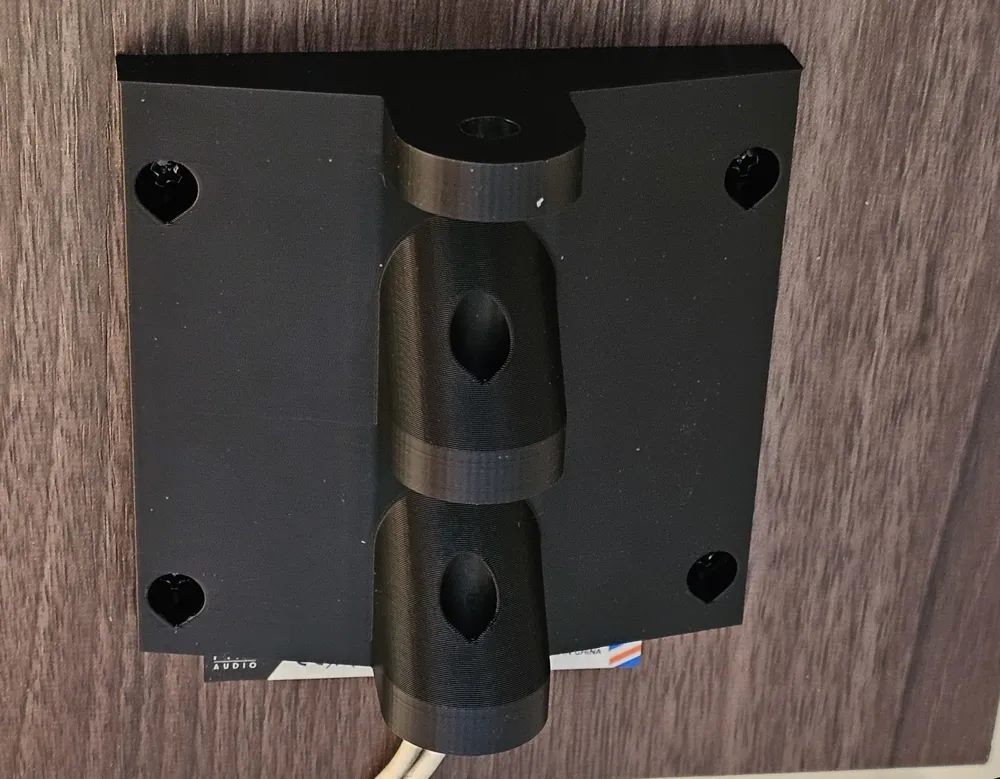

The bracket mounts to the speaker using the existing four screws that hold the wire terminal box. These just need to removed, and then used to install the bracket part. The screws end up being 5 mm less deep in the speaker, but this seems to be fine and plenty strong enough. When re-inserting the screws, turn them backwards until the thread falls into the original thread in the speaker. This stops the screws cutting a second thread which might be weaker.

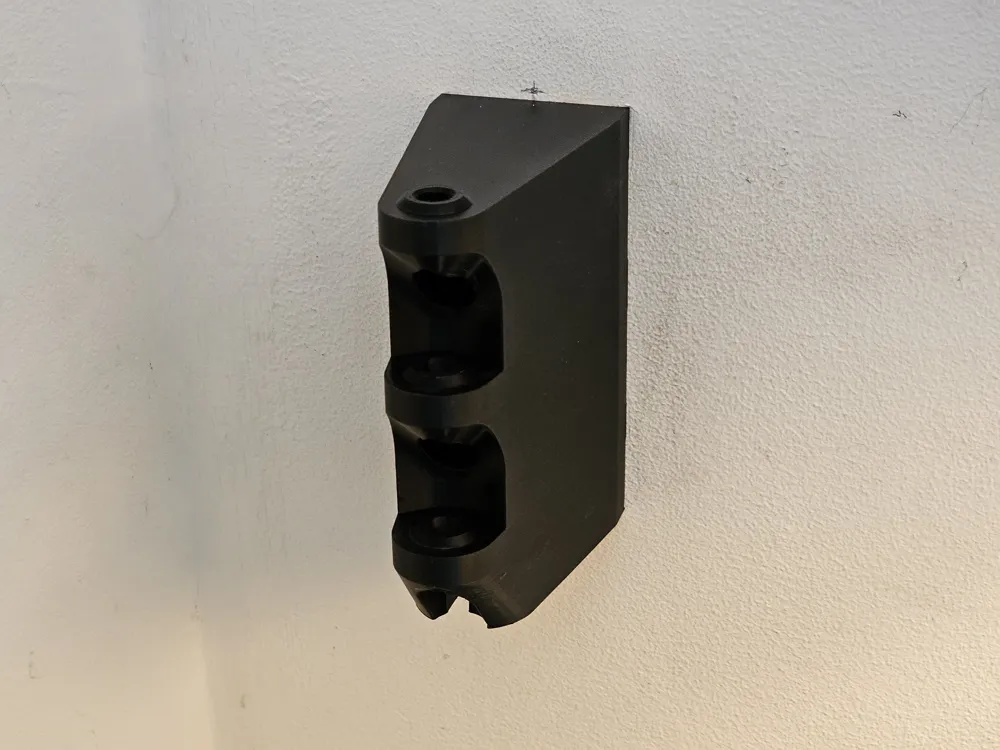

The wall bracket includes a cable management channel underneath.
Total distance from the wall:

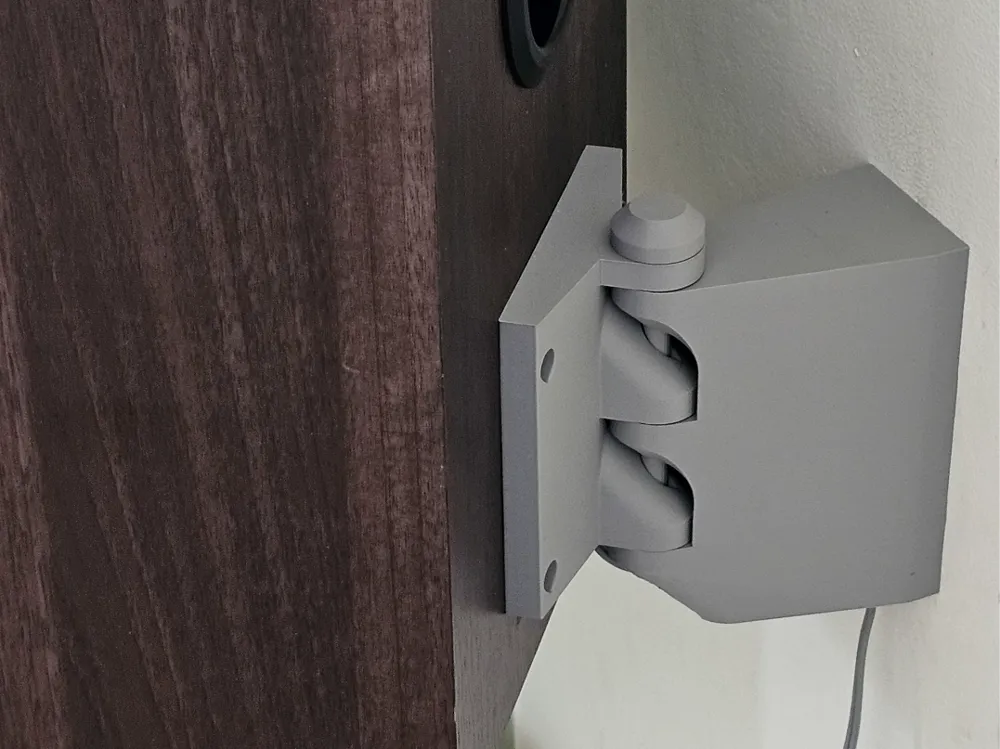

- Wall to hinge axis = 80 mm
- Hinge axis to rear of speaker = 30 mm
Carefully designed for strength, and no supports are needed!
Print in PLA basic for strength and rigidity.

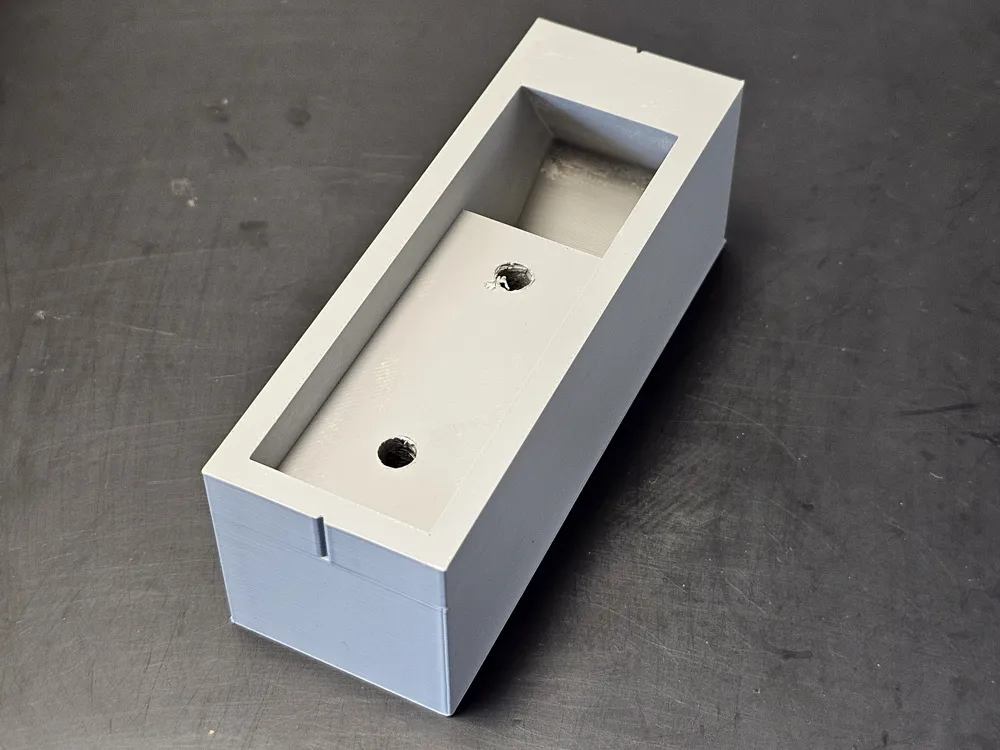

Optionally print the drill guide, designed for drills with 6mm diameter shanks (such as a 6.5mm masonry bit).
