WORBY Complete Blank with cleats v2

WORBY Complete Blank with Cleats v2

Here I remix the WORBY - Wall Organizer with Red, Blue, and Yellow by @scottyujan. The aim of this remix is so that EVERYBODY can make their OWN WORBY, with their own design, texture, pattern, shapes, etc. This is basically the blank module but with cleats. Just add the shape of your choice, pot or bin or shelf in the Bambu Studio.

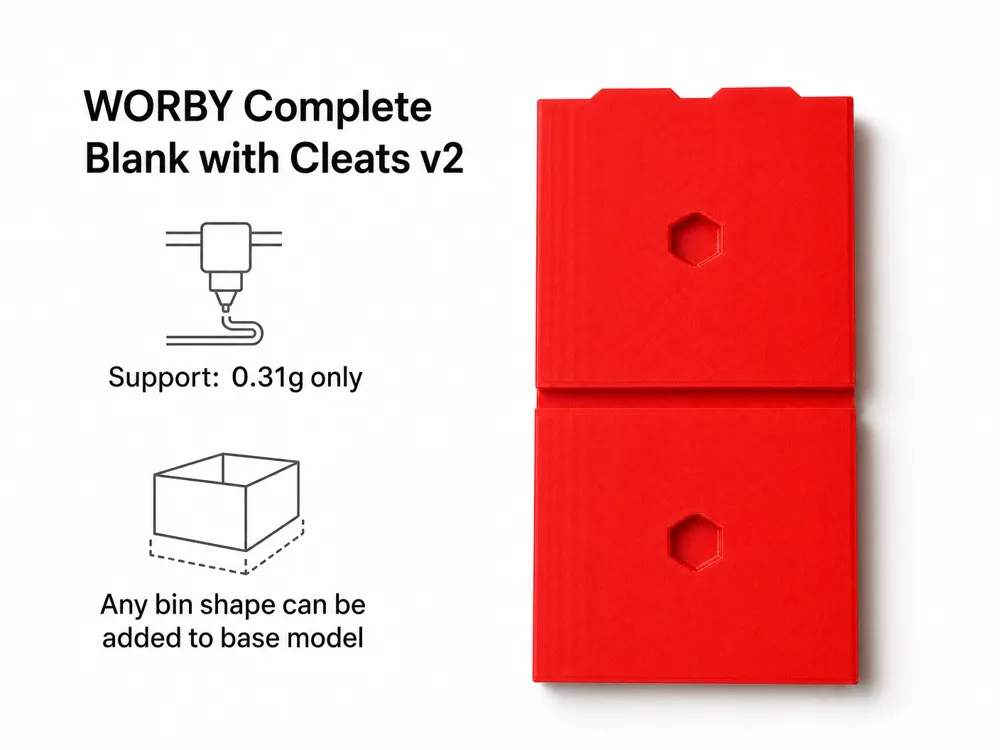

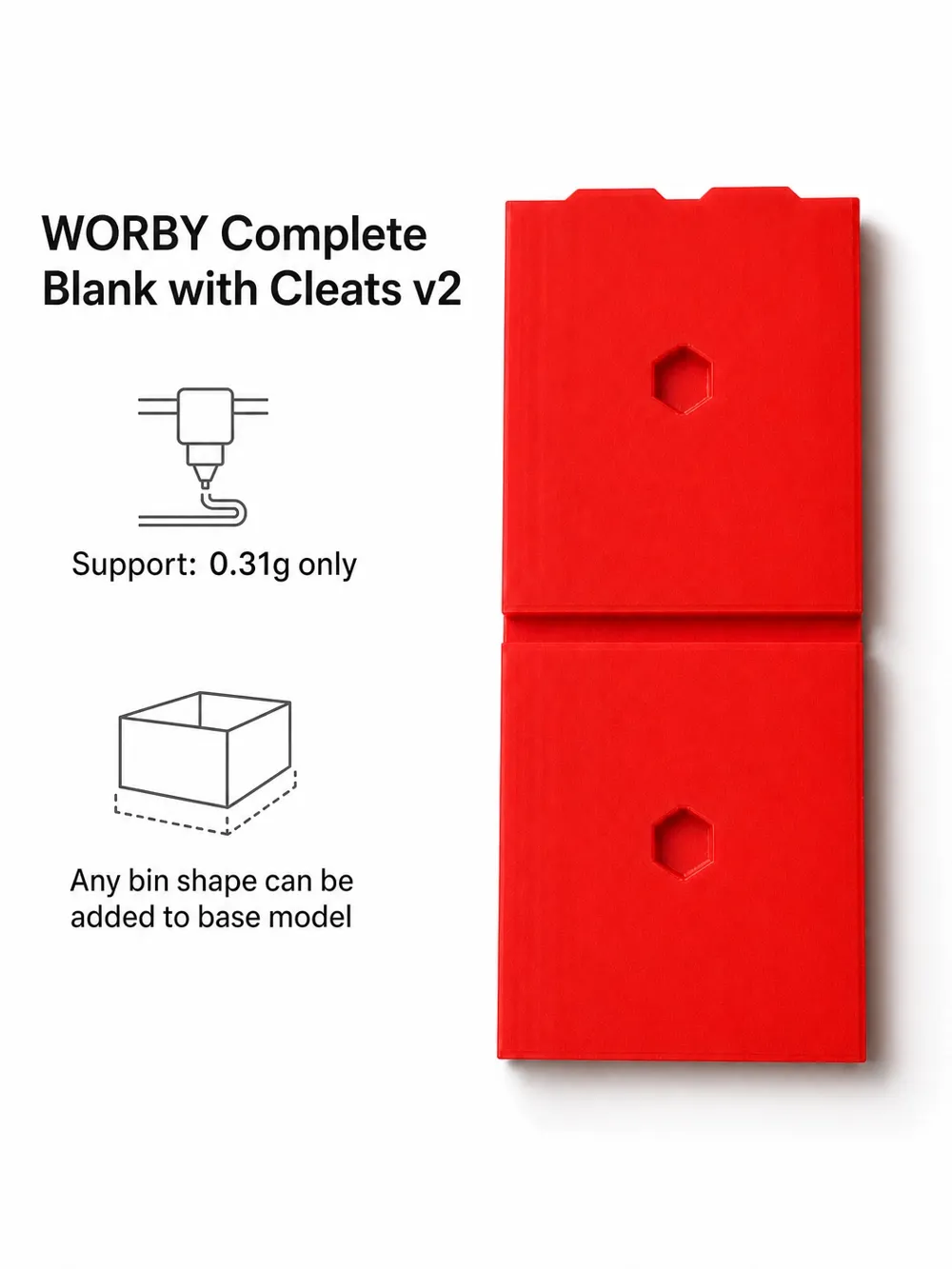

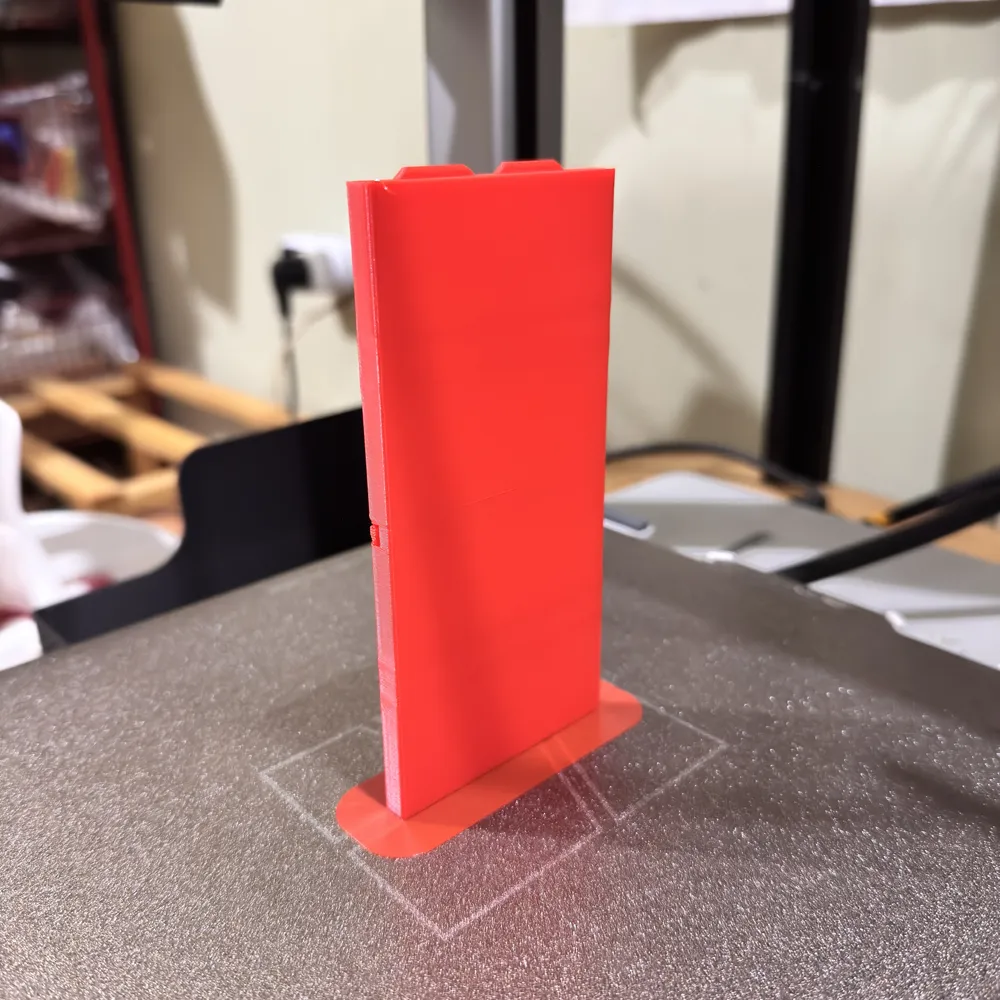

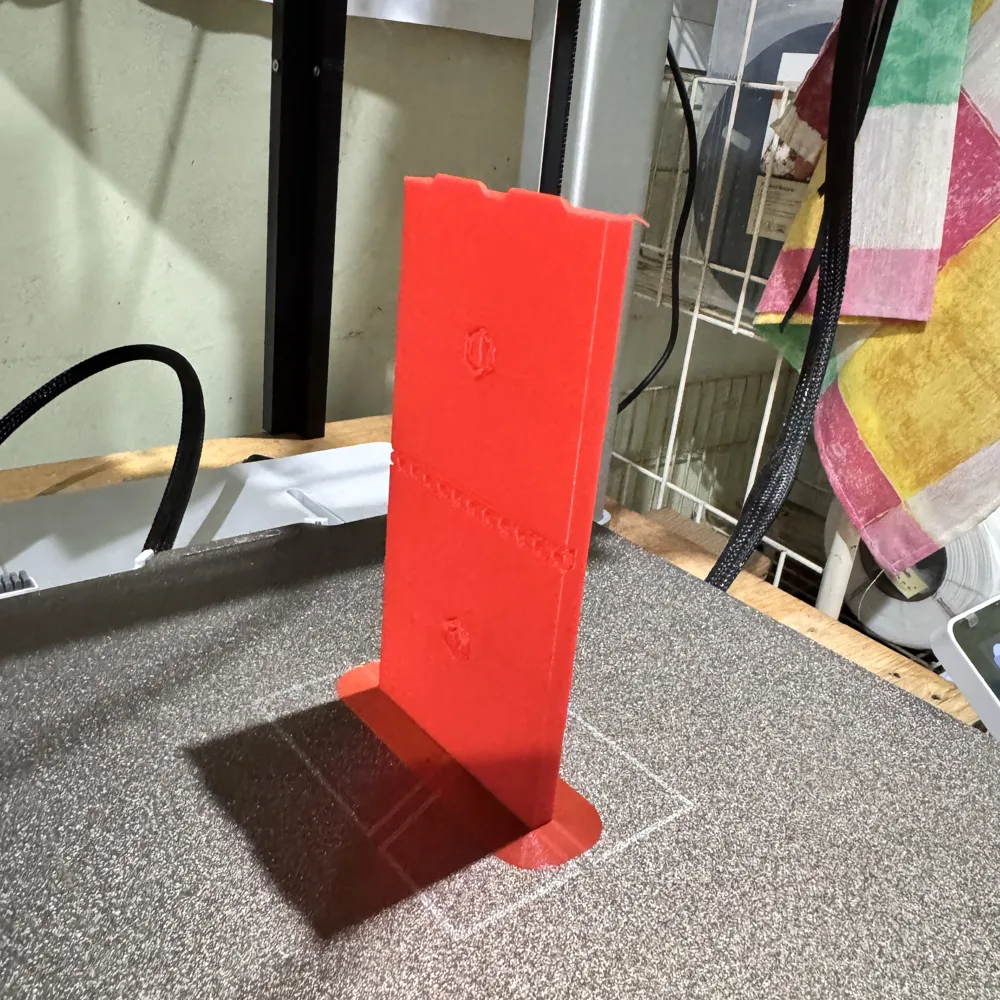

NOTE: version 2 — update May 24, 2026. I have changed the magnet slot to hexagon, so that you can print your bin (if its a bin), upright, no support needed for the bin part anymore. although you'll need to TURN ON support since the back has this horizontal part. No worry, it's only “0.31g” worth of support for each horizontal part. 1x2 Vertical - only 0.31g support. 1x3 Vertical - only 0.64g support, 2x2 - only 0.64g support, etc. This version is best for prints that are bins. The one that needs support. With printing upright, you don't need support for printing the bins anymore.

The Concept

While the original blank modules are great, adding your own custom attachments usually requires precisely measuring and aligning the cleat system yourself. I’ve done that work for you. These models are pre-integrated with the top cleats, providing a perfectly aligned "canvas" for your designs.

How to Use

1. Open the 3MF file in Bambu Studio.

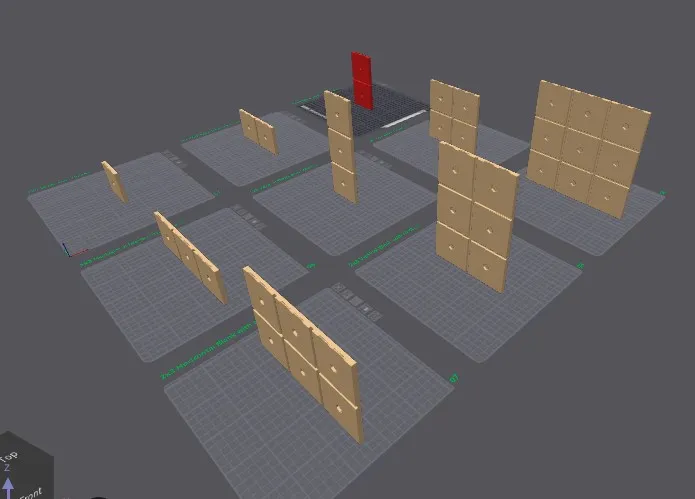

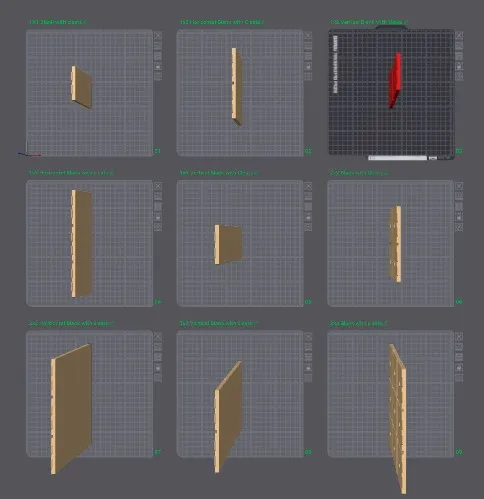

2. Import the STL of your design pot or bin as geometry and insert in your chosen module (1x1, 1x2, 1x3, 2x3, 3x3). This 3MF is complete.
3. Change print setting according to your needs. But don't remove the support settings. It's the most efficient use of support for this shape.
4. Print and Slice it into your existing WORBY grid!

Features

• Perfect Alignment: No more guesswork—the cleats are positioned exactly to match Scott Yu-Jan’s original specifications.
• Streamlined Workflow: Skip the mechanical modeling and go straight to the creative part.
• Versatile: Use these as a base for anything from aesthetic decor to heavy-duty tool storage.

Note: This is a remix. Please ensure you have downloaded the original WORBY grid system from Scott Yu-Jan to use these modules.
