Ridgid R4222 Chop saw Dust Collector Complete
Print Profile(2)
Description
Boost Me (for free)
If you enjoy my model please leave a boost!
Also Compatible with r4221

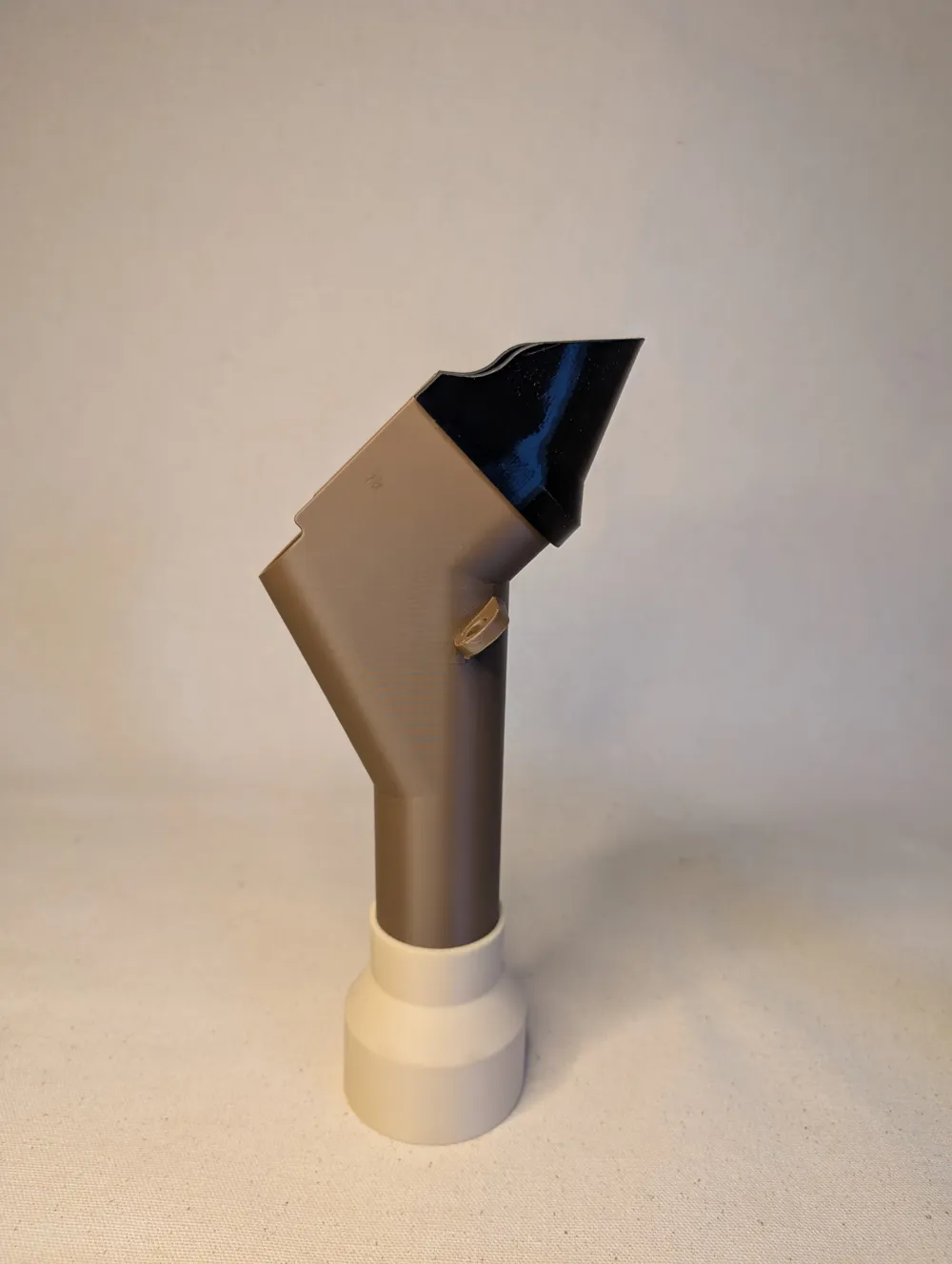

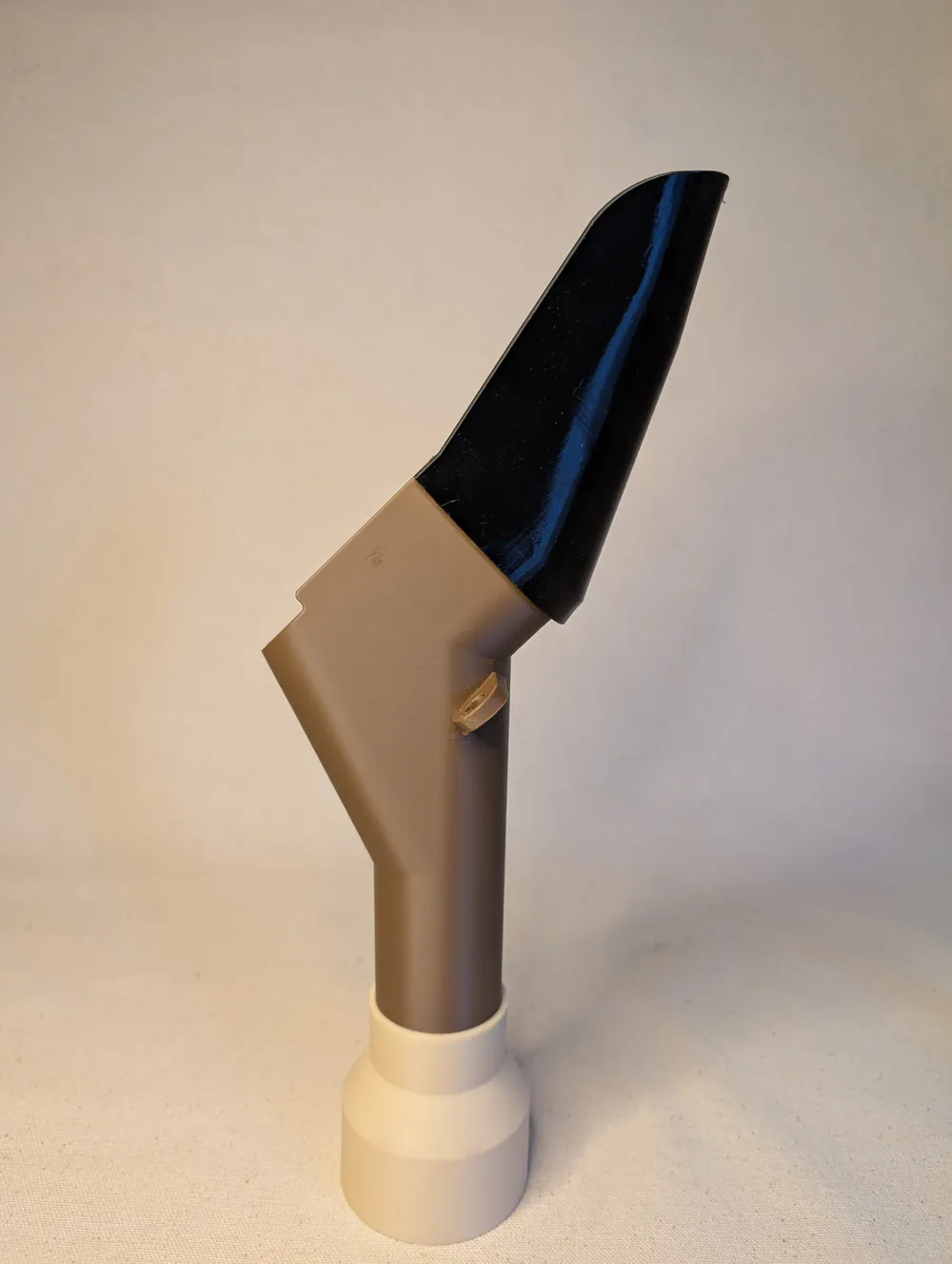

A complete replacement for discontinued factory replacement parts of the dust chute of a Ridgid r4222 chop saw.

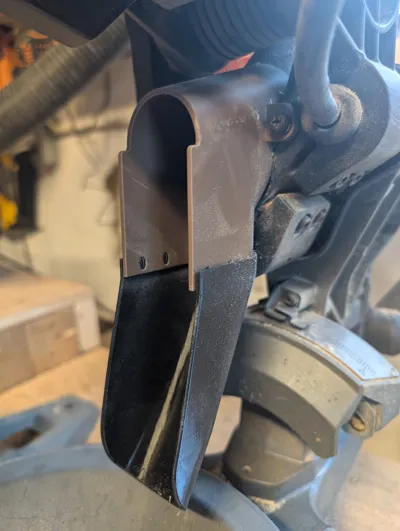

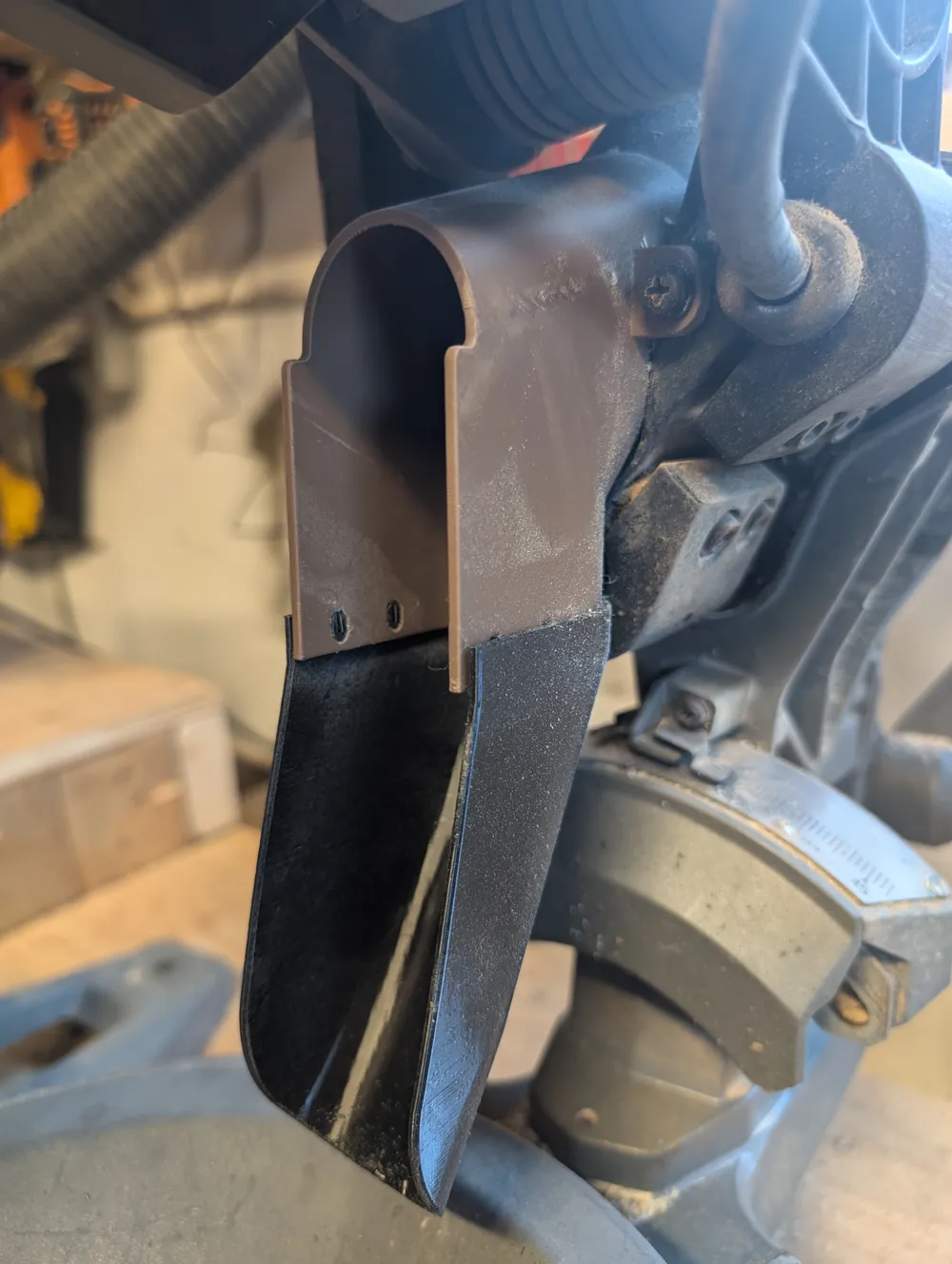

Boot must be printed in tpu to allow attachment to the dust chute main body as well as for safety reasons so the boot may pop off in the event of a kickback.

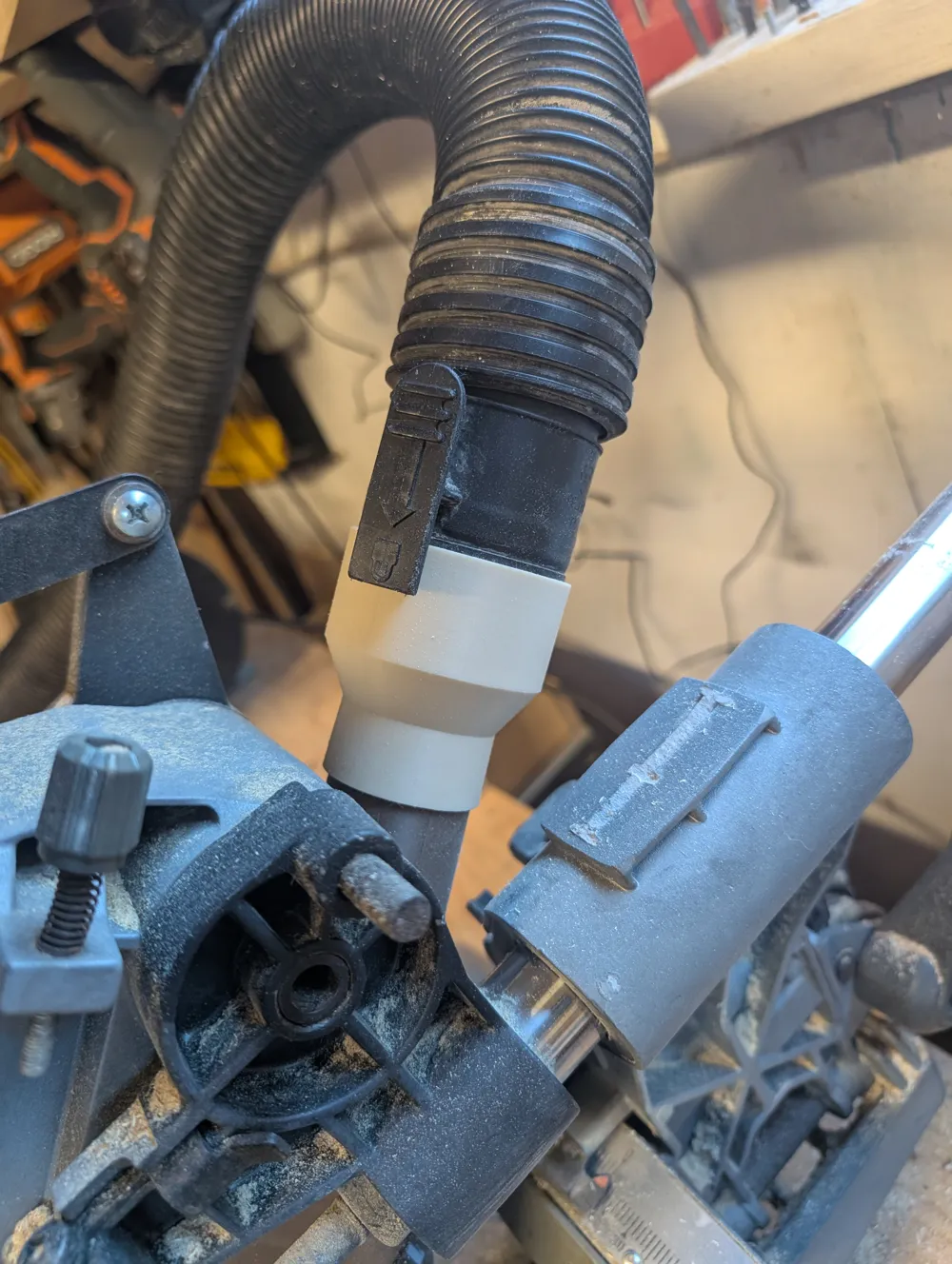

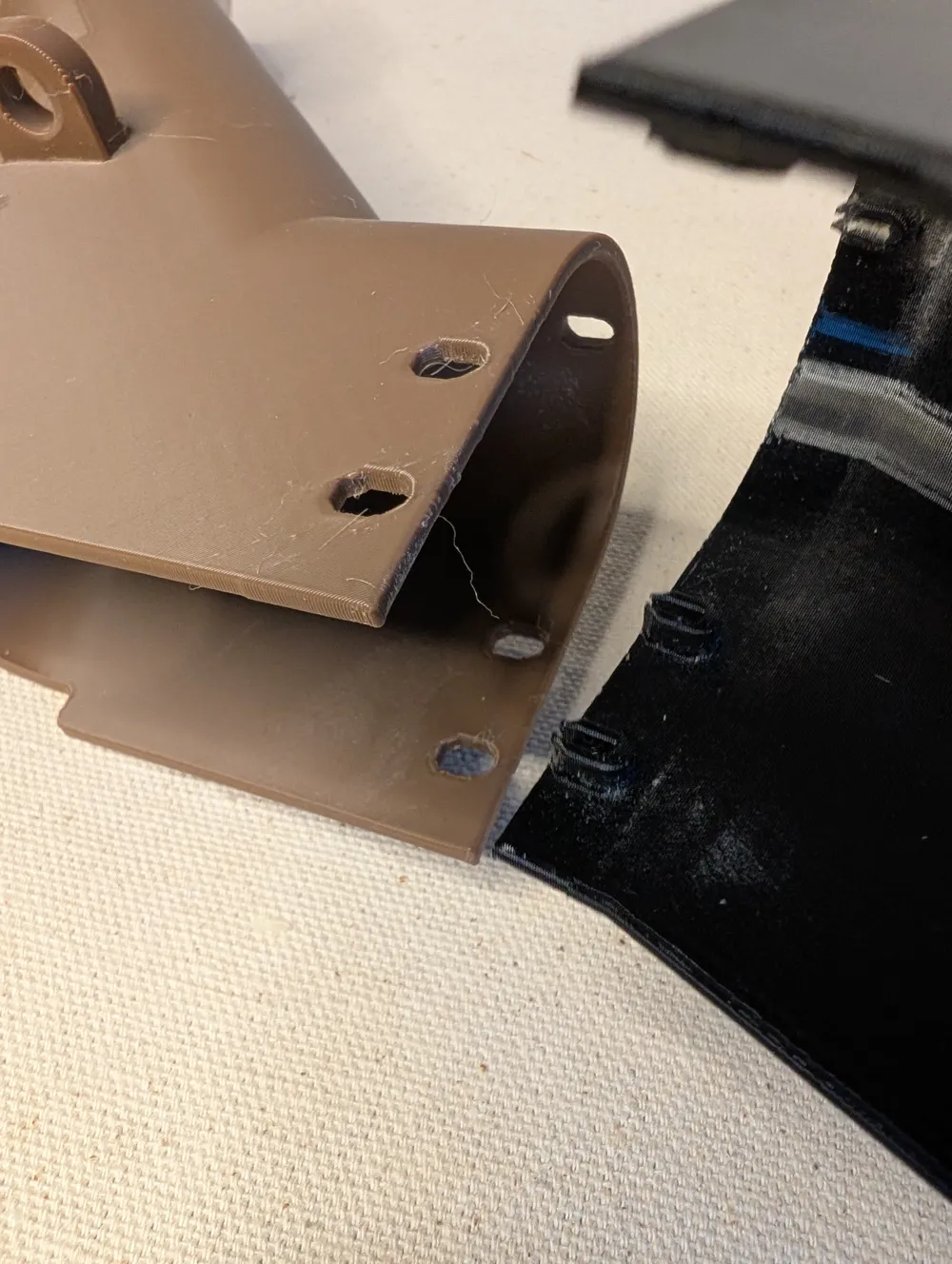

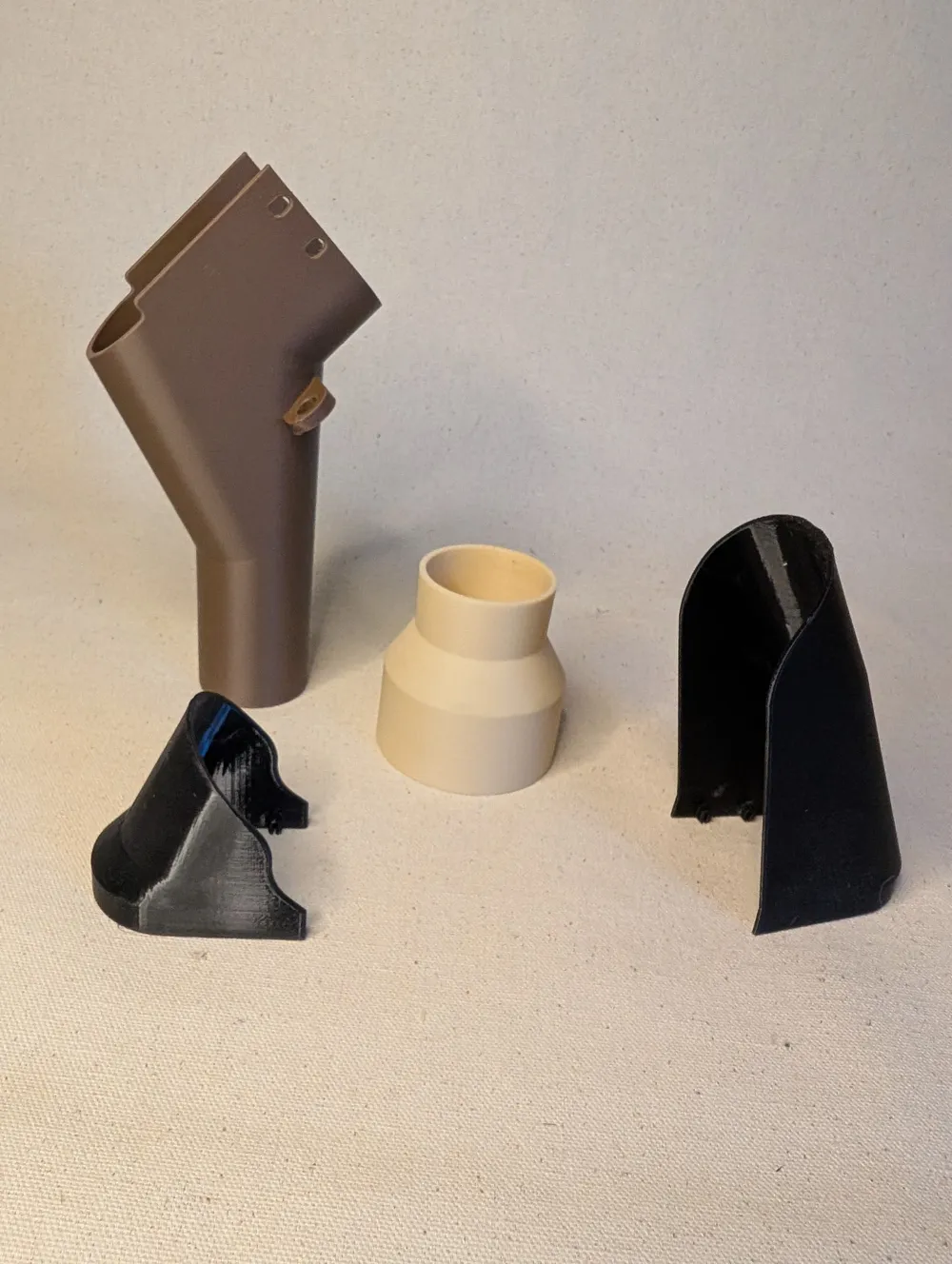

The vacuum hose adapter is made to accommodate the hose of a Ridgid shop vacuum with an outside hose diameter of 2 ¼" or roughly 57mm at the attachment point. 2 Boots are available for different clearance requirements and are quick and easy to swap, held in place by press in fittings.

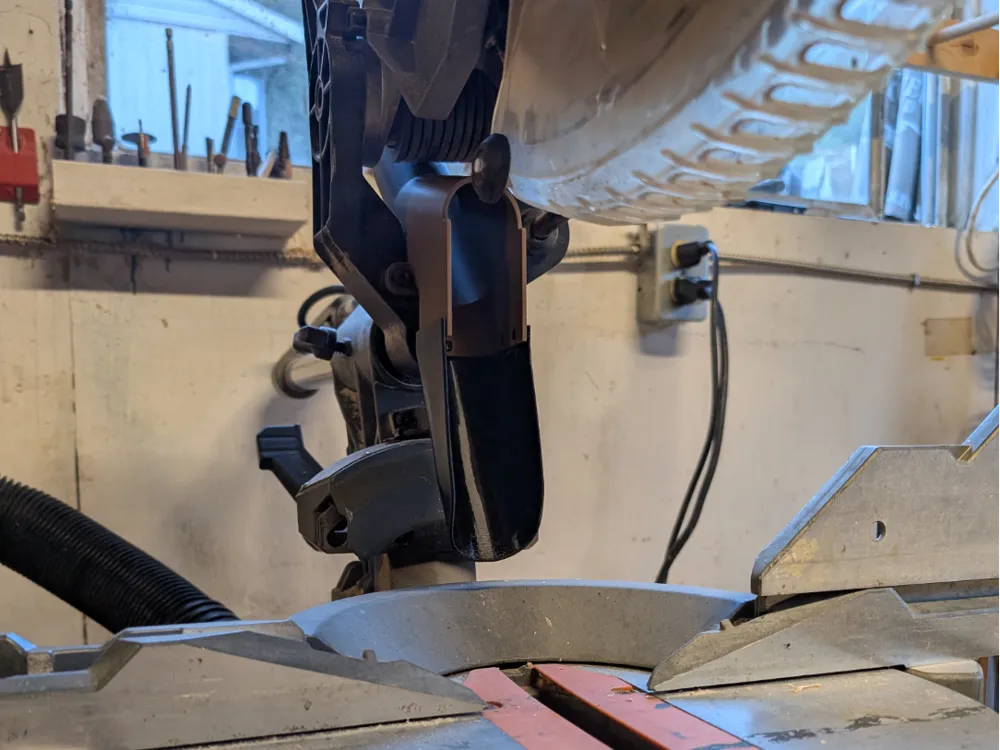

Mounts to the two forward facing bolt holes for the stock dust collector. The rear mounting holes are not used.
I have plans to make more boots for different use cases, if you have need for a custom shape or size boot or a different size hose adapter please leave a comment and I will do my best to accommodate your request.
