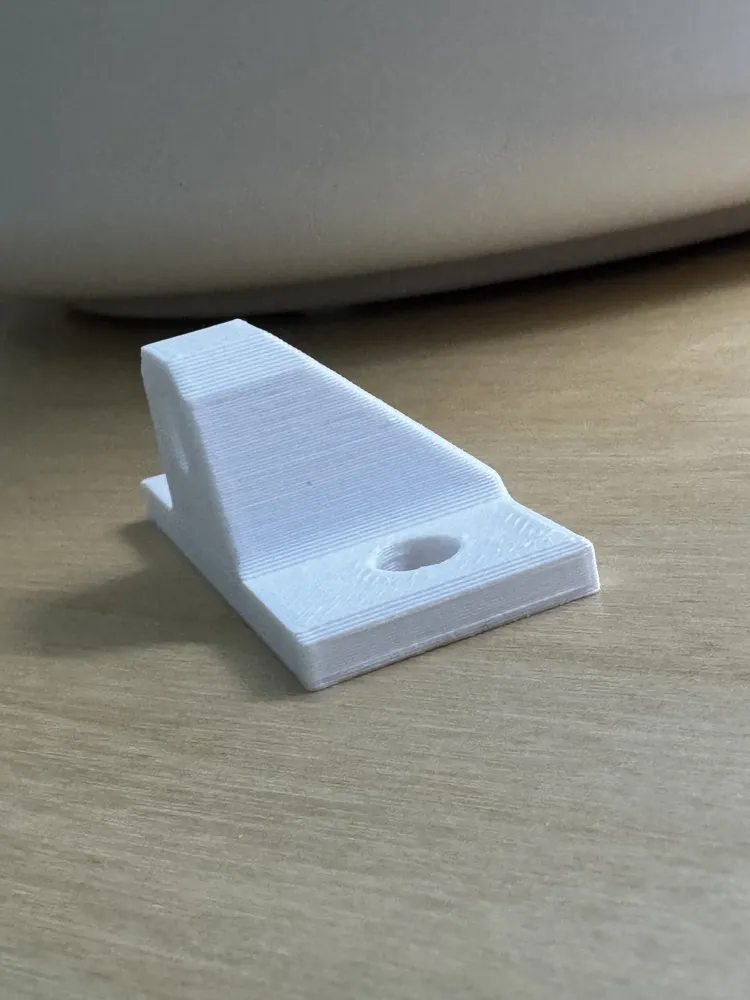

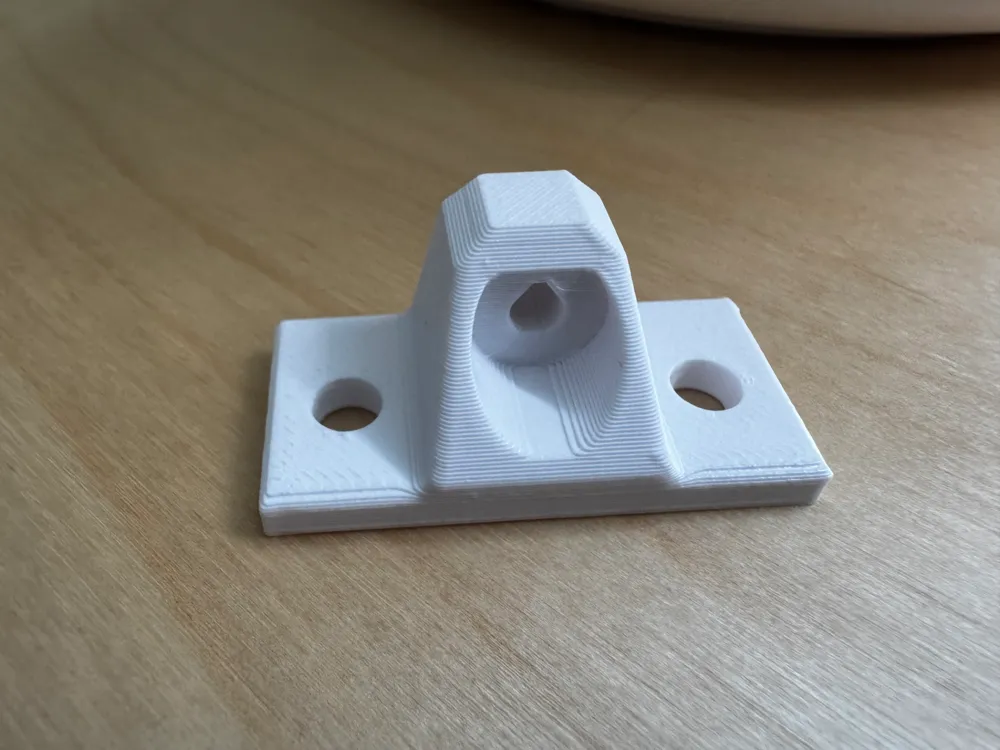

20 aluminum extrusion side panel fixed connector (9mm thin panel)
IP Report
Print Profile(1)
0.2mm layer, 6 walls, 25% infill
Designer
24 min
1 plate
Open in Bambu Studio
Boost
2
7
0
0
2
2
Released
Description
Content has been automatically translated.
It's hard to find connectors for 2020 aluminum profiles and 9mm boards on the market so I designed it myself
Board thickness: 9mm

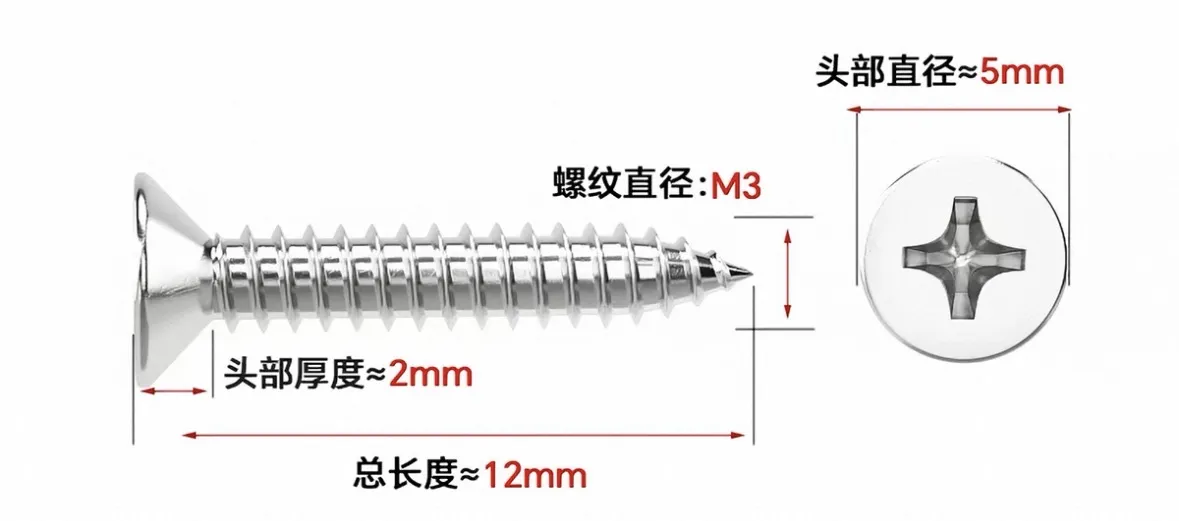

Self-tapping screws: 3x12mm

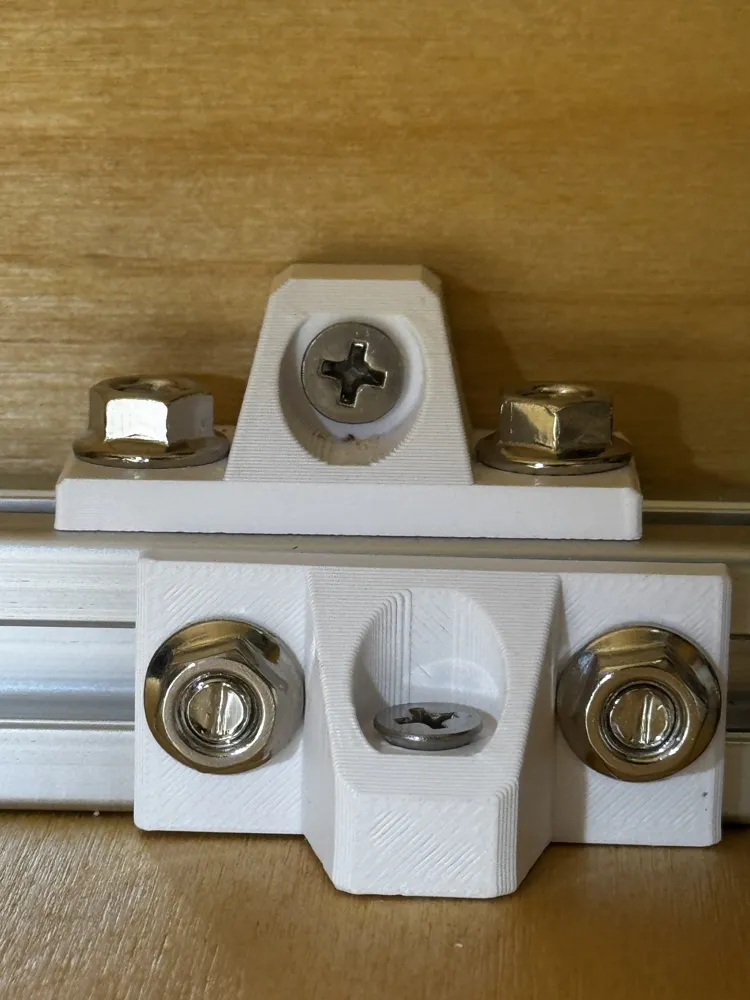

Universal 2020 aluminum profile screws and T-slot nuts: M4 type

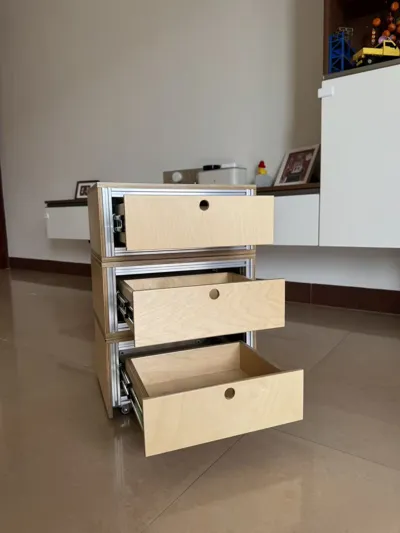

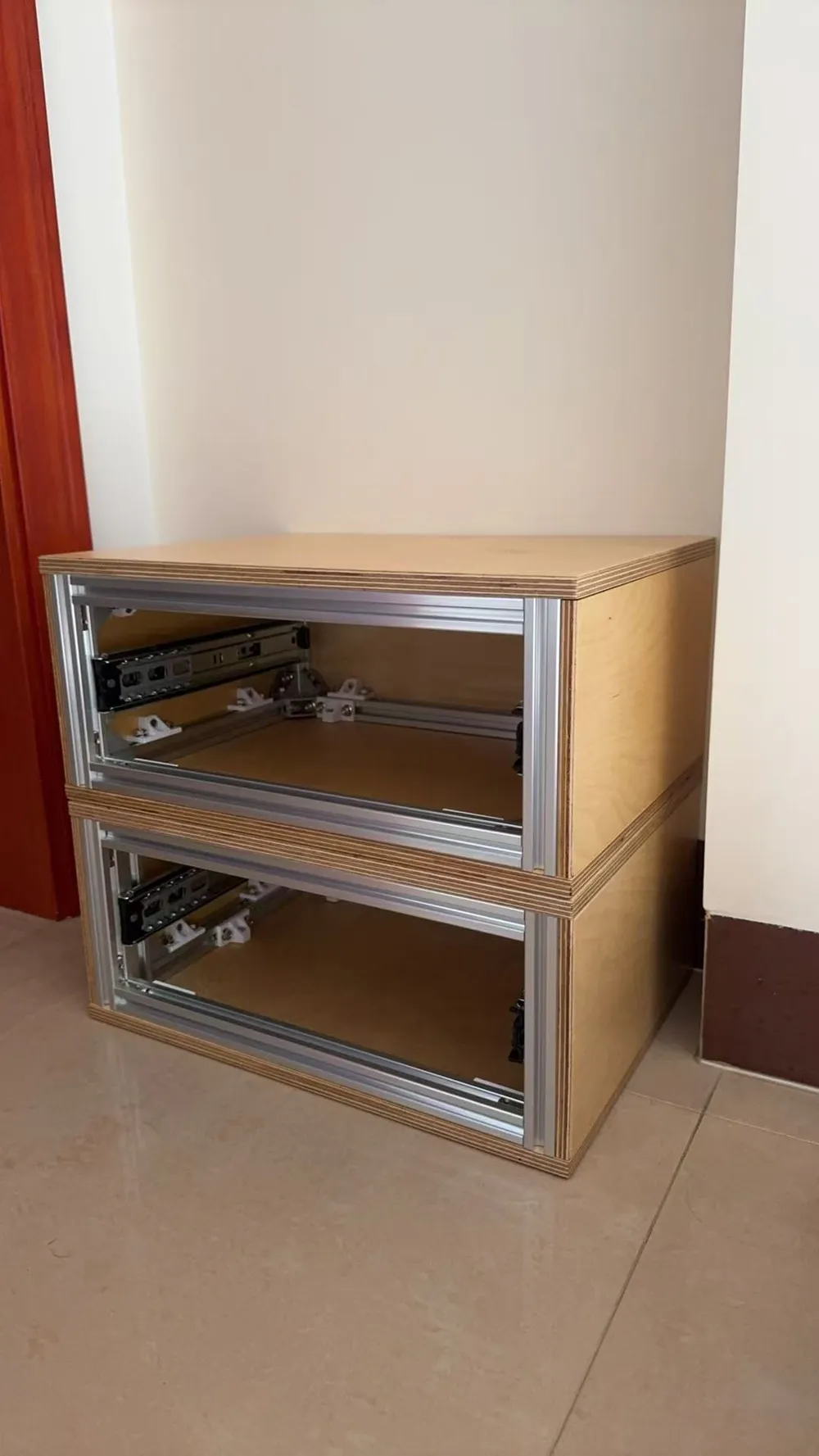

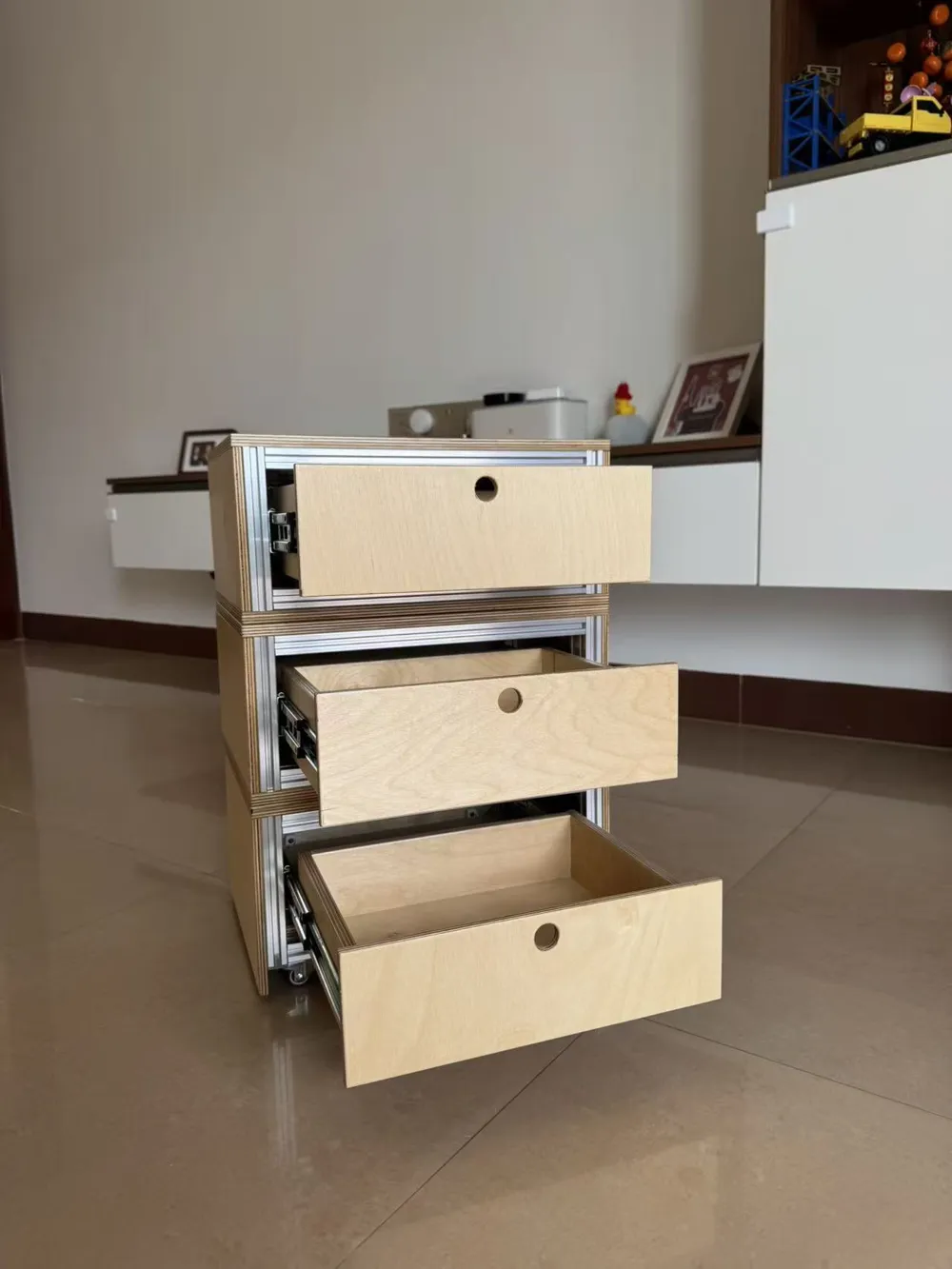

There's no need to worry about the self-tapping screws penetrating the board during installation it has been in use for 8 months now with the side front and bottom panels wrapped remaining stable as new
