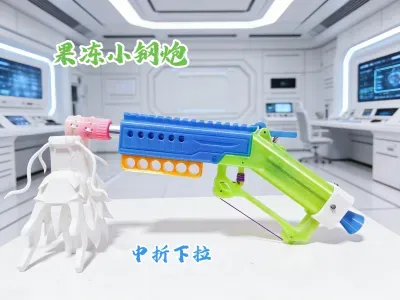

Jelly Mini Cannon Launcher (transparent color recommended)
Print Profile(1)
Description

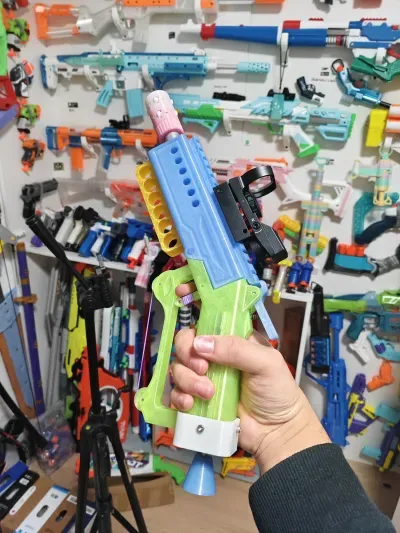

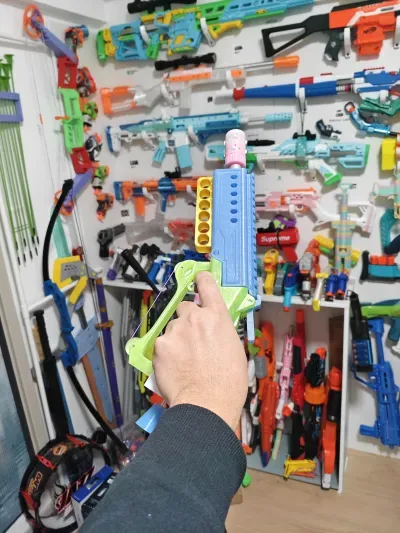

Jelly-colored mini cannon, great for stress relief.
Hardware list:
No. Name Specification Quantity
1 Cup head screw M3×5 3 pieces
2 Dowel pin Φ2×16mm 2 pieces
3 Cup head screw M3×30 1 piece
4 Small spring Wire diameter 0.5×Outer diameter 5×Length 15 1 piece
5 Small spring Wire diameter 0.7×Outer diameter 5×15 1 piece

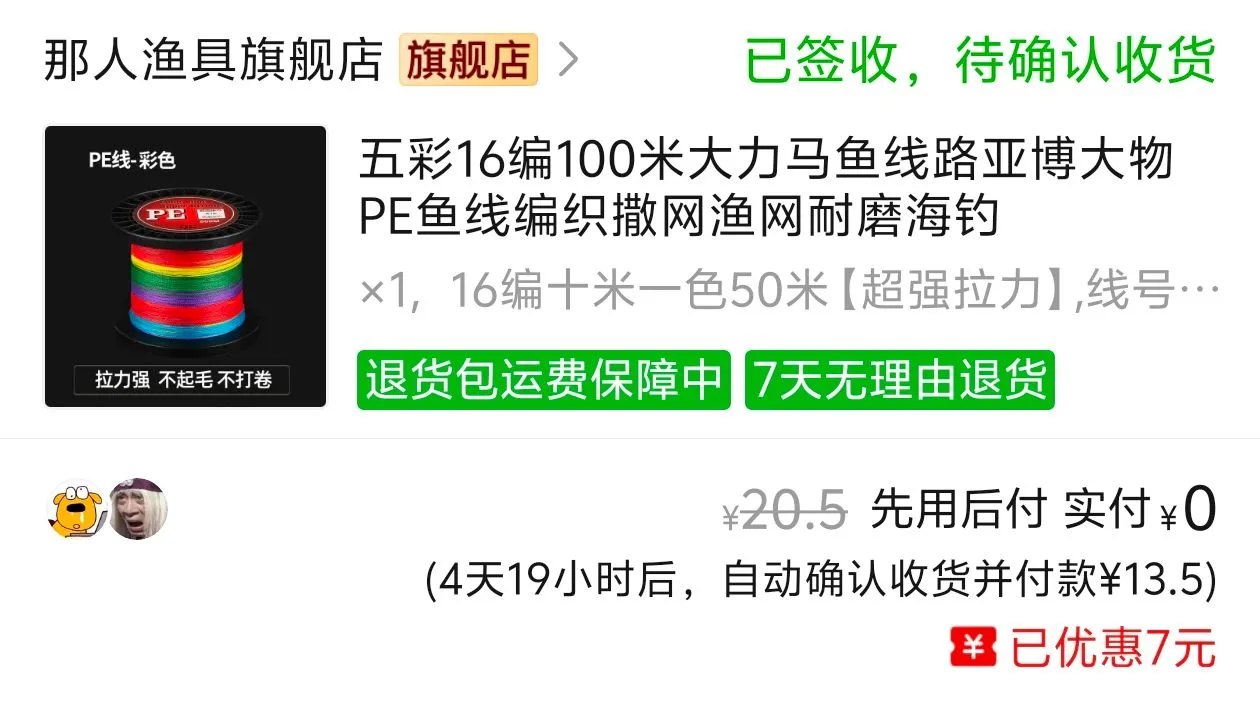

6 Dyneema line/Kevlar line approx. 20cm long 1 piece
7 Large spring Outer diameter 25×Wire diameter 1.6×Length 90mm 1 piece
8 O-ring/Rubber ring Outer diameter 36×Wire diameter 3.5 1 piece
9 Dowel pin Φ2×35mm 1 piece
10 Inner tube Inner diameter 13×Outer diameter 16×Length ≥170mm 1 piece

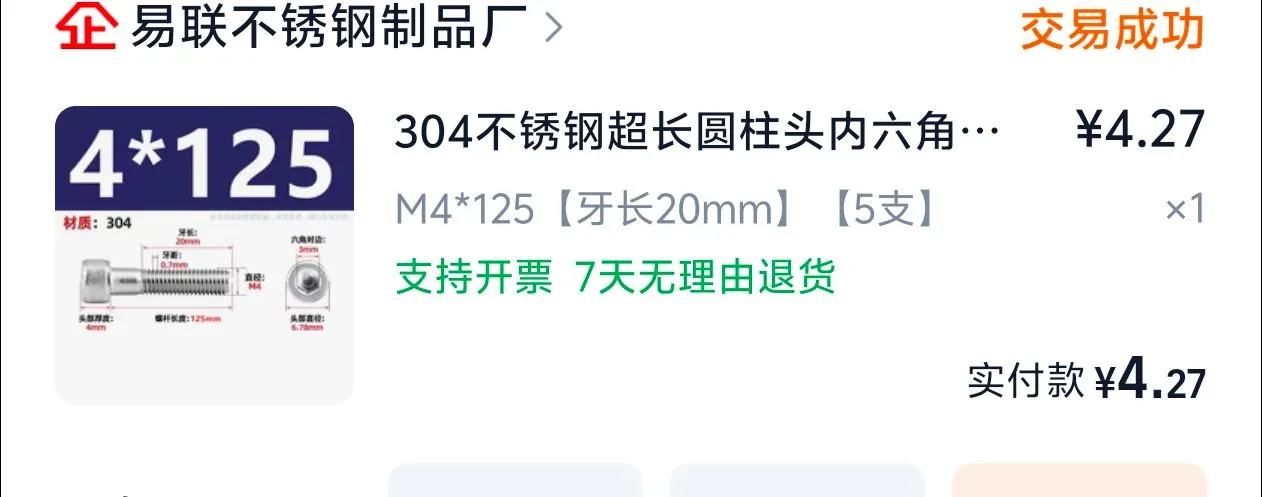

11 Smooth rod screw M4×125mm 1 piece
12 Nut M4 1 piece
13 Rubber pad Universal 1 piece

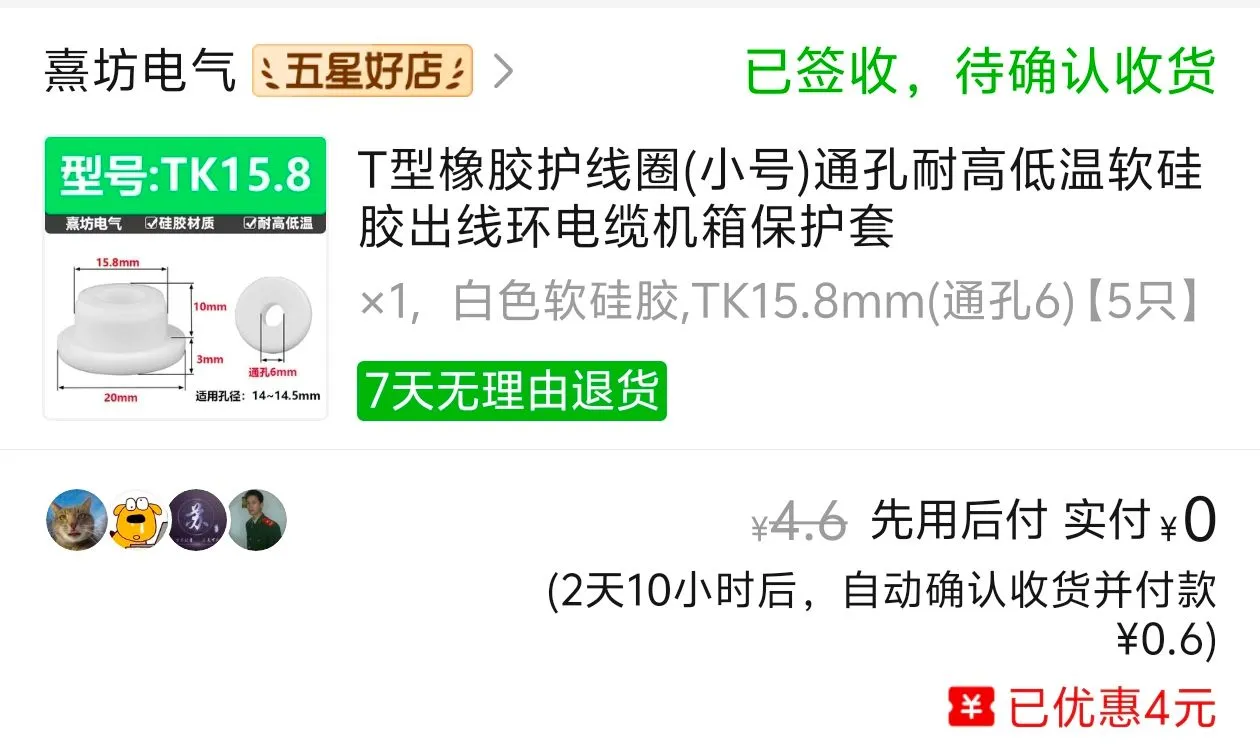

14 Cable protector ring
Here's a special image for you
Installation video on Bilibili
