Wall Monitor Arm Adapter Arcade2TV-XR TankstickVR

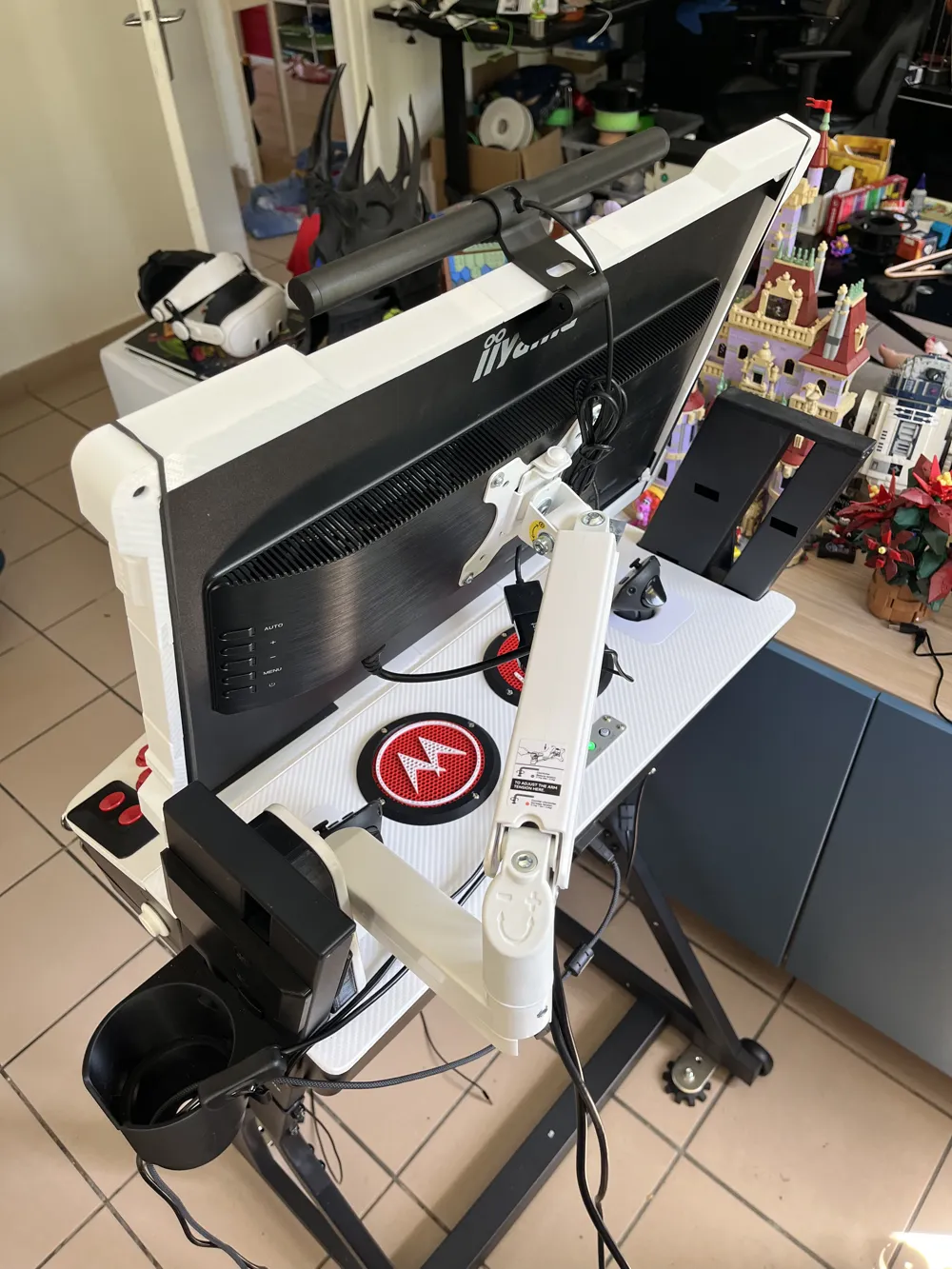

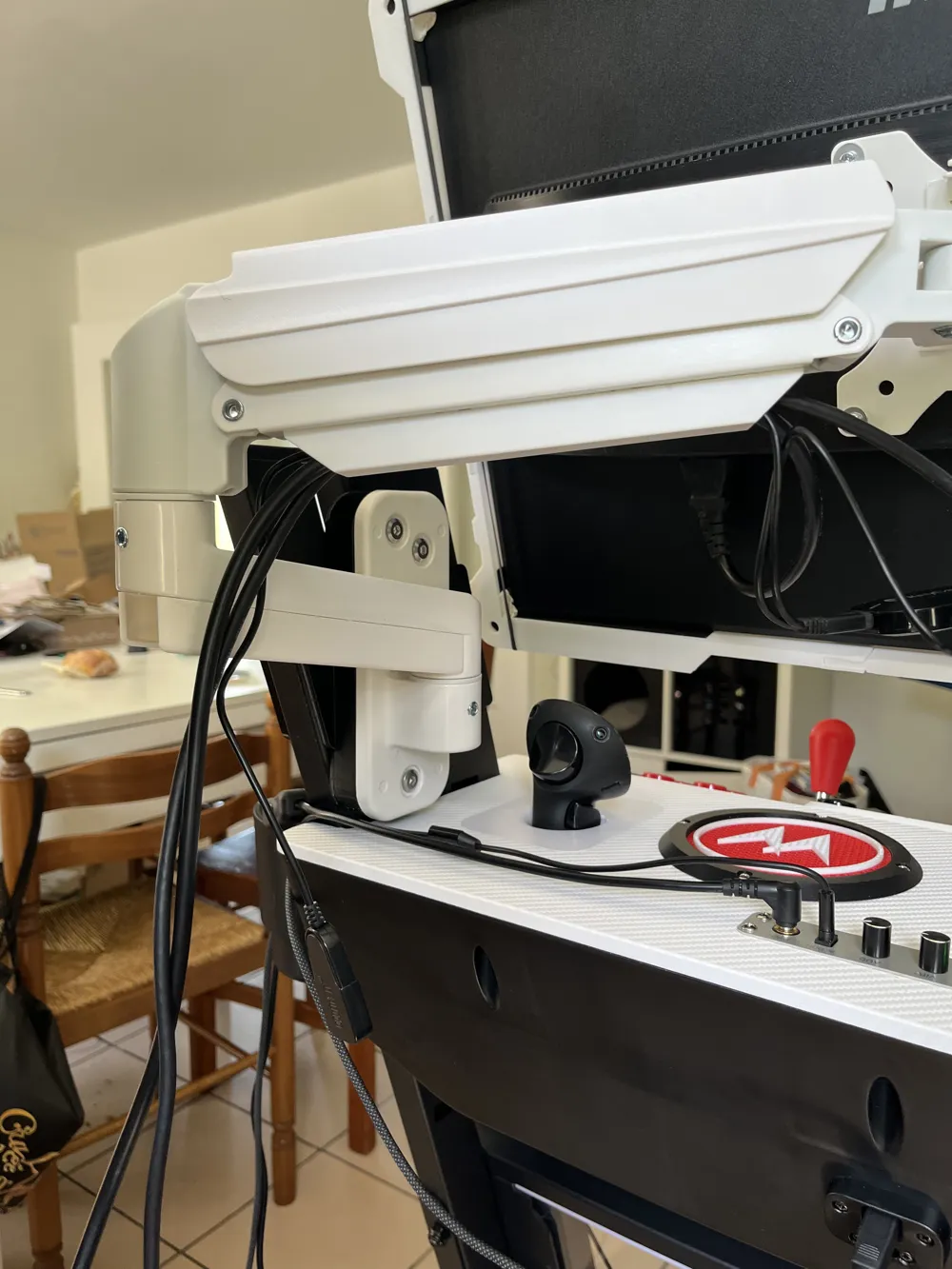

This adapter allows you to mount a wall monitor arm onto the Arcade2TV-XR / TankstickVR arcade panel.

This new version was created to solve one important limitation of the previous adapter: screen height adjustment.

Unlike the original cylindrical mount version, this wall-arm setup makes it much easier to adjust the monitor position depending on the player:

• comfortable standing gameplay;
• seated gameplay;
• lower screen position for children;
• more flexibility for multi-user setups.

The adapter was designed using the following wall monitor arm:
BONTEC Wall Monitor Arm (Amazon)

The previous cylindrical monitor arm adapter can be found here:
Original Cylindrical Monitor Arm Adapter on MakerWorld

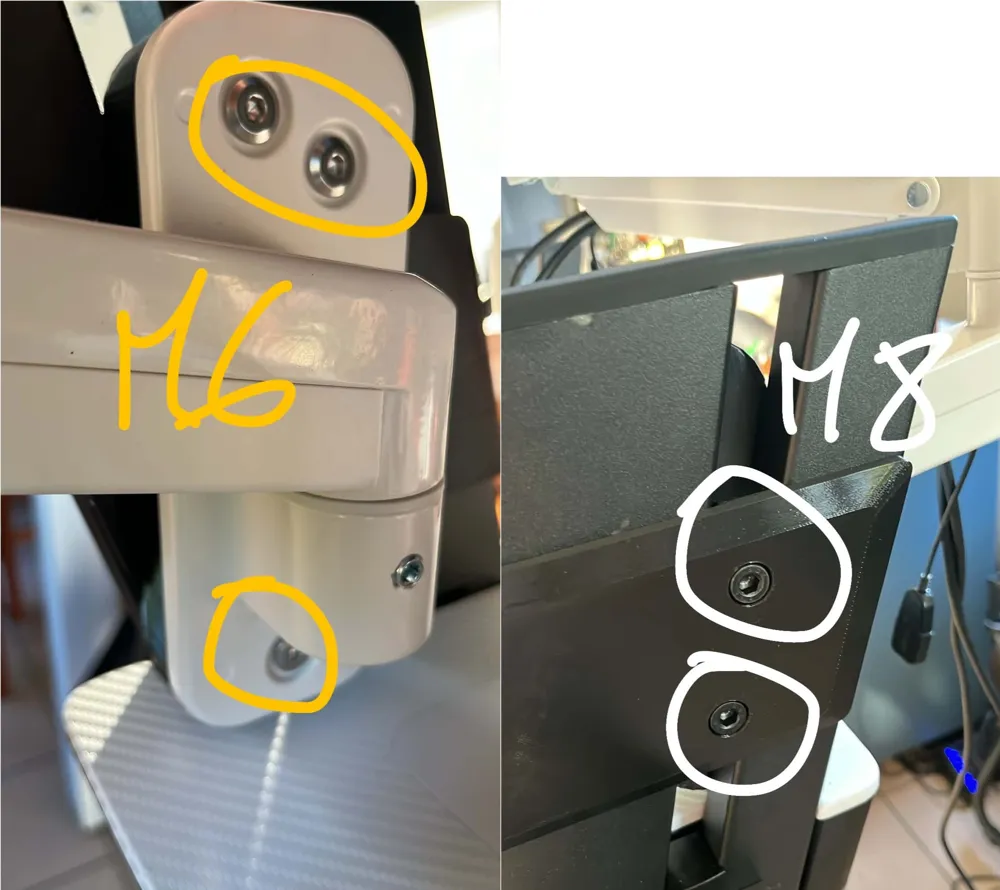

Required Hardware

To assemble the adapter, you will need:

• 3x M6 threaded inserts (12.7 mm length)
• 3x M6 flat head screws
• 2x inserts filetés M8
• 2x vis M8x10

Printing Recommendations

⚠️ PLA is NOT allowed for this print.

Only use strong engineering-grade filaments suitable for mechanical loads:

• ABS
• ASA
• PETG-CF or reinforced PETG
• Nylon
• or equivalent technical materials

Recommended settings:

• high infill;
• multiple walls/perimeters;
• print orientation optimized for strength.

Important Disclaimer

⚠️ This model has not been tested over a long period of time.

While initial tests are successful, long-term durability cannot be guaranteed.

By downloading and using this model:

• you do so at your own risk;
• I am not responsible for material damage;
• including possible monitor falls or broken screens.

Please regularly inspect:

• the printed parts;
• screw tightness;
• any cracks or deformation.

Compatibility

Designed for:

• Arcade2TV-XR / TankstickVR arcade panel;
• wall-mounted monitor arms;
• standard VESA monitor systems.
