Rubber band foam dart 40mm grenade toy model - enhanced version
Print Profile(2)
Description
Boost Me (for free)

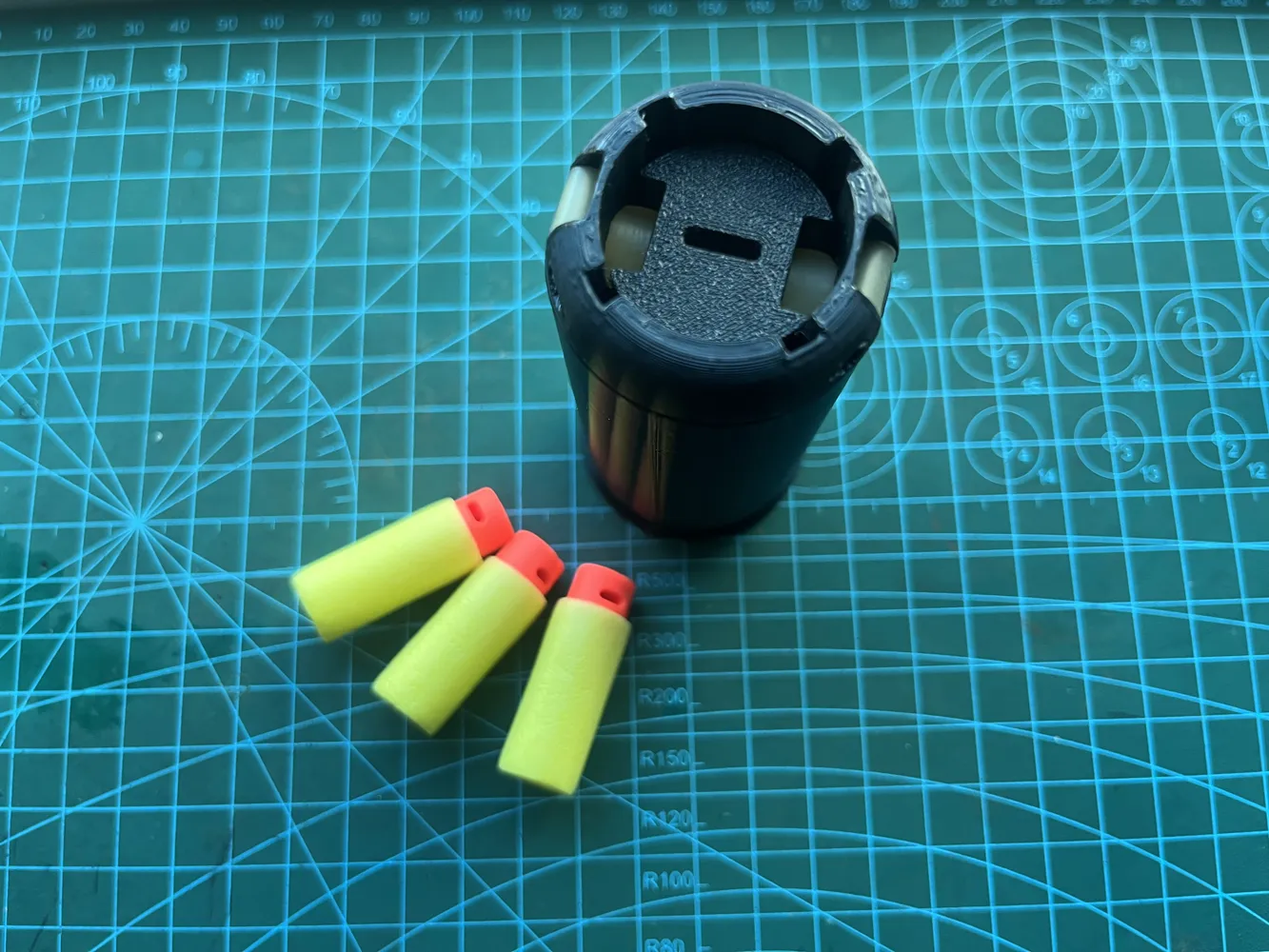

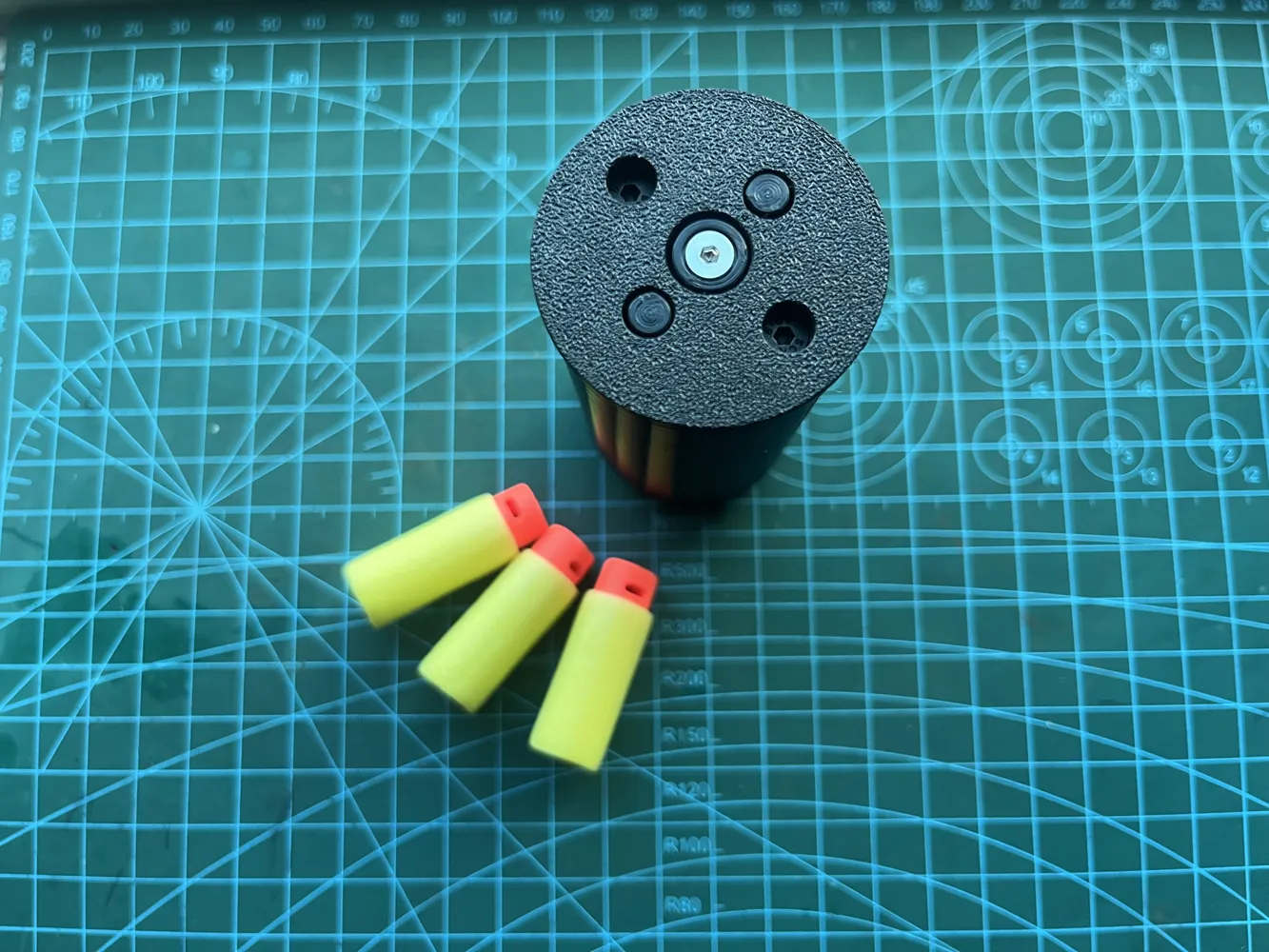

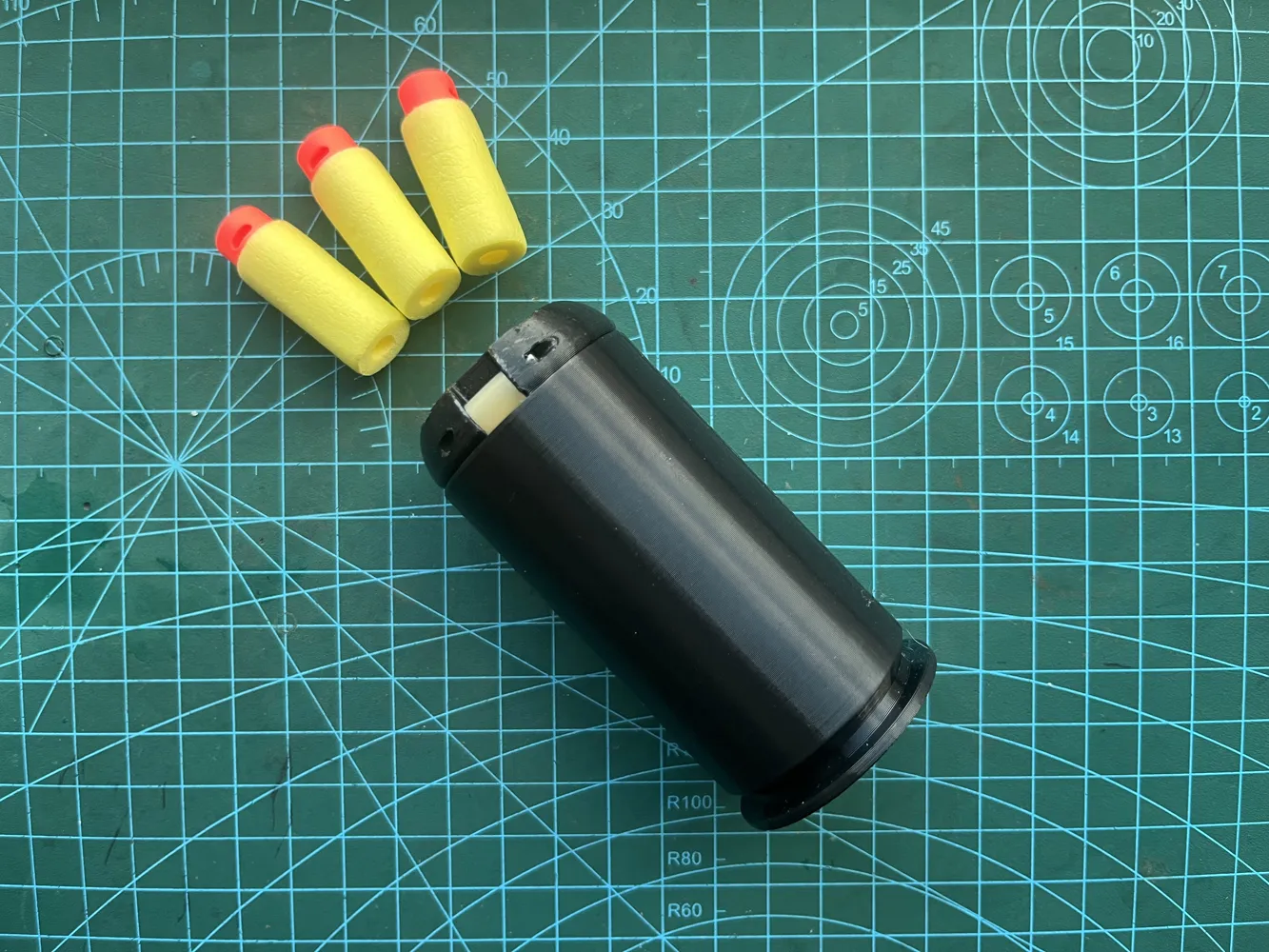

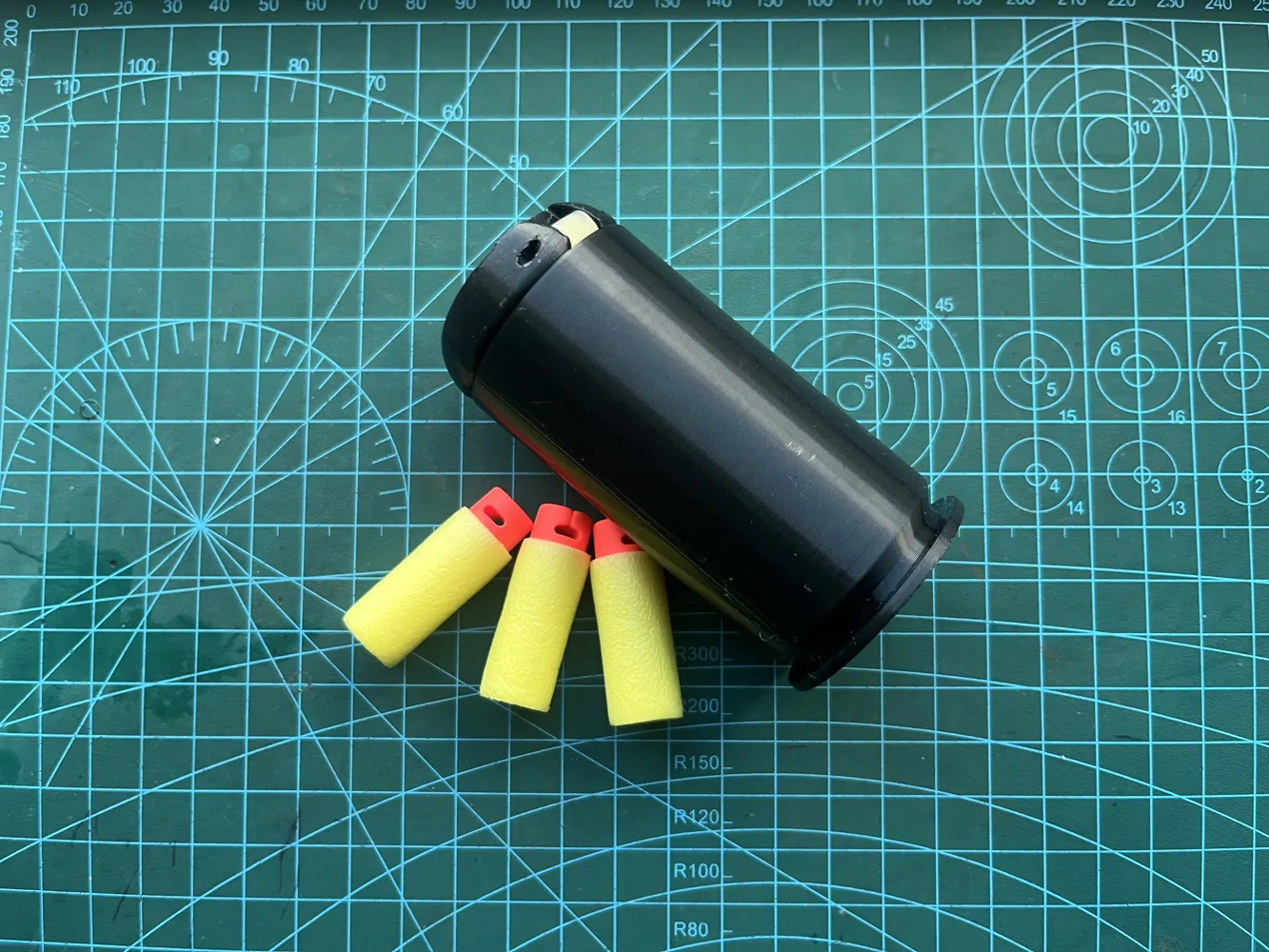

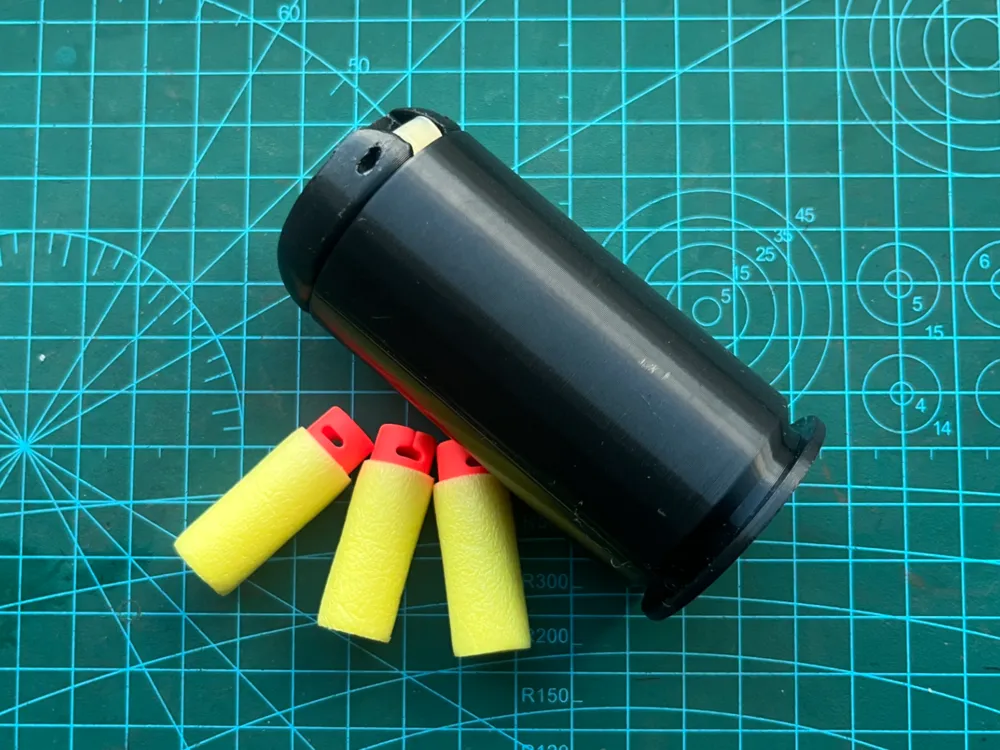

This is an improved grenade model that still replicates the original firing mechanism, with optimized installation of rubber bands and the bottom firing device. The range has also been further enhanced, requiring only a few hardware components
Hardware list:
M3x8 flat-head screws 2
M3x16 flat-head screw 1 (The head of this screw must be flat, not tapered or cap-headed)
M3 heat-set inserts 2
M3 standard nut 1 (a hexagonal nut will suffice)
0.4x7x10 spring 1
2mm diameter x 15mm length pins 2
18mm inner diameter, 22mm outer diameter latex ring 1 (a 5mm wide latex ring is sufficient) You can cut a piece from a latex tube
Note: The first model file is the compatible grenade model for the previous grenade launchers
The second model file is for the tactical M79 version. The difference is a slightly larger bottom edge. Please read the instructions carefully, or if you have any questions, feel free to ask me in the comments section
