Description

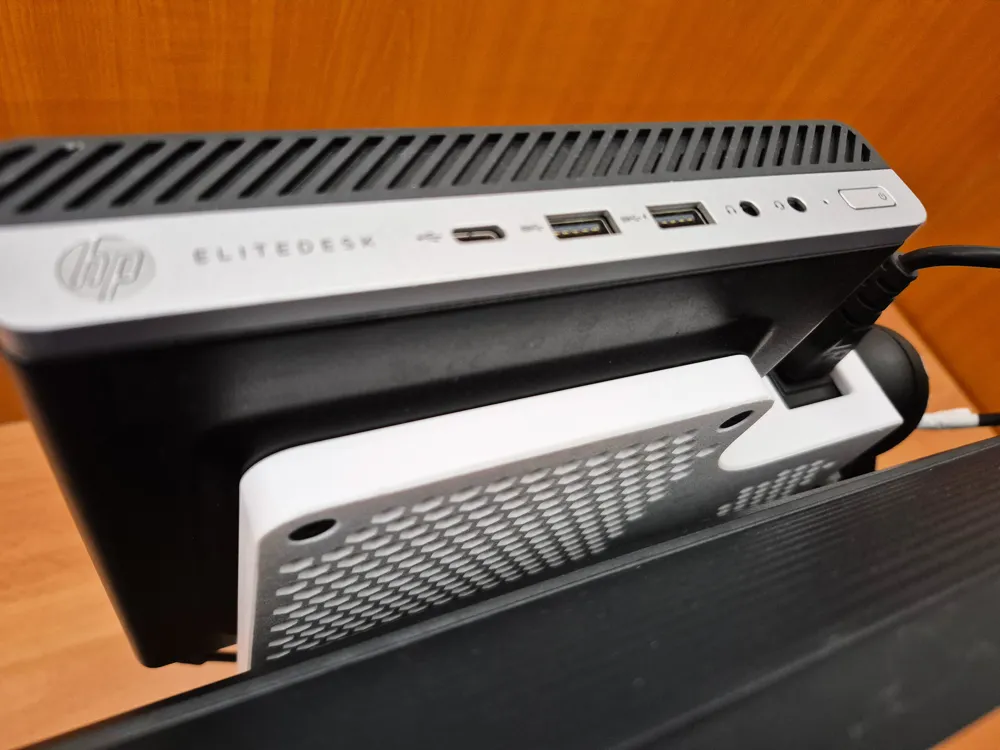

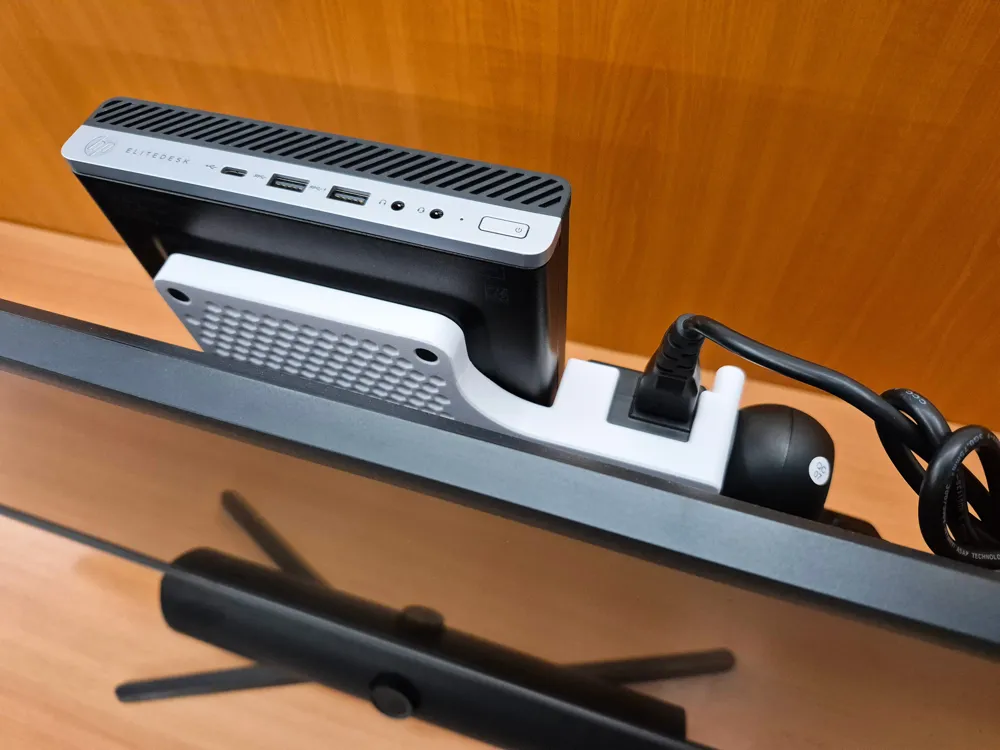

This model is an improved, modified version of the previous model (https://makerworld.com/en/models/2787712-elitedesk-vesa-mount-90w)! Here, the Elitedesk and the power supply have honeycomb grid holes for better ventilation, and a power strip can also be attached to it.

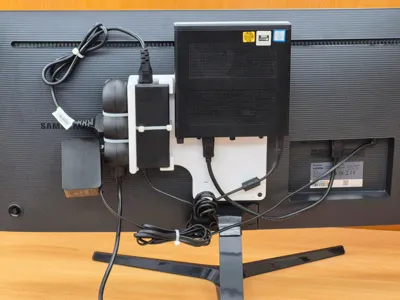

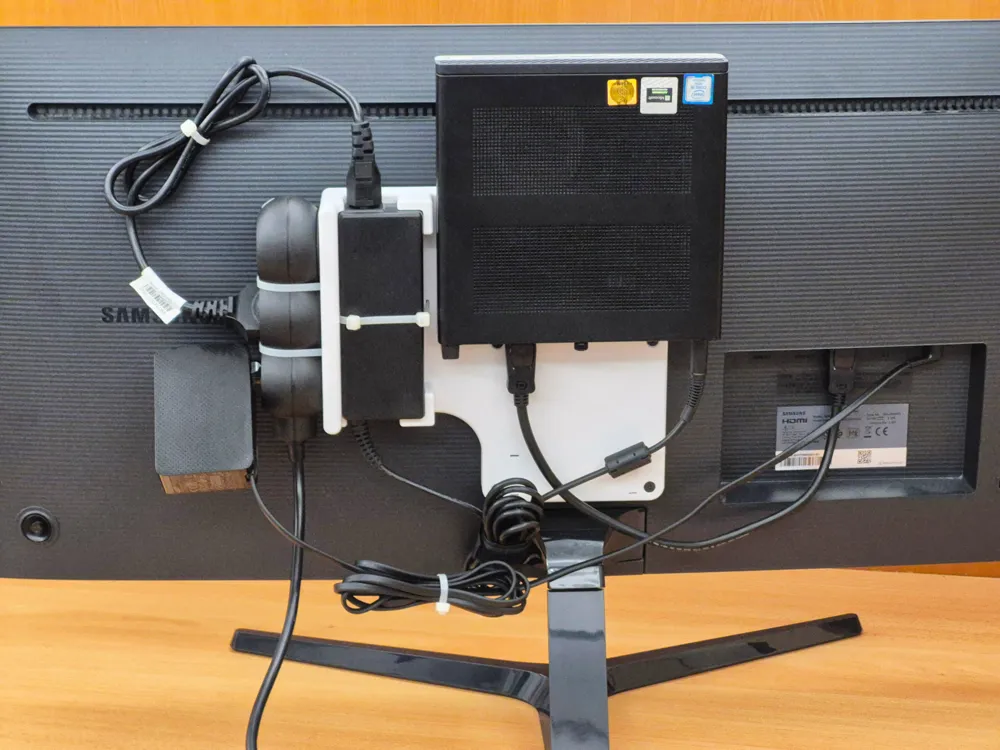

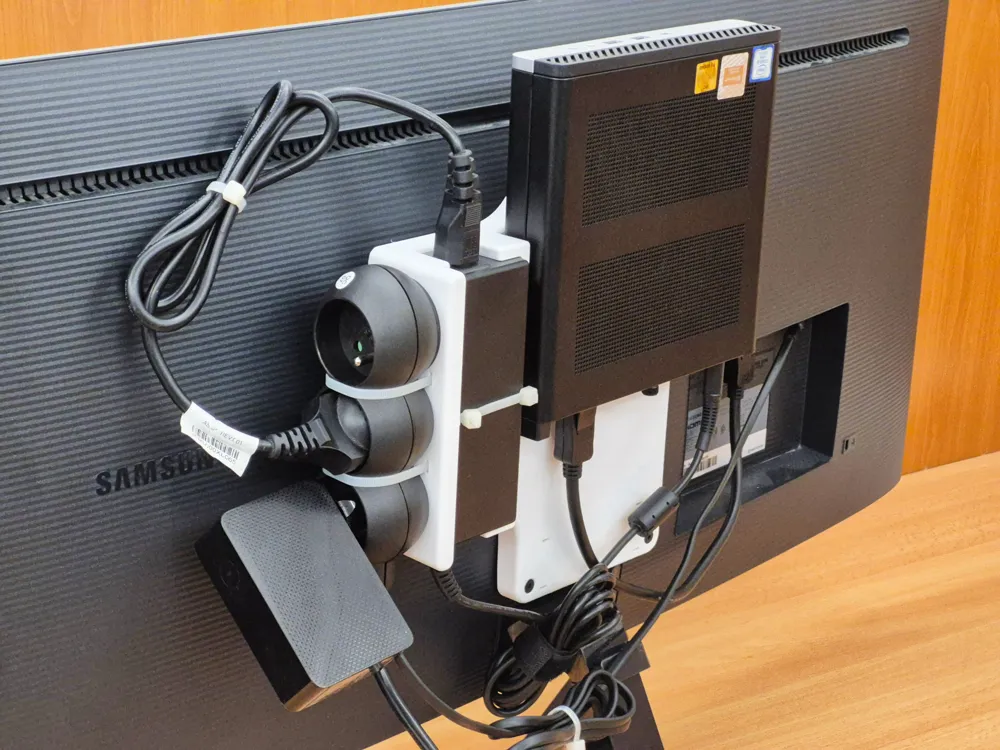

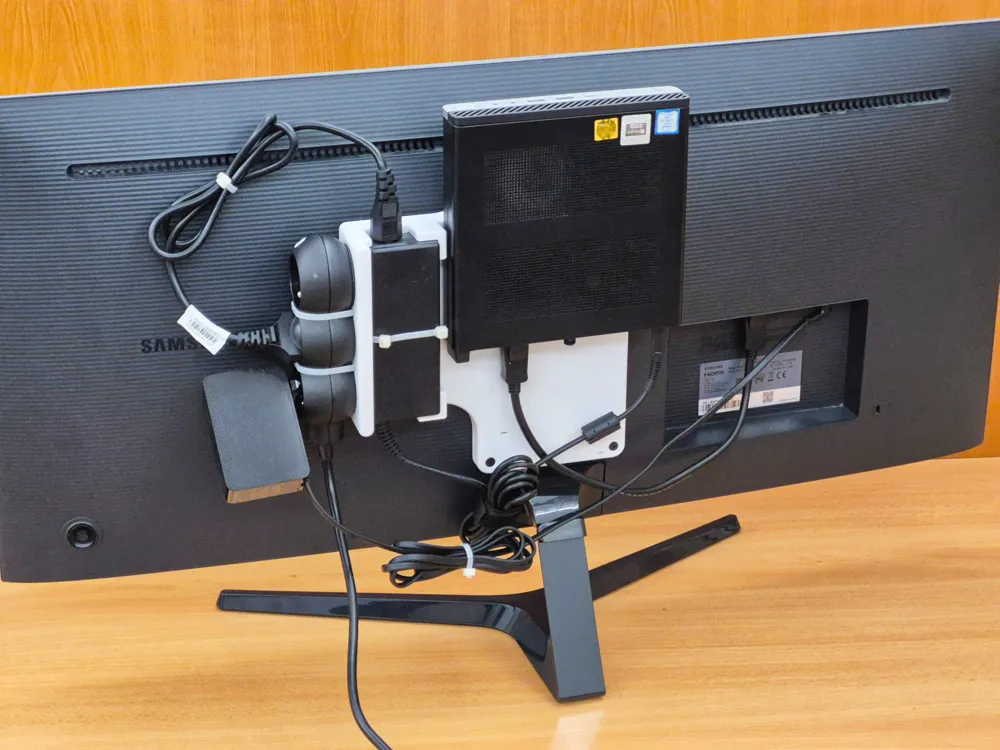

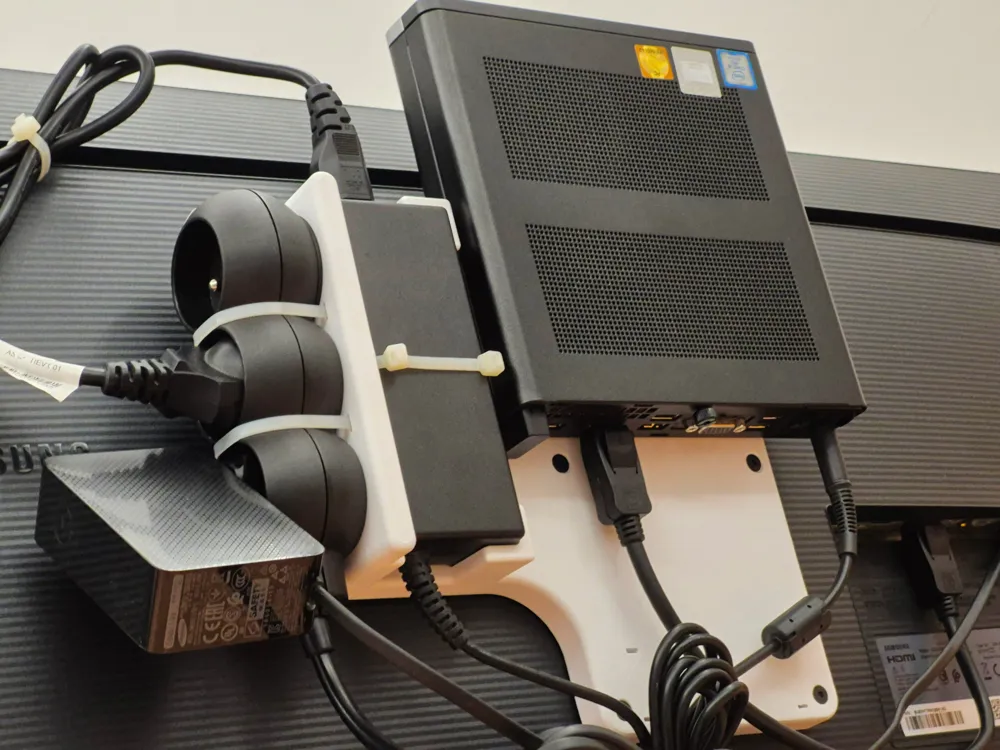

This bracket can be used to mount an HP Elitedesk mini computer and its 90W power supply to a VESA100 mount. I mounted an HP Elitedesk 800 G5 computer to a Samsung S34J55X monitor. The 90 W power supply (TPC-LA57) and the extension cable supply (https://www.alza.hu/connect-it-hosszabbito-230-v-3-aljzat-1-5m-feher-d4906342.htm) can be attached to the computer with a cable tie.
The computer is secured to the bracket with 4 M4 25mm countersunk screws. The bracket is attached to the monitor with 4 M4 25mm countersunk head screws. Under the computer, between the two lower holes for attaching to the monitor, there are two tunnels on the model, into which cable ties can be inserted. These can be used to secure the wires coming out of the computer.
