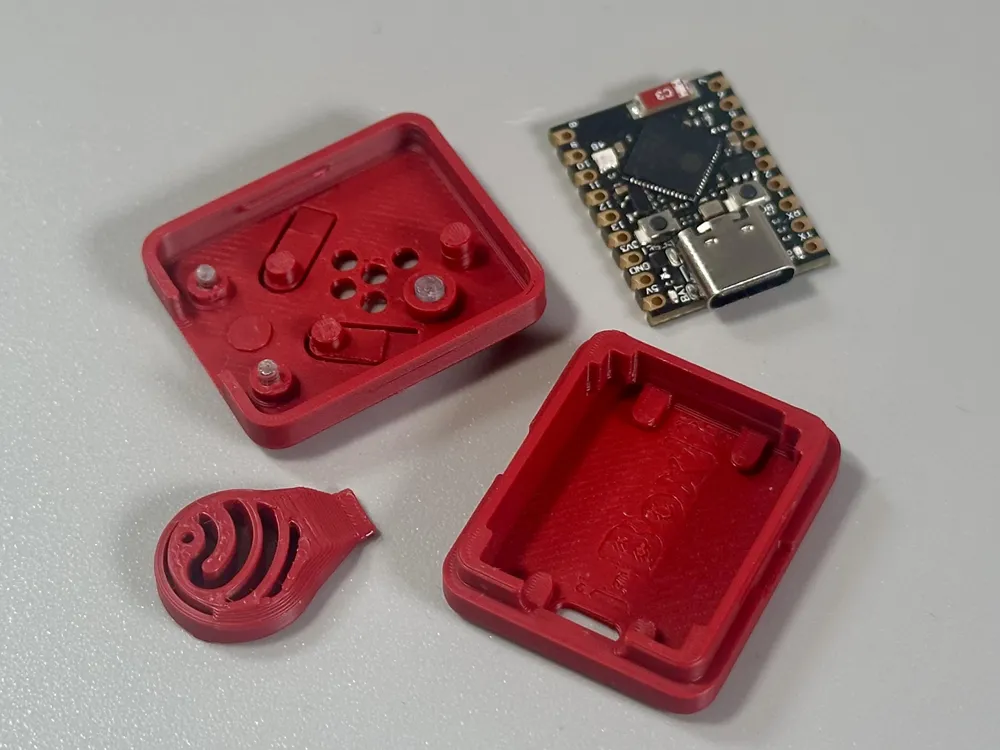

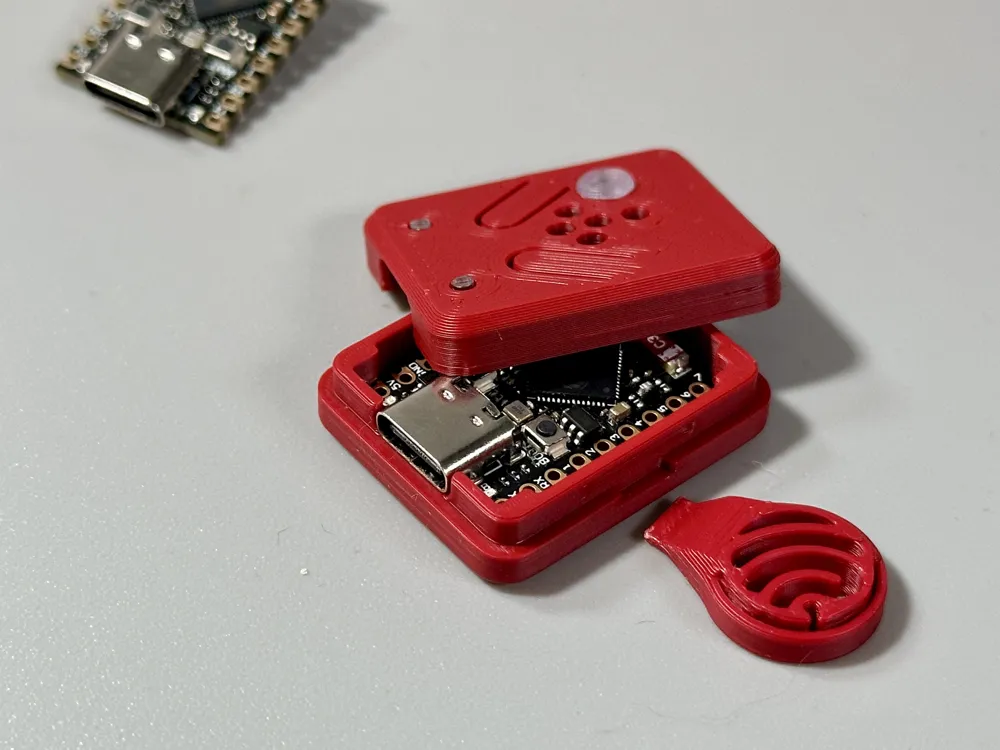

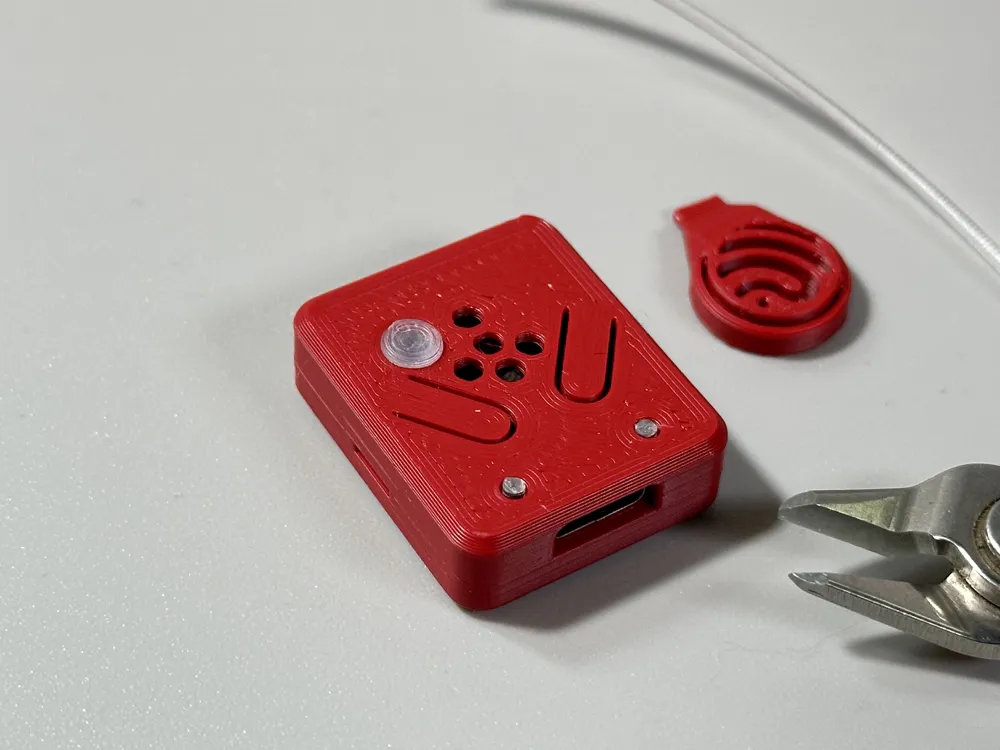

ESP32-S3 SuperMini USB-C Snap-Fit Case
This case is designed to protect and showcase your ESP32-S3 Super Mini board without any hassle.
It comes in multiple variants to accommodate different header setups, making it easy to tailor the design to your needs.

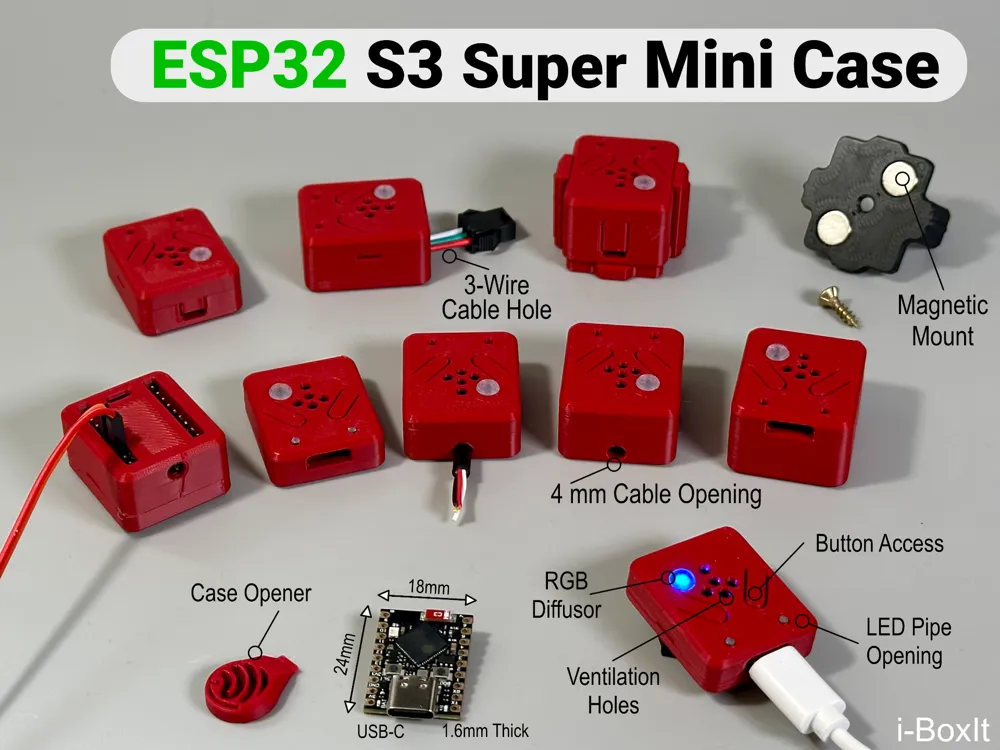

Key Features
- Snap-Fit Closure
- Accessible Buttons: Boot and reset button
- LED Openings: Clearly visible indicator LEDs through dedicated holes

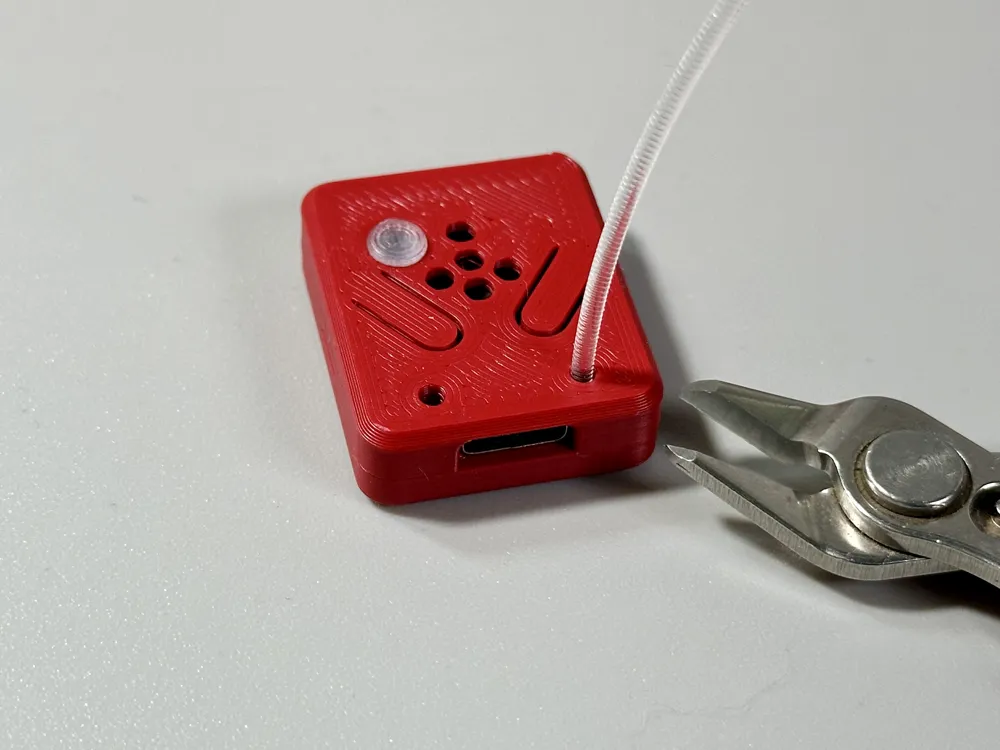

You can also use transparent filament as a light guide - RGB Opening with Diffusor

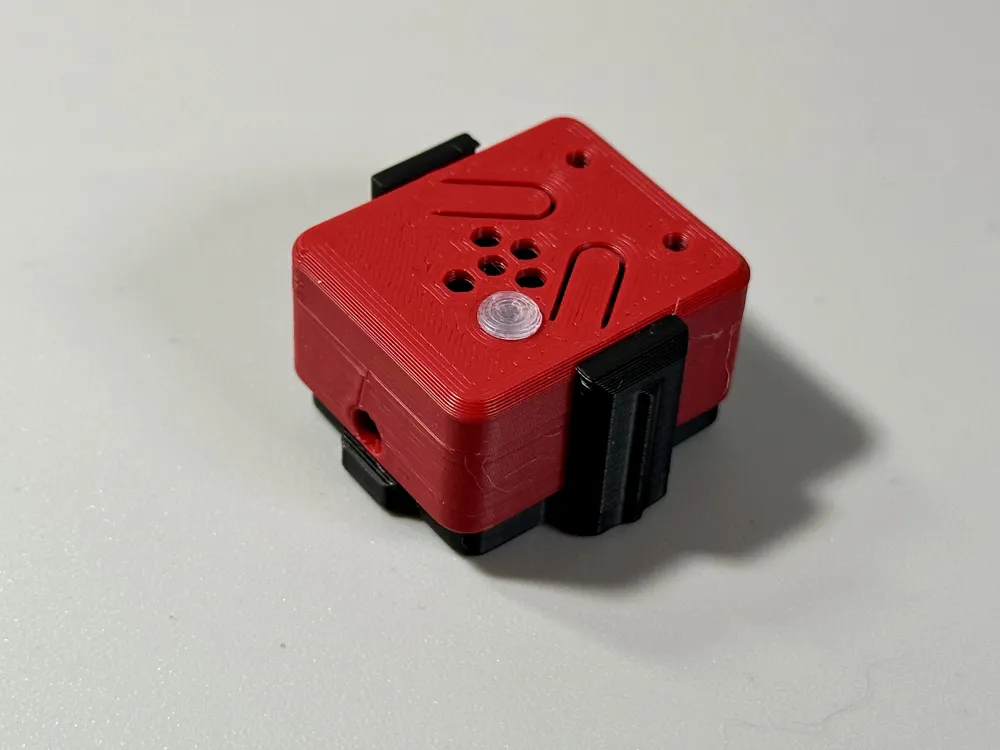

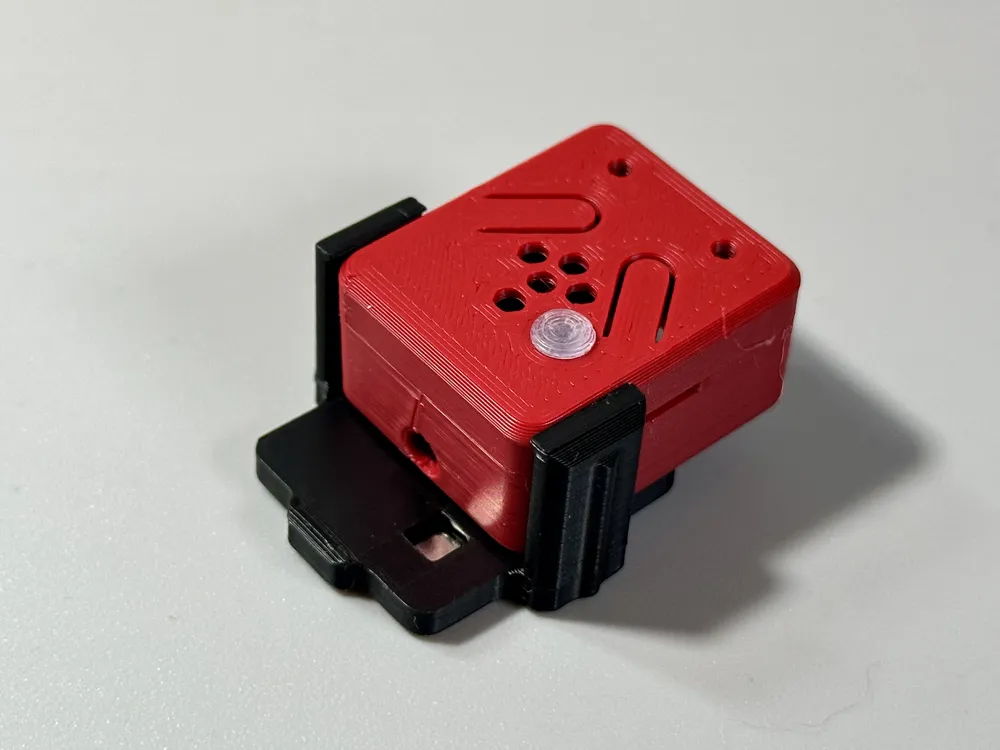

- Wall Mount: Use a screw or use magnets 8x2mm

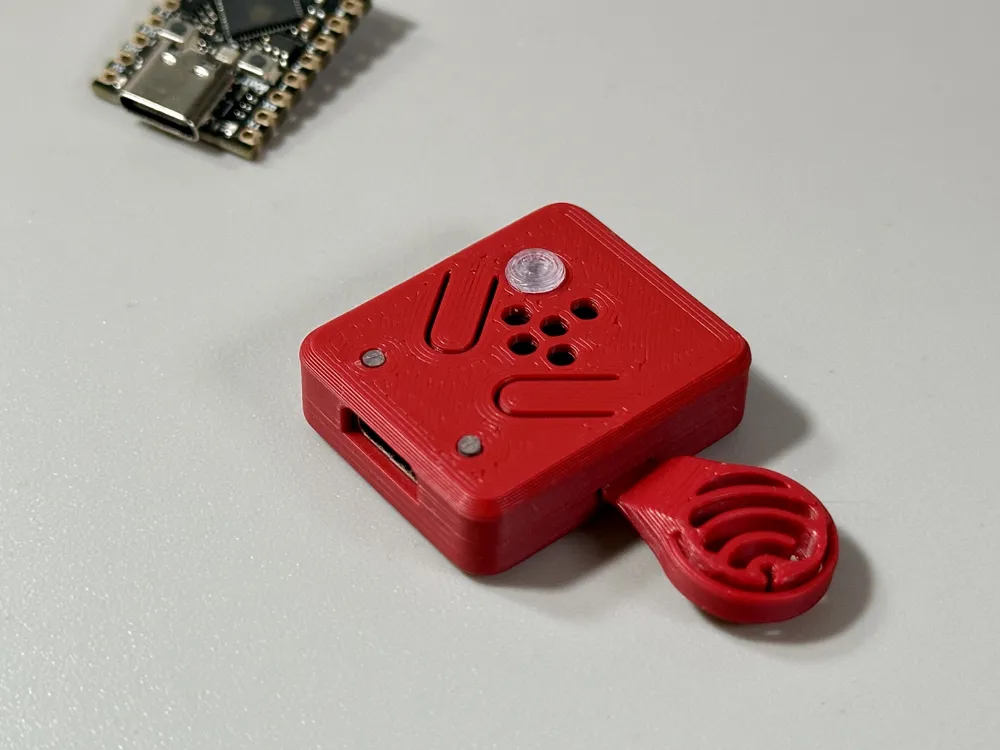

- Opener: To easily open the snap-fit case
- Variants. Remove what you do not need!
- Slim Case: No Header Holes
- Slim Case: Headers Holes
- Middle Size: No Header Holes. Cable Hole for direct wiring
- Big: Header is enclosed but still accessible, with an additional cable hole

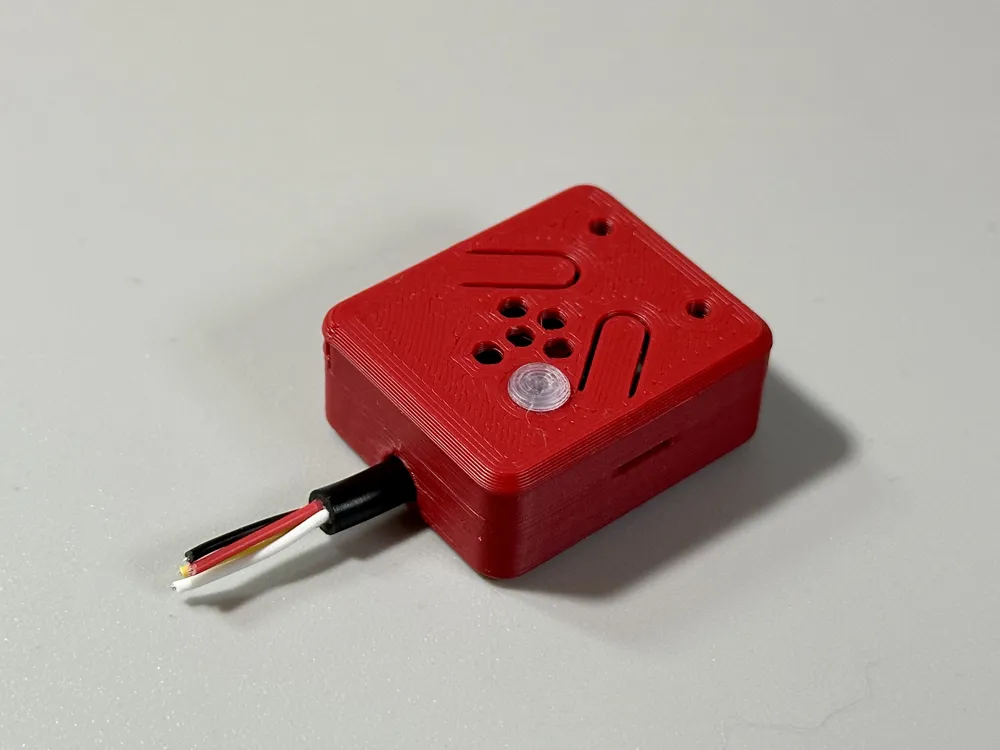

- Big: No Header holes. For direct wiring of the ESP32-C6 board via cables (3.8mm Hole)

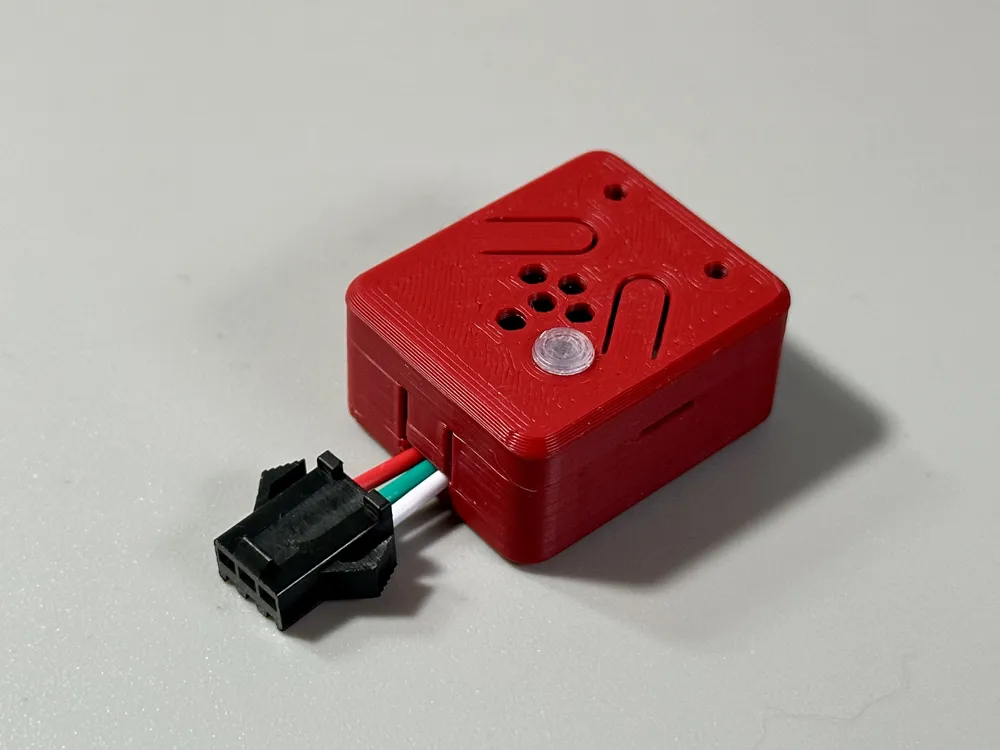

- Middle: No Header holes. Cable Hole 2.0 x 5.5 mm
- Big: No Header holes. Cable Hole 2.0 x 5.5 mm
