Modular Filament Dryer print on A1 Mini AMS Lite
Print Profile(1)
Bill of Materials
.jpg)
- Epoxy Glue x 1:
- Teflon Tape x 1:
- Electrical Tape x 1:
- ϕ50 ×2 circular plexiglass sheet x 3: Optional (but reccomended)
Description

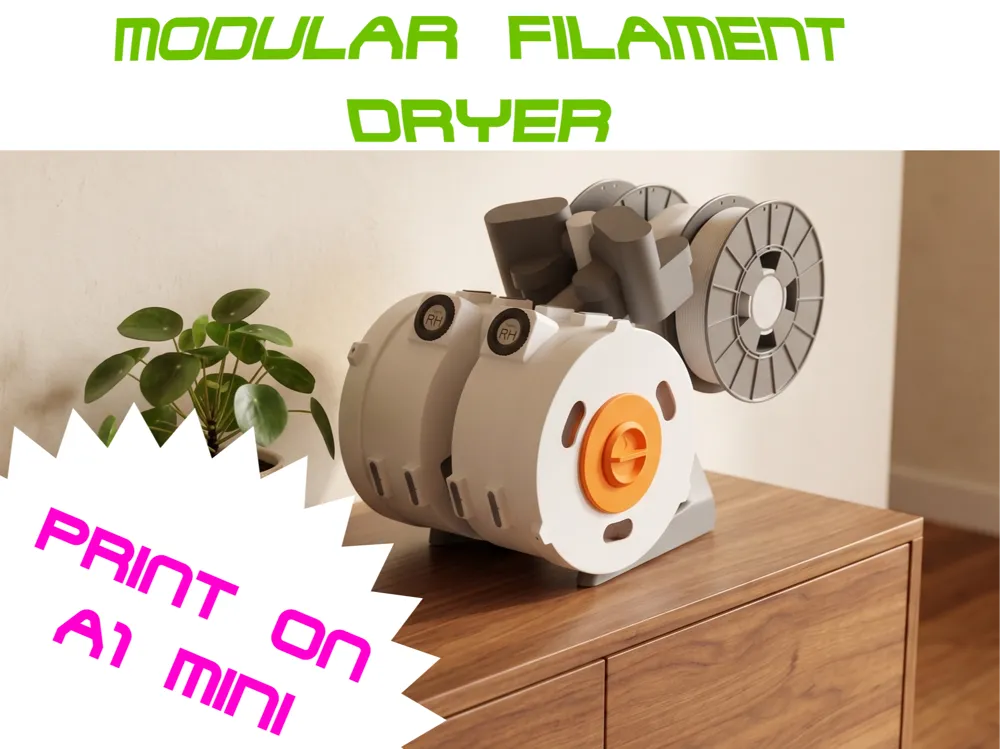

Modular Filament Dryer for AMS Lite, Fully Printable on Bambulab A1 Mini!

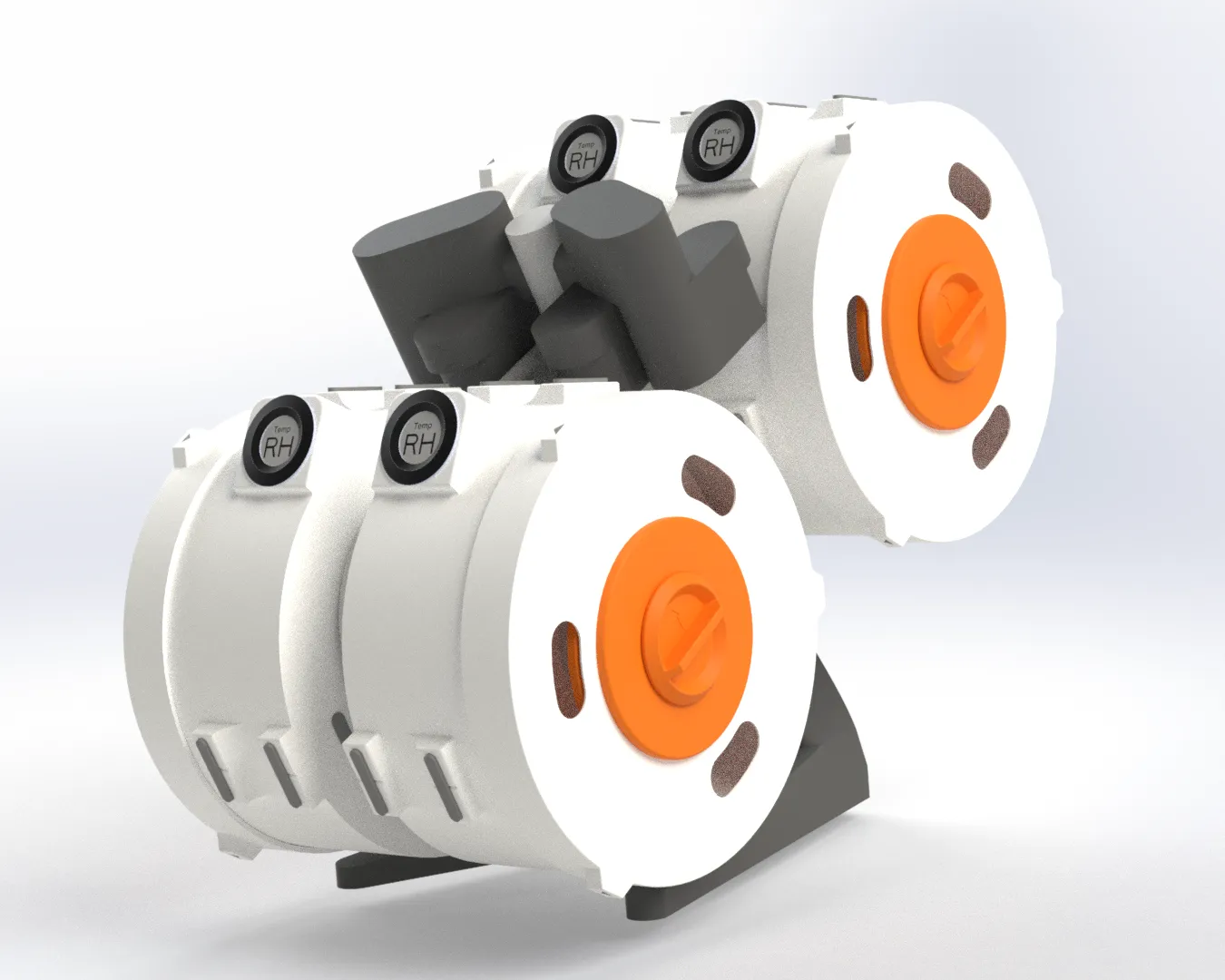

Keep your filament dry while printing with this modular, passively-dried enclosure designed specifically for the front spool holders of the Bambulab AMS Lite. And most importantly… It's fully printable on the A1 Mini! Build it yourself.
Boost Me (for free)
Boost us!!!
What makes it different?
Most AMS Lite filament dryers on MakerWorld either don't fit the A1 Mini's build plate or are unnecessarily complex. This one is designed from the ground up to be fully printable on the A1 Mini, modular (each dryer is independent), and easy to maintain.
- ✅ Compatible with spools up to ø20 cm (virtually universal)
- ✅ Tested with SUNLU, BambuLab, DEEPLEE, ELEGOO spools

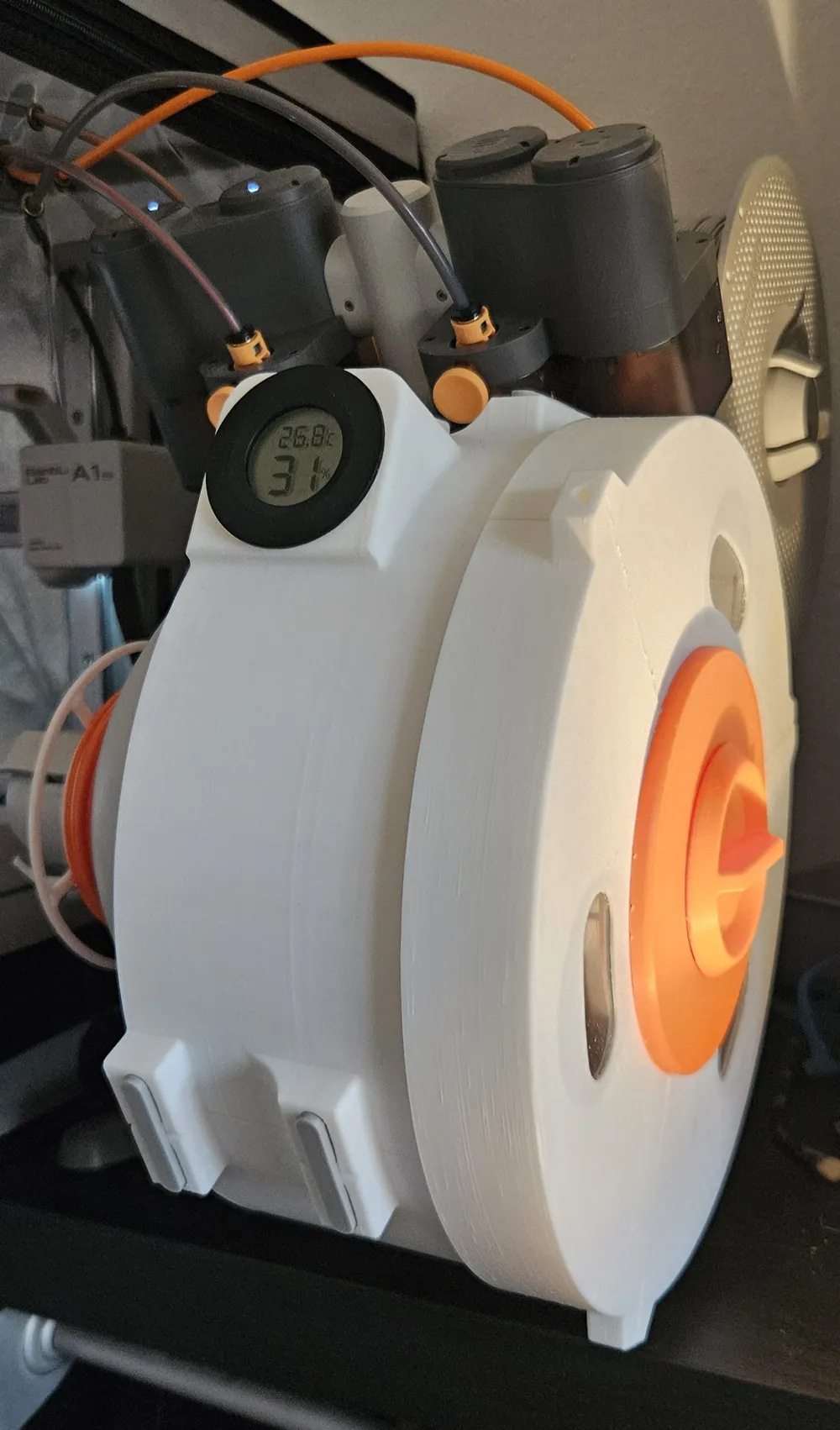

- ✅ Integrated XF001 thermohygrometer slot for real-time humidity monitoring
- ✅ Plexiglass windows to inspect the filament without opening
- ✅ Tool-free spool swap and filament jam access
Measured Performance
Please take a look at the included guide!
Tested in Emilia Romagna (notoriously humid ~52% RH ambient):
| Version | Min RH reached | Plateau duration |
|---|---|---|

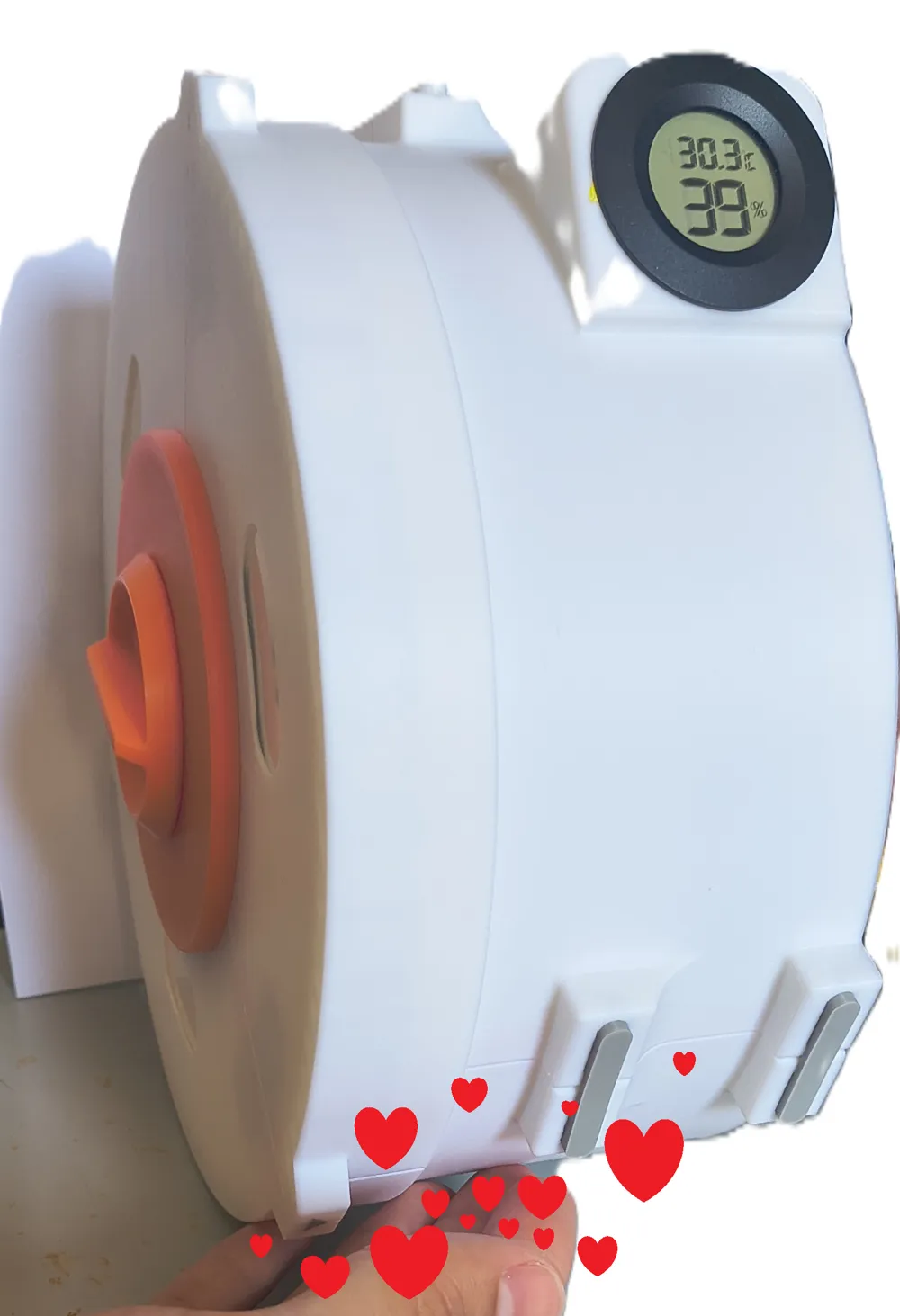

| Not glued | ~39% RH (–13%) | ~1 day |

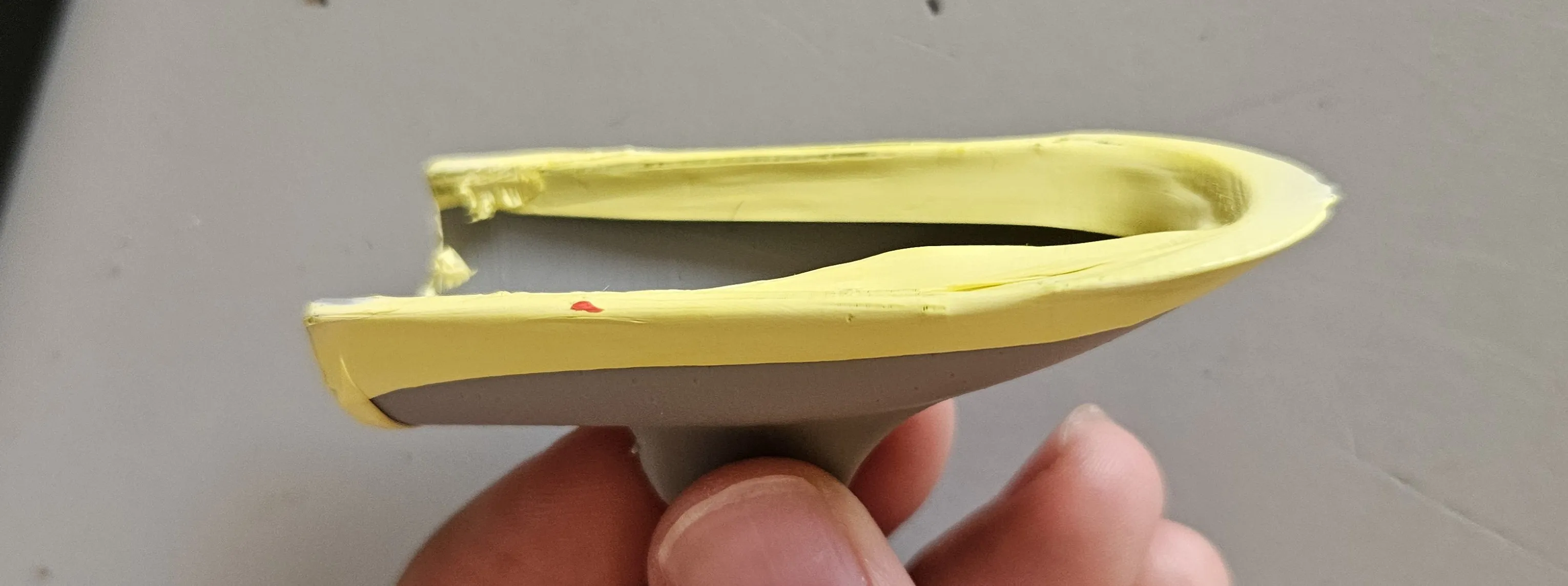

| Sealed (epoxy + tape) | ~32% RH (–20%) | ~4 days |
Recommended silica gel replacement: weekly (sealed) or twice a week (standard).
⚠️ Not intended for long-term storage of moisture-sensitive filaments. Suitable for passive drying of PLA, PETG, and similar materials during printing. It was developed to make sure we could print PVA without damaging the whole spool to then put it back for long term storage into vacuum dry-bags.
Print Settings

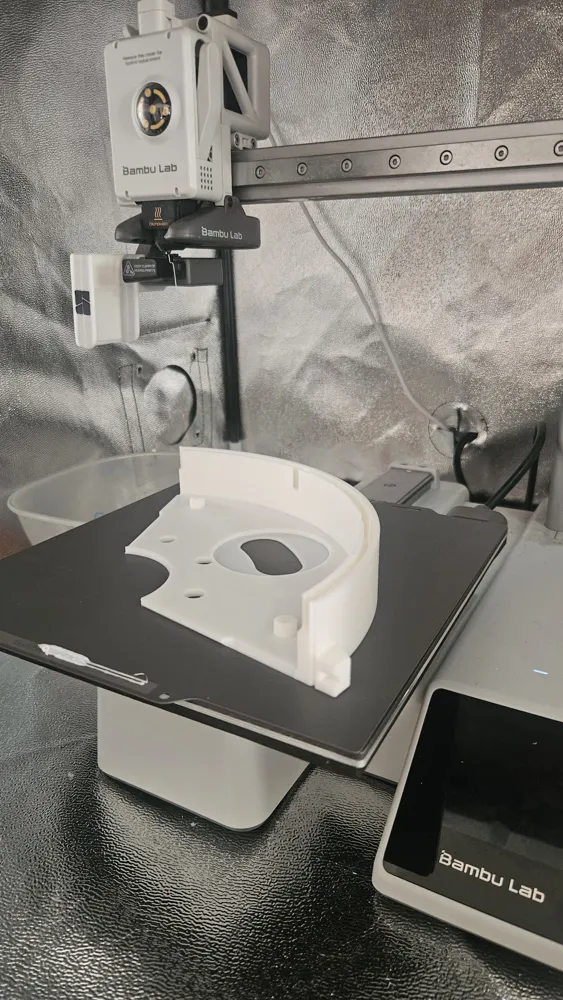

All parts were printed on a Bambulab A1 Mini. Total print time per dryer: ~16h 37m / ~480g.
| Parts | Material | Notes |
|---|---|---|
| Structural parts (Body, Lid sections) | PLA Basic | Any color. |
| Clips (Body Side Clip, Base Clip, Lid Clip, Lid Triang. Clip) | PLA Tough | Higher stress resistance and flexibility for snap-fit joints |
Standard 0.16mm layer height. Print profile for A1 mini included.

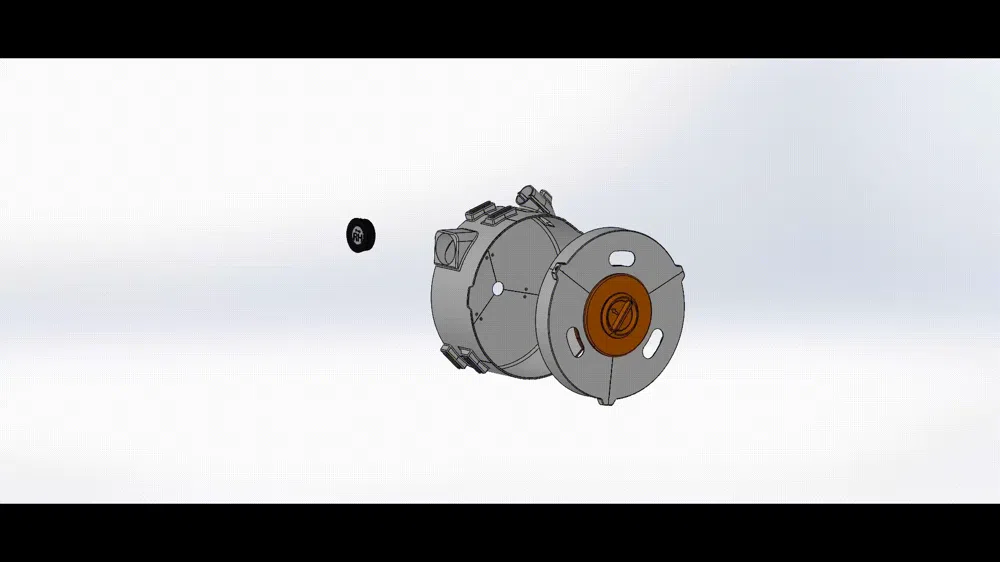

Assembly and mainteinance
💡 Please take a look at the included guide!
IMPORTANT! update to the guide:
NOTE! WE HAVE ALSO INCLUDED A NO-HOLE VERSION IF YOU DON'T WANT TO BUY THE PLEXIGLASS WINDOWS!
Project Status
Currently the two front dryers are complete and working. Back dryers, TPU gaskets, a better filament port and an improved silica container are planned.
We need community support! If you find this useful, please Boost to help us continue development!
Boost Me (for free)
Boost us!!!
Designed in SolidWorks Makers by:
📌 MakerWorld profiles: @Simon_cat and @griso
