Description
Lighting is the true strength in home decor. Simple yet elegant light sources are often the best solution for illuminating small and large spaces.

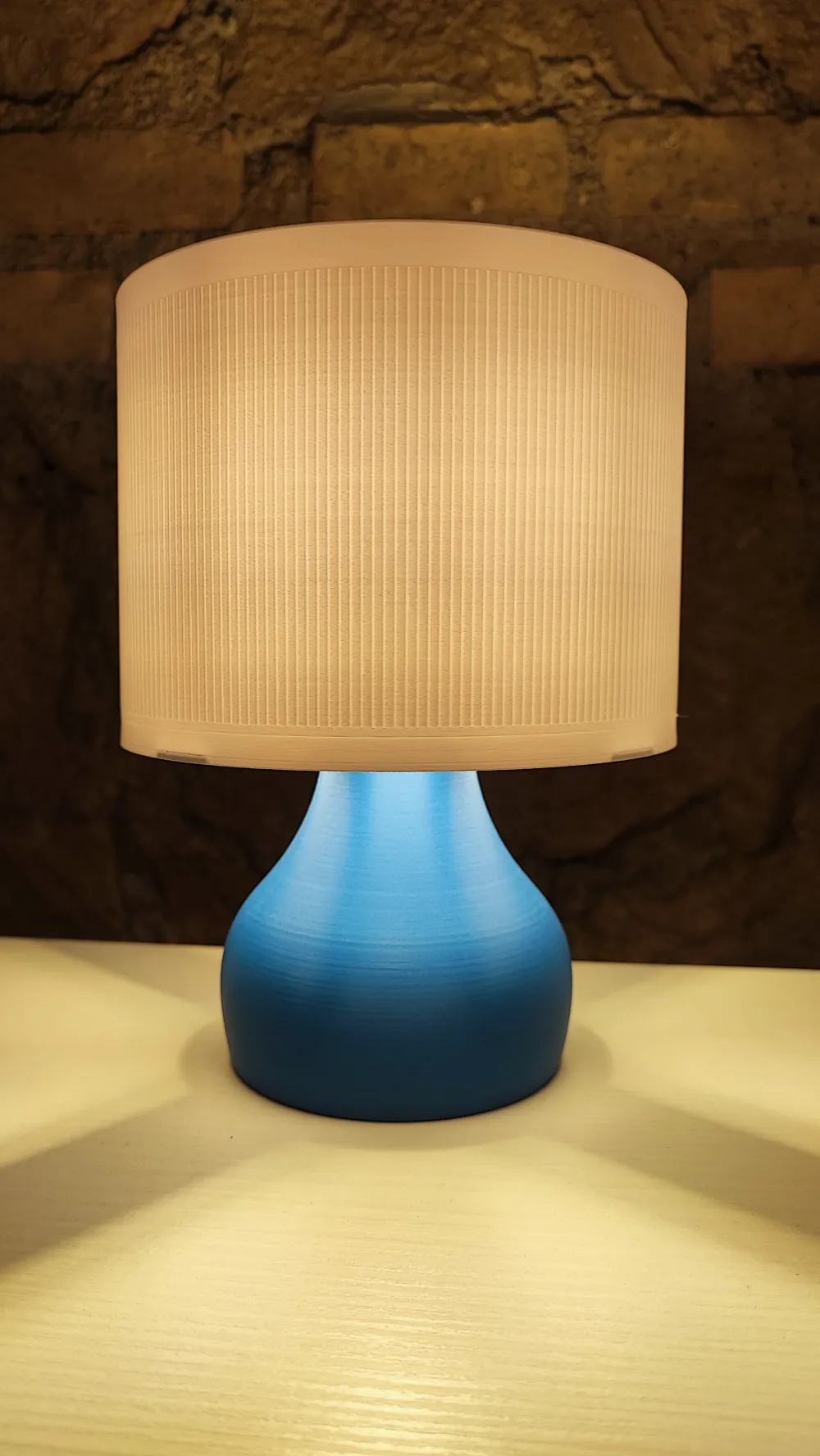

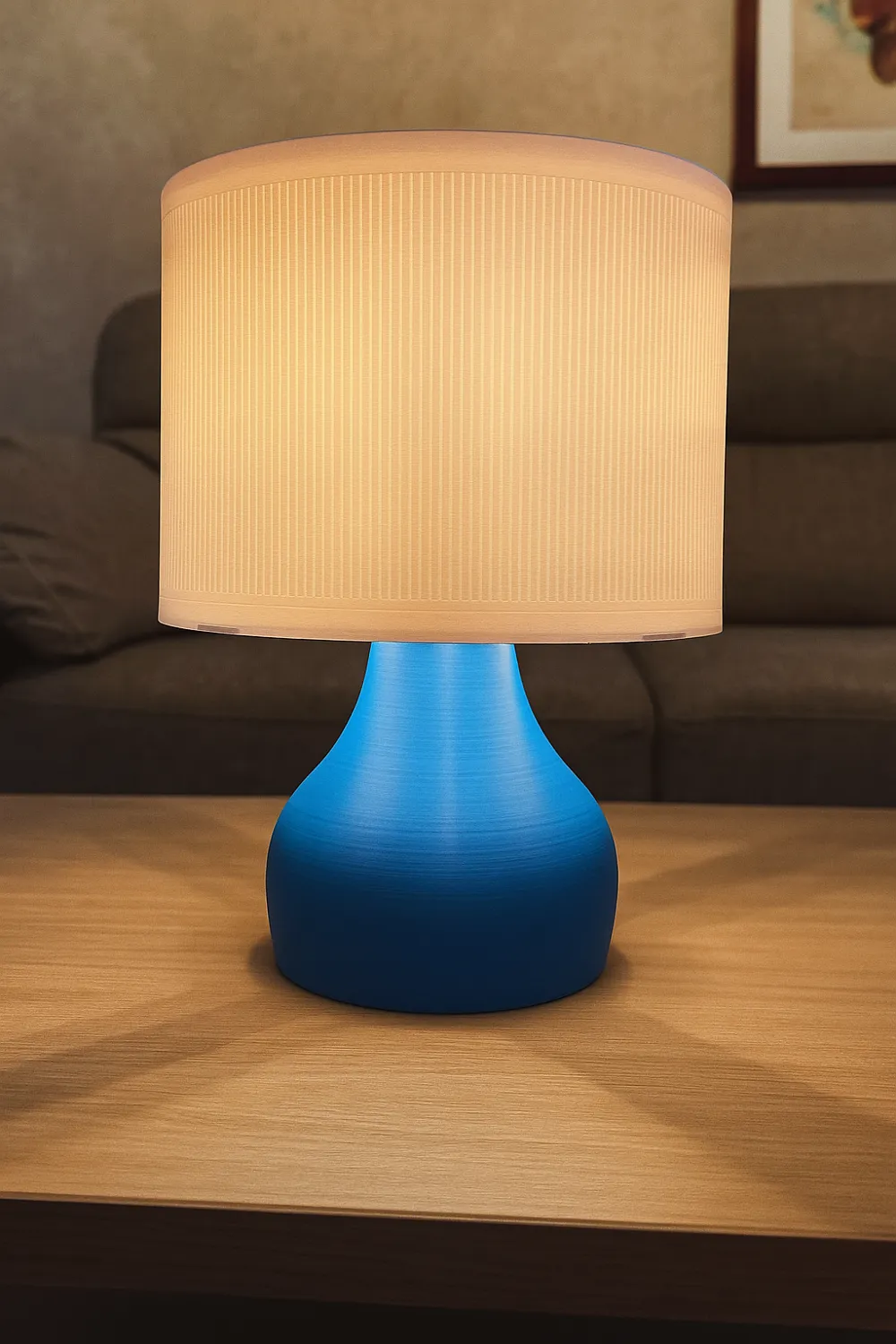

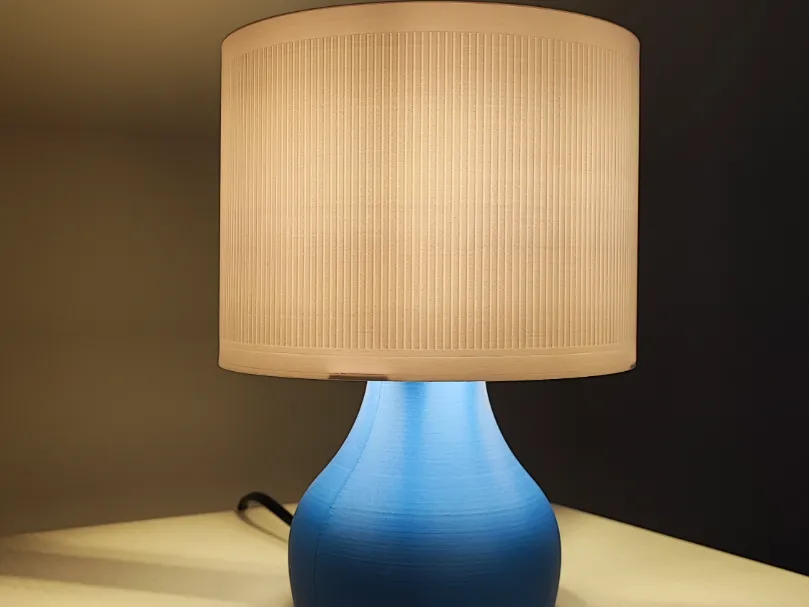

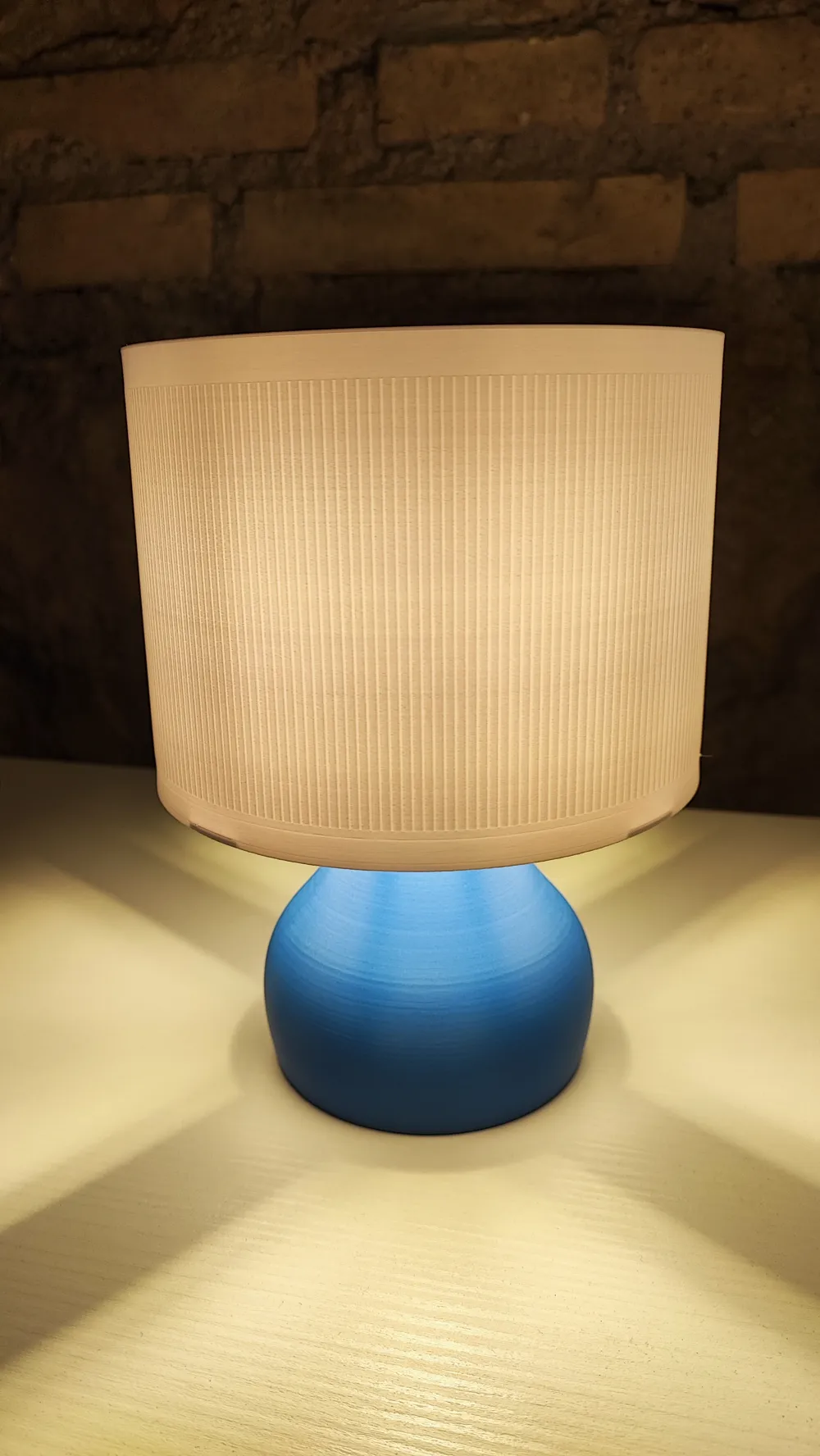

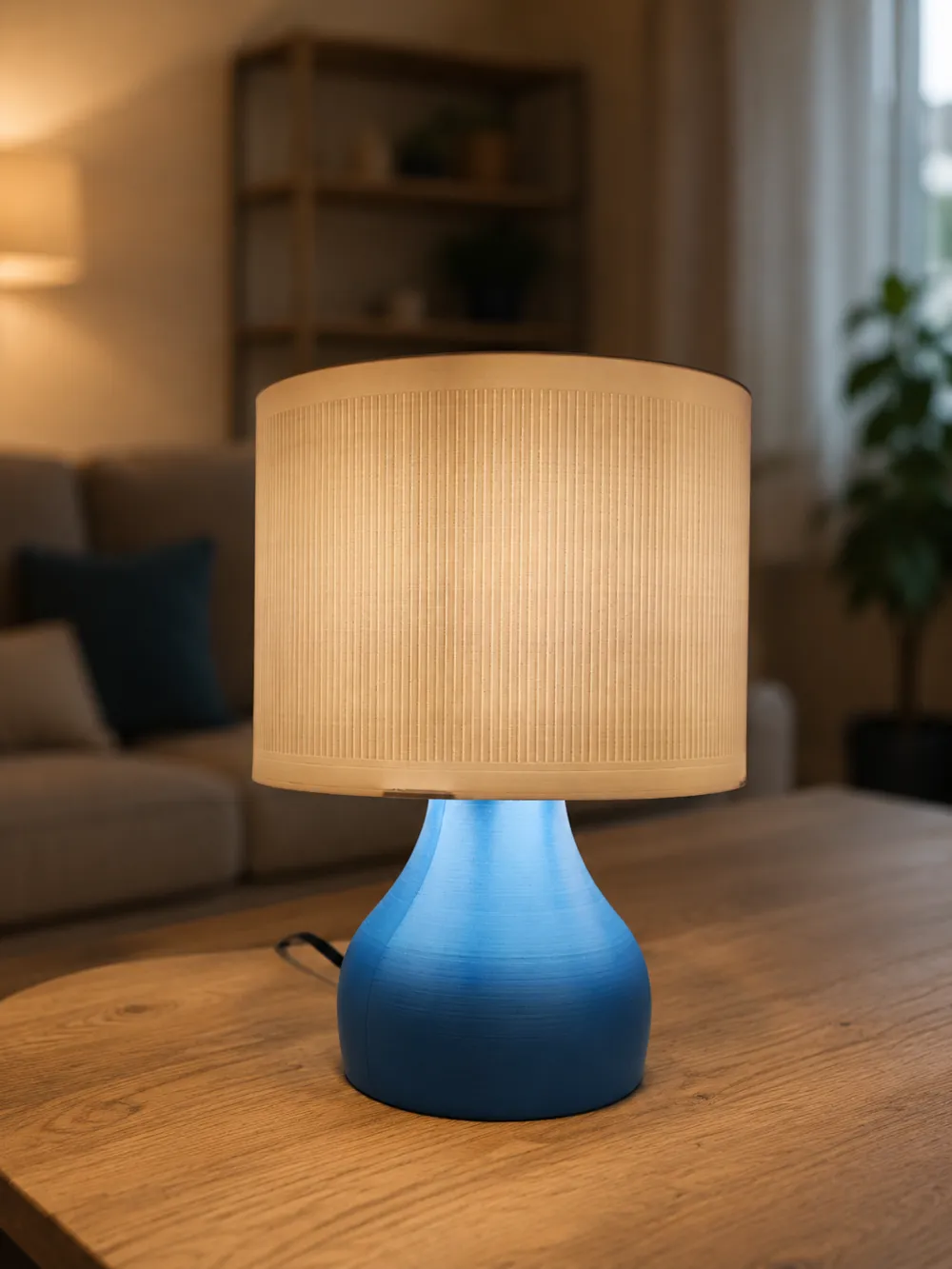

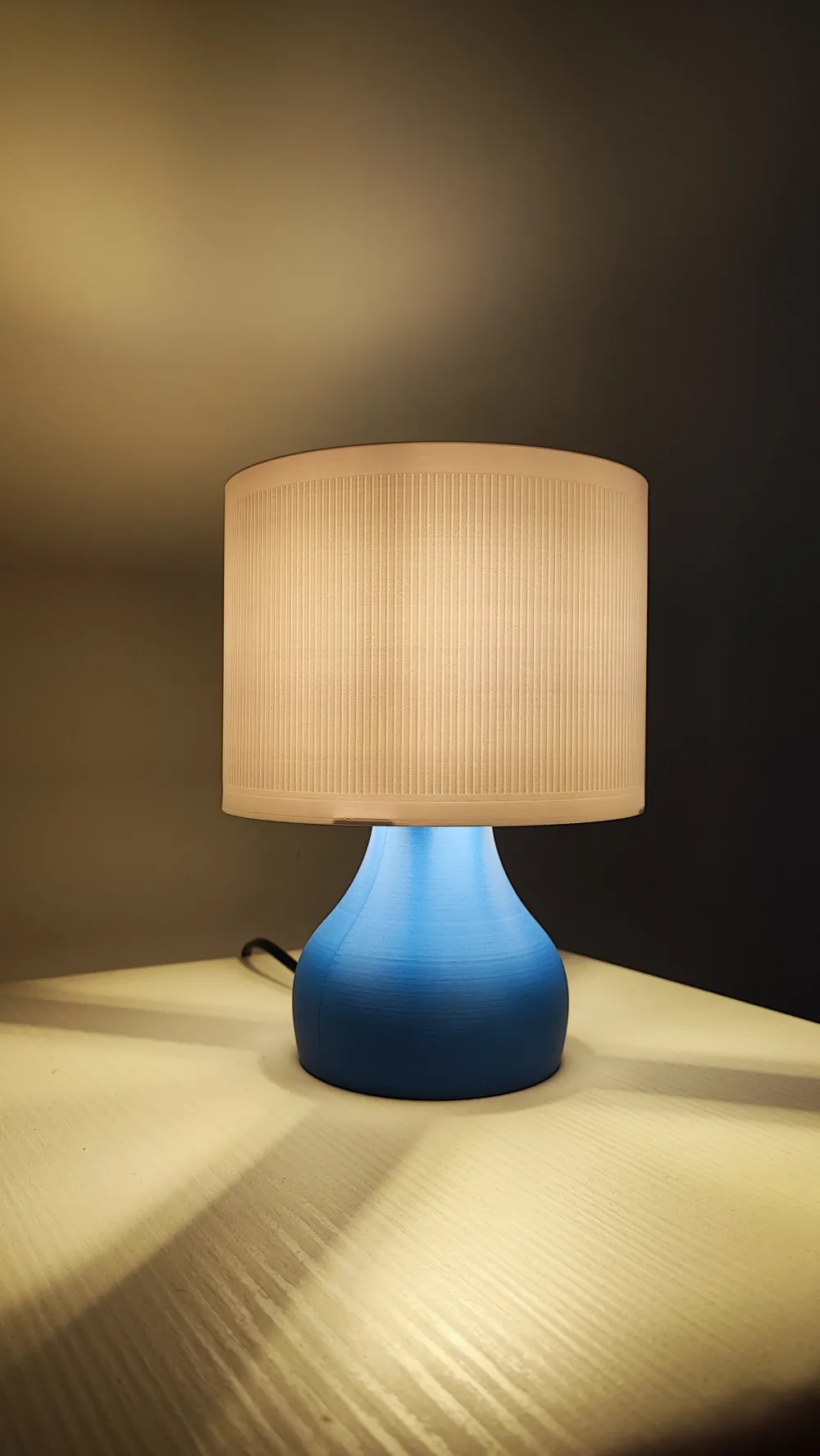

This lamp combines the classic style of old bedside lamps with more modern and minimalist details that make a difference.
The object is divided into two parts: the support body and the ribbed lampshade. This way, the object can be printed even by those who do not have an AMS or any other multicolor system. Furthermore, no glues or fasteners are needed to assemble the two pieces.
The actual joint will be the lamp holder. The project is designed, with due tolerances, to be compatible EXCLUSIVELY with E14 LAMP HOLDERS, with a diameter of 28 mm.
To assemble the lamp, simply insert the lamp holder and power cable into the dedicated housing, position the lampshade, and finally tighten the lamp holder's ring, which will hold the parts together.
Assembly Recommendations
- ONLY COMPATIBLE WITH E14 LAMP HOLDERS (28 mm DIAMETER)
- NO GLUES OR SCREWS
- INSERT LAMP HOLDER INTO THE BASE HOUSING, PLACE LAMPSHADE, TIGHTEN LAMP HOLDER RING
- DO NOT USE INCANDESCENT LIGHT BULBS
Printing Recommendations
- Layers 0.20/0.16 (based on your preferred definition)
- AMS not required
- Brim 0.5 mm
- NO supports
- PLA/PETG recommended
N.B.
BE RESPONSIBLE DURING ASSEMBLY AND USE SUITABLE LIGHT BULBS
