☕ Used Capsule Bin - Side Box
A side-mounted used capsule bin designed for kitchens where there is no room to pull the original built-in bin forward and out from the machine.
The original Vertuo Pop bin slides forward and then lifts up, which needs a lot of free space in front of the machine. With this external side bin, you only slide it sideways by a few millimetres and then lift it straight up, so it works great in setups where the machine sits between cabinets or against a wall with very little side or front clearance.
Note: you still need vertical clearance above the bin to lift it out for emptying. The lateral movement needed is minimal.

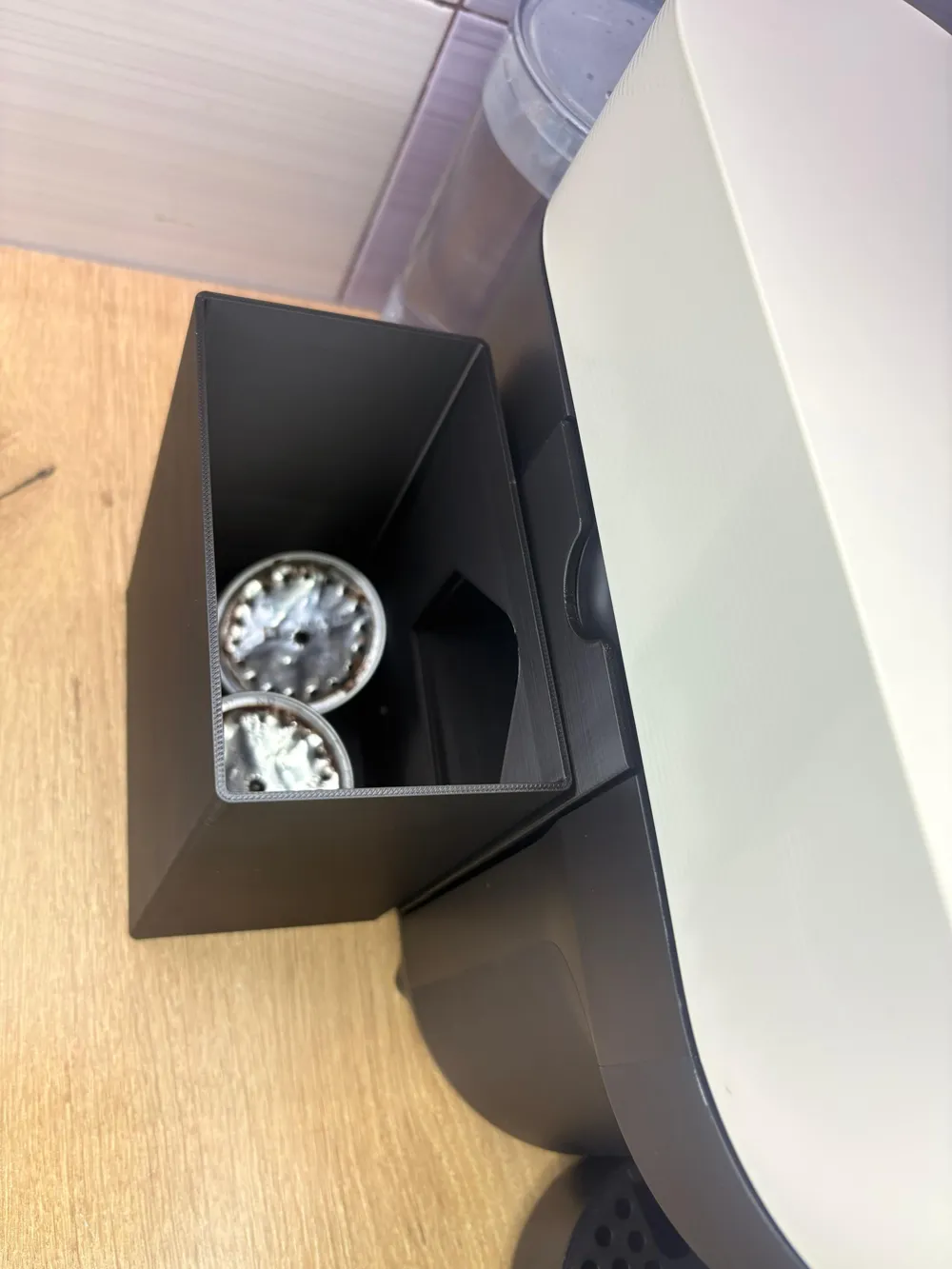

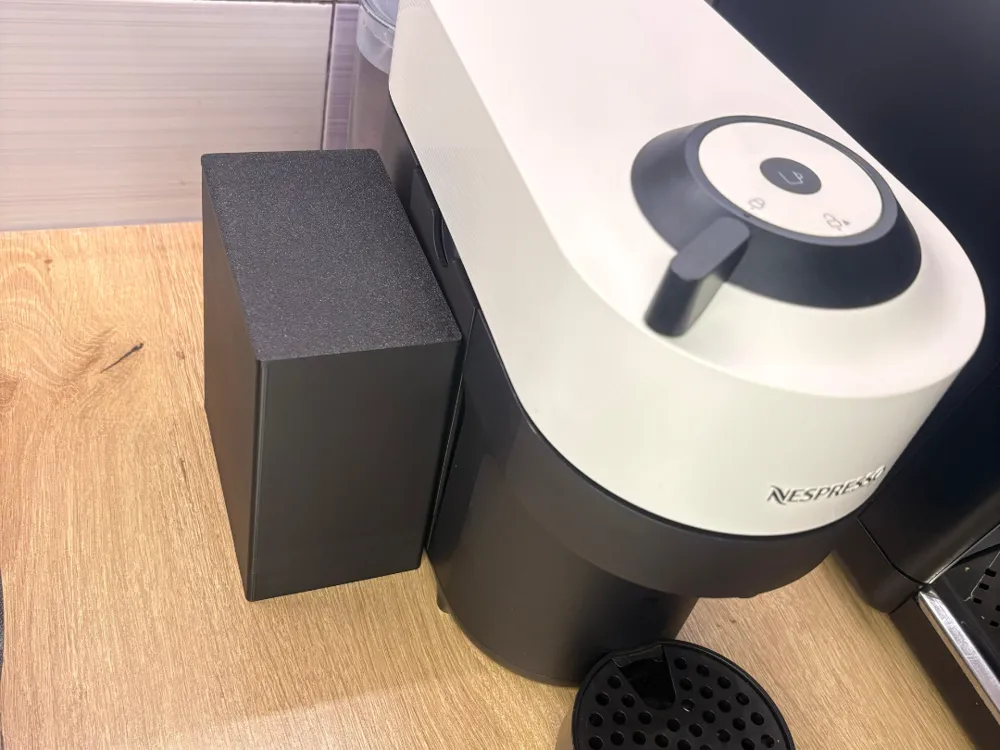

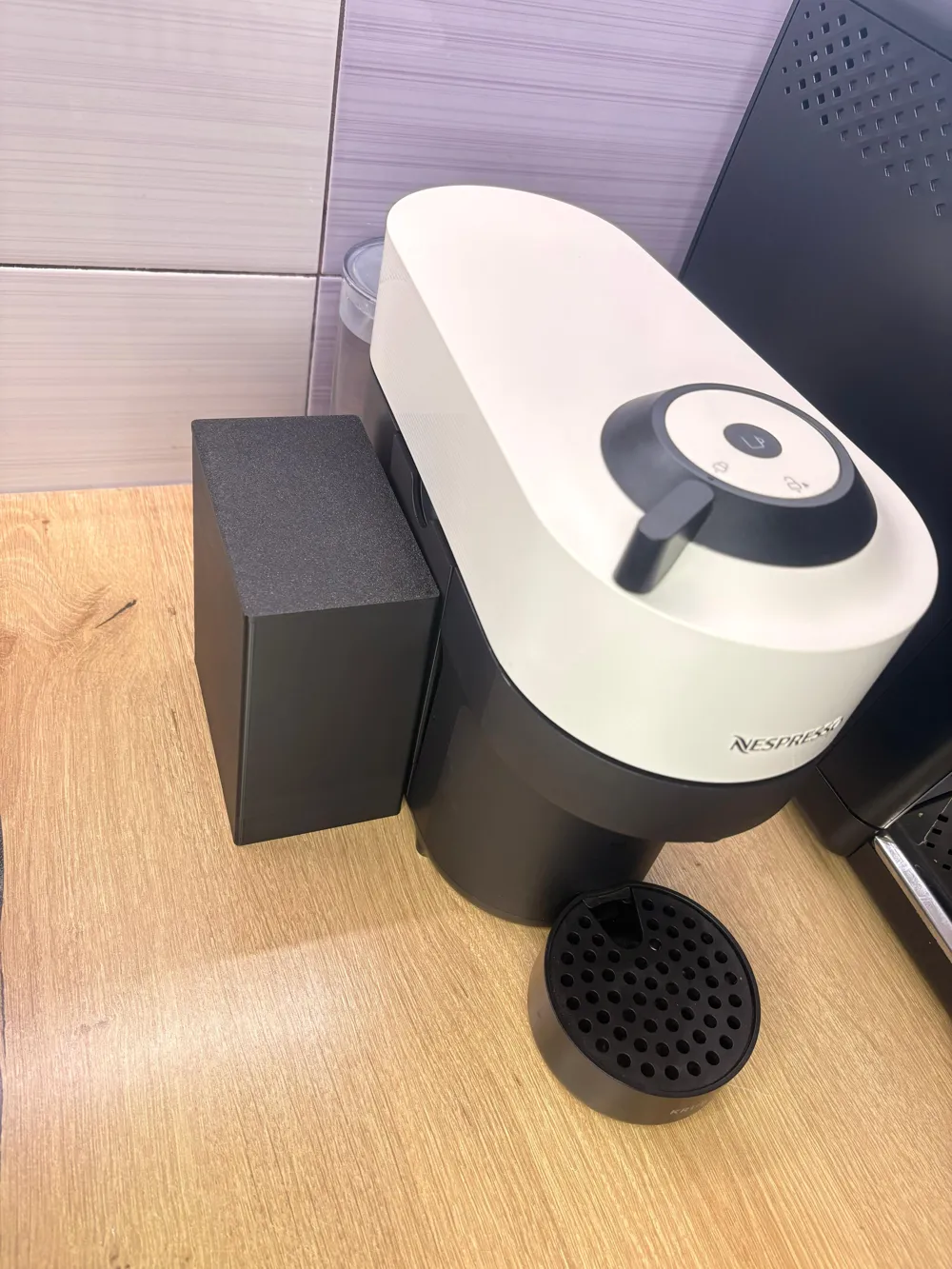

The bin sits flush against the curved side of the Nespresso Vertuo Pop machine and collects used capsules dropped from the side, extending the used-capsule storage of the machine. It holds roughly the same number of used capsules as the original built-in container, so you empty it half as often.

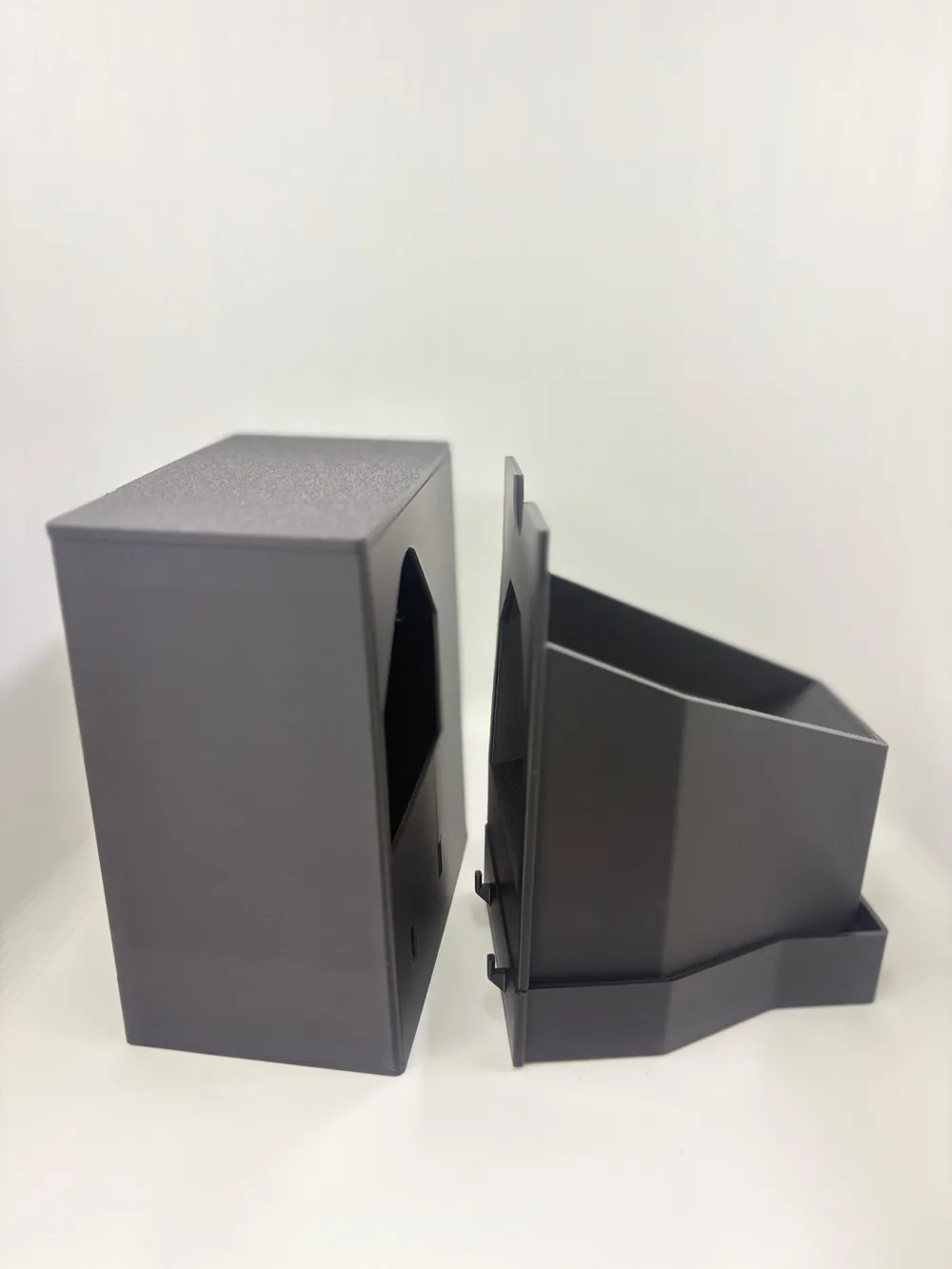

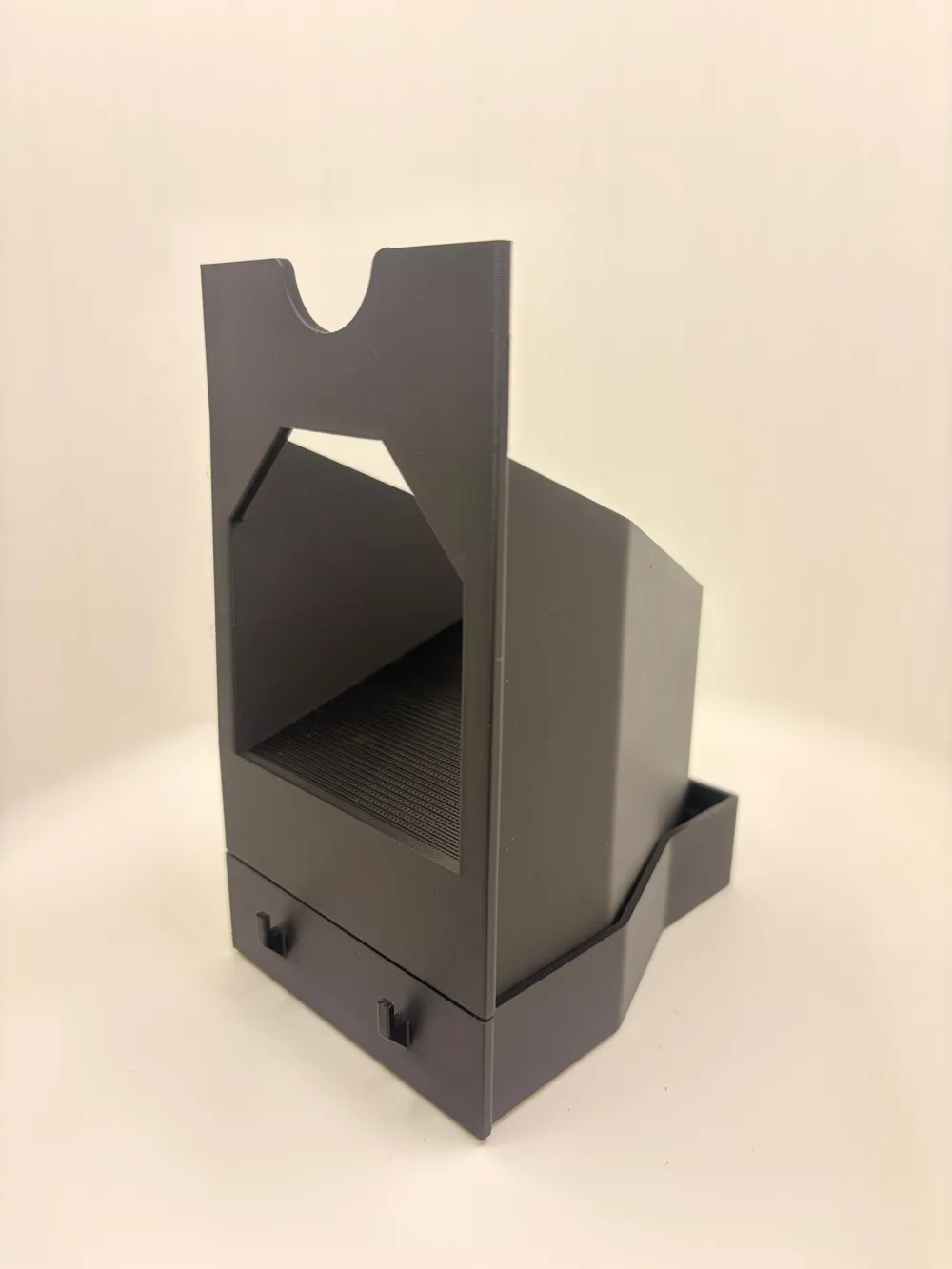

The model prints in two parts (main body + front panel) and includes a small bottom tray that catches drips for easy cleanup. Light supports are recommended for the cleanest finish.
Compatibility (important):
- Designed for the Nespresso Vertuo Pop coffee machine
- Works with Vertuo capsules (the larger round Vertuo format) only
- Not compatible with Original line capsules or other machine models
This is a third-party design - not affiliated with or endorsed by Nespresso. The Nespresso and Vertuo names are used only to describe machine compatibility.
✨ Features:
- 📐 Minimal side clearance needed - just a small sideways slide to remove
- ☕ Sits flush against the curved side of the Vertuo Pop
- 🗑️ Roughly the same capacity as the built-in capsule container
- 🧩 Two-piece design (body + front panel)
- 💧 Bottom drip tray for easy cleanup
- 🎨 Looks great in dark gray, black, or matte colors to match the machine
- 🛠️ Light supports recommended
