Air Conditioner Hose Connector DN150 screwable
Print Profile(2)
Description
We bought a mobile air conditioner back then, and the adapters and mounting solutions included in the delivery were simply inadequate.
I think EVERYONE who buys such a device knows the problem I'm talking about.
The window kit simply lets too much warm air into the room, which is why I quickly made a board for under the roller shutter and fitted the original mounting piece for the hose (for clamping). However, this mounting piece along with the hose kept falling out.

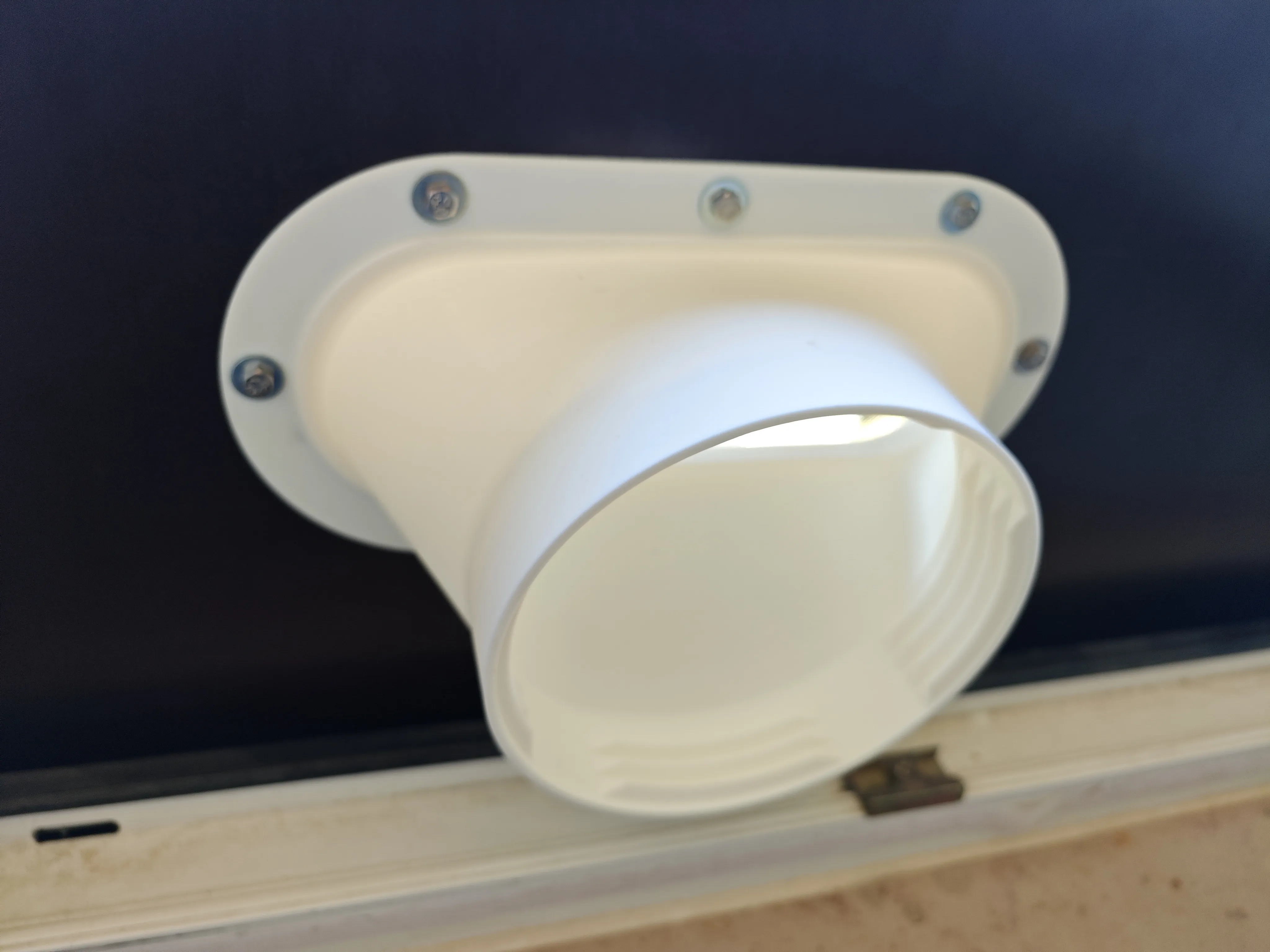

So I completely redesigned, drew, and printed this piece.
It is now designed for fixed mounting and the hose is now held on 4 sides.
When mounting the flange, observe the attached sectional drawing✌
In addition, I designed the following:

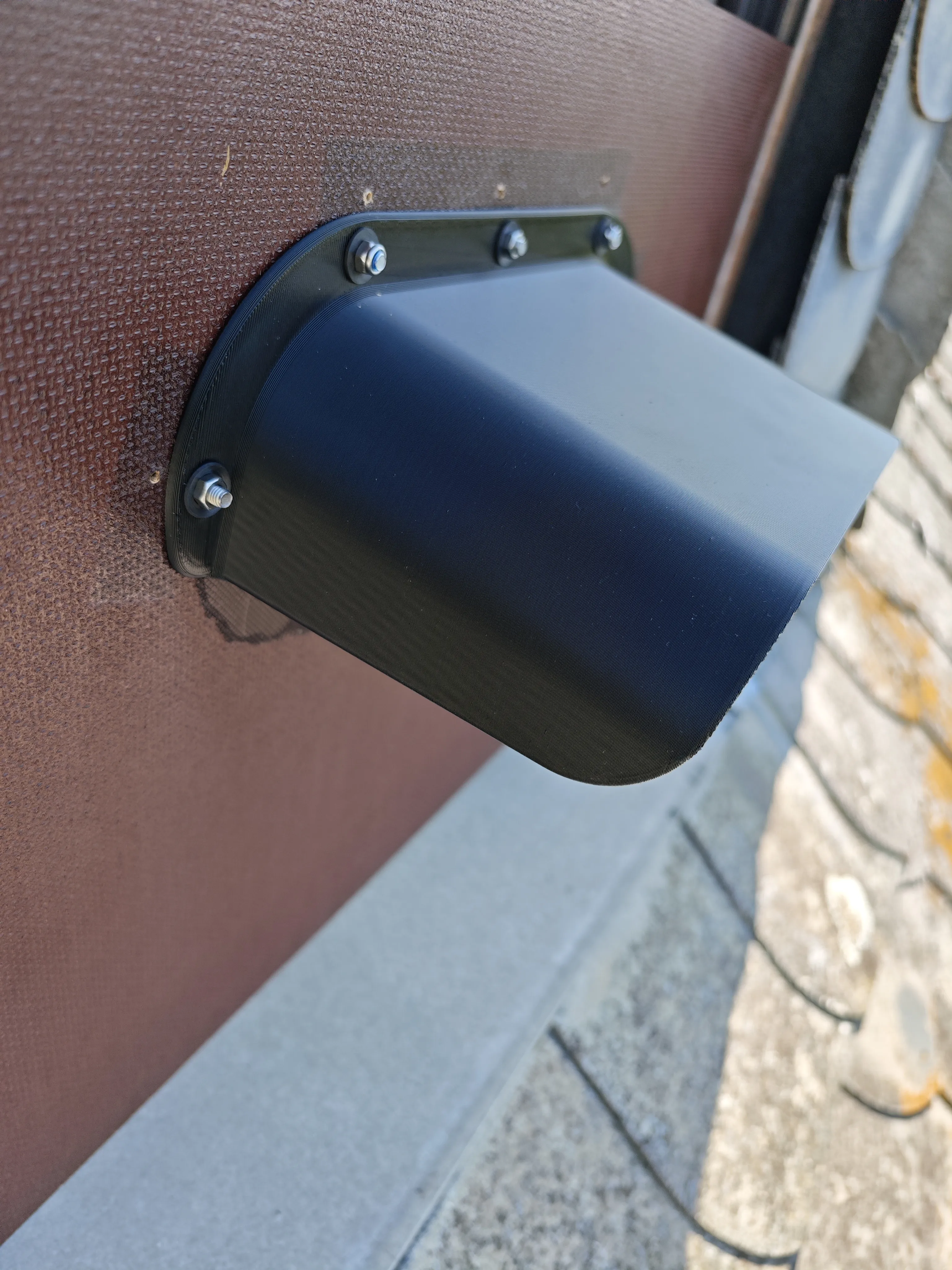

👉 a matching canopy for this mounting piece

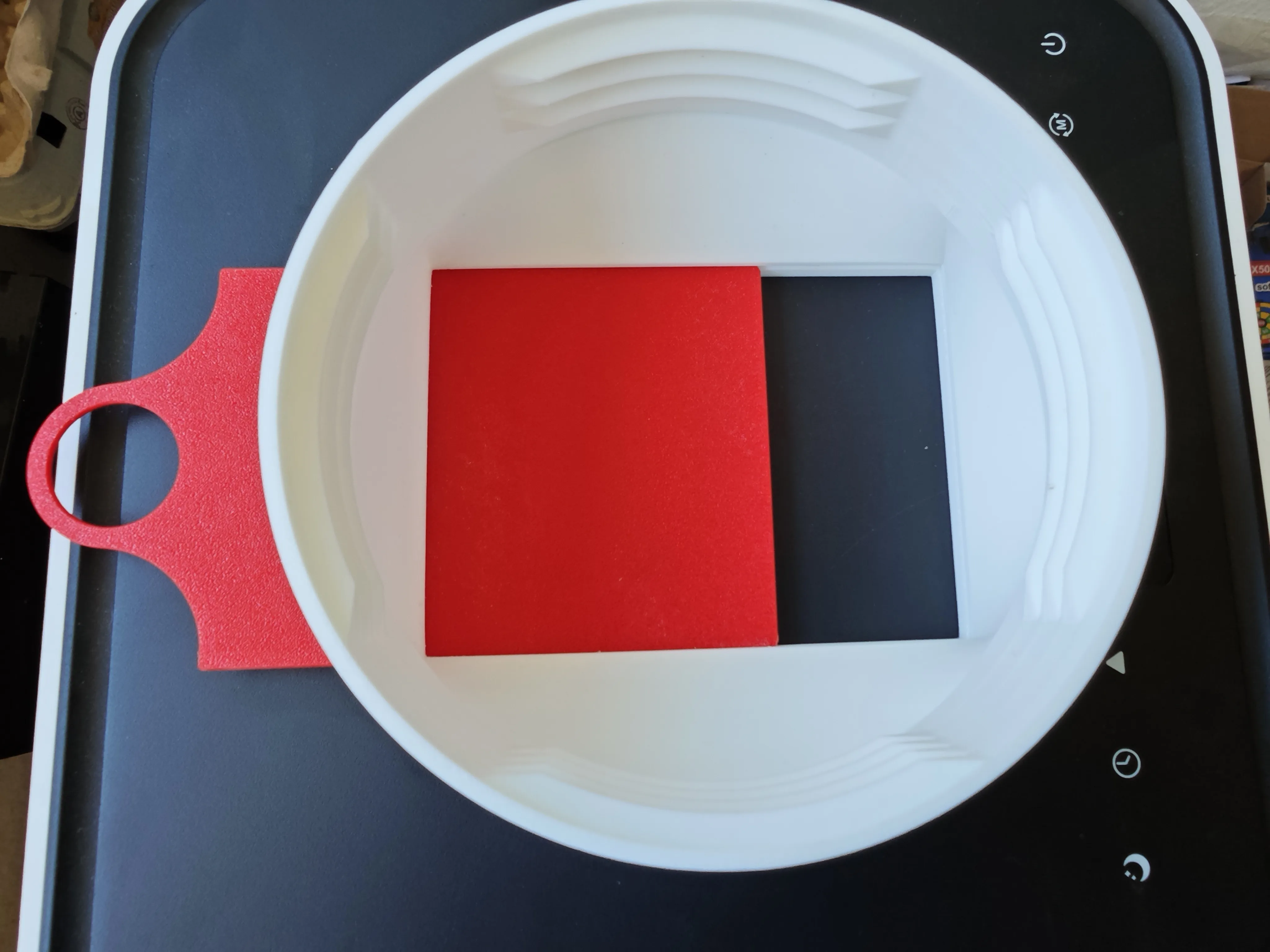

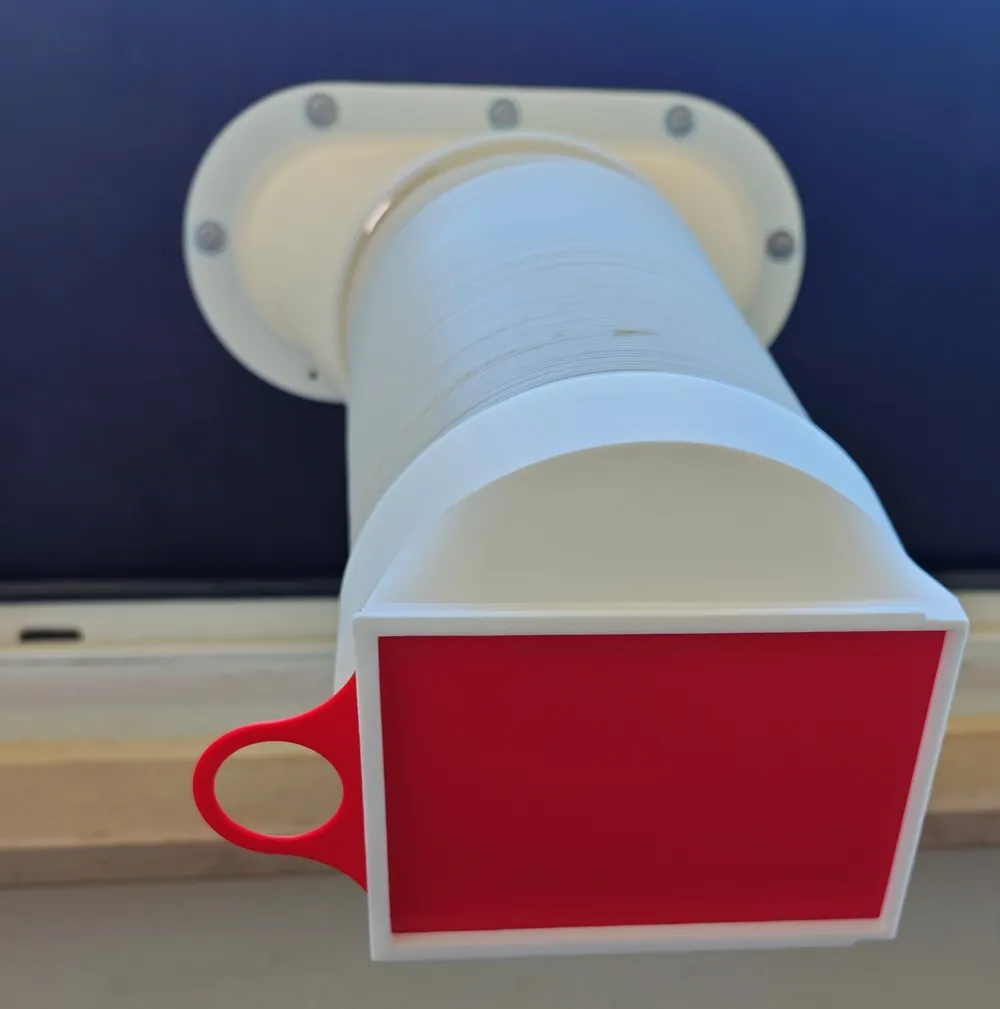

👉 a new mounting piece directly on the air conditioner including a slider
More details on the respective models…
