Parametric Modular Pixel Desk Organizer Customizer
Print Profile(1)
Description
Bring your desk into the 8-bit era. A fully parametric, modular organizer system featuring auto-tolerance calculation based on your nozzle size. Customize it directly on MakerWorld with the built-in Customizer button.
Bring Your Desk to Life: The Ultimate Parametric Pixel Organizer
Welcome to the perfect fusion of retro gaming nostalgia and functional workspace design. This modular desk organizer system is built entirely on a voxel style, allowing you to combine, stack, and expand your storage just like blocks in your favorite game.
Whether you need a tall pen holder, a sleek paperclip scoop tray, or a fully functional drawer – this system does it all. Best of all, you do not need any external CAD software; you can customize the models directly on MakerWorld using the built-in Customizer tool.
Key Features
- MakerWorld Customizer Ready: Fully adjustable directly on this page. No slicing or CAD experience required.
- Smart Auto-Tolerance Engine: No more stuck drawers. Just select your nozzle size in the customizer, and the model mathematically computes the perfect clearance for a flawless friction fit for pins and sliding fit for drawers.
- Zero Support Needed: Every angle, overhang, and internal ramp is strictly engineered below 45 degrees or optimized for bridging.
- Selective Connectors: Choose exactly which walls feature the interlocking dovetail slots. Deactivate slots on outer walls for an ultra-clean look.

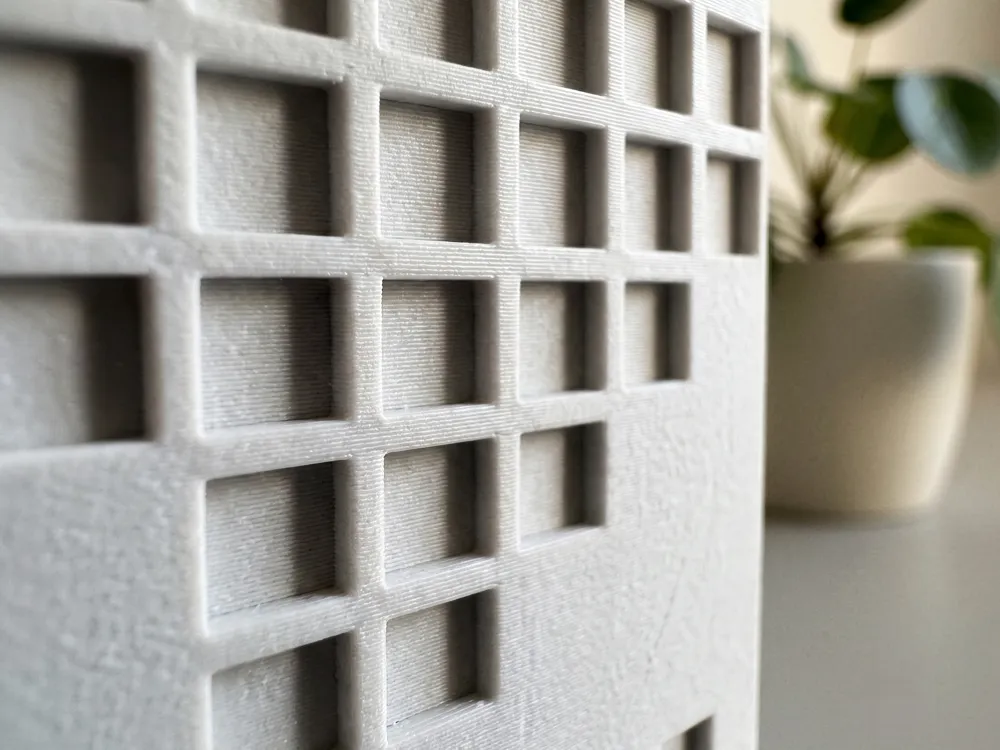

- Iconic Retro Styles: Instantly switch between Space Invader, Pixel Heart, Retro Bricks, or clean, smooth walls.

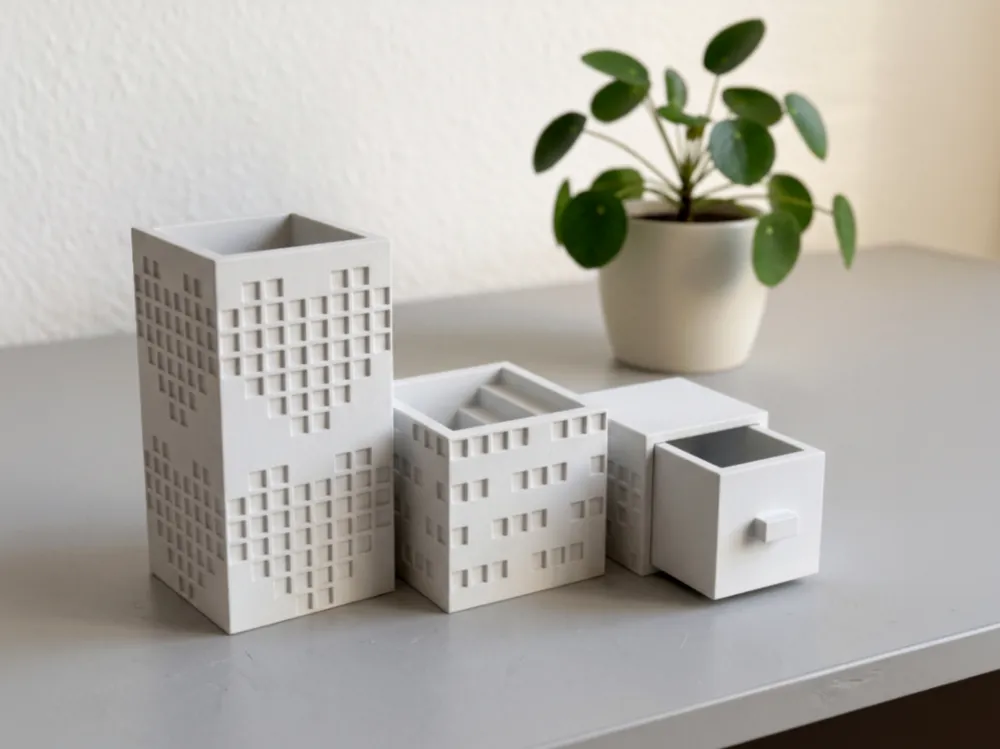

Included Modules
- Pen Holder (1x1x2): Features internal 8-bit stairs so short items or SD cards do not get lost at the bottom.
- Paperclip Scoop Tray (1x1x1): A functional tray with an internal voxel ramp to slide clips out easily.

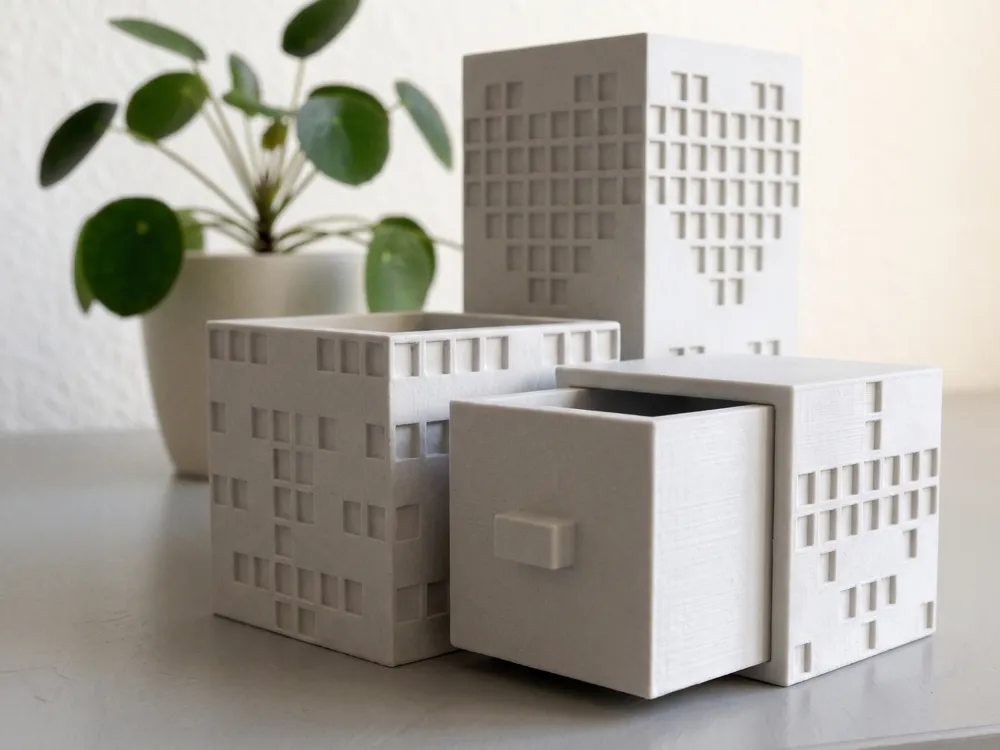

- Drawer Set (1x1x1): Combines the outer housing shell and the sliding tray. Automatically spaced side-by-side on the build plate for a seamless print.
Available Print Profiles
- Connector Pin Set (4x): A pre-configured profile that prints a set of 4 locking connection pins. This set is perfectly toleranced to link your customized modules together right off the print bed.
How to Customize on MakerWorld
- Click the Customize button on this page to open the built-in customizer.
- Choose your desired Part and preferred Style from the dropdown menus.
- Input your exact Nozzle Size (standard is 0.4 mm) to let the smart tolerance engine handle the clearance.
- Adjust the Voxel Size if you want larger or smaller blocks.
- Use the Connector Configuration to select which sides should have joint slots.
- Generate the model and send it directly to your printer.
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
