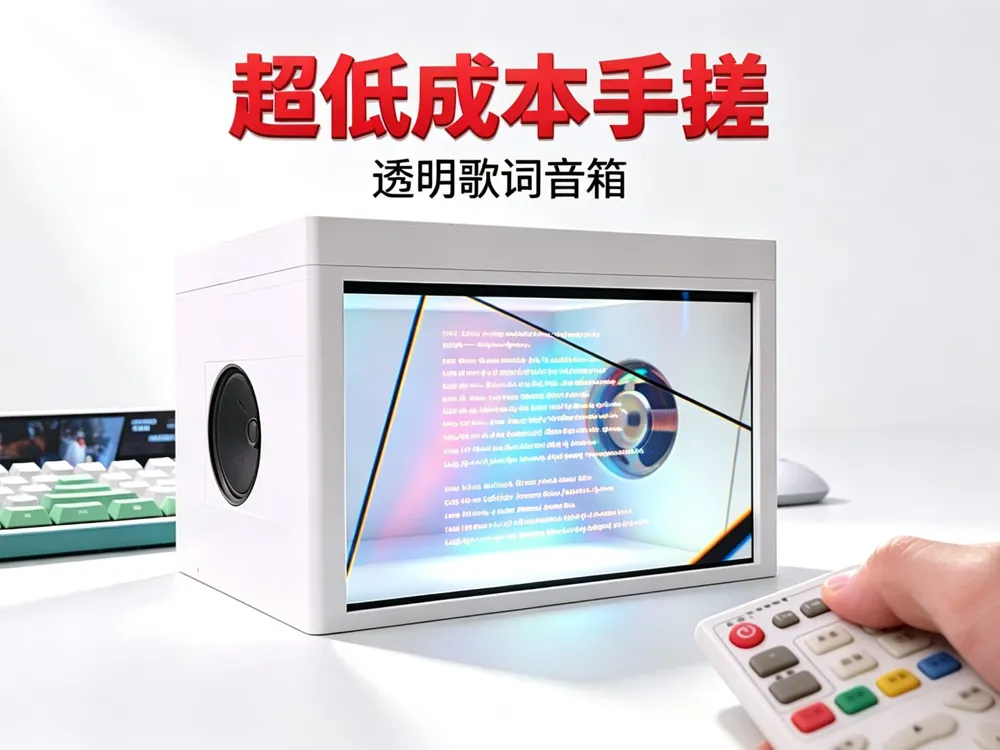

Transparent Lyric Speaker

Print Profile(1)

All
X1 Carbon
P2S
P1S
X1E
H2S
H2C
X1
H2D
H2D Pro
X2D
P1P
A2L

0.2mm layer, 3 walls, 15% infill
0.2mm layer, 3 walls, 15% infill
Designer
22.5 h
3 plates

Open in Bambu Studio
Boost
5
2
0
30
3
0
Released

Description

Content has been automatically translated.
Show original

This model is developed according to the size of the iPad 2 internal screen and needs to be used with an iPad 2 internal screen and a driver board

Required Bill of Materials:

1. iPad 2 internal screen (disassembled screen), requiring separation of backlight and LCD panel

2. iPad 2 internal screen driver board, requiring a 12V DC power interface  https://e.tb.cn/h.RgcIFd0CiG4CfQb?tk=GEwy5zezHZn

3. Two speakers, Jinggeyuan square 3-inch speaker; 4 ohms 5W; Product size: 78*78*21mm. https://e.tb.cn/h.RgcKj84whF8IBuJ?tk=Moer5zewoAk

4. AUX Bluetooth decoding amplifier board, requiring support for AUX input and 2x 5W speaker output, and support for Type-C power supply .  https://e.tb.cn/h.RTrQMkykHVNYyq6?tk=ld4Y5zeCmvR

5. AUX audio cable, 3.5mm dual plug

6. TV box, system must be Android 9.0, capable of installing and running NetEase Cloud Music TV

7. HDMI flexible flat cable, requiring a cable length of 15-20cm https://e.tb.cn/h.R6ywfmlbFhygBGA?tk=k8yS5zV0d2p

8. PD decoy cable, Type-C to 12V DC

9. DC 1-to-2 splitter cable
