4 Parametric Geometric Textures Keychain/Magnets
Print Profile(1)
Description
MakerTag | Parametric Snap-Fit Keychain & Fridge Magnet

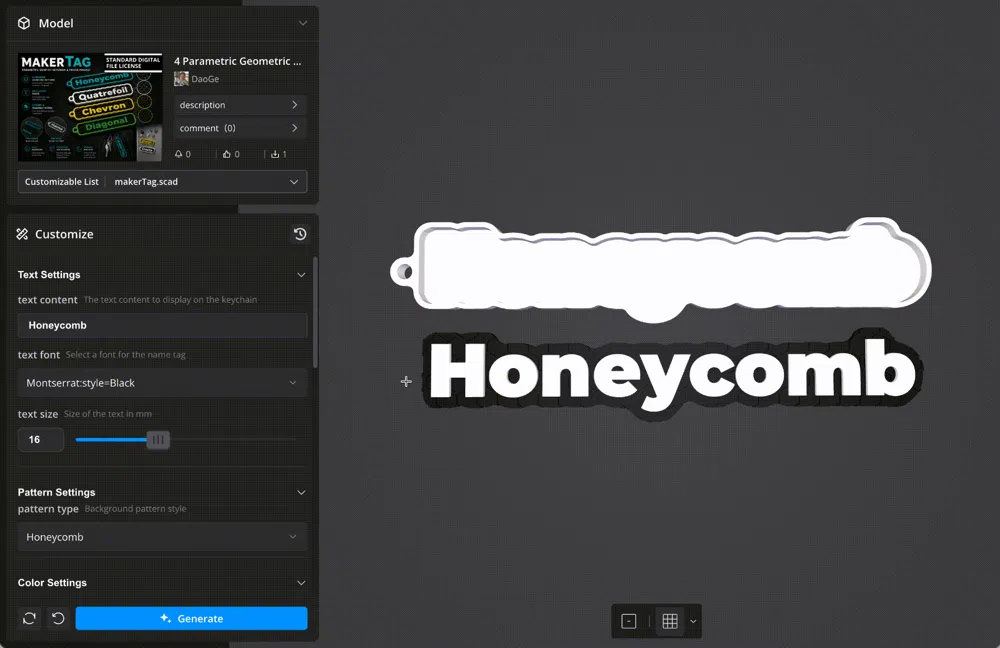

A versatile, geometric nameplate customized for keychains, backpack charms, and fridge magnets. Customize it in seconds with your text and choice of patterns.

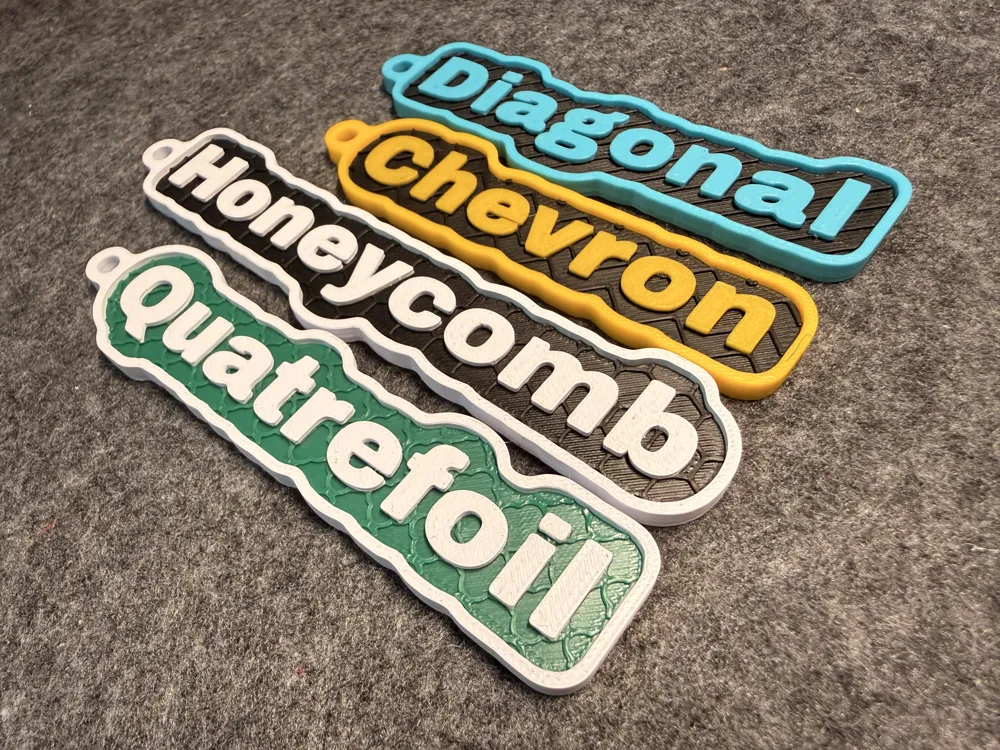

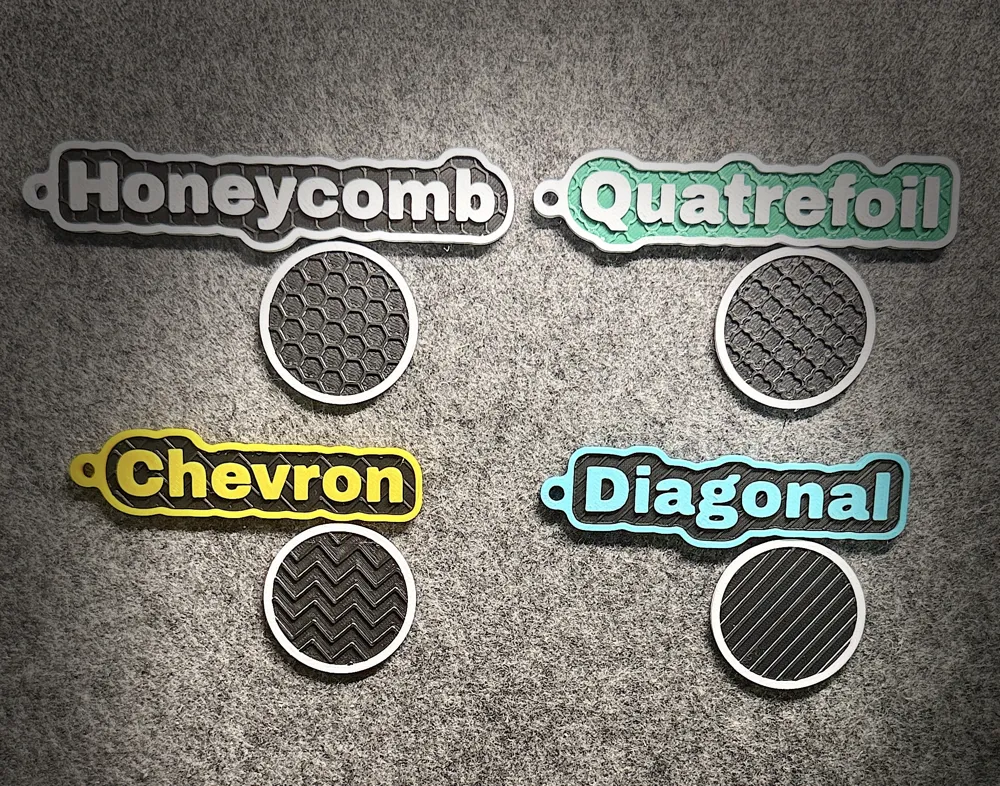

4 Premium Geometric Patterns
- Honeycomb: Classic hexagonal motif with a tech-inspired, modern feel.
- Quatrefoil: Elegant classic clover pattern, optimized to touch perfectly at the tips without overlapping.
- Diagonal: Minimalist parallel 45-degree grooves for a clean, sleek look.
- Chevron: Bold, sharp 90-degree right-angled zig-zag waves for high visual contrast.
- (Or select "None" for a solid, clean backing tag).
45 Classic Fonts Options
- 45 handpicked premium Google fonts (Defaulting to "Montserrat:style=Black") sorted alphabetically from A to Z in the dropdown.
- Full support for custom font size, text spacing, and offset adjustments for perfect typographic alignment.
3 Functional Shapes

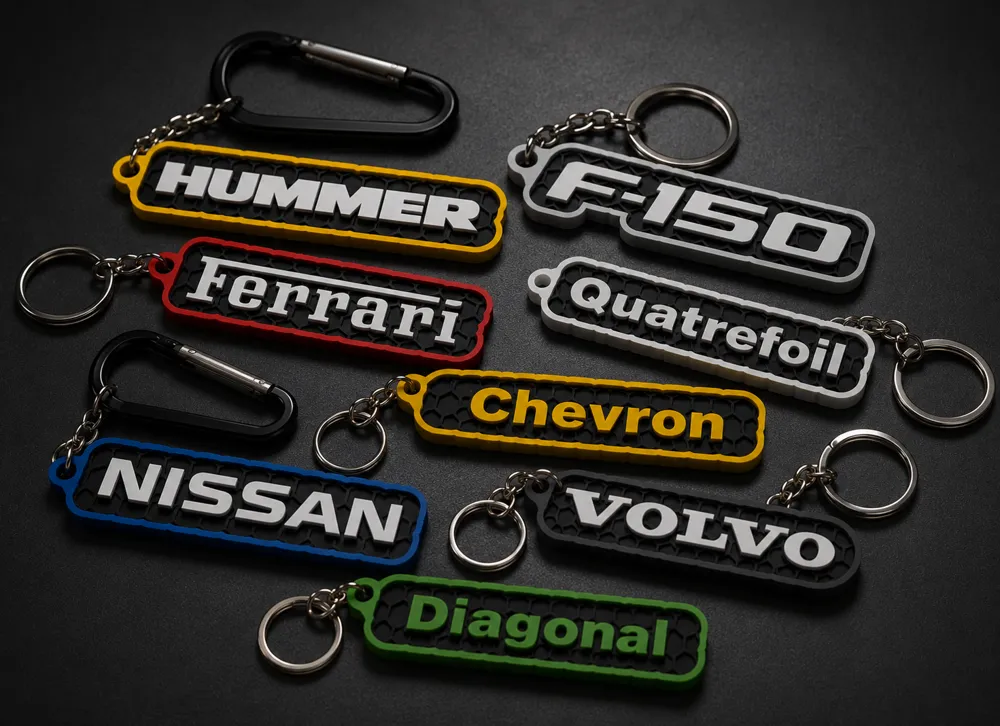

- Keychain (Keyring): Dynamic keyring loop placement (Left, Right, or Top) to instantly generate stylish charms.
- Fridge Magnet: Built-in circular magnet slot supporting 3-8mm diameter and 1-3mm depth (with 0.2mm assembly tolerance).
- Smart Magnet Protection: Automatically thickens the backing plate and rim if a deep magnet is chosen, preventing holes from piercing the front-facing pattern.
- Classic Name Tag: Simply disable the keyring and magnet slots to create a sleek desk nameplate, bag identifier, or flat tag.

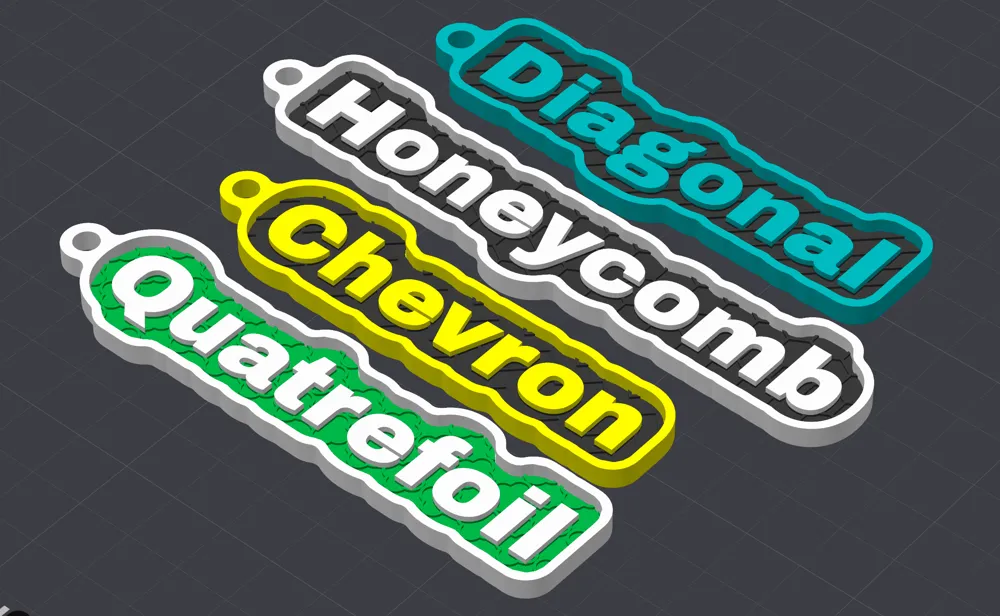

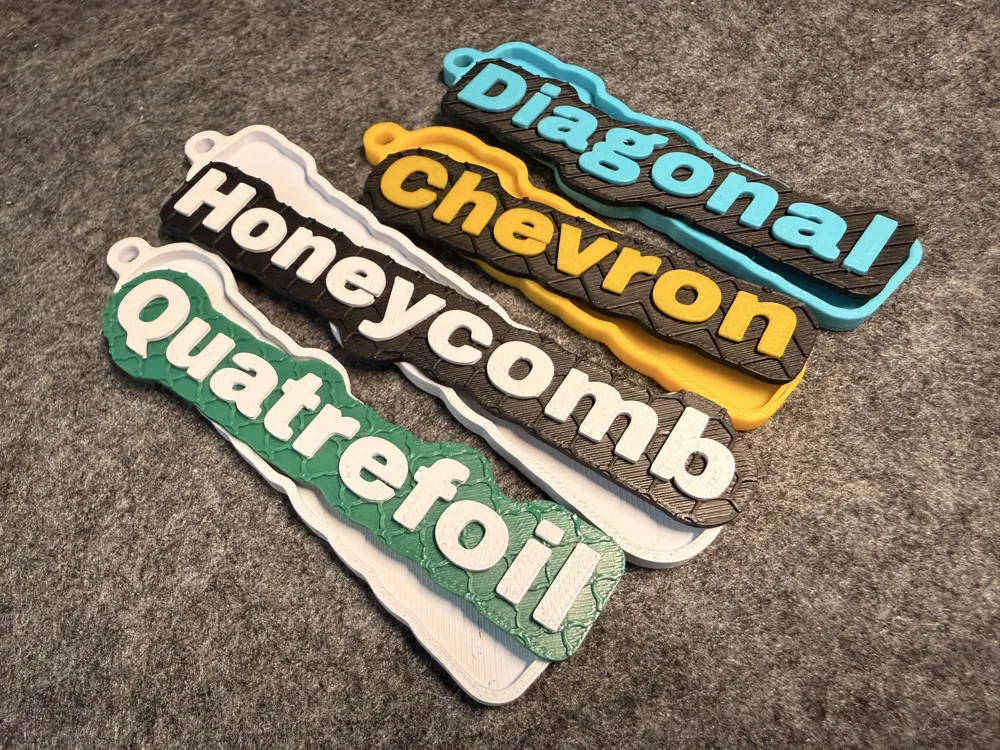

2 Print & Assembly Modes - Two parts for dual-color (Layout Mode - Highly Recommended!) Prints the Base and Pattern Insert as separate parts, allowing beautiful dual-color prints on a single plate without AMS, with zero purge waste and faster printing. The parts snap together with a precise friction fit (0.1 mm tolerance). Tip: Use Split to Parts on the 3MF before printing.
- One piece for a quicker process (Assembled Mode) A fully assembled version ready to print as one object. Perfect for quick single-color prints or direct multi-color printing with AMS—no assembly required.
