Rotary Glass Alignment Tool for Laser Engravers

Rotary Glass Alignment Tool for Laser Engravers

Video Demonstrations:

Installation:
https://www.youtube.com/shorts/0Y9rMBzlJjk

Demonstration:

https://www.youtube.com/shorts/KF3lGpHSlKw

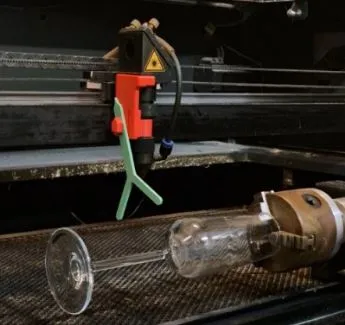

This tool helps align the laser beam with the centerline of glasses, bottles, tumblers, and other cylindrical objects mounted on a rotary attachment.

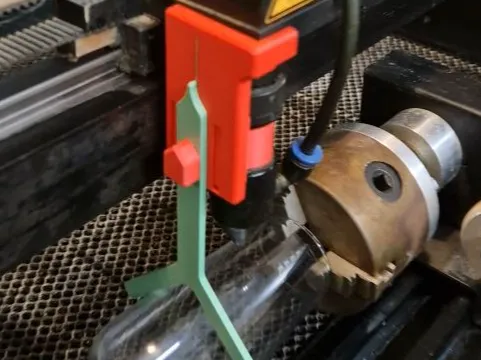

The tool attaches to the laser head and uses a V-shaped guide to quickly locate the centerline of the object. This provides a fast and repeatable setup method without measuring or estimating the center position each time.

Features

• Fast and repeatable alignment
• Works with different glass diameters
• Easy to print
• No supports required
• Compatible with most rotary attachments
• Reduces setup time before engraving

How It Works

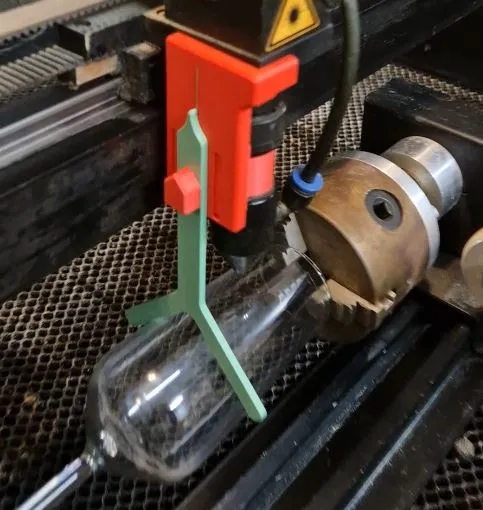

The V-shaped guide automatically compensates for different cylinder diameters. As long as both sides of the guide touch the glass evenly, the laser beam is aligned with the centerline of the object.

Important

This tool is designed for centerline alignment only.

The laser focus height must still be adjusted separately according to the diameter of the glass and the requirements of your laser engraver.

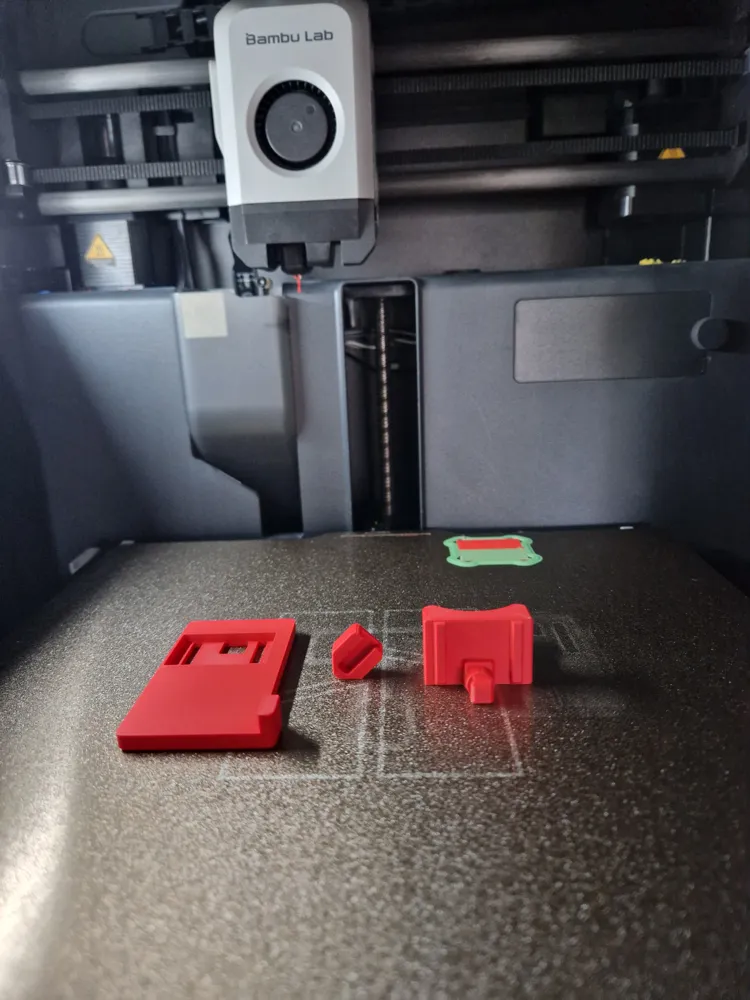

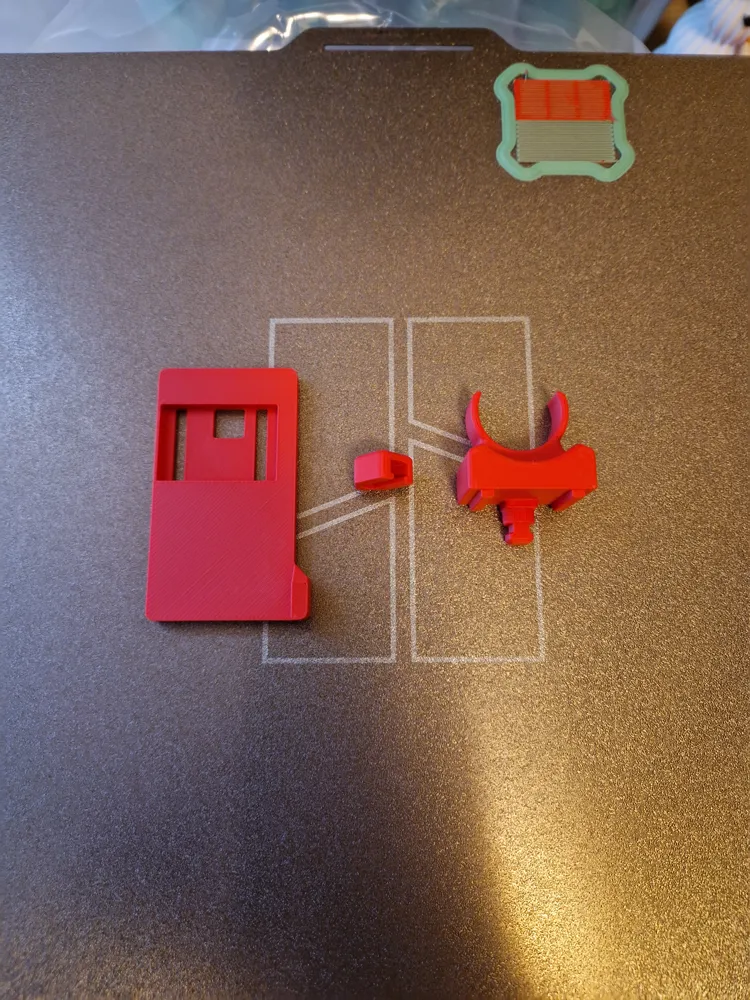

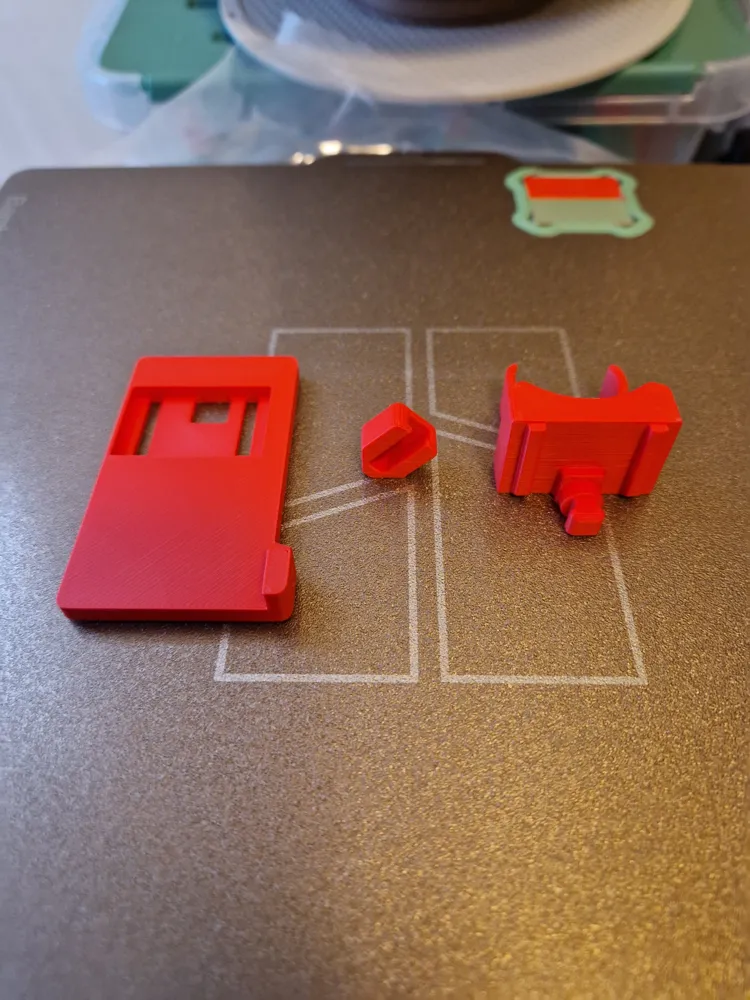

Included Files

• Laser_Head_Mount.stl – Mounts the alignment tool to the laser head.

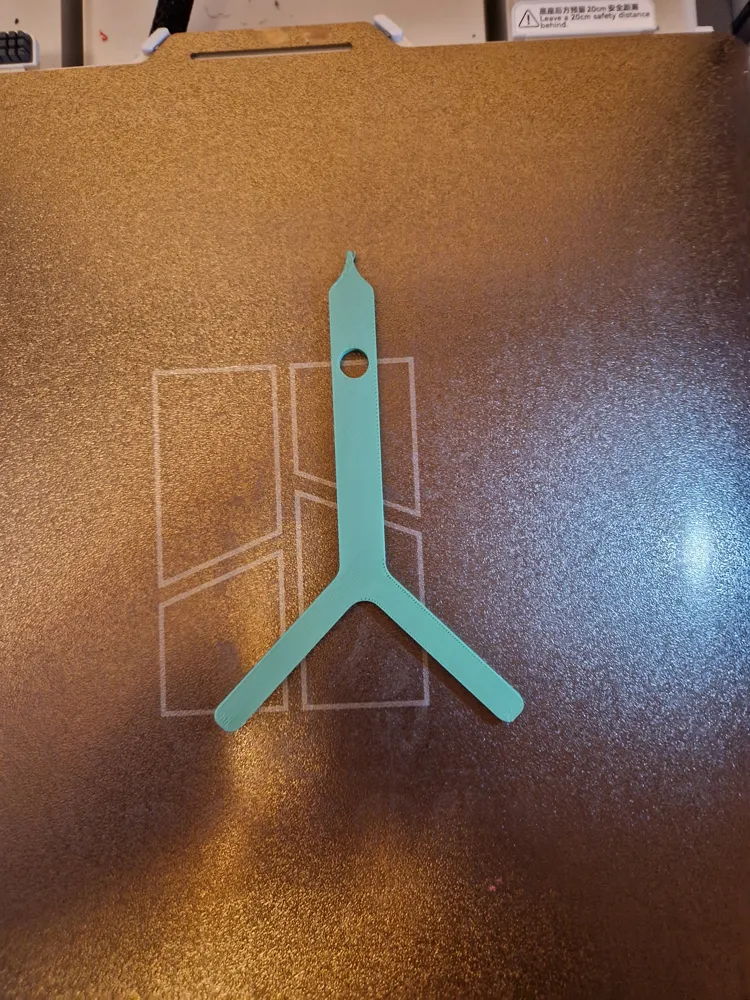

• V_Alignment_Guide.stl – Centers the laser above cylindrical objects.
• Laser_Alignment_Plate.stl – Used to calibrate the alignment guide.
• Retaining_Cap.stl – Secures the assembly in place.

Print Settings

• Layer Height: 0.20 mm
• Supports: Not required
• Infill: 15–20%
• Material: PLA, PETG or ABS

Happy engraving!
