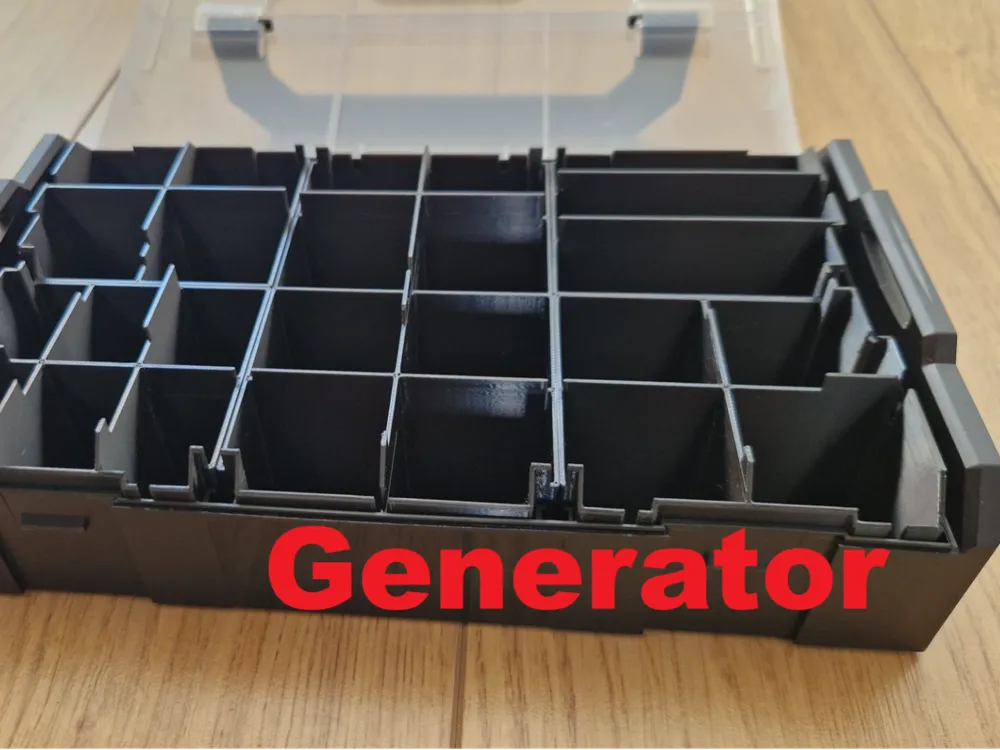

L-BOXX mini bins generator

A generator for creating inserts for L-BOX mini

There is no limit to how you divide them: 1 single piece (reducing the number of walls and thus the filament consumed), 1 piece per compartment (to be able to change them easily), ...

Design

Modular

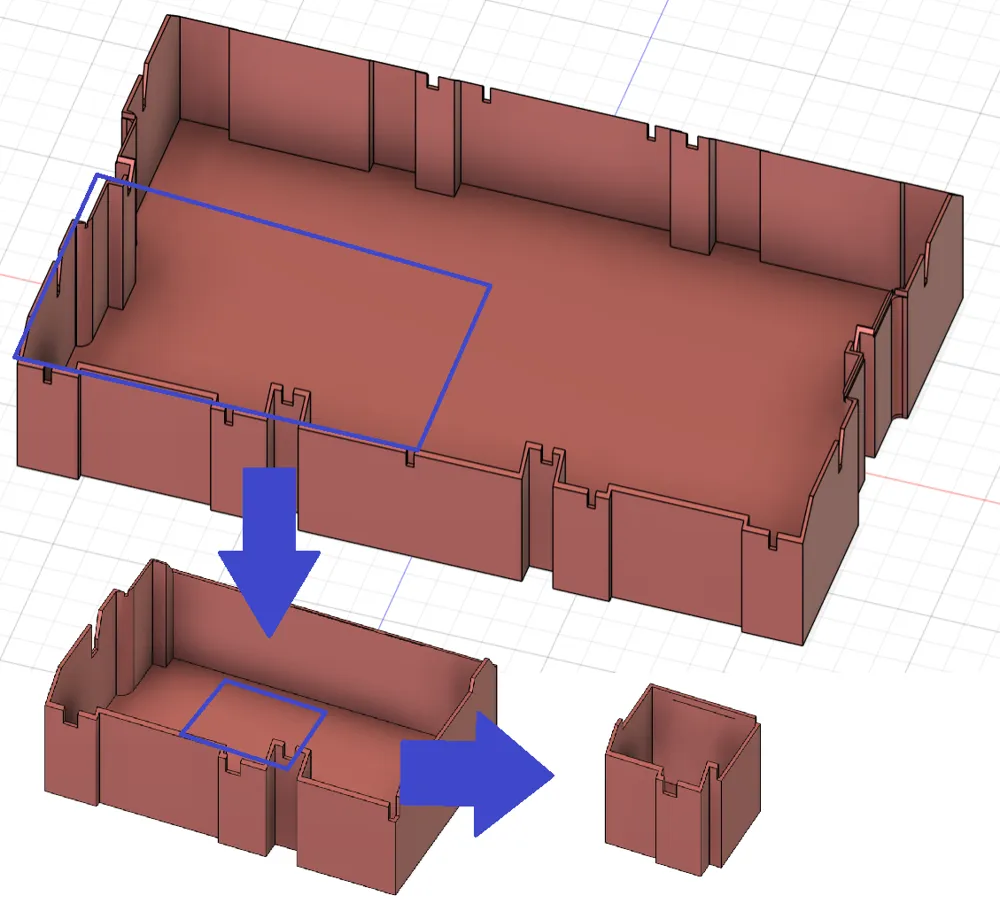

The walls are located inside. This allows you, for example, to replace one "1/2" box with two "1/4" ones

This makes the boxes modular, and in the future you can reorganize your storage without having to reprint everything

Options

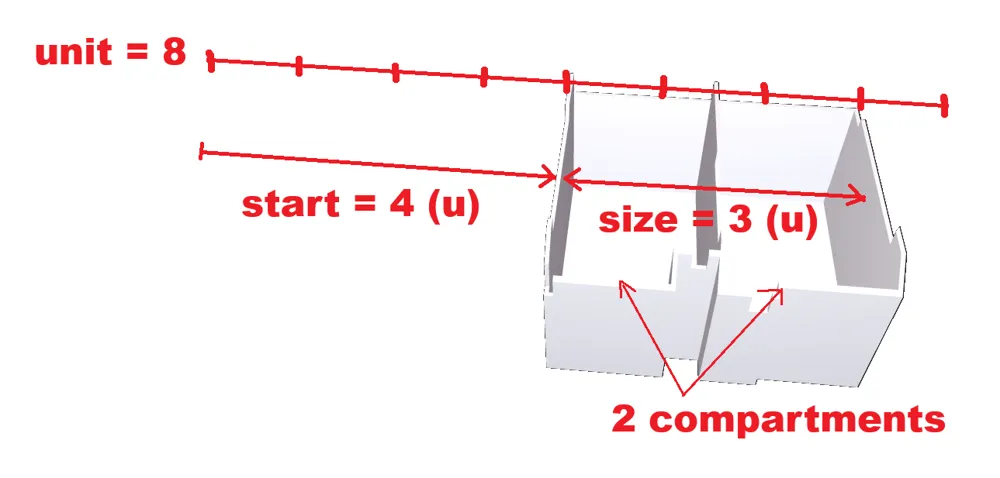

Customizable size

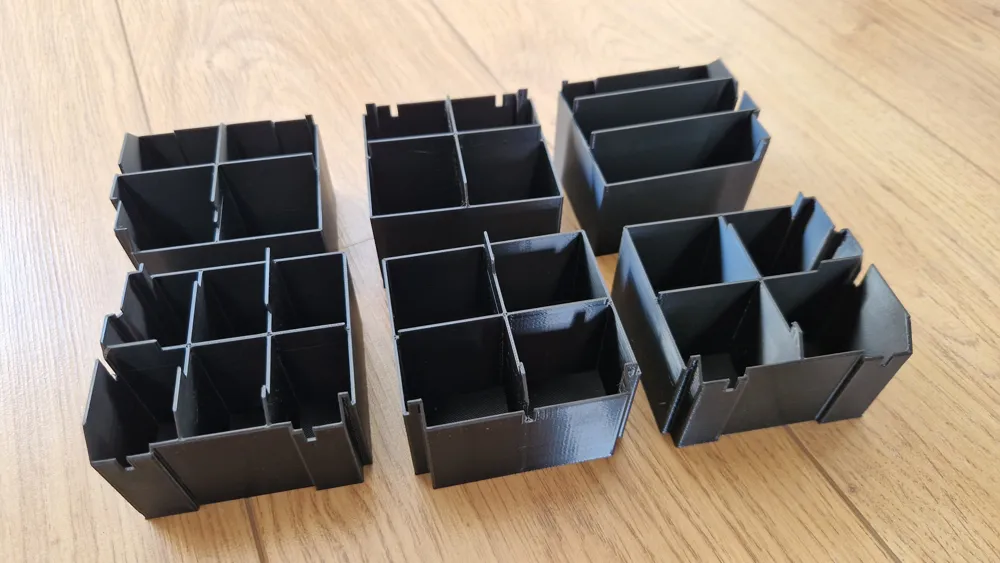

You can create several boxes.
For example, to be able to take them out, to change them easily without having to reprint everything, ...

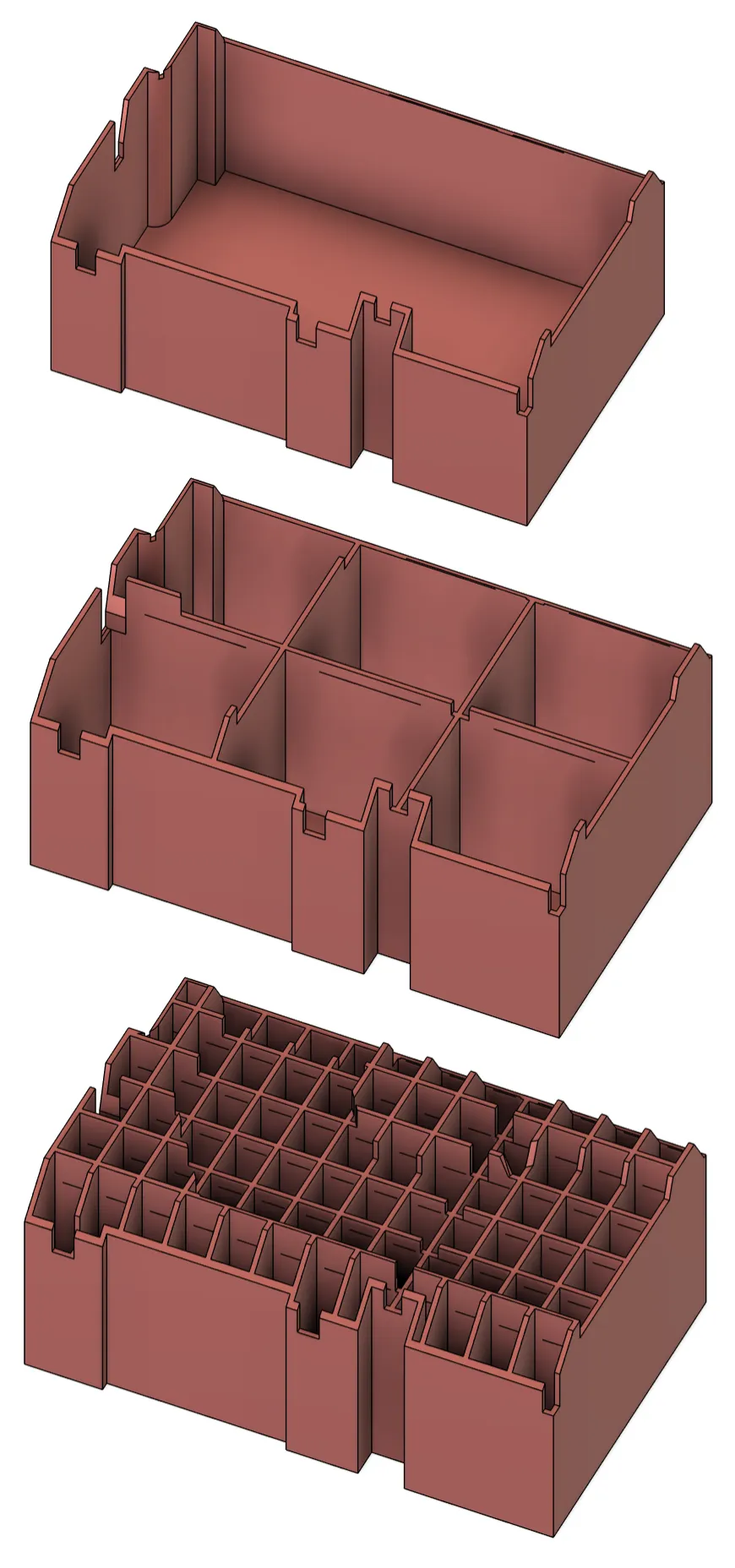

Compartments

You can add sub-compartments to the boxes

This avoids having to print many small boxes, and thus reduces filament consumption

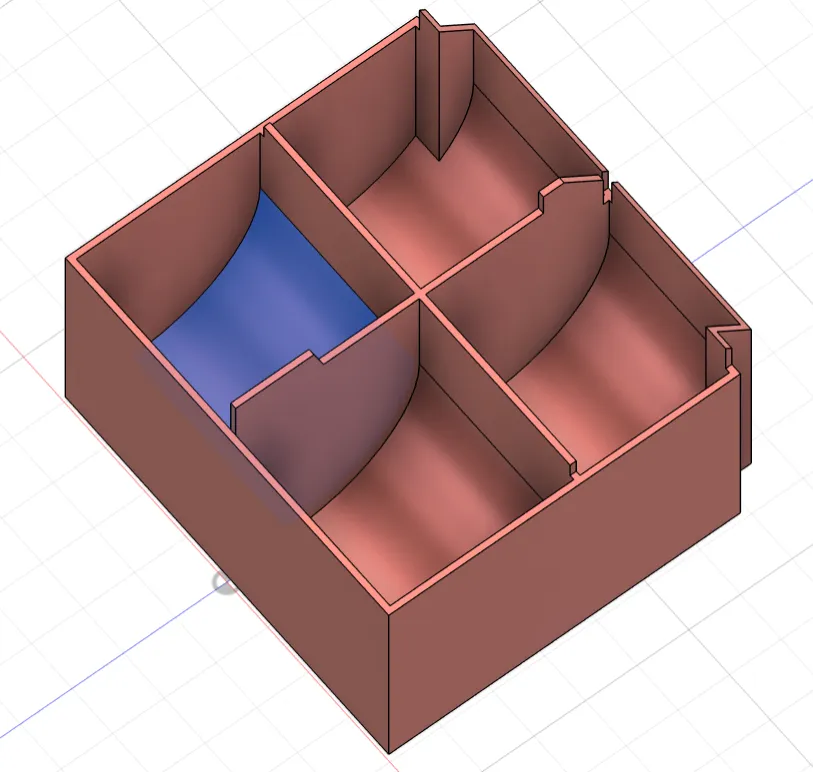

Finger Scoop

A rounded recess can be added to the bottom of the box, facilitating the retrieval of small objects (screws, washers, ...)

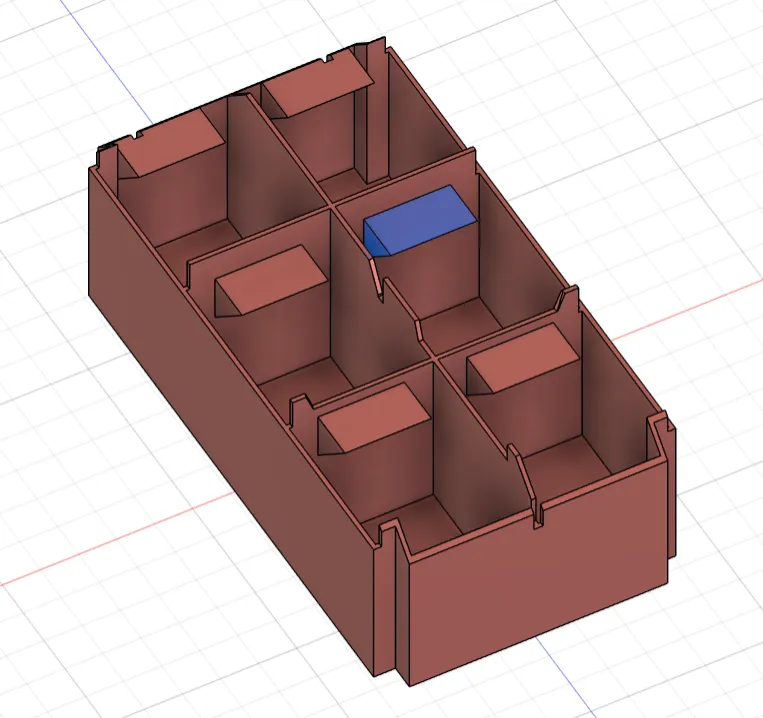

Label tab

A tab can be added to stick a label on it, write with a pencil, or add text in the slicer

By default, it takes up the entire width: you can reduce the size according to your needs

Notes

Wall residue may appear at the lid if you encounter a specific case related to your custom settings

If this happens, you can simply cut them off with a craft knife
