Magnetic Locomotives BRIO compatible

🚂 Magnetic Locomotives - For BRIO Wooden Railway System 🚂

🧩 PRINT PROFILES INCLUDE SEPARATE PARTS

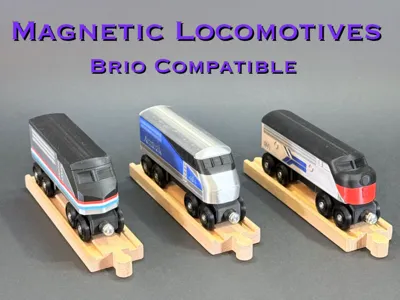

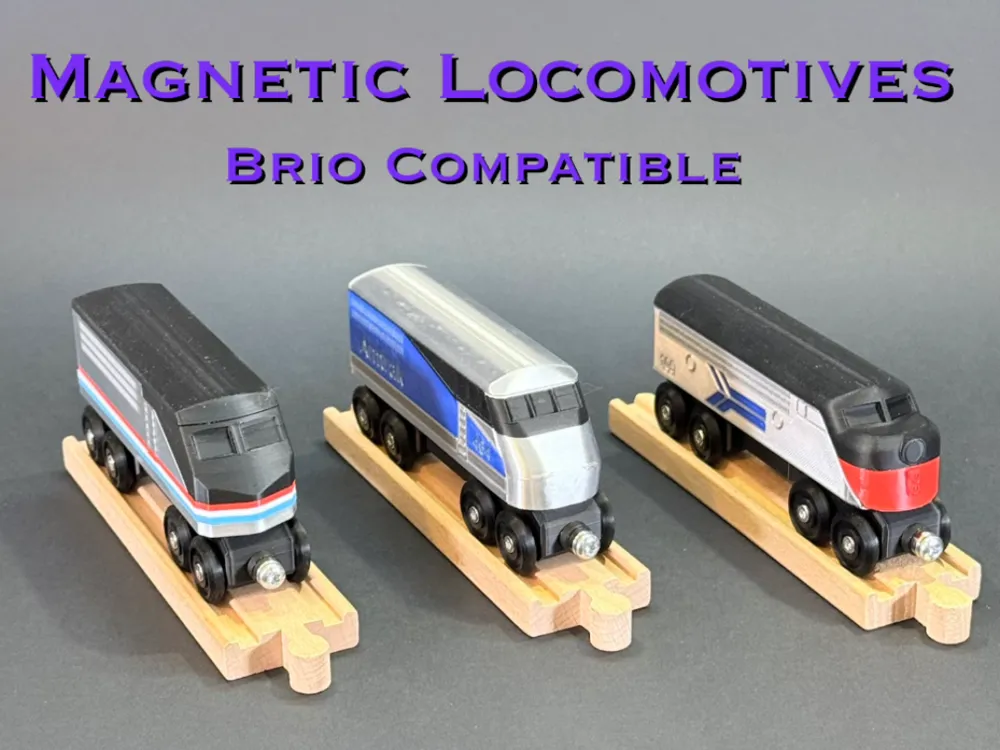

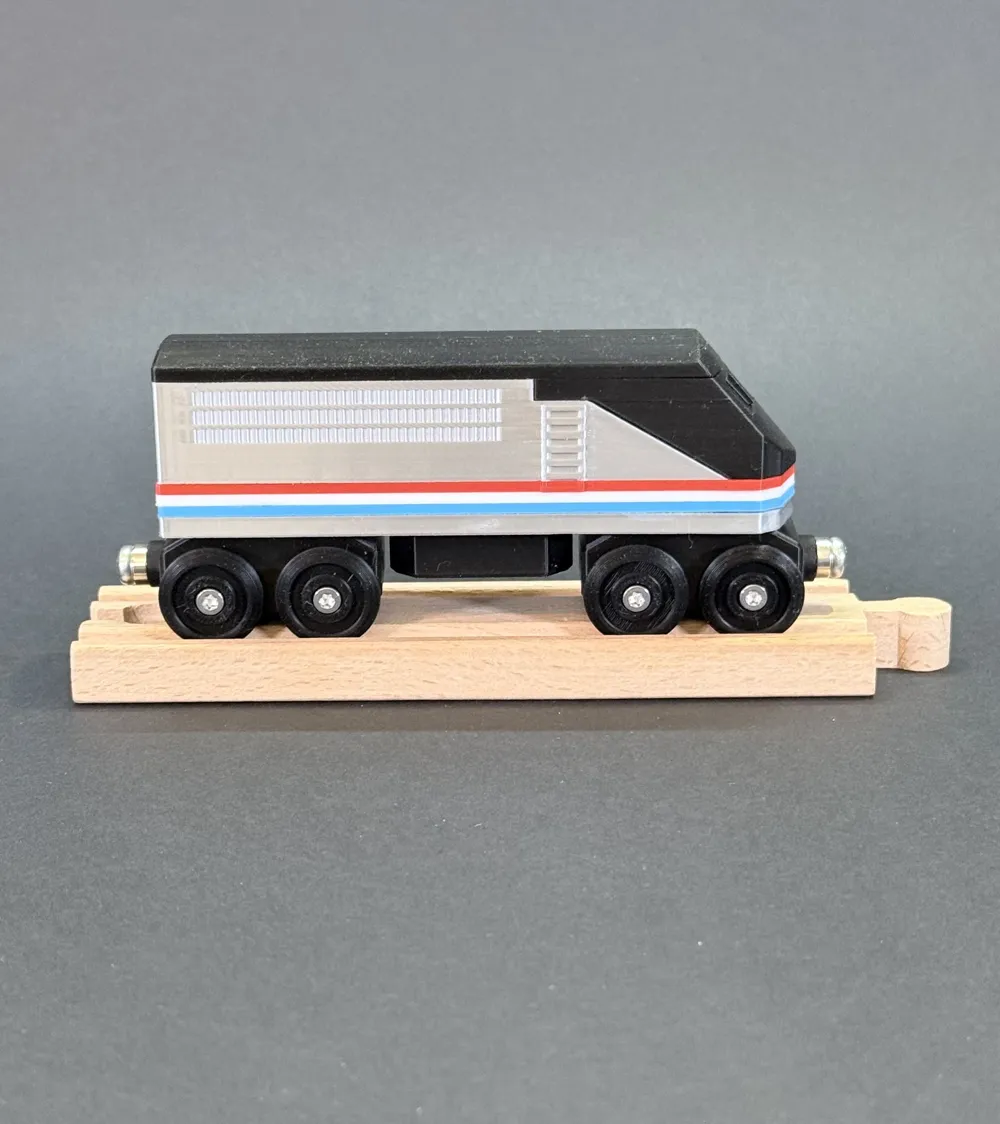

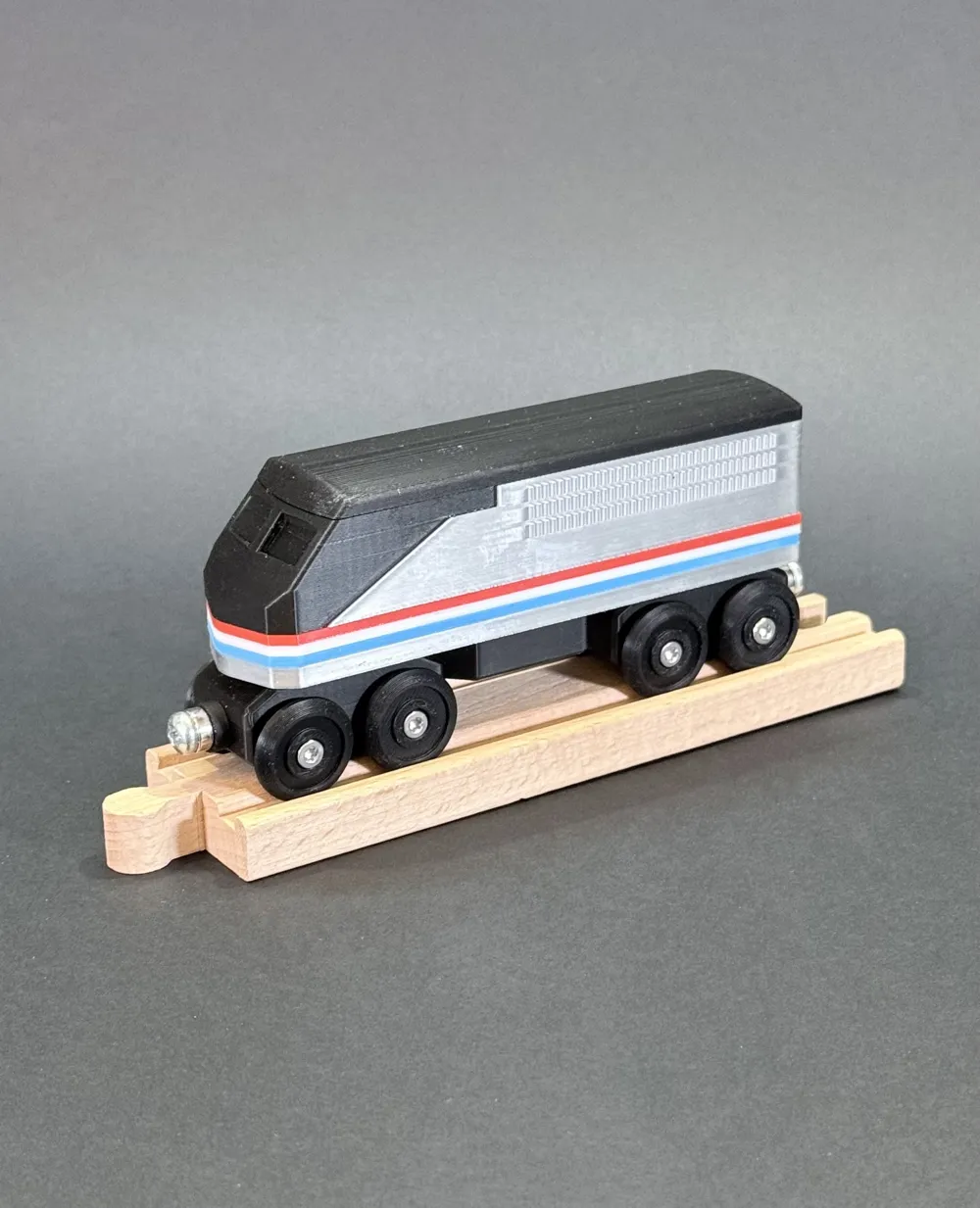

🚅 Locomotive Adirondack

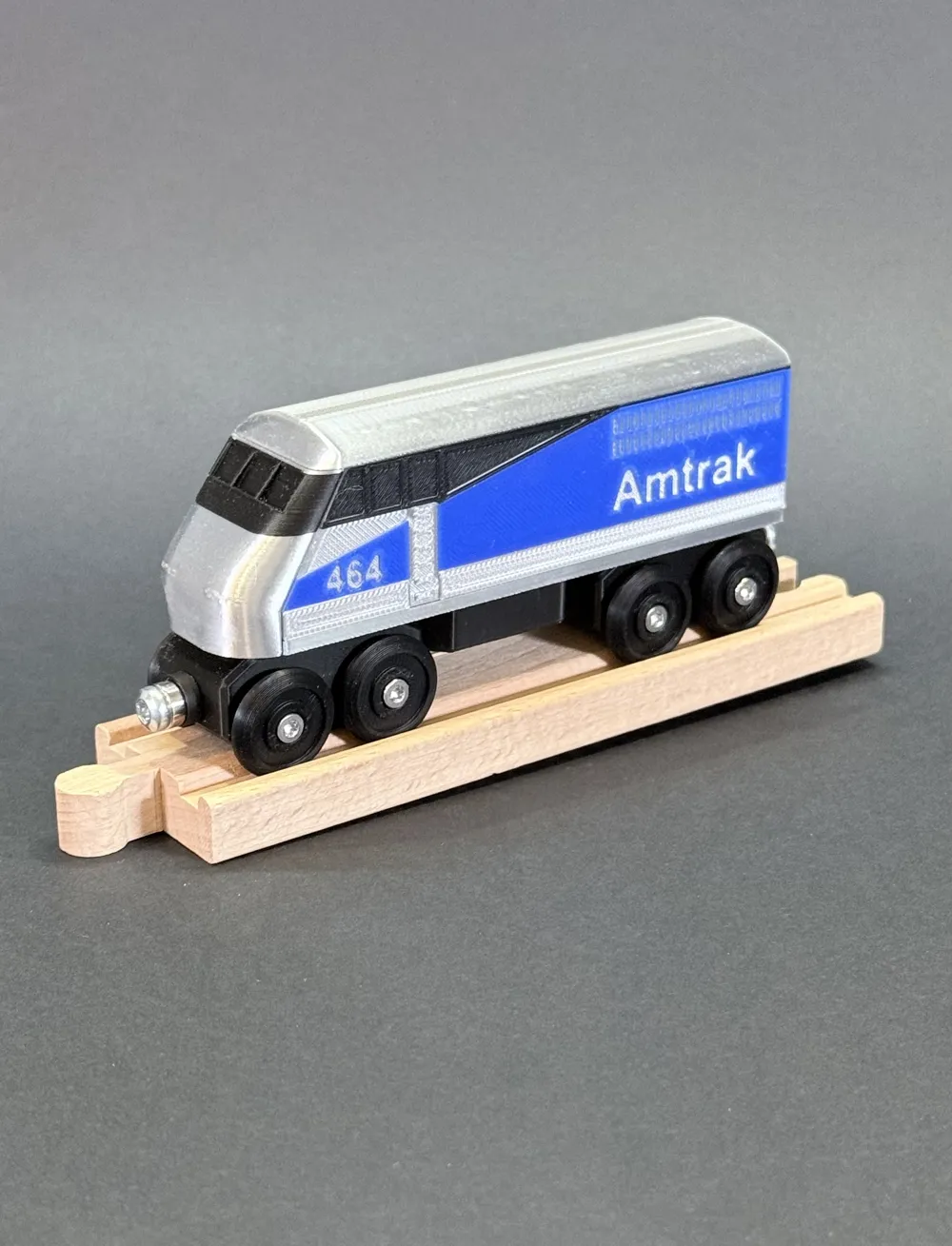

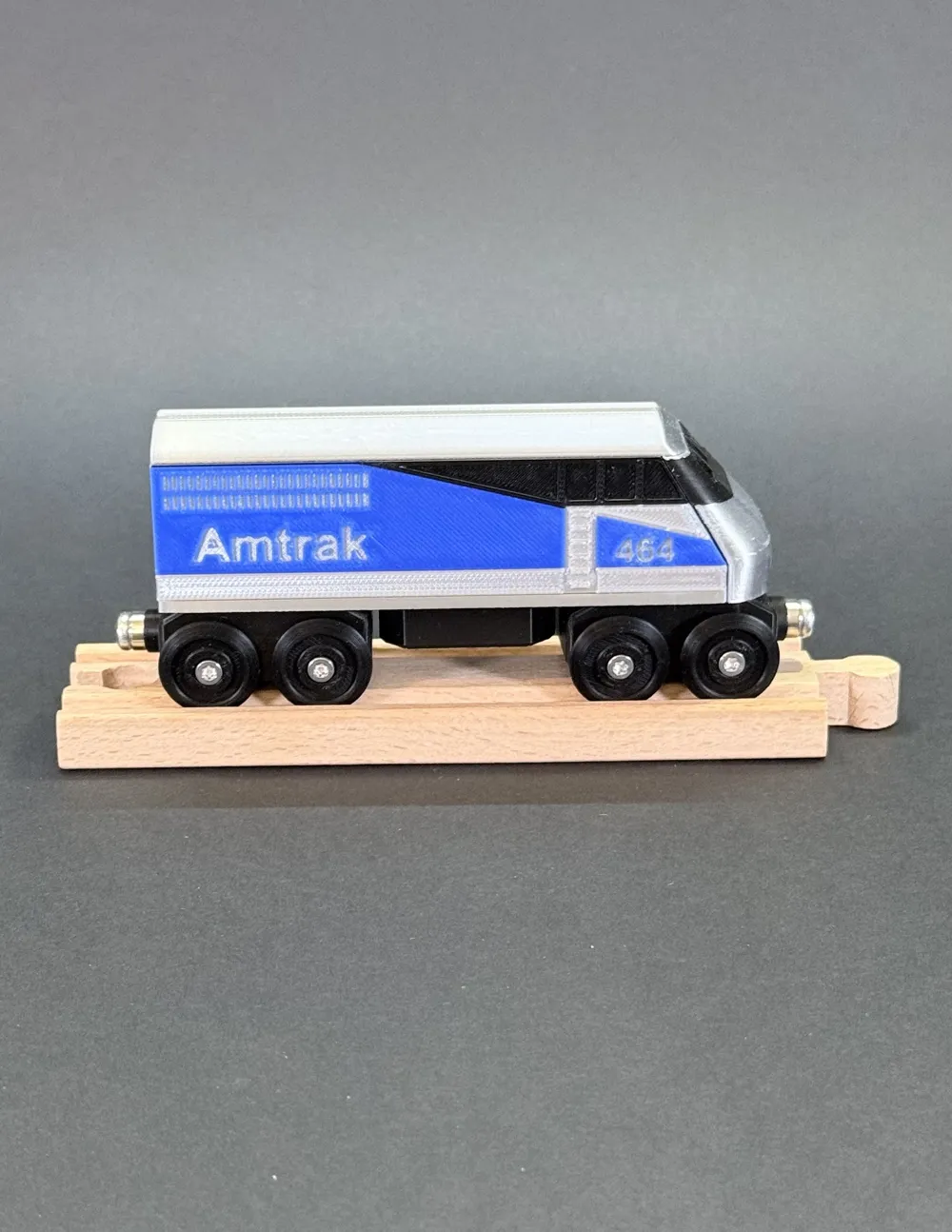

🚅 Locomotive Amtrak 464

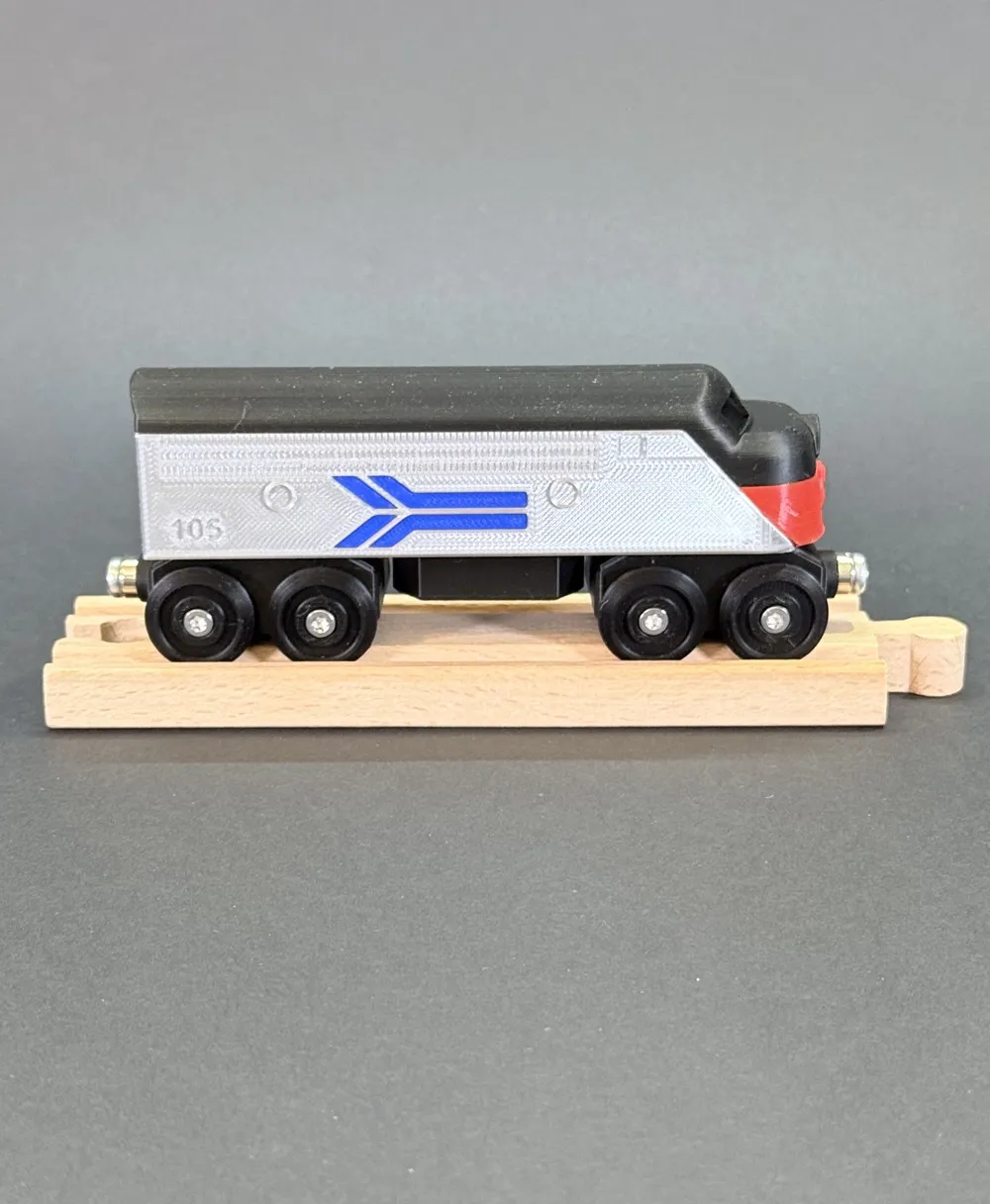

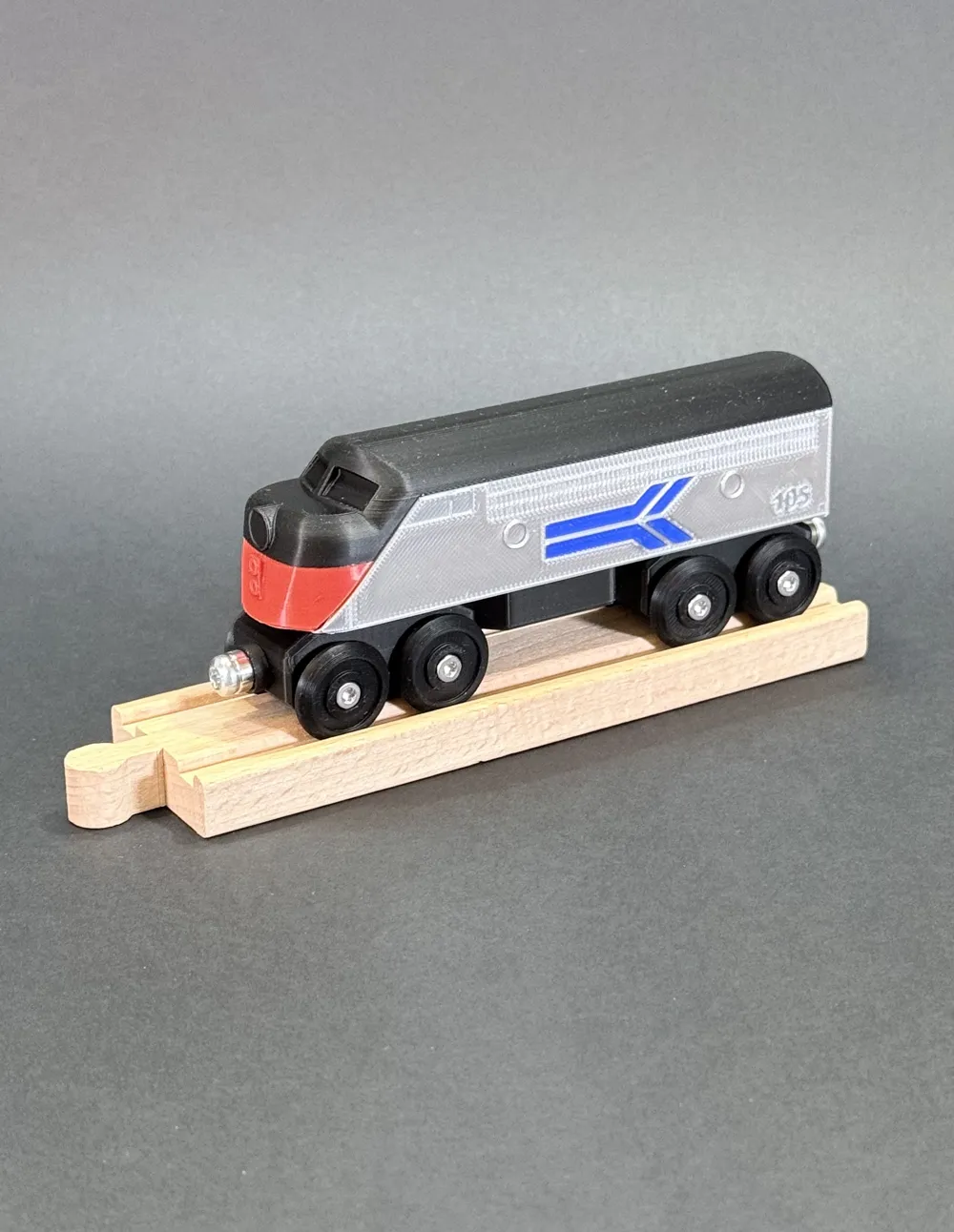

🚅 Locomotive Amtrak F7 A Phase

• Optimized for Brio System
• Modular Print: Print parts separately in different colors and assemble them later.
• Beginner Friendly: Easy-to-print parts with optimized orientation.

💡 PRO TIP:

• Superior Finish: Although AMS is not needed for colors, it is highly recommended to use an AMS for color mixing.
• Ring Magnets: You can also install smaller magnets like D8xd4xH3 Ring magnet for a better look.
• Screws: You can also install  Torx low pan head screw for a better look.
• PETG/PLA Technique: By using PETG as a support interface for a PLA model (with 0mm Z-distance), the supports will pop off effortlessly, leaving a perfectly smooth and professional surface.

📏 SIZE & COMPATIBILITY

• Brio Compatible: Fully compatible with the standard wooden track systems Brio.
• Perfect Scale: Designed to match the aesthetic and dimensions of classic wooden toy trains.

✨ BUILT TO LAST: This model is designed with heat-set inserts instead of threading directly into plastic. This premium feature ensures maximum durability and structural integrity, meaning the locomotive will handle years of heavy play without screws ever stripping or becoming loose.

✨ BUILT TO LAST: This model is designed with heat-set inserts instead of threading directly into plastic. This premium feature ensures maximum durability and structural integrity, meaning the locomotive will handle years of heavy play without screws ever stripping or becoming loose.

🔧 ASSEMBLY & SMART FEATURES

• Heat-Set Installation: The inserts must be installed using a Soldering Iron. Press them carefully into the pre-designed holes for a permanent and strong thread.

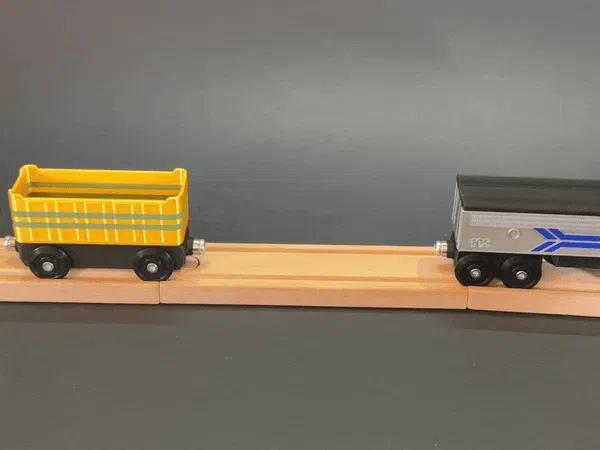

• Magnetic Coupling: Features dedicated slots for the Ring magnets to easily hitch and pull wagons.
• Ring Magnets: Ensure correct polarity before installing it‼️
• Precision Fit: All parts are designed with professional tolerances for a secure fit when glued.
• Modular Design: If a part breaks, you can just reprint that specific piece. This also allows for endless custom color combinations!

🚂 DESIGN HIGHLIGHTS

• Clean Geometry: Optimized 3D model for smooth surfaces and professional results.
• Great for Collectors: A perfect gift for railfans, kids, and wooden train enthusiasts.

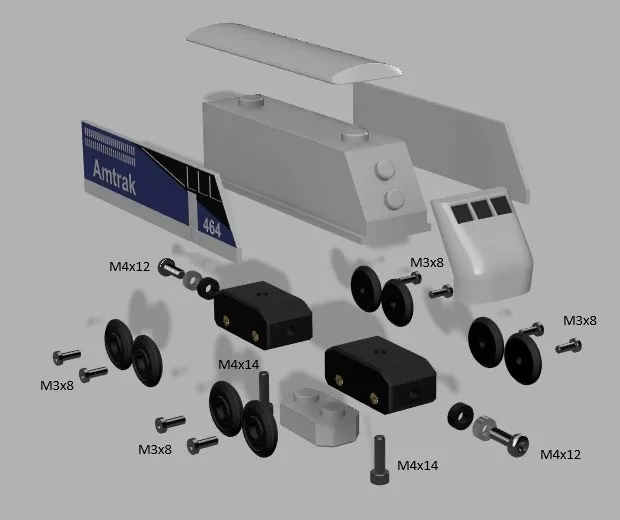

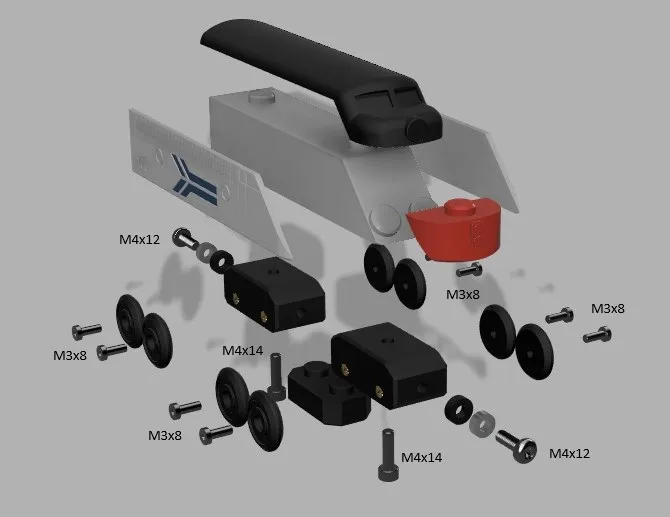

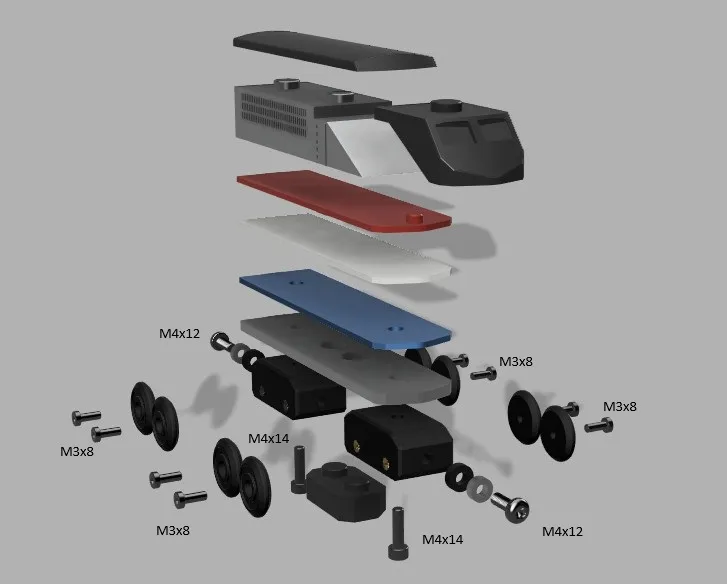

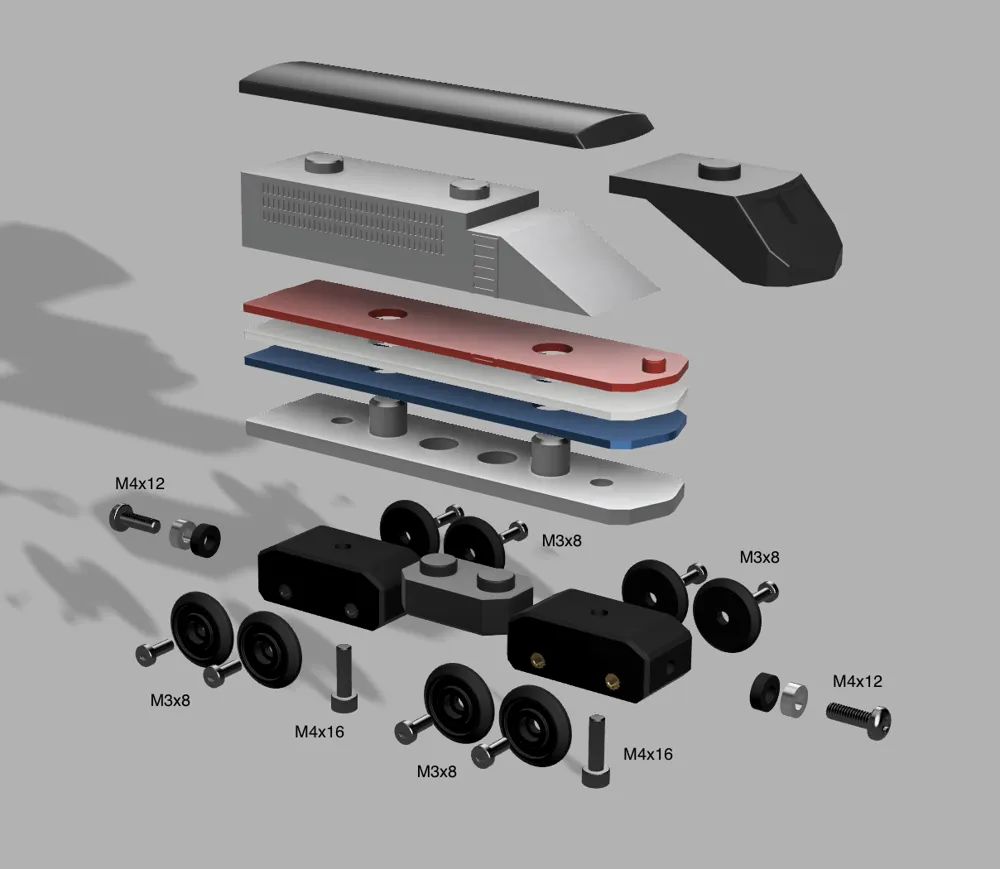

Quick Assembly Guide:

1. Inserts: Use your soldering iron to install the heat inserts.
2. Magnets: Secure the magnets and screws for the coupling system, ensure correct polarity.
3. Gluing: Use a small amount of super glue (cyanoacrylate) to join the body parts.

Happy printing! 😉
