Distance gauge for robotic lawnmower blades on grinding machines
Print Profile(1)
Description
Spacer gauge for sharpening robotic lawnmower blades on grinding machines
Do you also sharpen the blades of your robotic lawnmower now and then? Great, then this gadget is perfect for you!

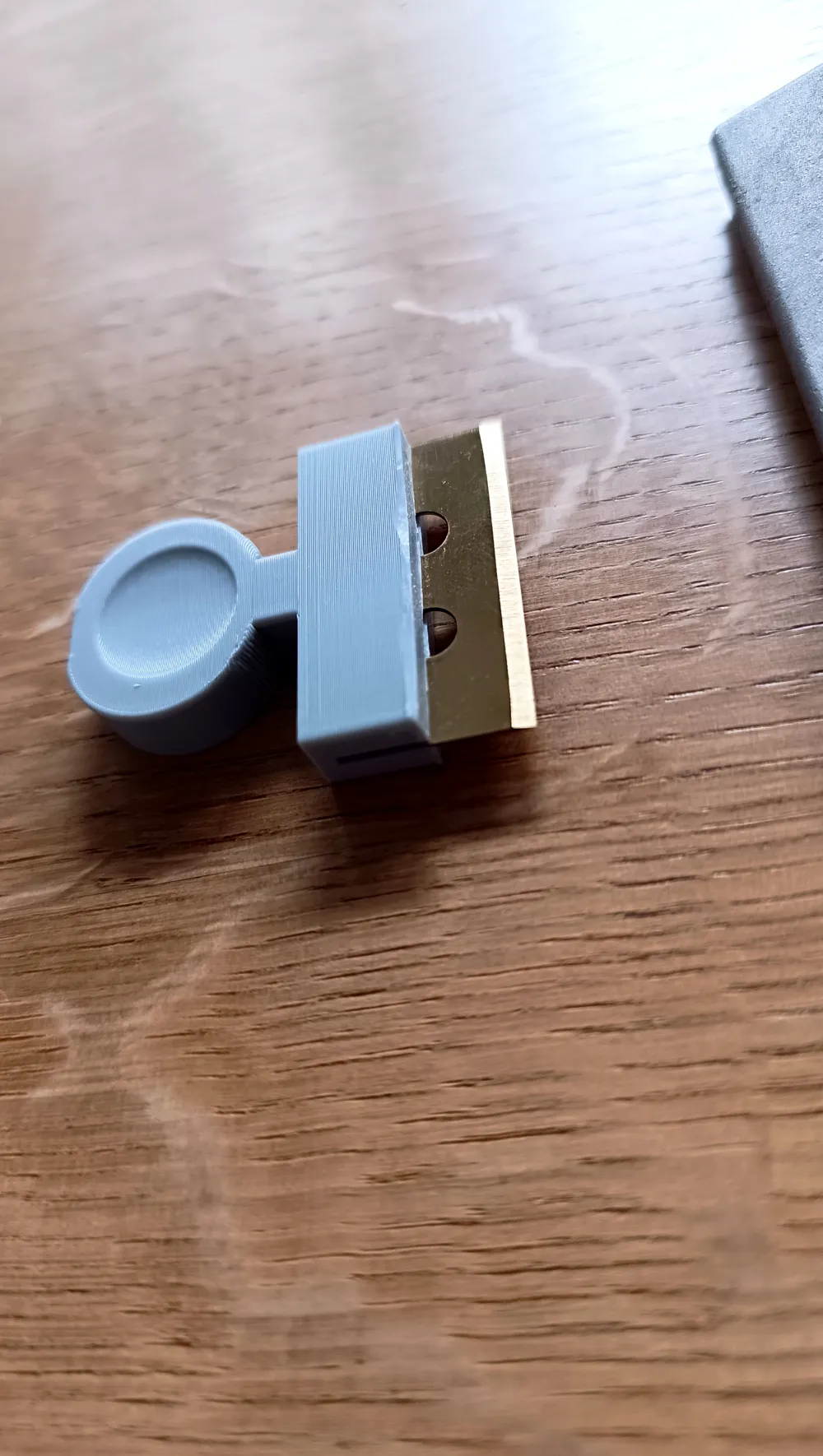

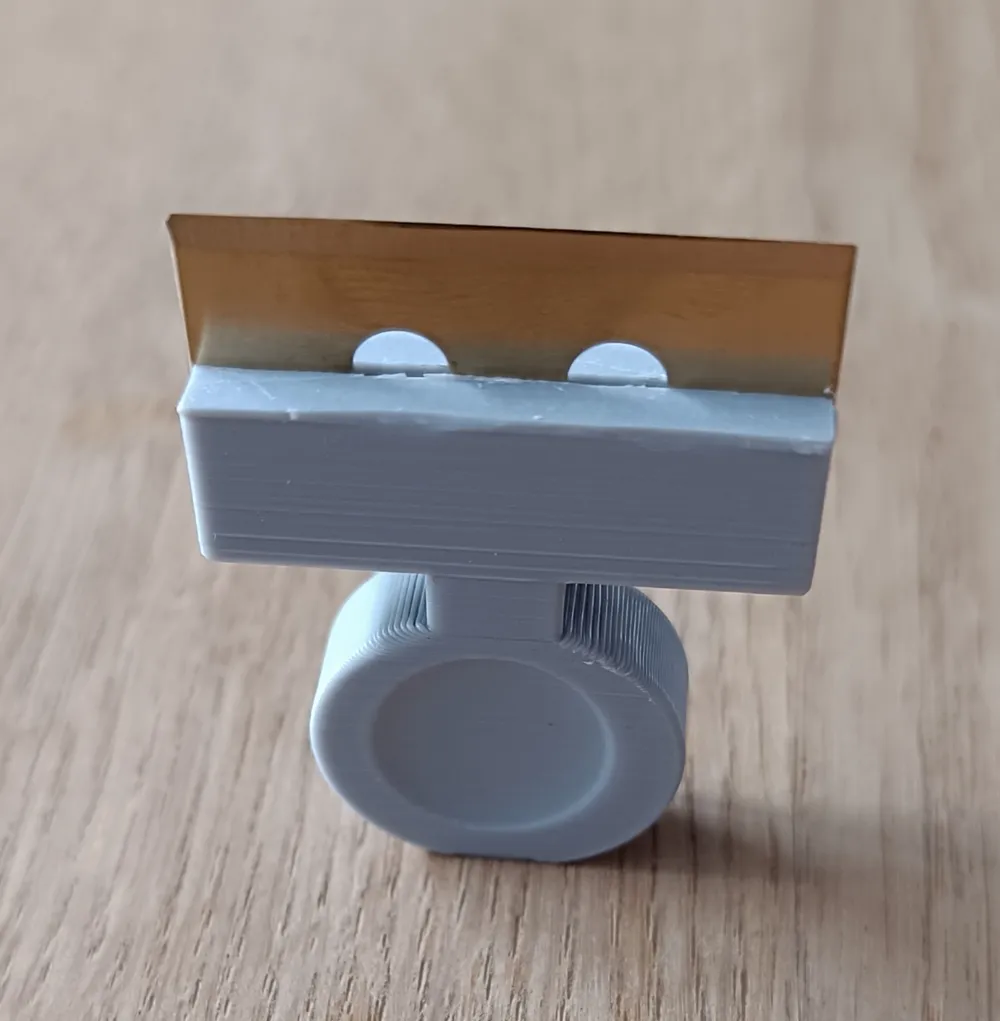

Simply clean the blade of your robotic lawnmower and insert it into the slot of the gauge

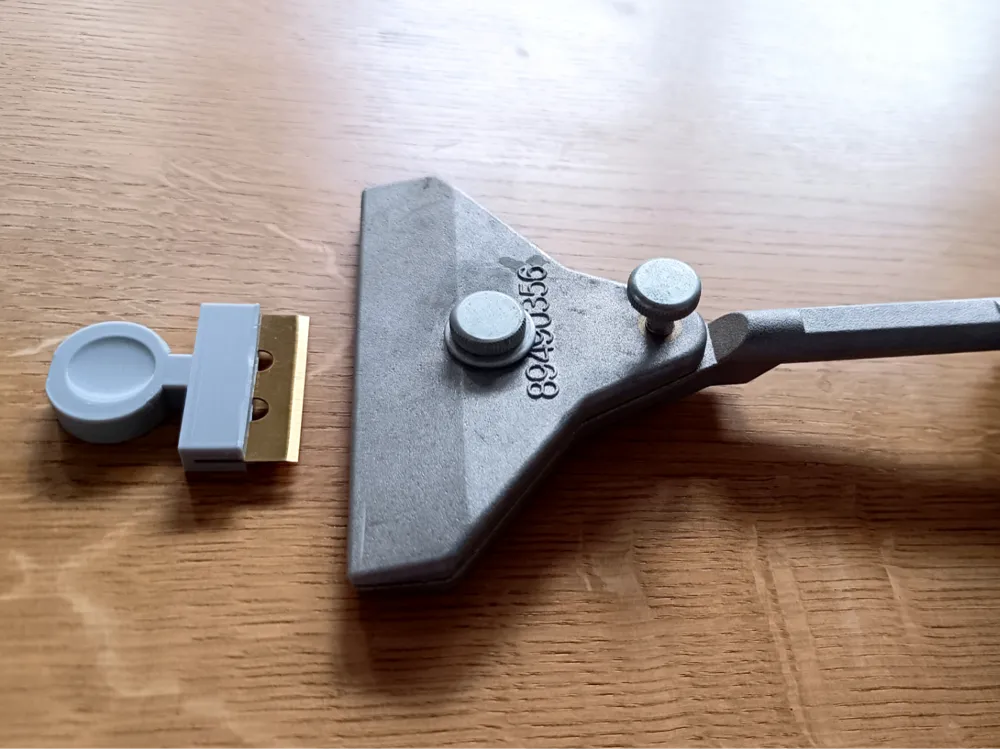

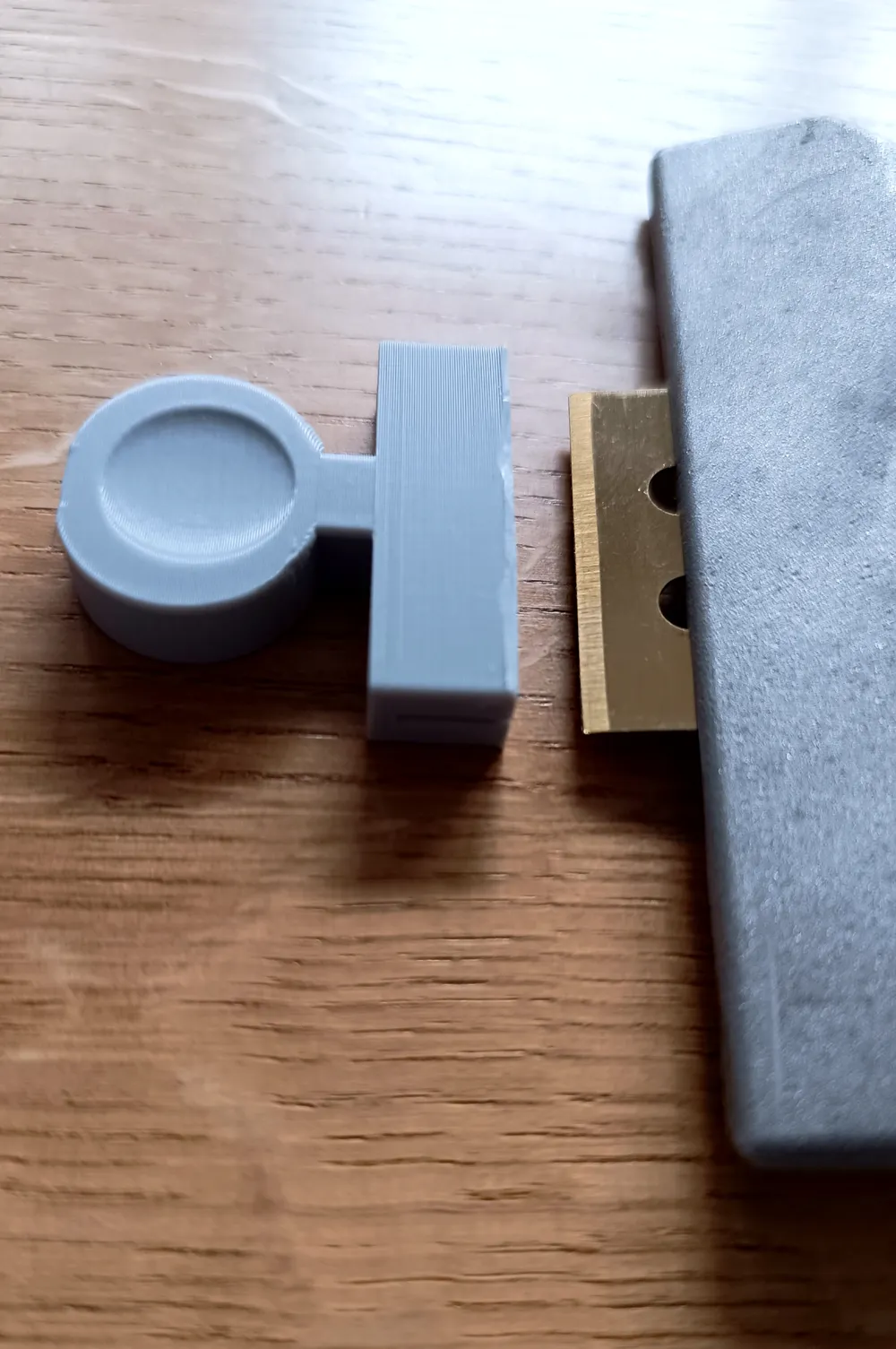

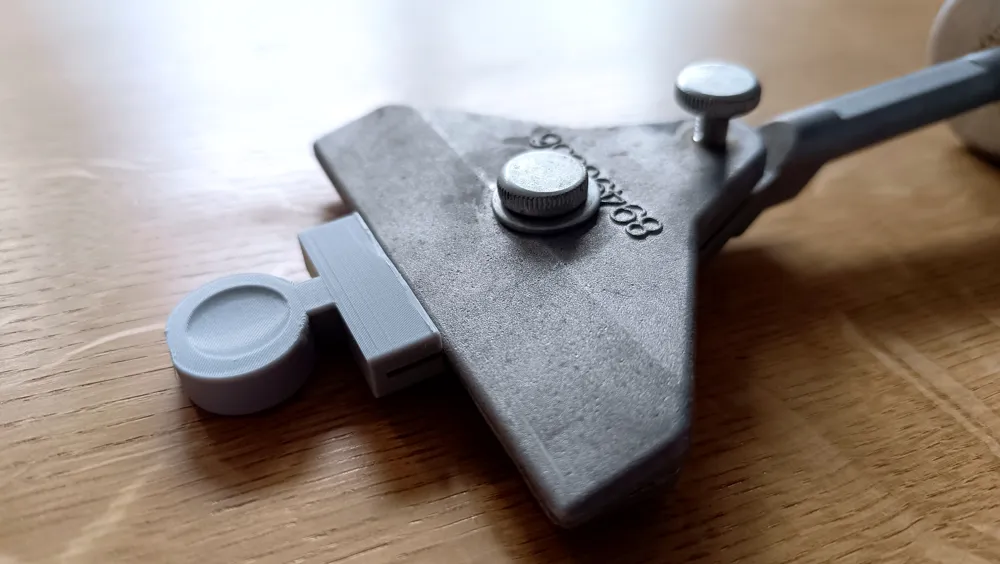

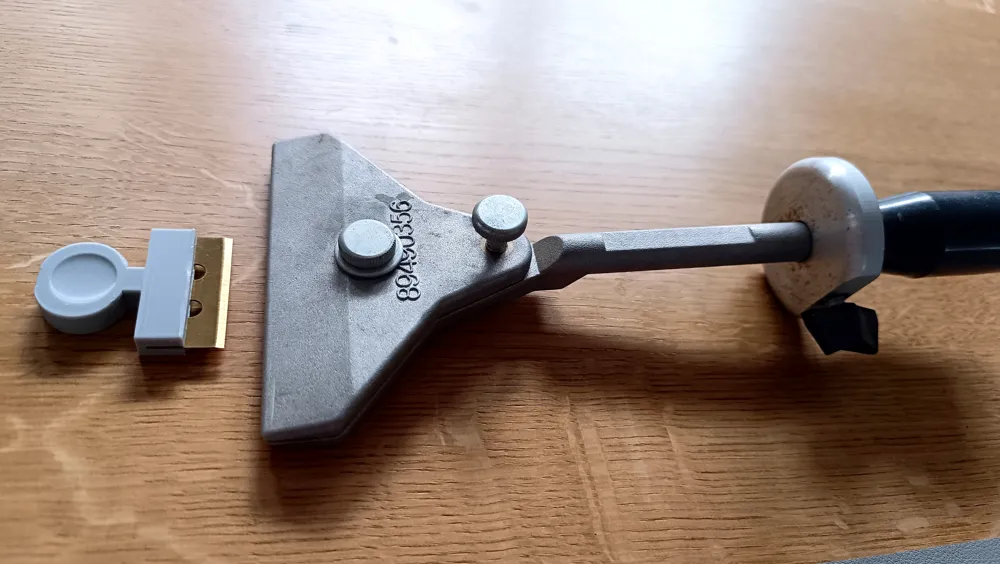

Insert the blade until it hits the stop of your grinding guide, clamp the blade in the guide, remove the printed guide gauge, done!
Always the correct distance and that in seconds!
For all standard blades with dimensions 35mm x 18mm
Suitable for water-cooled grinding machines like Tormek, Scheppach, Güde etc with a grinding guide for knives
Can be printed with PLA without a brim
After printing, if necessary, carefully deburr the slot for the blade with a utility knife so that the lawnmower blade can be inserted with light pressure Still, watch out for your fingers ;-)
Have fun sharpening and don't forget to like it if you enjoy it, :-)
