SKADIS Click Mount v3

Your Secure Mounting Solution Refined!

The Click Mount is designed to give your IKEA SKÅDIS setup the stability it deserves, keeping your accessories exactly where you put them. No sliding, wobble or second guessing.

Originally crafted with both function and aesthetics in mind, the Click Mount delivers firm, reliable engagement with the SKÅDIS Board while maintaining a clean, minimalist profile. Refined based on user feedback from YouTube and Makerworld, the Click Mount is now even smaller while maintaining the strength your accessories demand. V3 also introduces a new version of the Click Mount. A single slot version that allows shorter accessories or the ability to completely hide the Click Mount from view.

Defining Features

• Flush Fit Stability - Accessories sit tight against the board surface to eliminate rocking and sway.
• Integrated Lock - Prevents lift and the possibility of sliding off.
• Optimized for Printing - Prints flat in a strong orientation, eliminating the need for supports.
• Audible Click - A satisfying sound that confirms your accessory is securely seated.

Refined Features

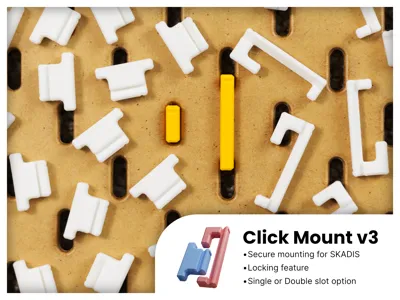

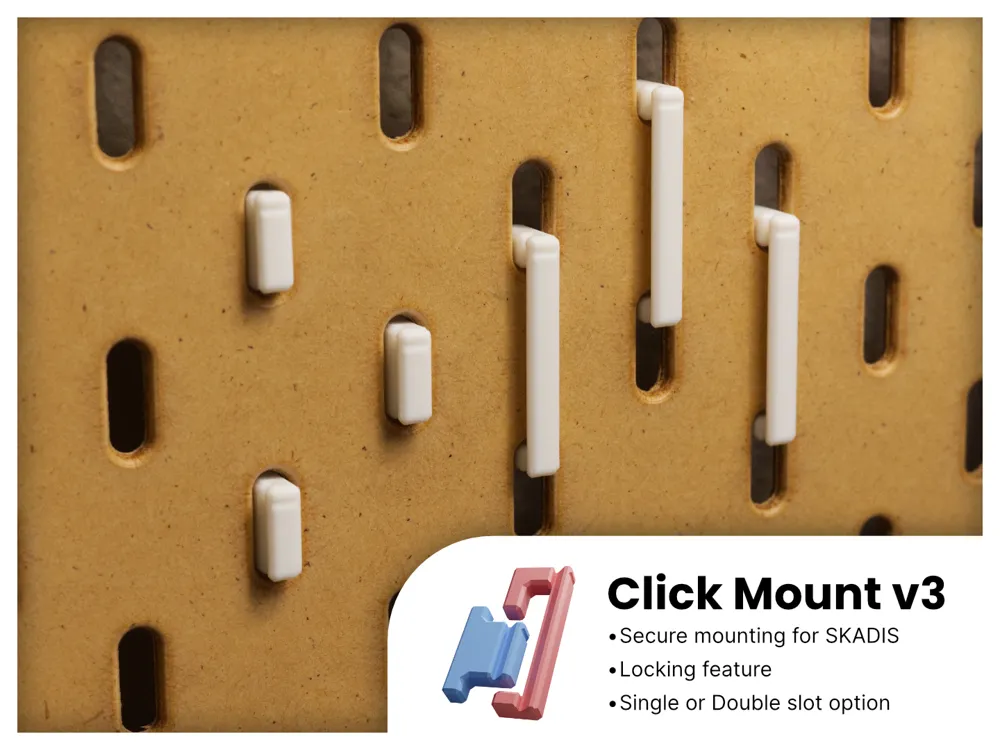

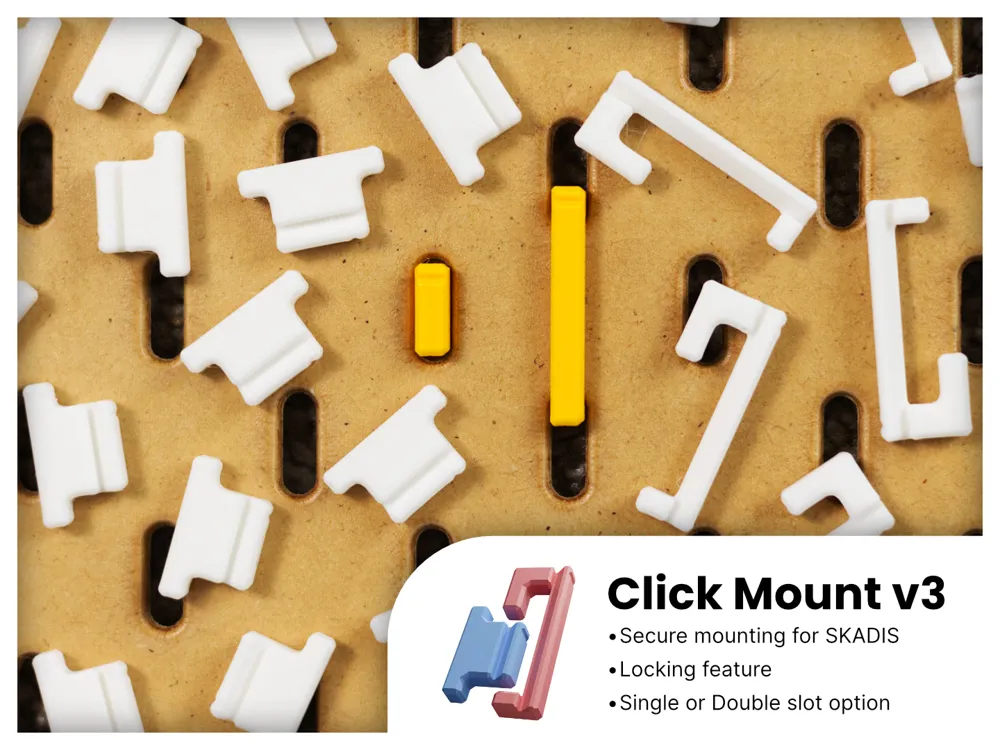

• NEW SINGLE SLOT MOUNT - The biggest improvement which lead the design of v3 is the ability to use the Click Mount with only 1 slot of the SKADIS board. Sliding in from the back, the single slot is 60% shorter than the double slot mount. With this, you can hide the single slot Click Mount in a smaller package than the original mount took up just to mount to the board.
• Negative Models - Making accessories for the Click Mount is now even easier! Download the negative models and instantly add v3 to any accessory you make.
• Redesigned Lock - The locking design now prints across multiple layers instead of just one. This extends the life of the lock and prevents it from getting smashed when used with accessories.
• Smaller Dovetail - Since v3 has the ability to fit through the board, the dovetail needed to be much smaller. The v3 dovetail takes up approximately 5mm x 5mm space.
• Optimized for Printing - Click Mount v3 still has a large first layer with no tiny strips so you get a perfect print every time.
• Easy Sliding - Sliding accessories along v3 is much smoother while still providing a tight tolerance at the end to ensure a snug fit every time.
• Audible Click - A satisfying sound that confirms your accessory is securely seated.

Built for Real Use

Other SKÅDIS accessories may look nice in photos but how do they perform when bumped or grabbed from? With L shaped hooks on the back of the typical accessories, nothing stops them from sliding out of the slot from real world use.

The Click Mount is designed for that reality. Whether it’s in the workshop or office, holding tools or trinkets, the Click Mount delivers a connection you can trust.

Print the available accessories and start organizing your SKÅDIS board today.
