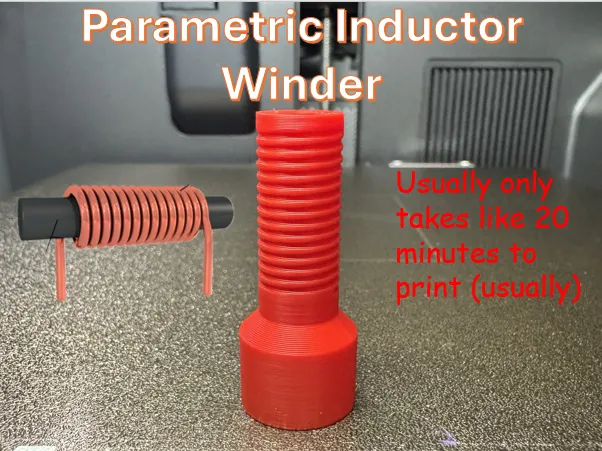

Parametric Inductor Winder
Print Profile(1)
Description
I hate trying to wind my inductors by hand, getting the right ammount of turns is always hard even with a calculator. With this tool all you need is your target inductance and some other simple design constraints and you get a small hand tool that gives the exact number of turns needed to make a working inductor.
Works with pretty much any filament, If you use a smaller gauge wire I would recommend cranking the layer height down as to make sure the geometries still work for winding.
If you enjoy this model please feel free to
Boost Me (for free)
Thanks!
