X2D/P2S Chamber Exhaust Magnetic Adapter 4in
Print Profile(3)
Bill of Materials
Description

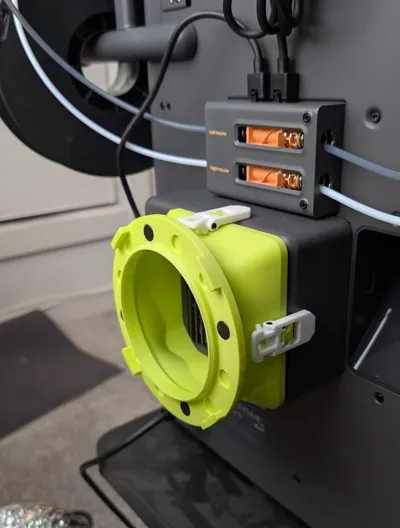

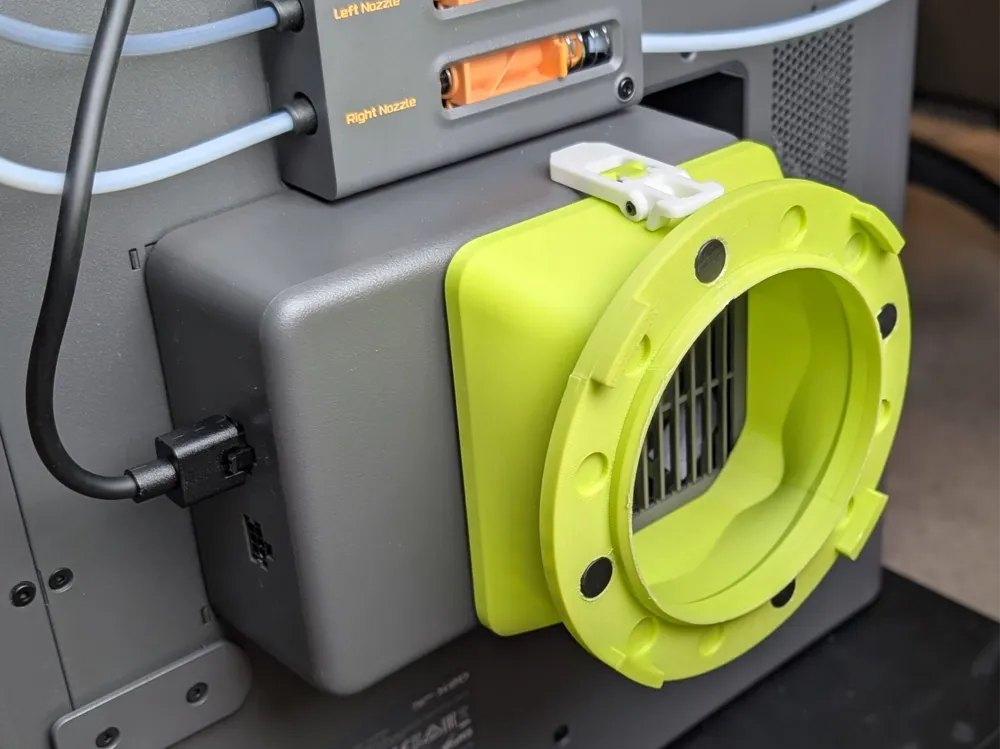

Literal mashup of the official Chamber Exhaust hose adapter and the Magnetic Rear Vent Hose Adapter (below). This is for all of you out there who replaced their P1S with an X2D and want to reuse your hose. This model matches the “4in” adapter design.
https://makerworld.com/en/models/136548-x1c-p1s-magnetic-rear-vent-hose-adapter#profileId-1289532

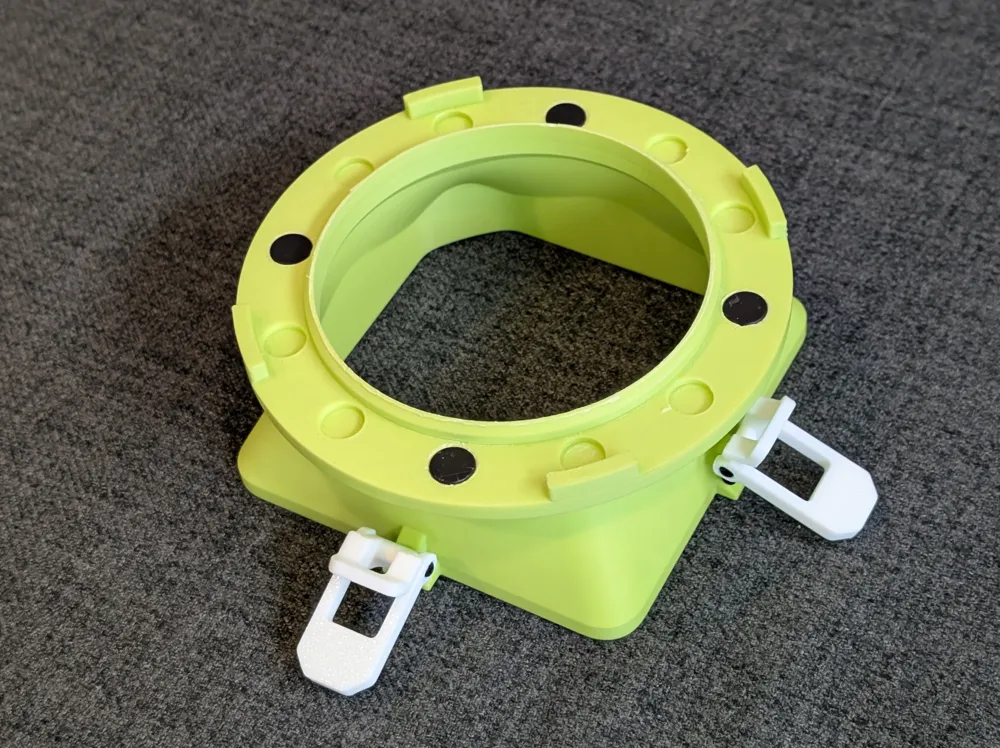

The “NEW" and “EMBEDDED” profiles use the Bambu 10mm x 2mm magnets, as described in the 3/30/25 update in the source model. The "OLD" profile uses 10mm x 1.75mm (ish) magnets, which I still have.
This was printed in PLA with a PETG support interface (put that X2D to work!)
Bambu recommends a high-temp material for the entire fan housing, but I've had no issues with a PLA adapter. The print would probably work with the materials swapped.
BOM:
I didn't use the actual Bambu hardware in my assembly, but I tried to aggregate the from the two sources.
- Refer to the Magnetic Vent Hose Adapter model for the magnet fit check process
- The Chamber Exhaust description didn't identify if the fastener is a BHCS or SHCS, so… I guessed
