Description
Content has been automatically translated.

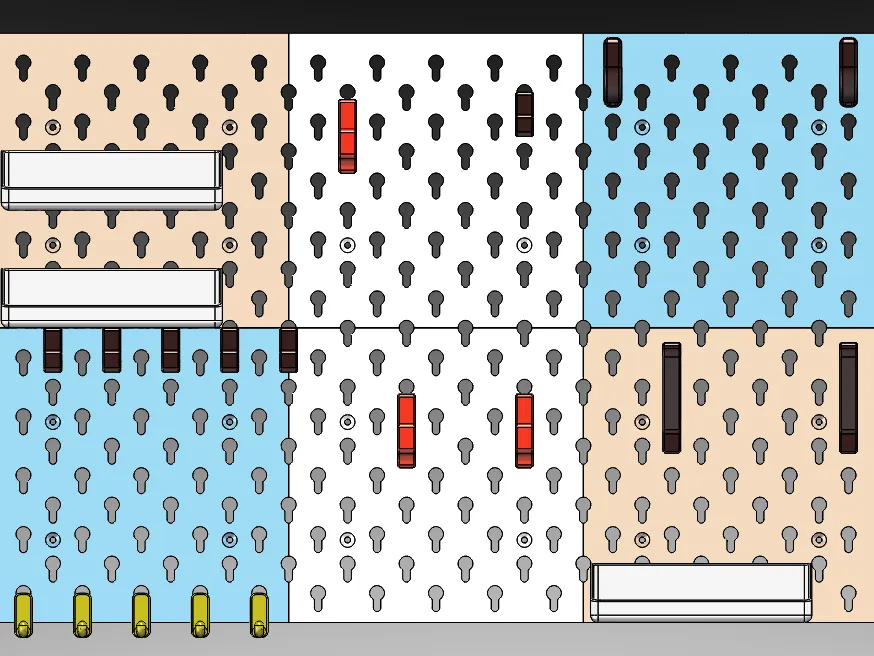

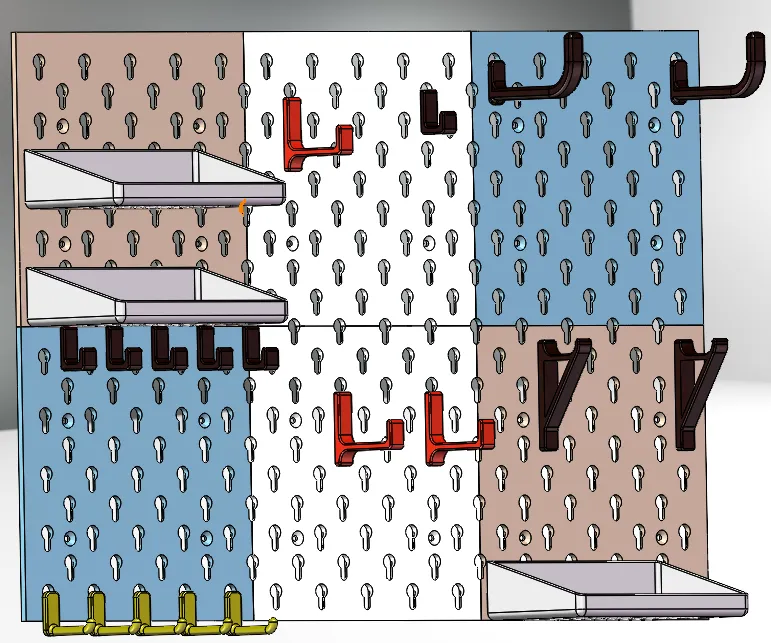

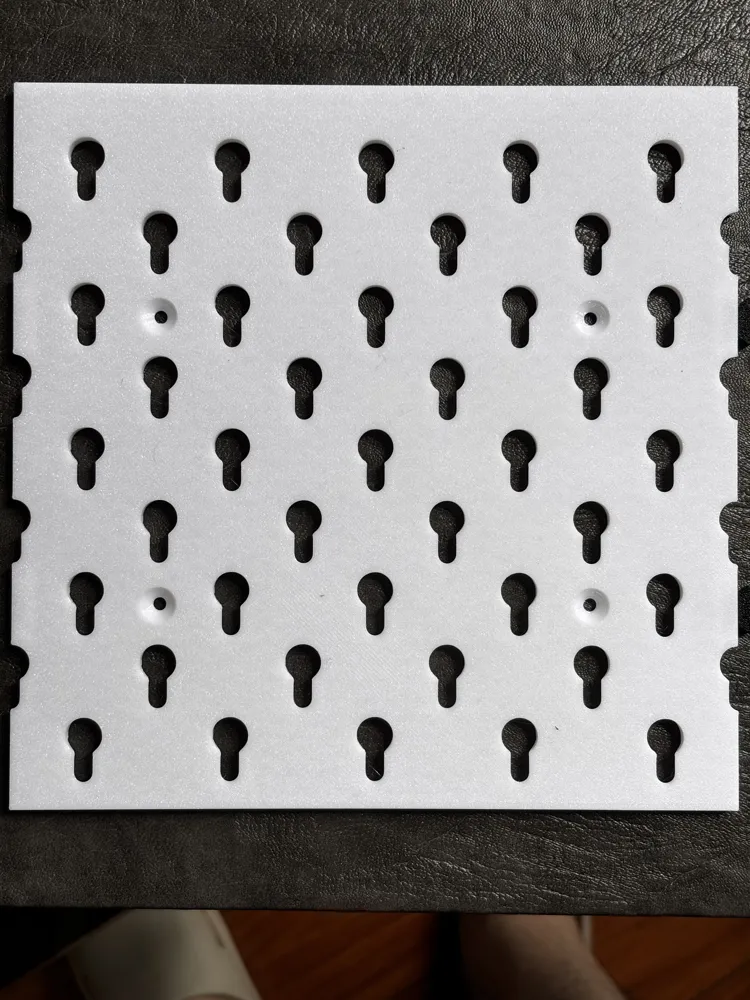

This wall-mounted pegboard, unlike other versions, has the advantage of being installed flush against the wall (or board) surface. This feature is mainly due to its self-locking hook installation design,

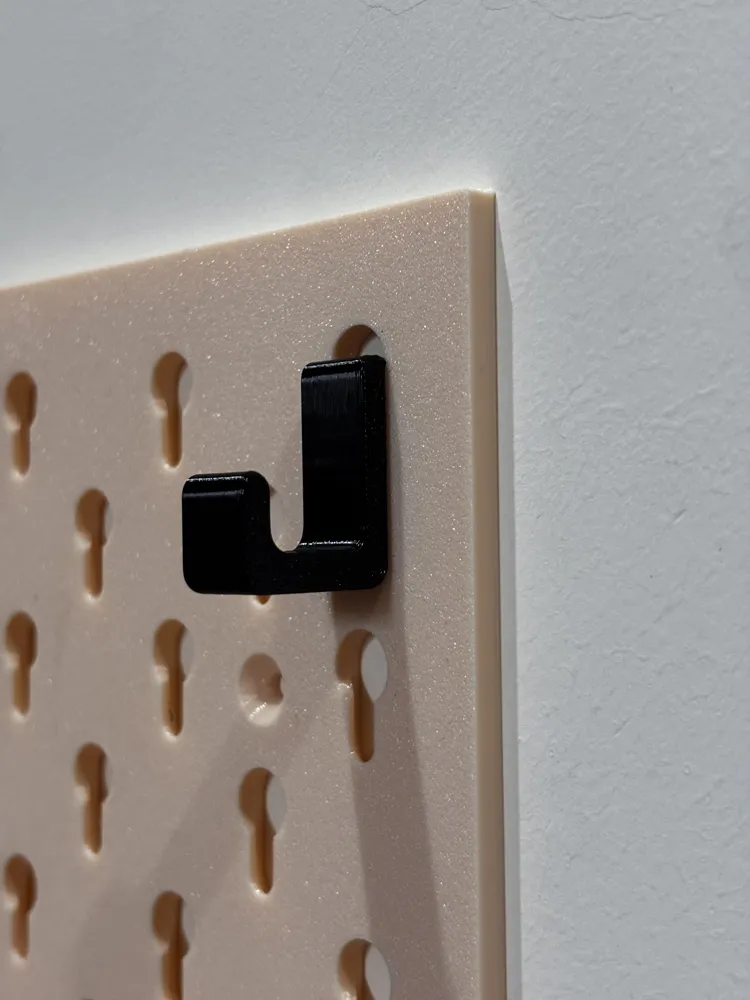

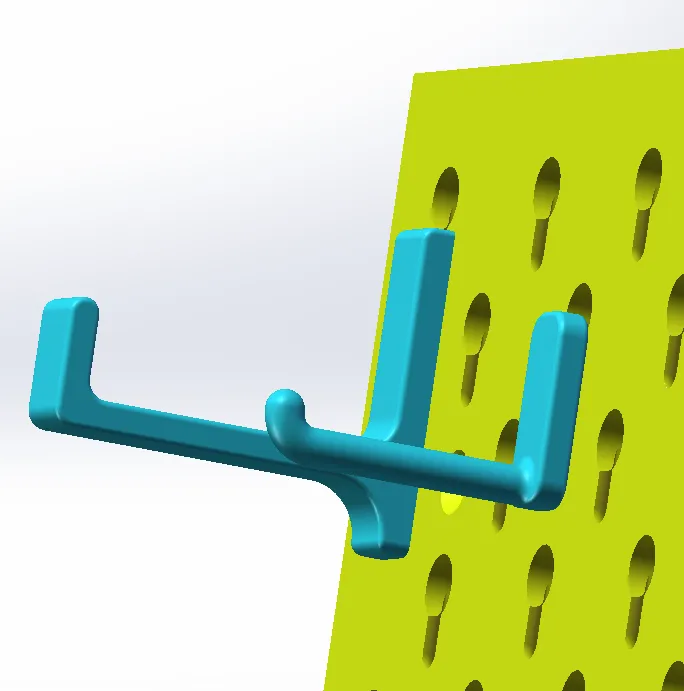

Once installed, these hooks do not protrude beyond the thickness of the board, and they are easy to remove and replace (insert and pull down to lock, lift up to loosen and remove)

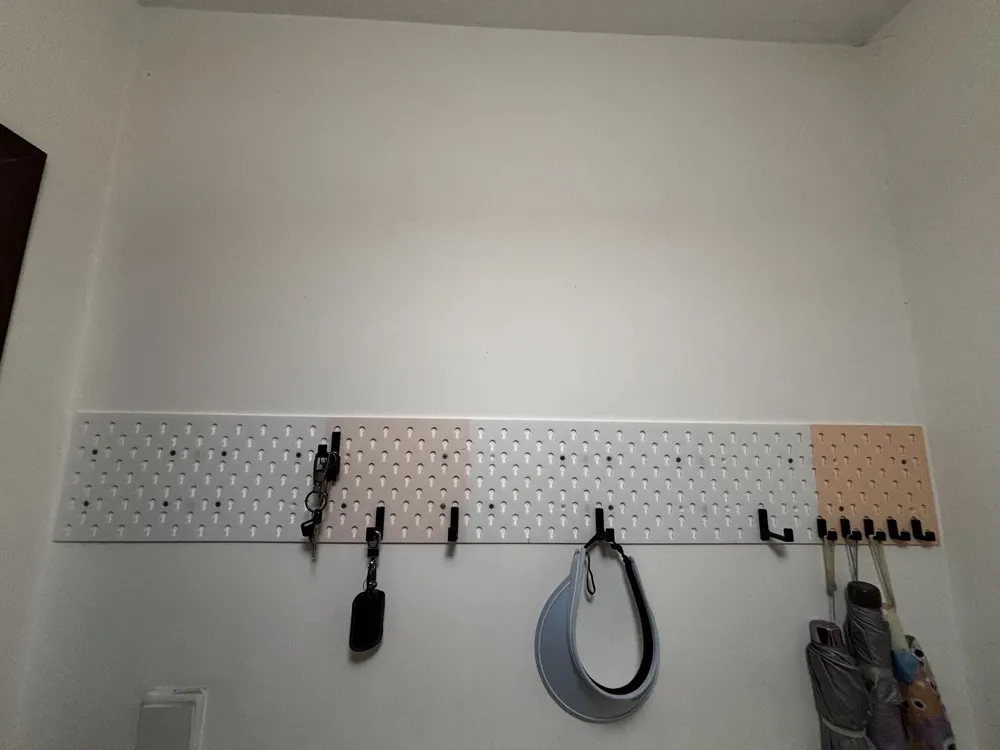

It can be directly mounted on walls, door panels, glass, tiles, etc. Note: No brackets are needed, and no gaps need to be reserved.

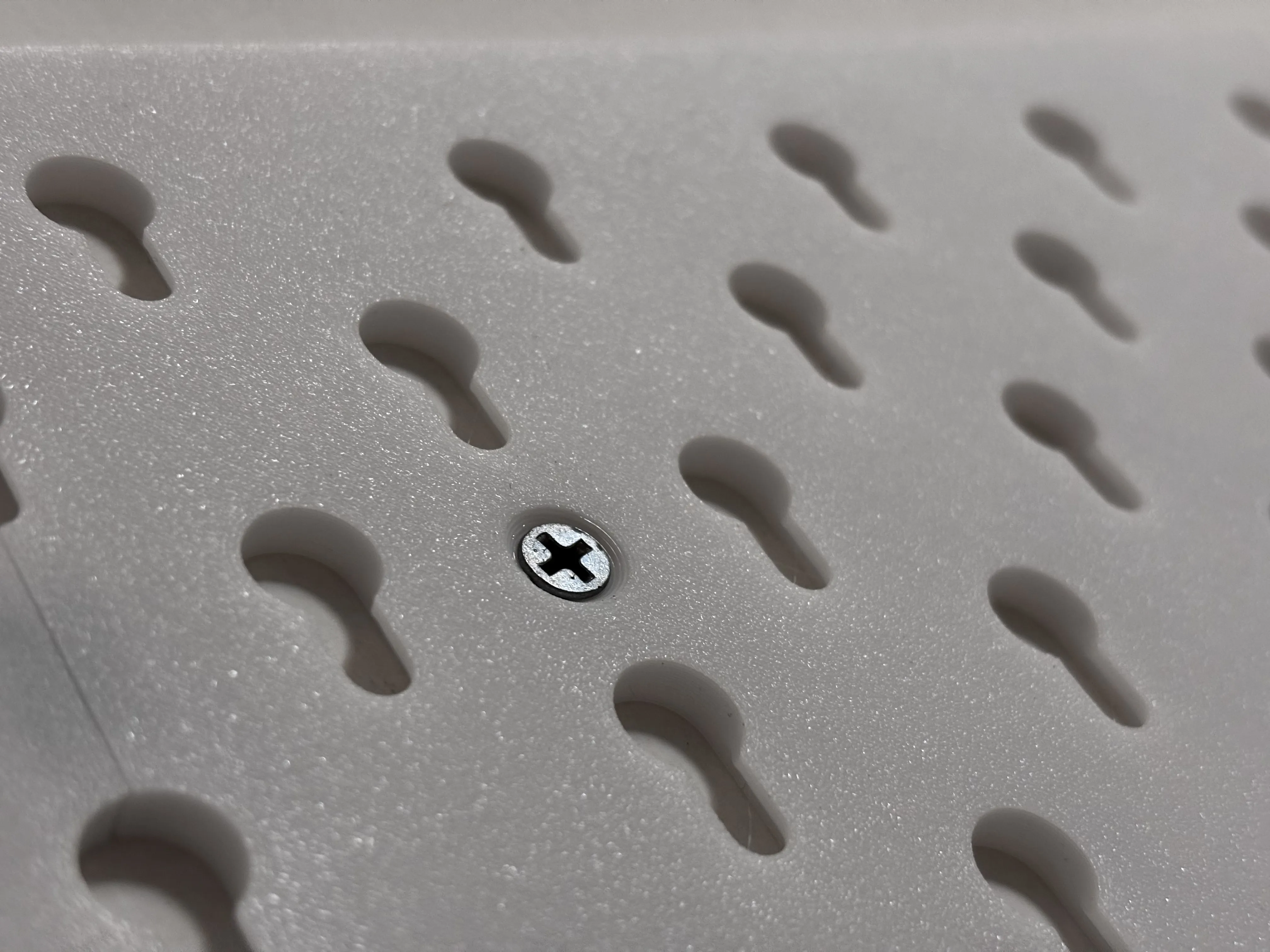

The board surface has reserved screw holes for tightening and fixing with ordinary countersunk screws, or it can be secured with glue or nano double-sided adhesive.

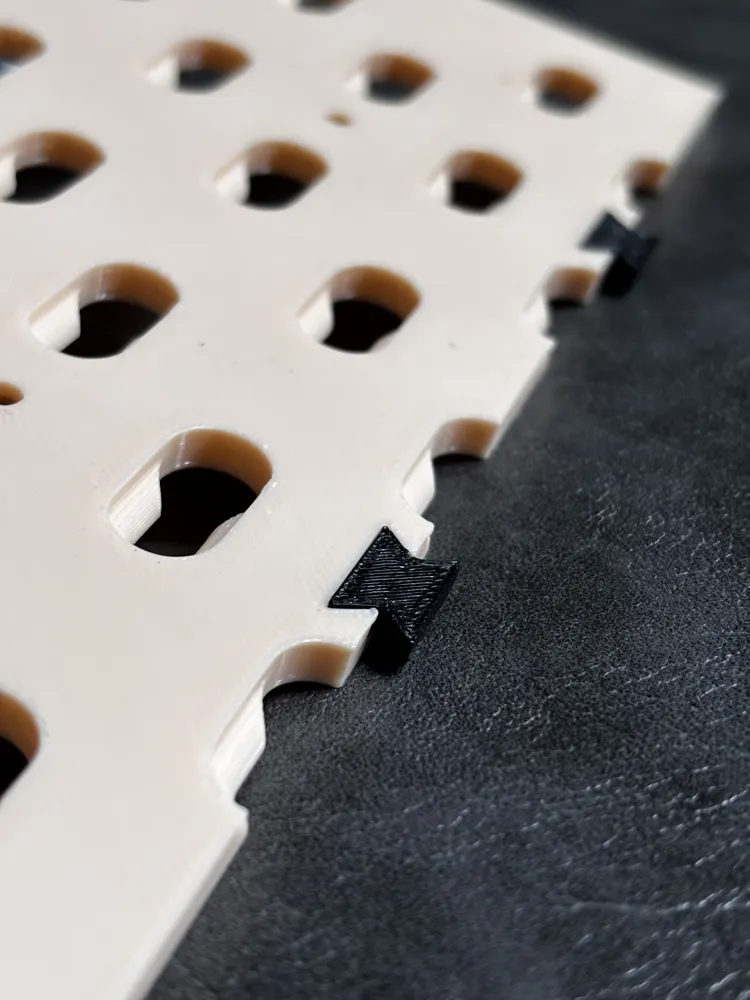

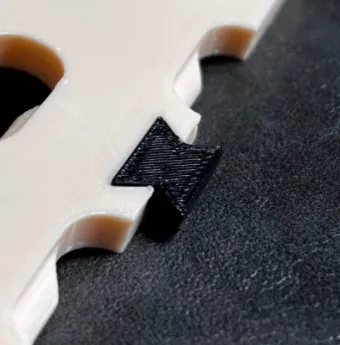

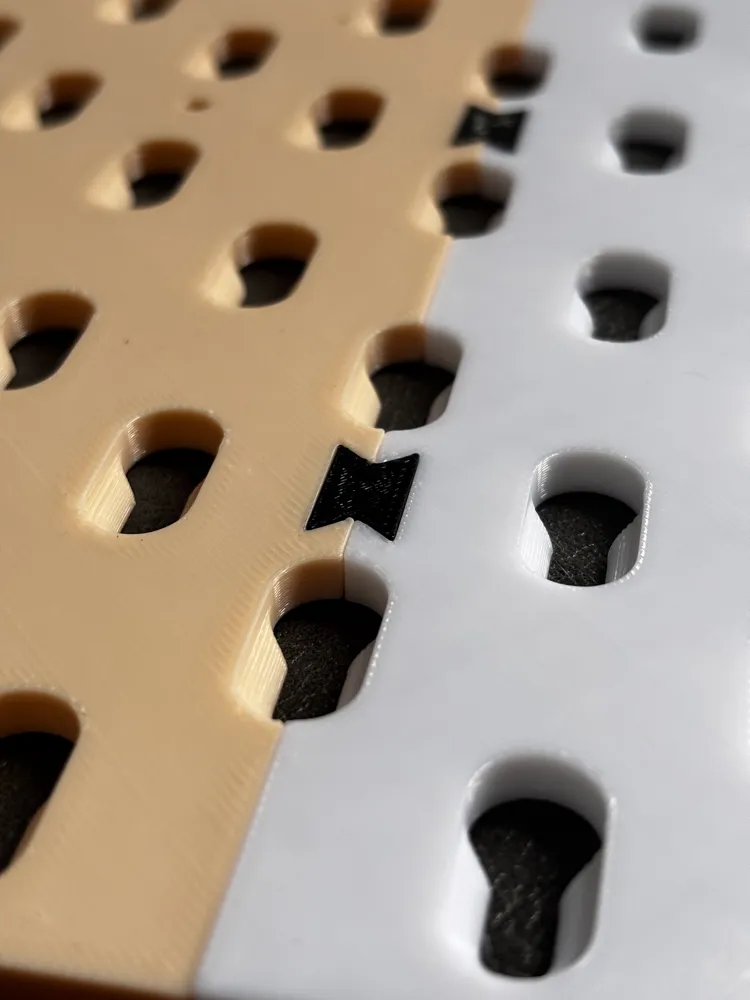

Hidden mortise and tenon connecting pins make the connection between boards tighter, eliminating misalignment during installation. A little glue makes it even more secure.

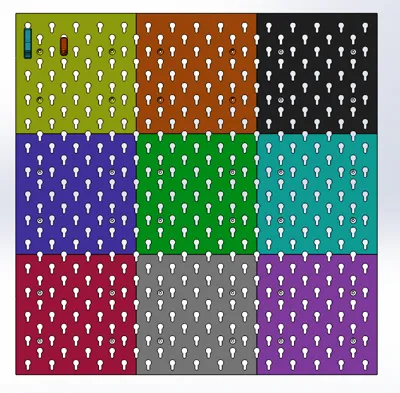

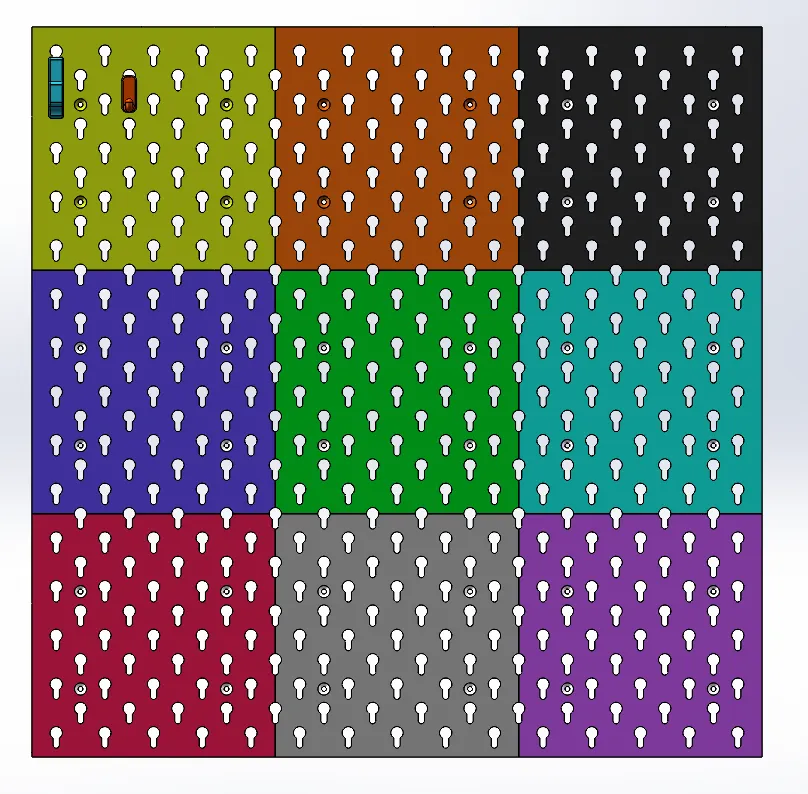

Printing instructions: This version is 200*200 in size because this size can meet most usage scenarios (I can also upload a 240*240 version if needed). The configuration includes a general four-way expandable version and a directional expandable version (with unnecessary expansion holes on the edges removed). You can choose which to print.
