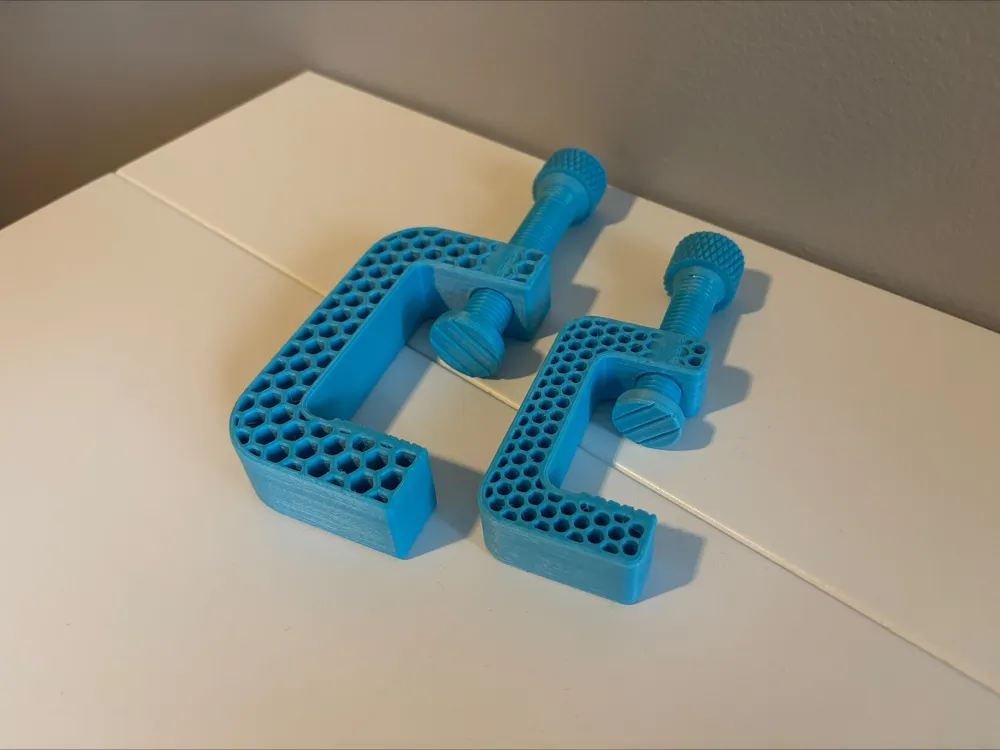

Mini C-Clamp – Compact 3D-Printable Clamp for Workshop & Hobby Use

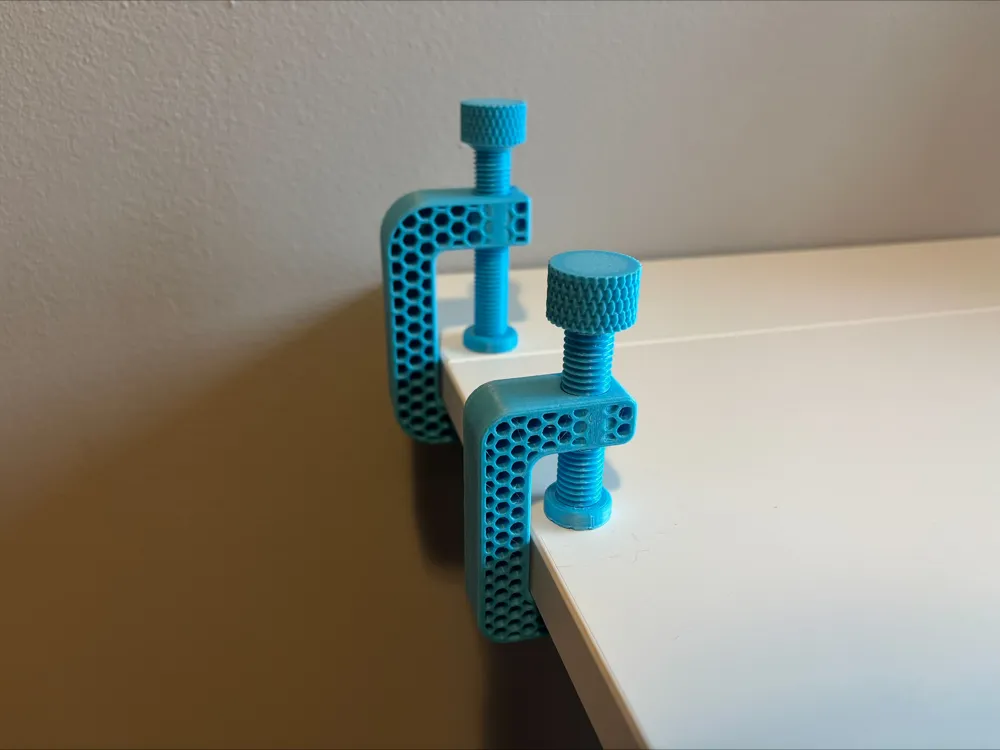

The Mini C-Clamp is a compact, 3D-printable clamping solution built for light workshop, hobby, and bench tasks.

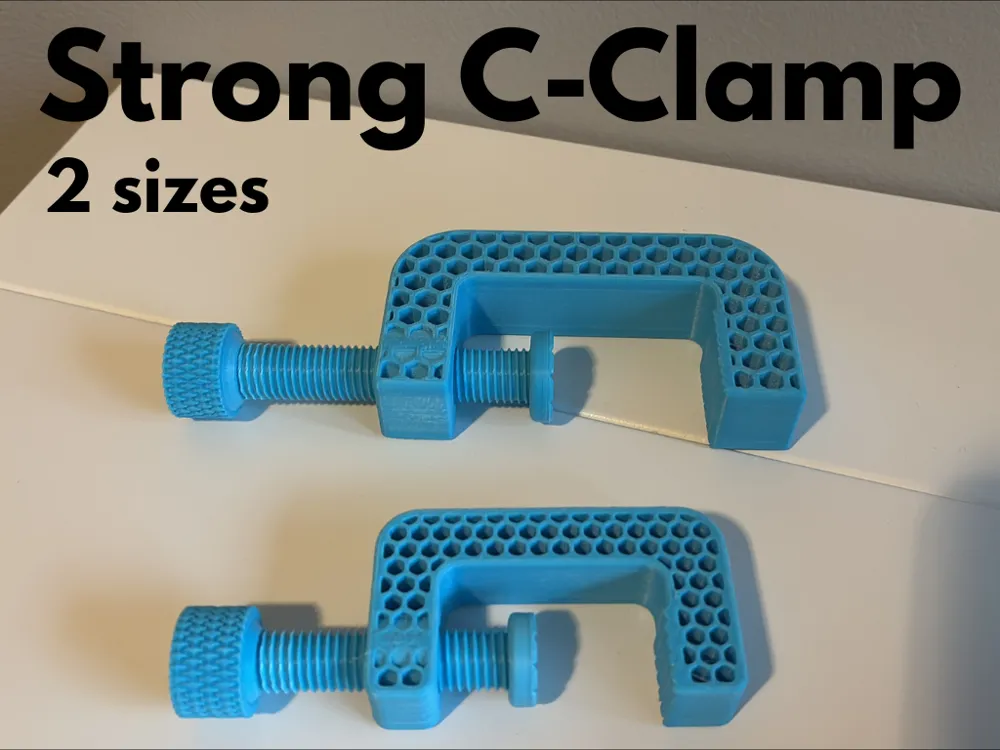

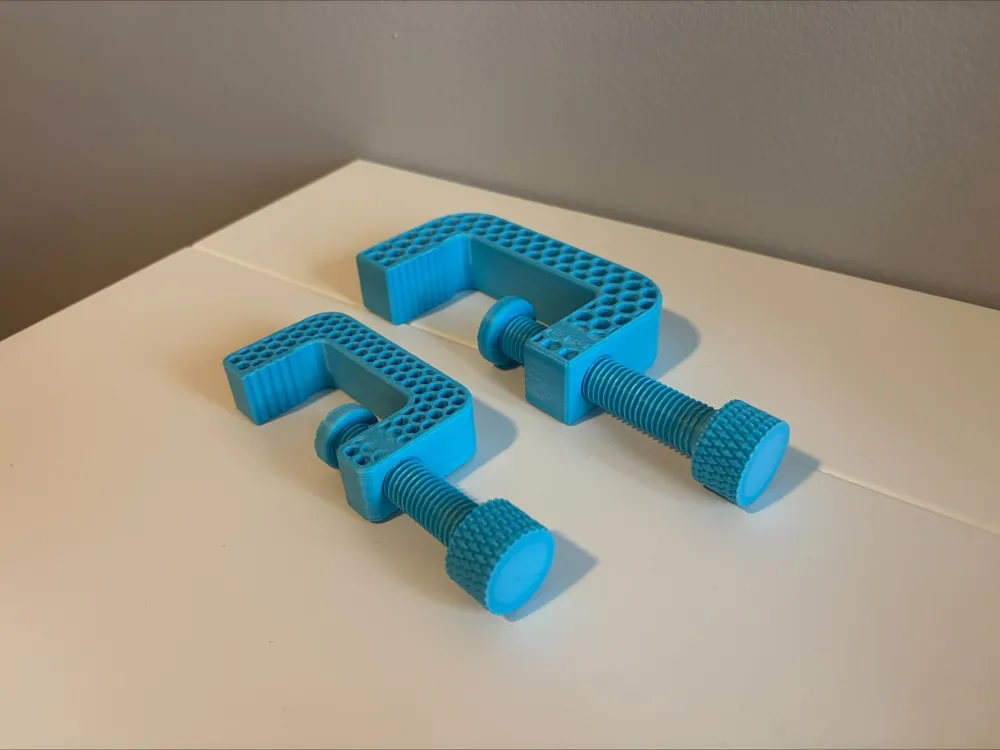

This design comes in two sizes to cover a range of applications:
- 43 mm opening
- 63 mm opening
Design & Components
Each clamp is made up of three individual parts:
- Clamp Body – the rigid C-shaped frame
- Clamp Screw – allows for adjustable clamping pressure
- Pressure Tip – spreads force evenly across the workpiece surface
The pressure tip keeps surfaces protected and gives you smooth, controlled clamping every time.
Printing Settings
- Layer height: 0.2 mm
- Infill: 30% Gyroid
- Walls: 3
- No support
- For best results, use a strong filament material
- PLA is suitable for light-duty tasks
Assembly
- Insert the screw through the clamp body
- Thread the pressure tip onto the screw end
