Description

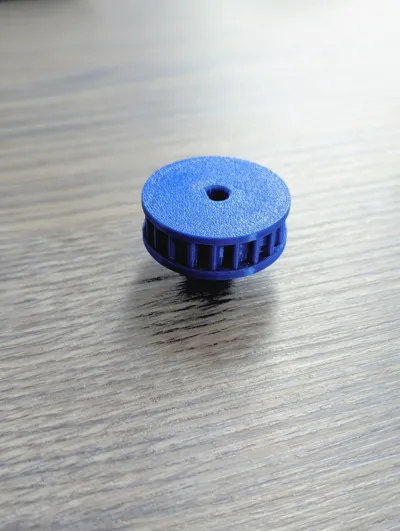

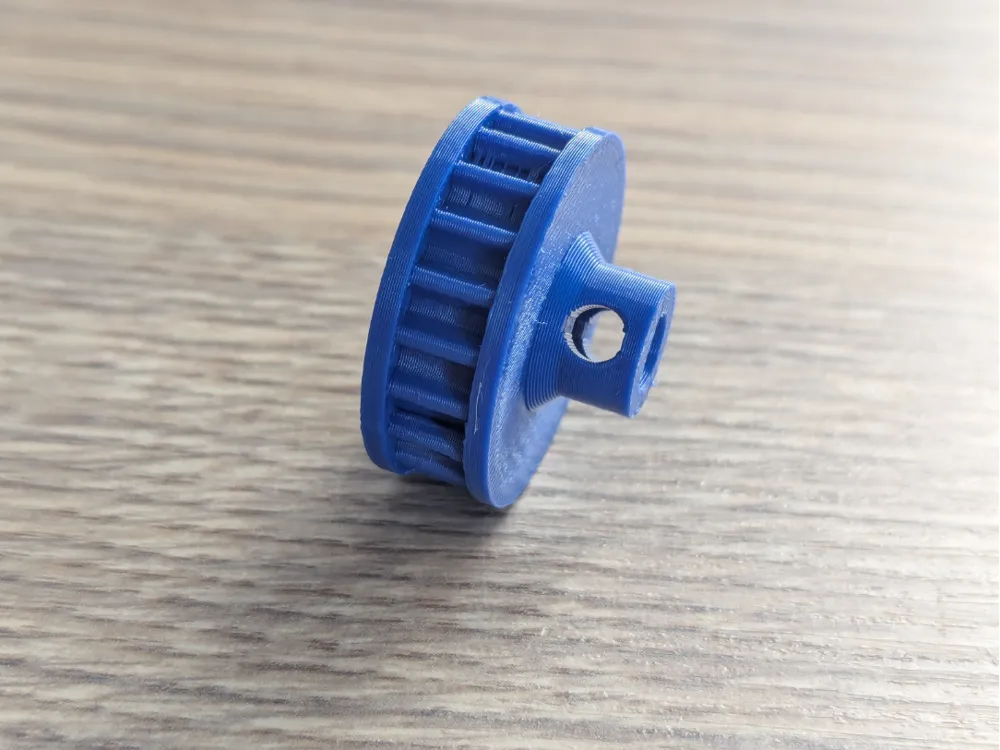

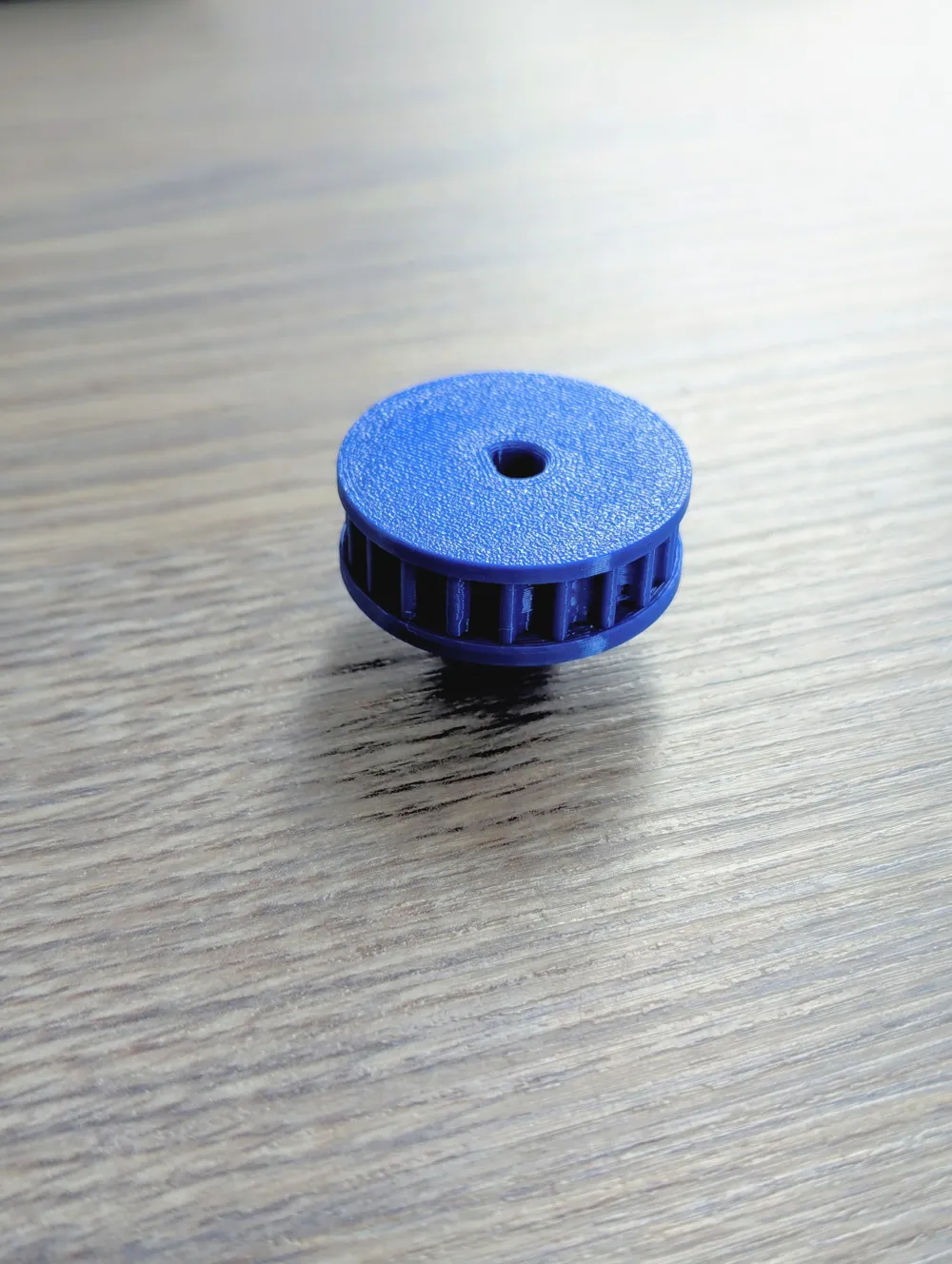

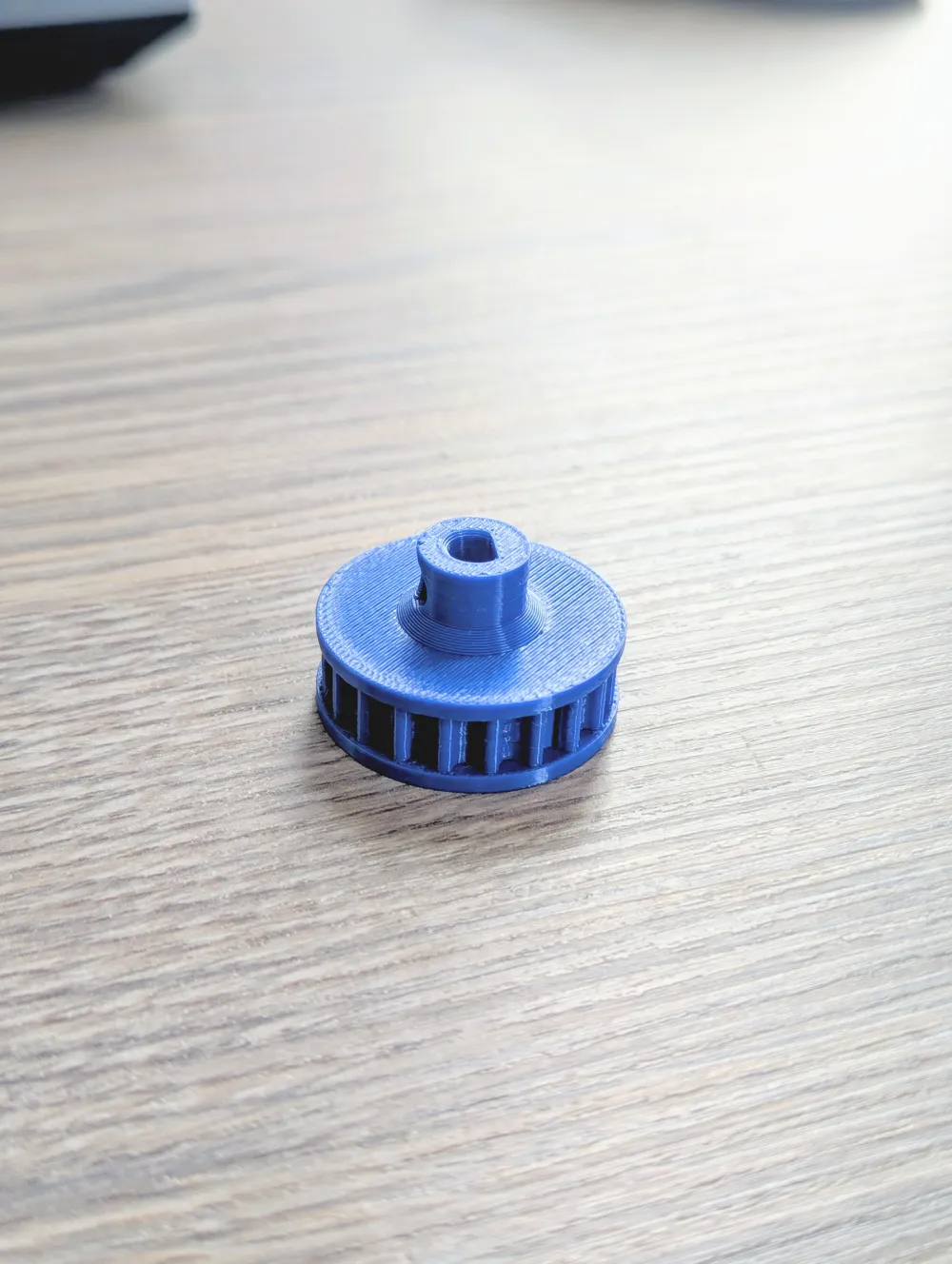

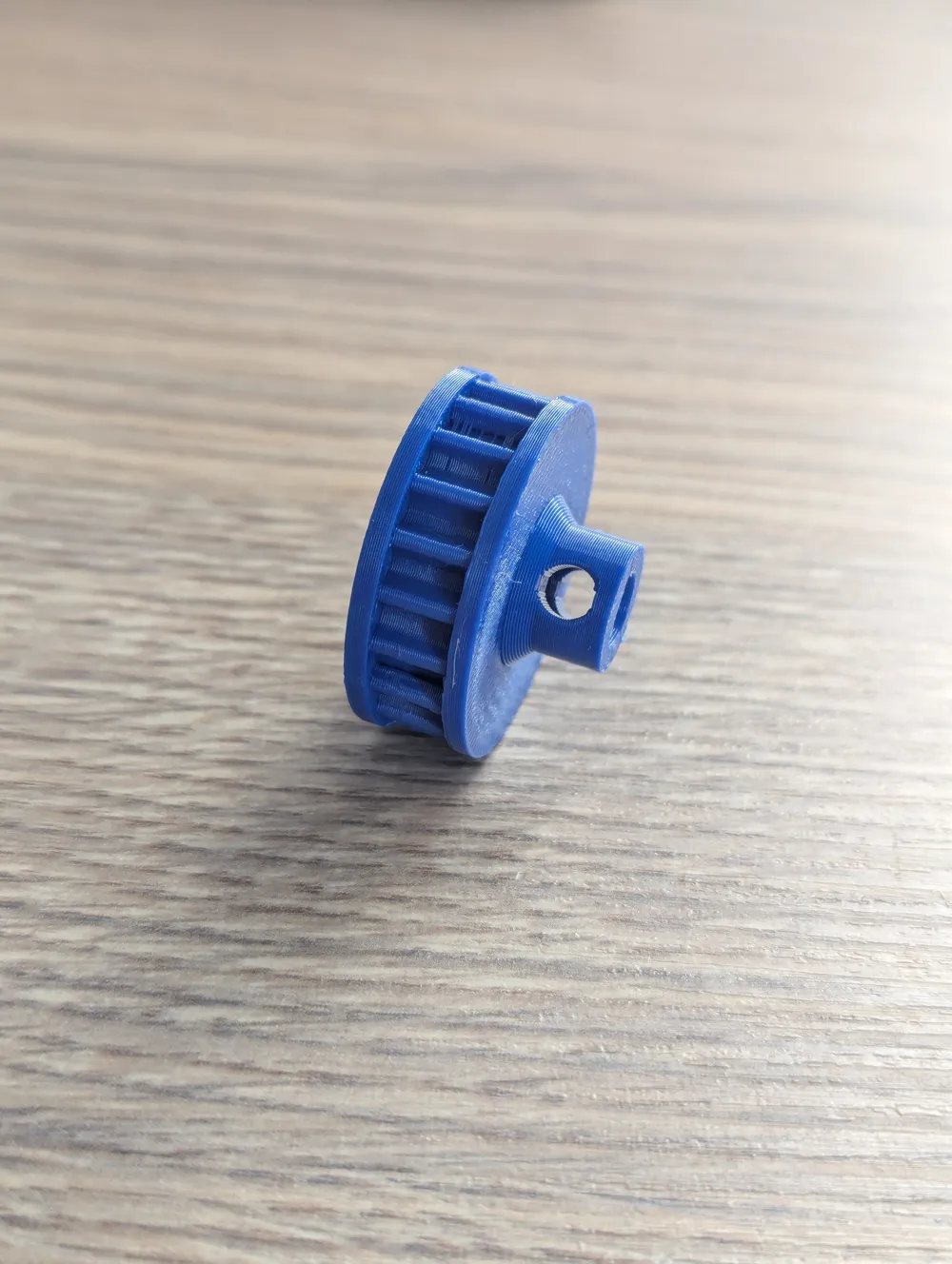

This design includes GT2 belt pulleys specifically tailored for NEMA 17 stepper motors, available in 15T, 20T, 25T, 30T, and 35T configurations.
Key Features:
- Compatible with standard GT2 belts (5mm pitch, up to 6mm height)
- The gear was modeled to fit this belt: https://us.misumi-ec.com/vona2/detail/110302652240/?list=PageCategory&seriesCode=110302652240&tab=drawingAndSpecifications&Page=1
- Easy to change which one to print: Simply disable the pulleys you don’t need in your slicer before printing.
Printing Tips:
- Download the print profile for a pre-configured setup.
- Disable unnecessary pulleys on the build plate to save material and time.
Perfect for DIY projects requiring reliable and accurate belt-driven systems!
Thank you for using my files. Please give a boost and like if this was useful to you in any way!
