Modular Shelf DIY

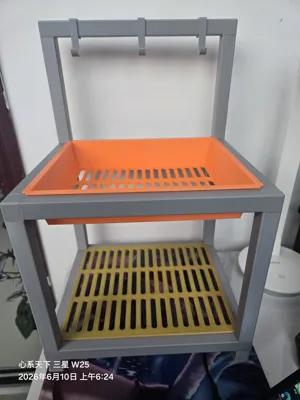

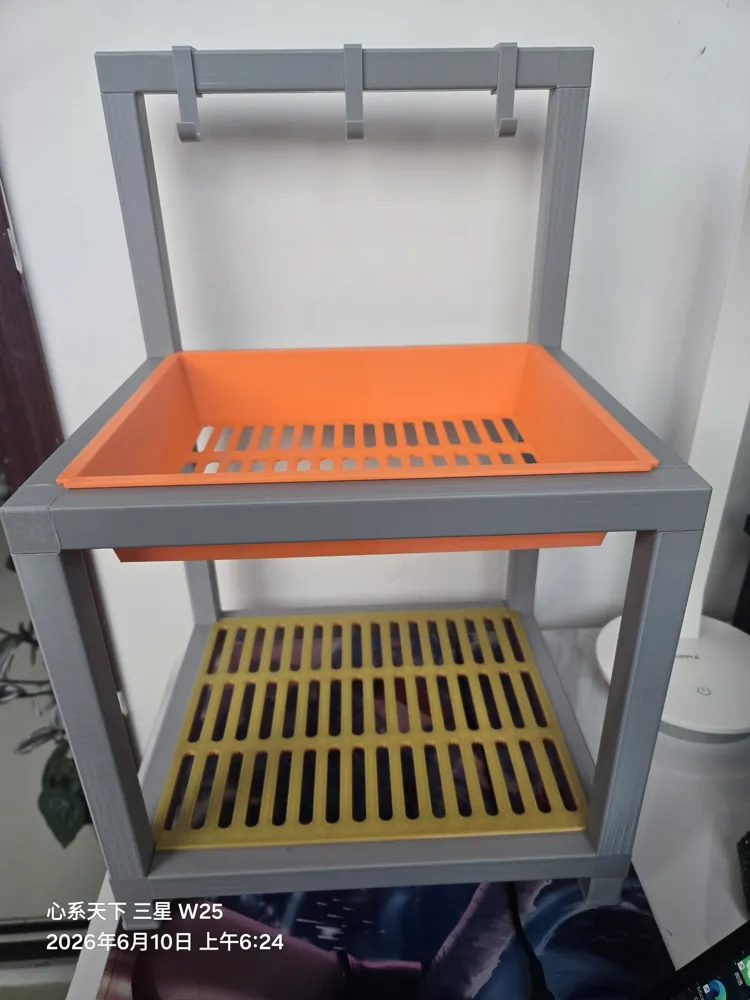

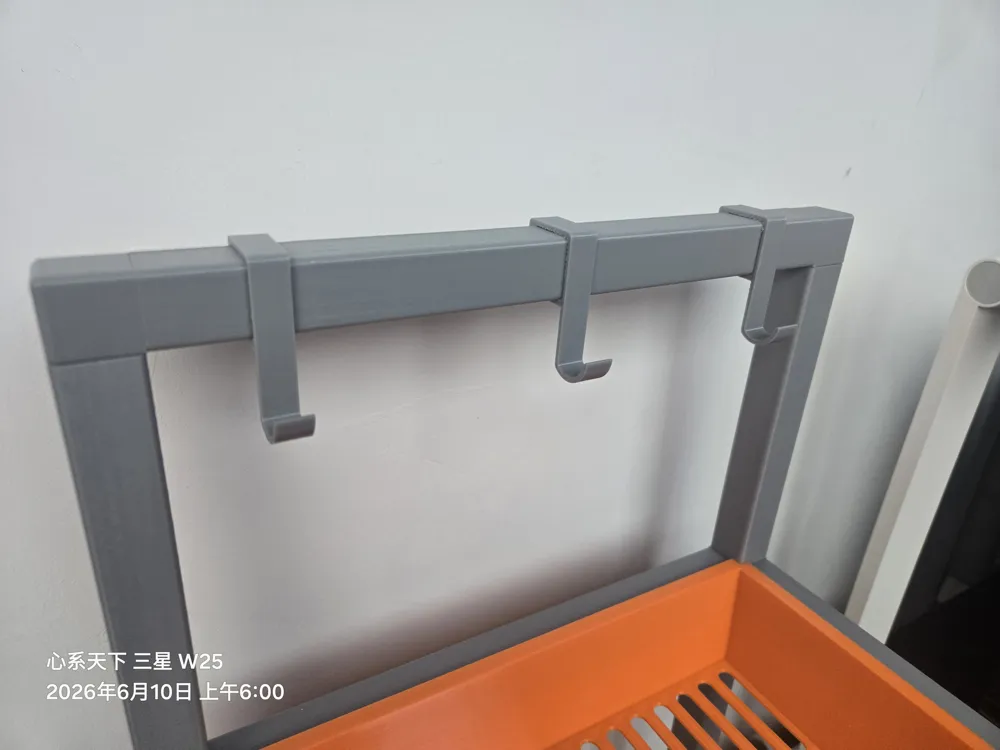

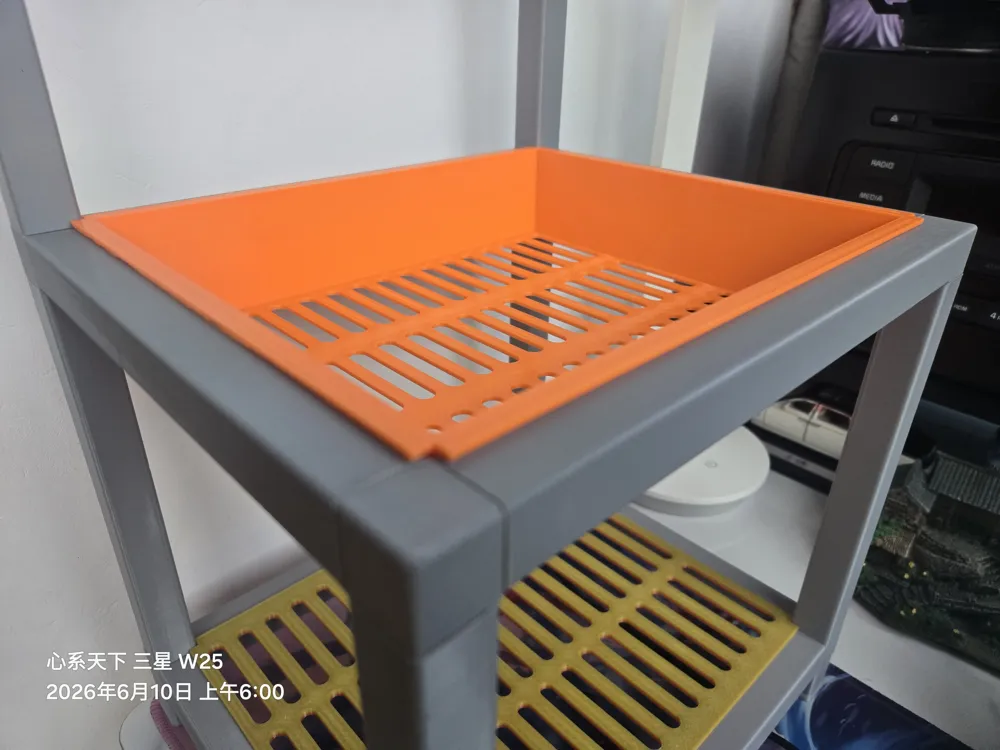

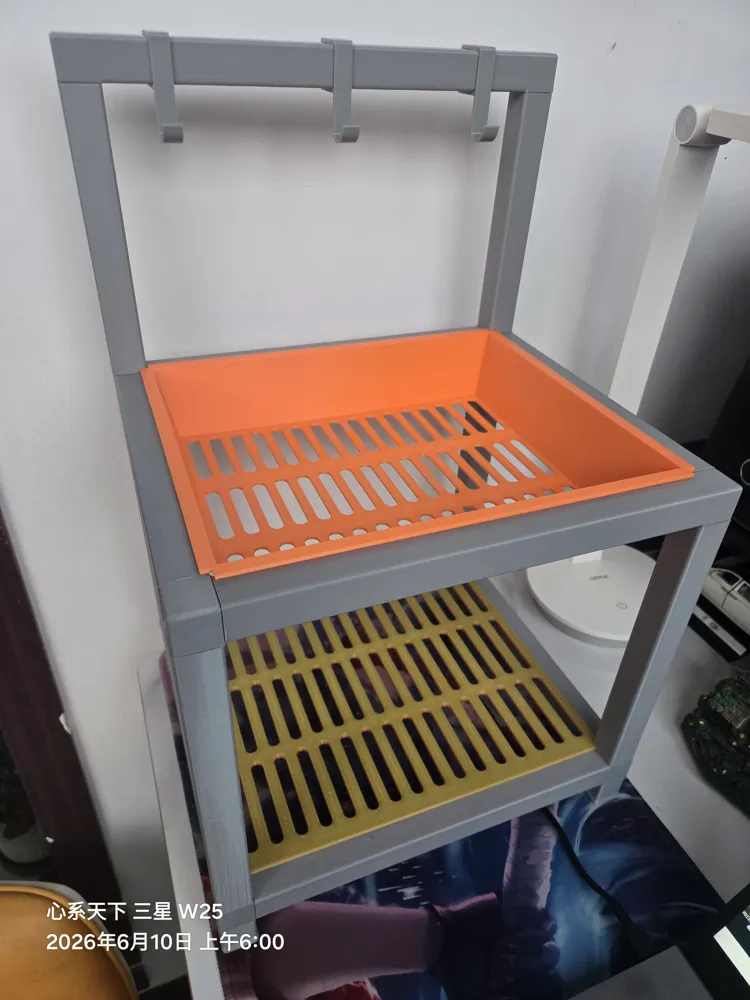

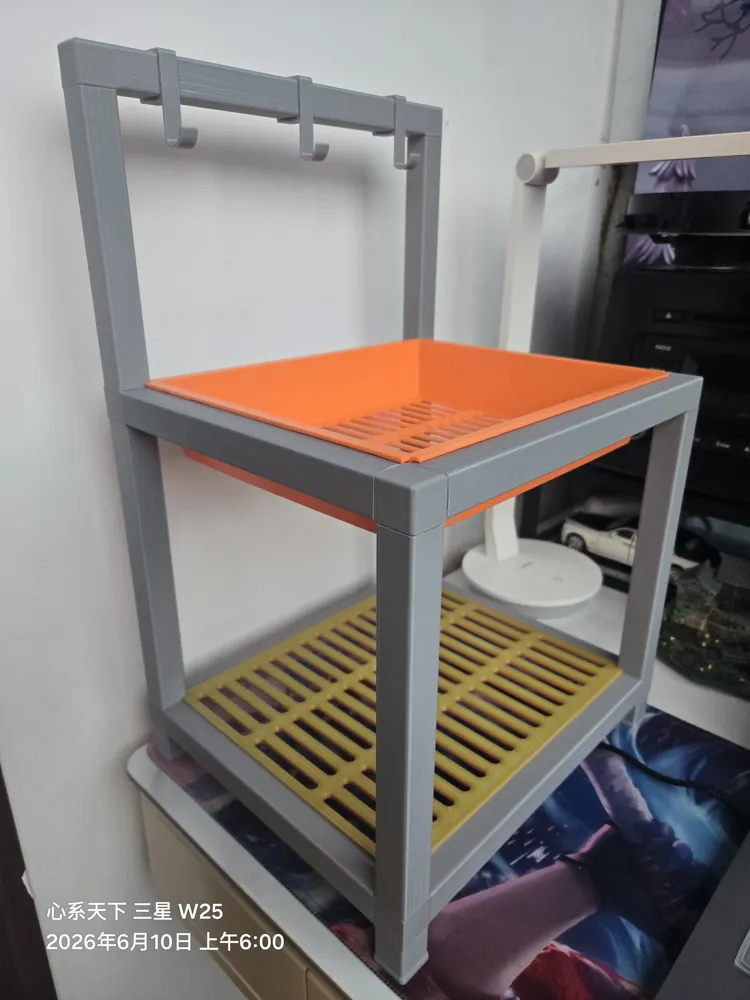

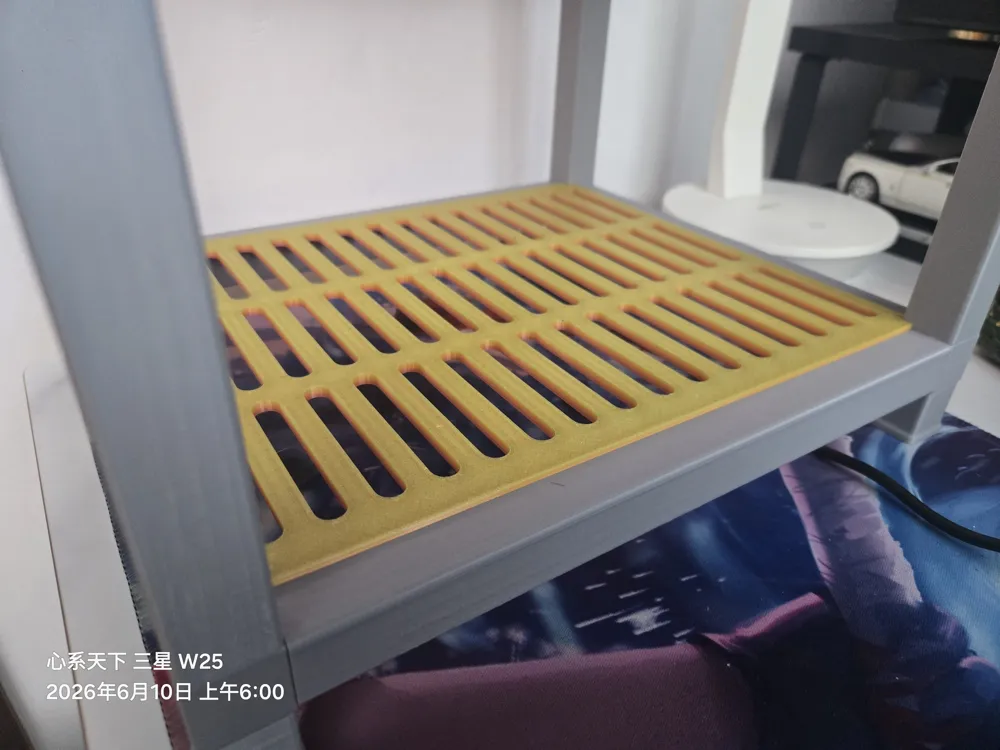

This is a multi-functional storage rack that can be freely combined The 20*20 connecting rods are very sturdy designed with tolerances for easy and firm assembly without wobbling tested to support a person (for testing only, not for sitting) It can be used in the kitchen, study, office desk, or even as a shoe rack including various connectors, three lengths of connecting rods, two widths of shelves, and two widths of mesh baskets and comes with hooks You can freely DIY the style and functions you want If you don't want to bother, you can also print the two styles I have designed Everyone is welcome to share their DIY combinations in the comments for reference

The connecting rods are up to 24CM long For print success rate and quality, I set the speed to decrease by 50% for anything over 20CM at the same time, the brim was set to be tightly attached to the print tested successfully with generic PETG on A1 in one print so after printing the connecting rods, you need to trim the bottom adhesion layer with a small knife all other supports are very easy to remove

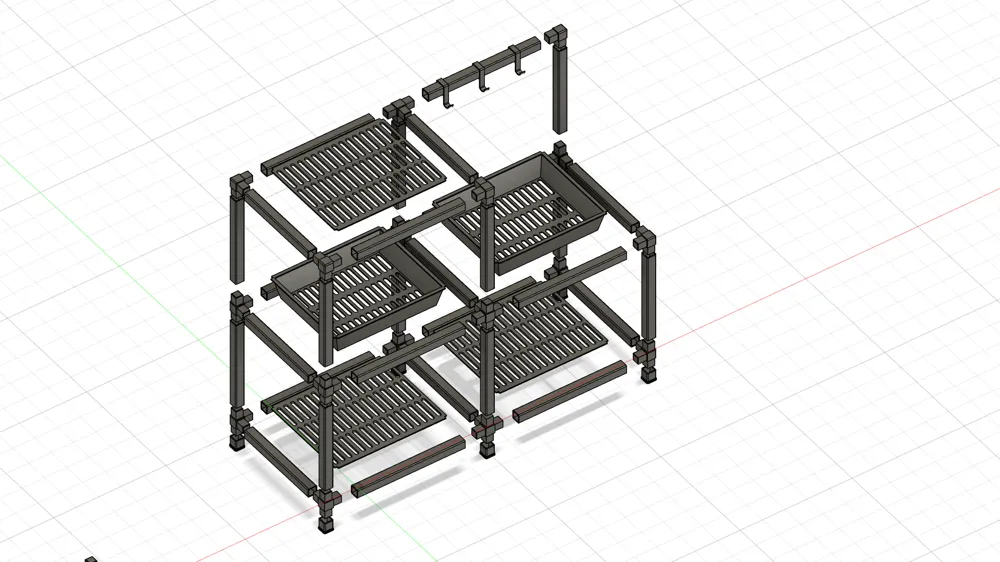

Special note: For free DIY, please calculate the required accessories according to my schematic to avoid wasting material after printing is complete be sure to assemble with the correct parts according to your plan otherwise, if you install it incorrectly, it will be difficult to remove If you really make a mistake, use a long stick to push the other end for easier removal

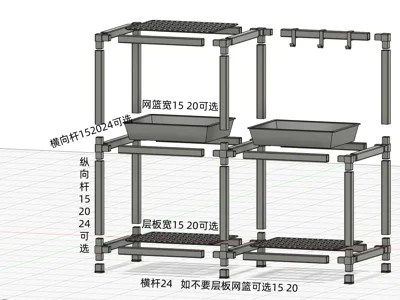

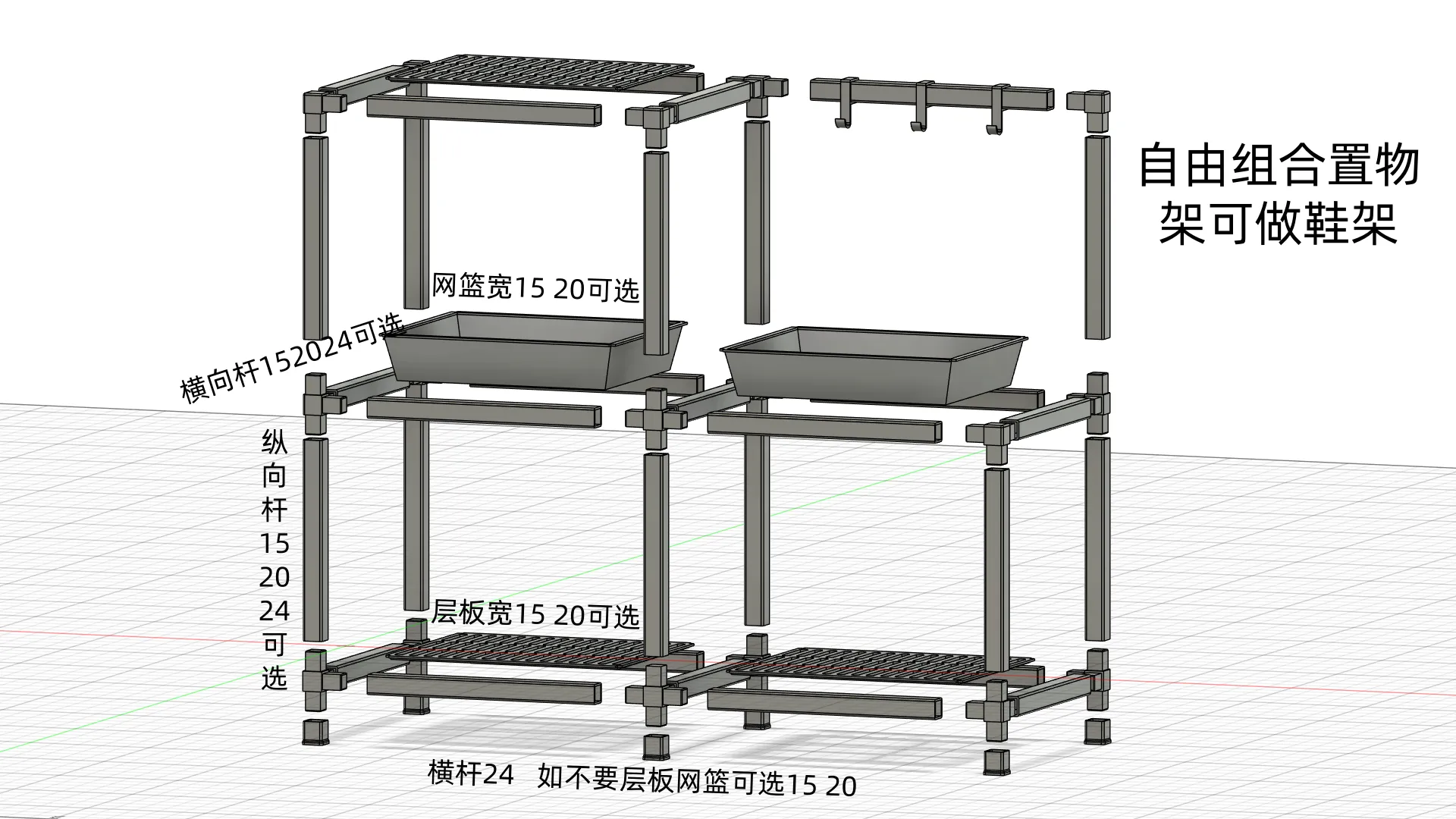

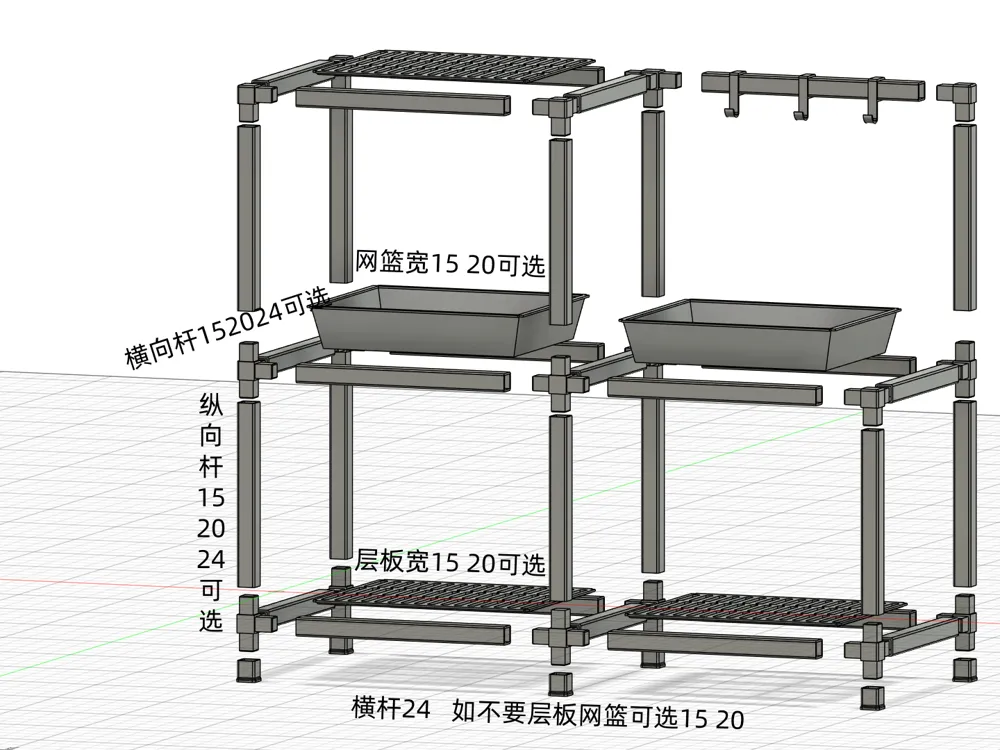

You can freely DIY and combine referring to the image below, with combination tips:

The X-axis horizontal connecting rods need to match the width of the shelves and mesh baskets so it is recommended to choose 15CM or 20CM connecting rods for the X-axis If you choose a 24CM connecting rod, there will be no matching shelves or mesh baskets, only the frame

Y-axis horizontal connecting rods are recommended to be fixed at 24CM or assembled in multiples of 24CM using direct connectors because the length of the shelves and mesh baskets is fixed at 24CM

All three types of Z-axis vertical connecting rods (15-24CM) can be combined If you need it higher, you can also add direct connectors
