Solid Blank Plate for 10" Rack - 1U | Lab Rax
Print Profile(1)
Bill of Materials
- M6 10mm Allen Screw x 4: can be safely secured using 2 pieces only*
- M6 4mm Brass Hot Melt Insert x 4: can be safely secured using 2 pieces only*
Description

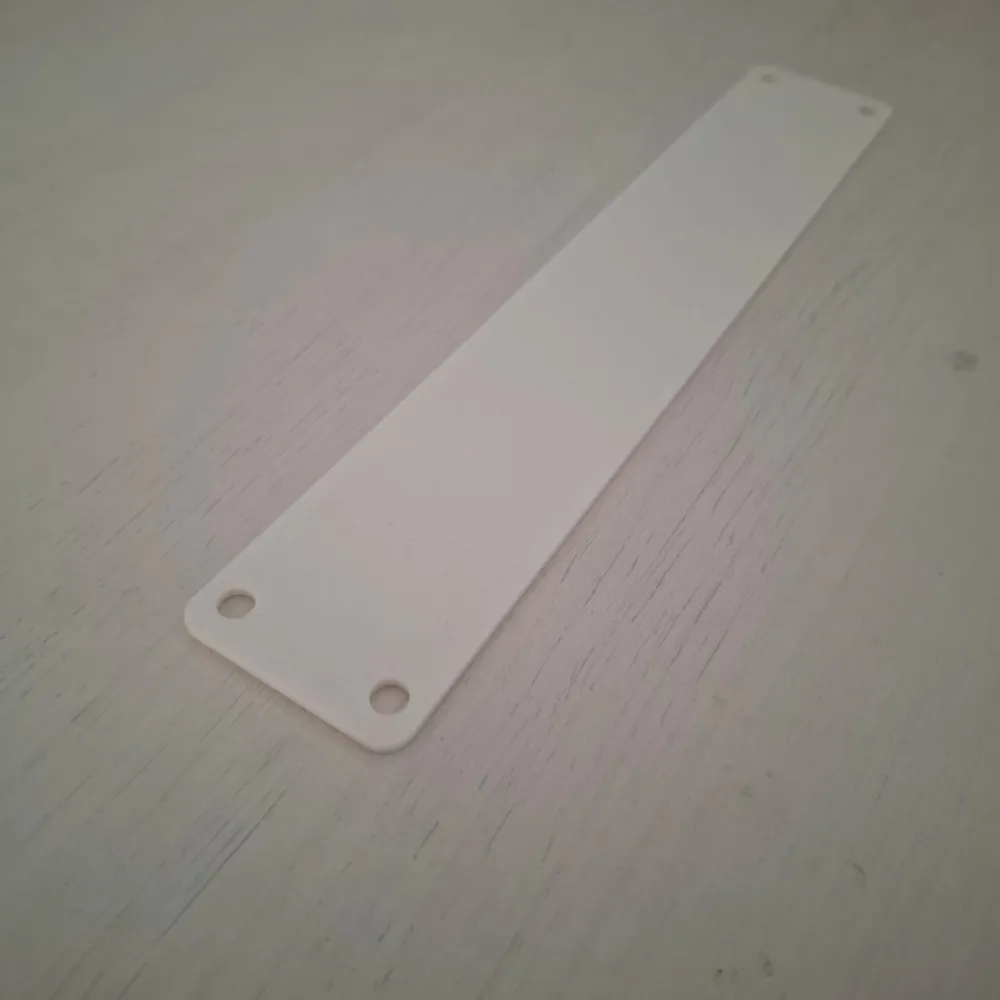

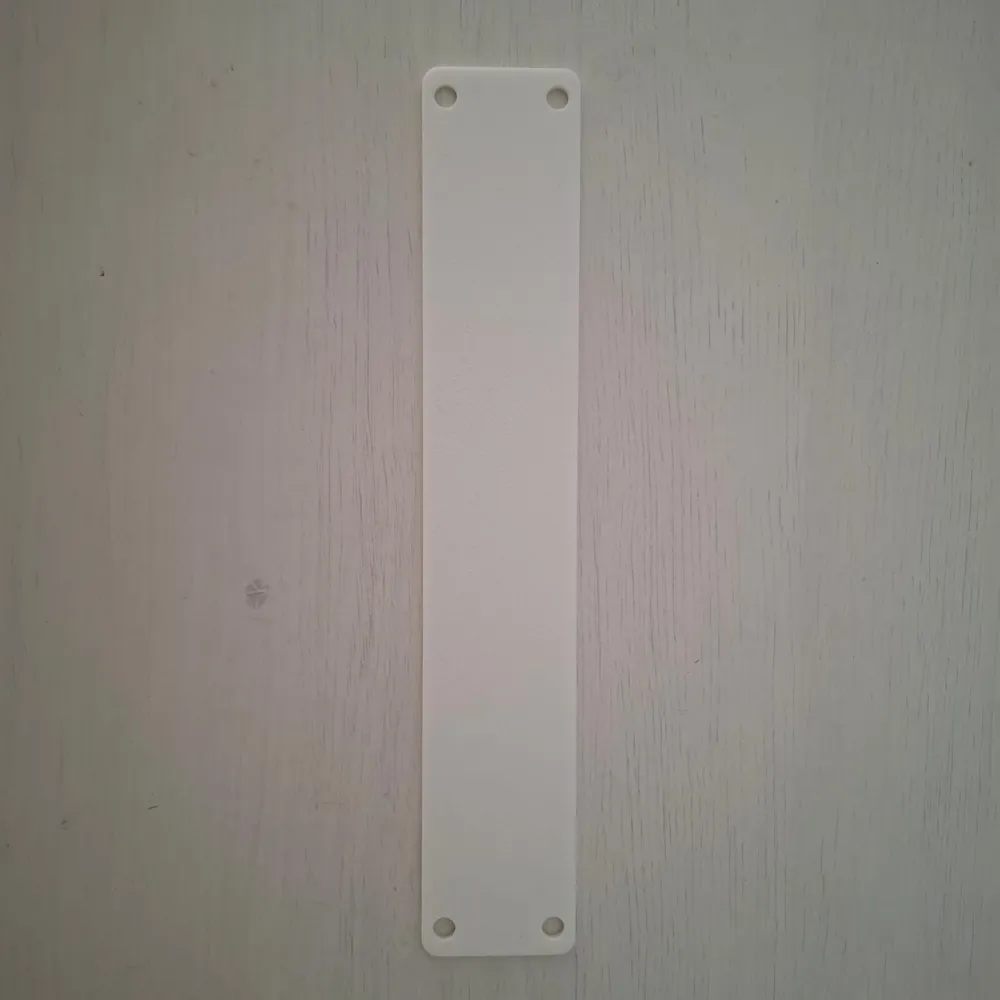

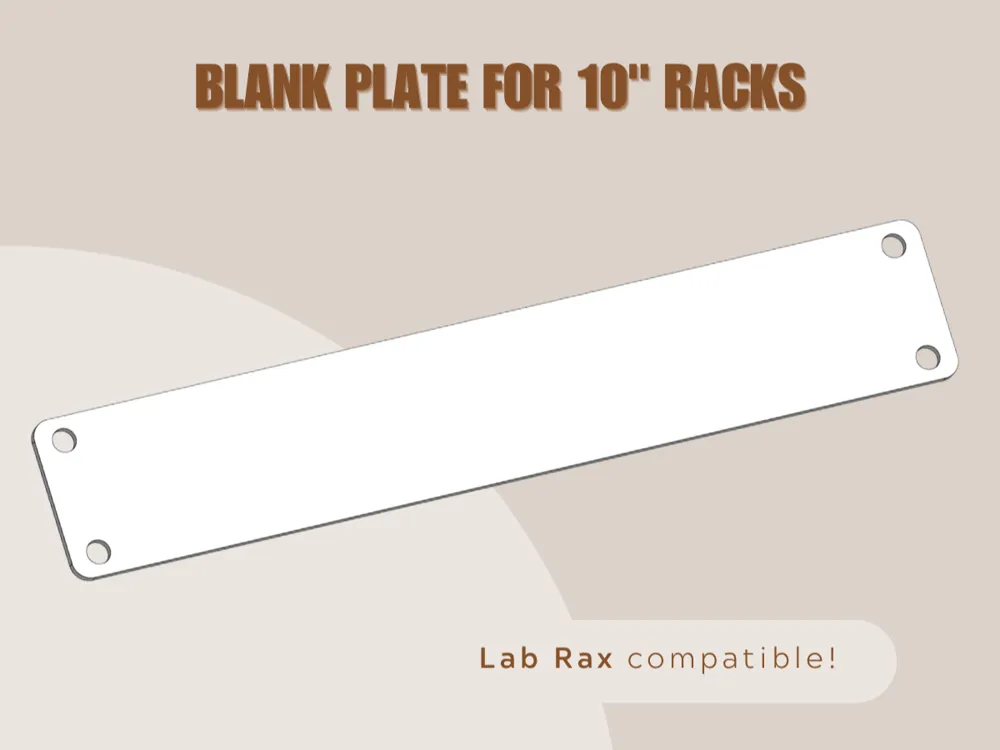

Solid 1U Blank Plate designed for 10-inch racks.

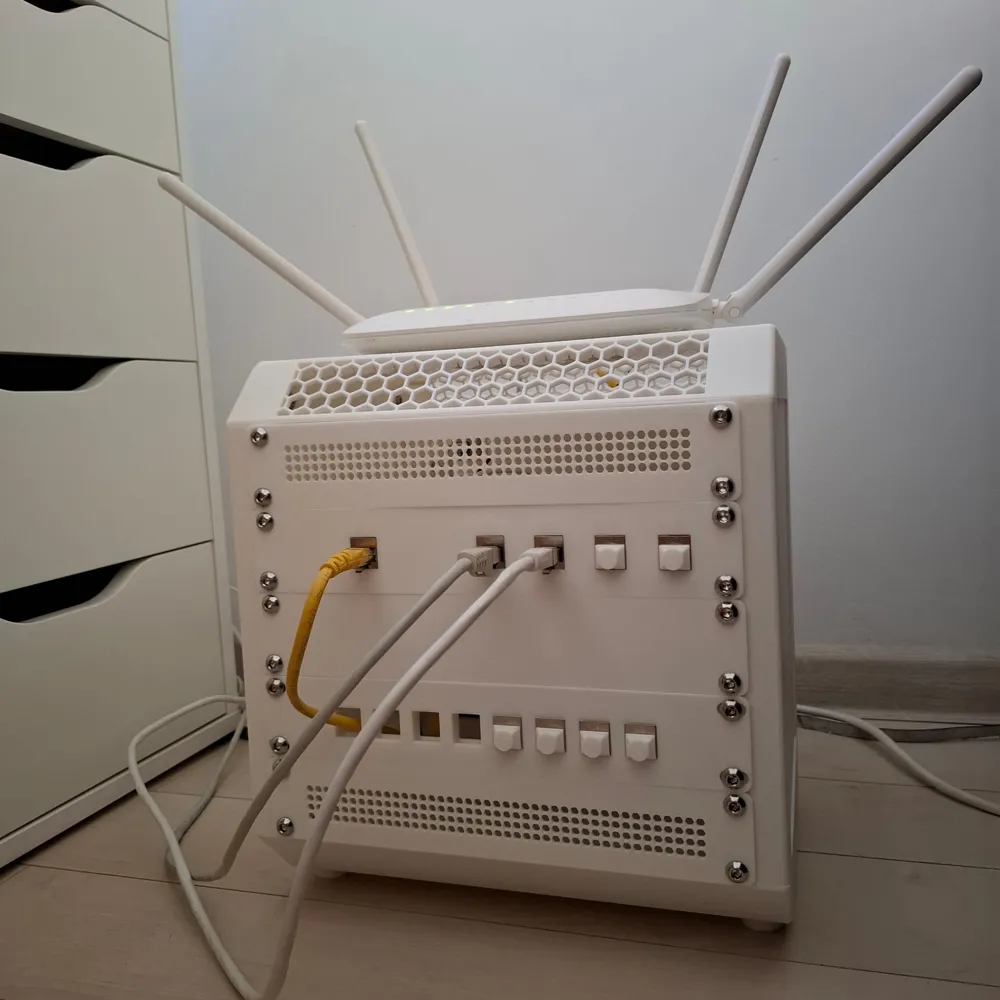

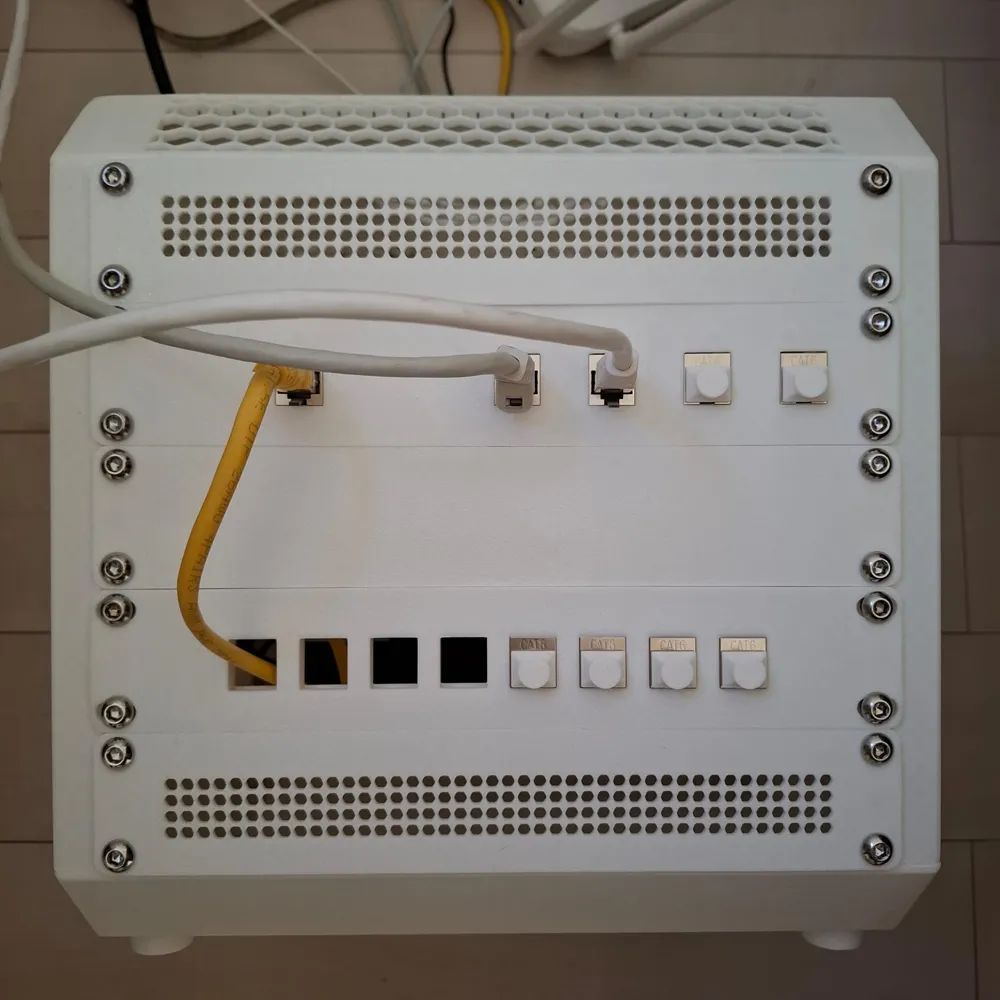

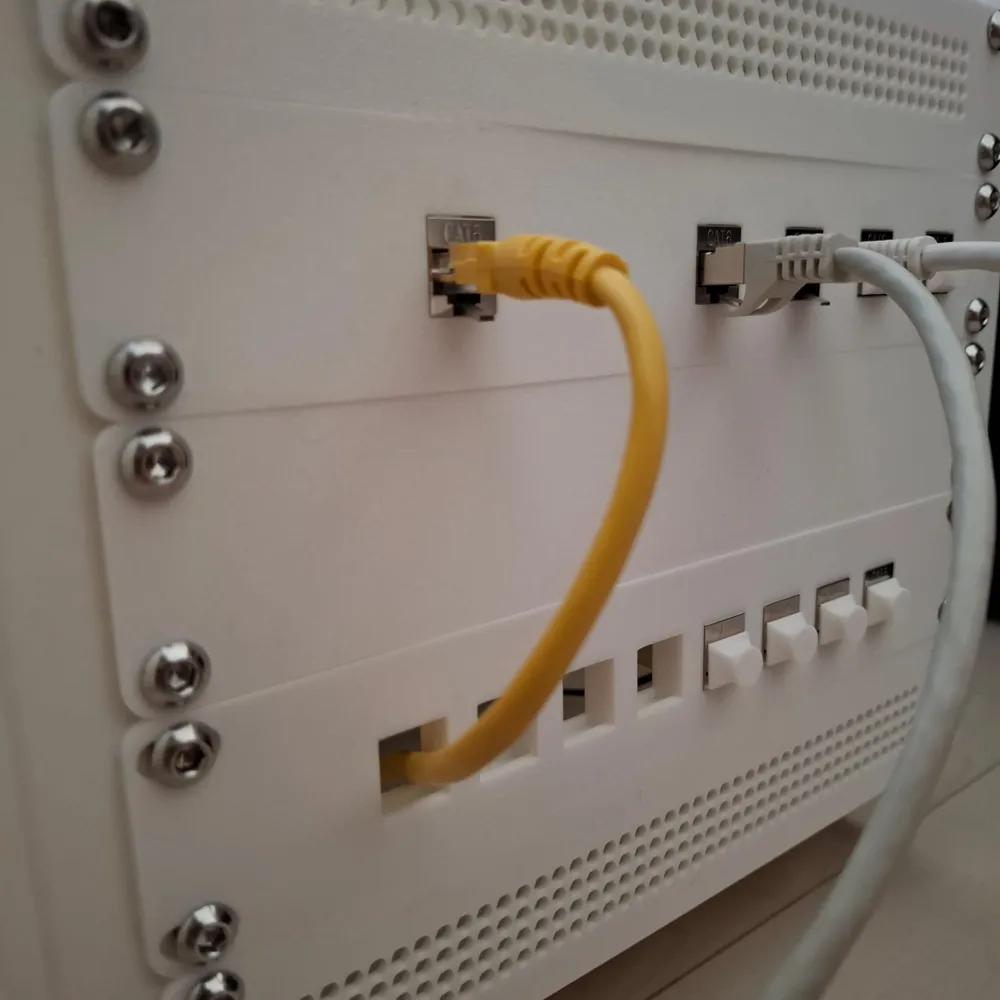

This is the fully-enclosed sibling of my Smart 1U Air Vent mount. Originally made to fit the Lab Rax series, but works for other similar 10" racks.
Sometimes the smartest airflow strategy is no airflow at all. This version trades the vent holes for a clean, solid face - for those who want that slick fully-enclosed look and zero dust sneaking into their rack:
- Minimal: Just like the vented version, this plate is designed to blend in, not stand out. No oversized or unnecessary mounting holes - just 2 perfect sized M6 holes on each side, and nothing else. The face is completely solid, giving your rack that seamless, professional, fully-closed finish.
- Dust-proof by design: No holes means no entry points. If your gear doesn't need extra airflow, this plate completely rules out dust getting in through the empty units - your hardware stays as clean as the day you racked it.
- No Supports: It's a 100% flat print.
Print Settings:
- Material: PLA, PETG.
- Infill: 15% - 20%.
- Supports: None required.
- Install: Supports any M6 variation.
Installation

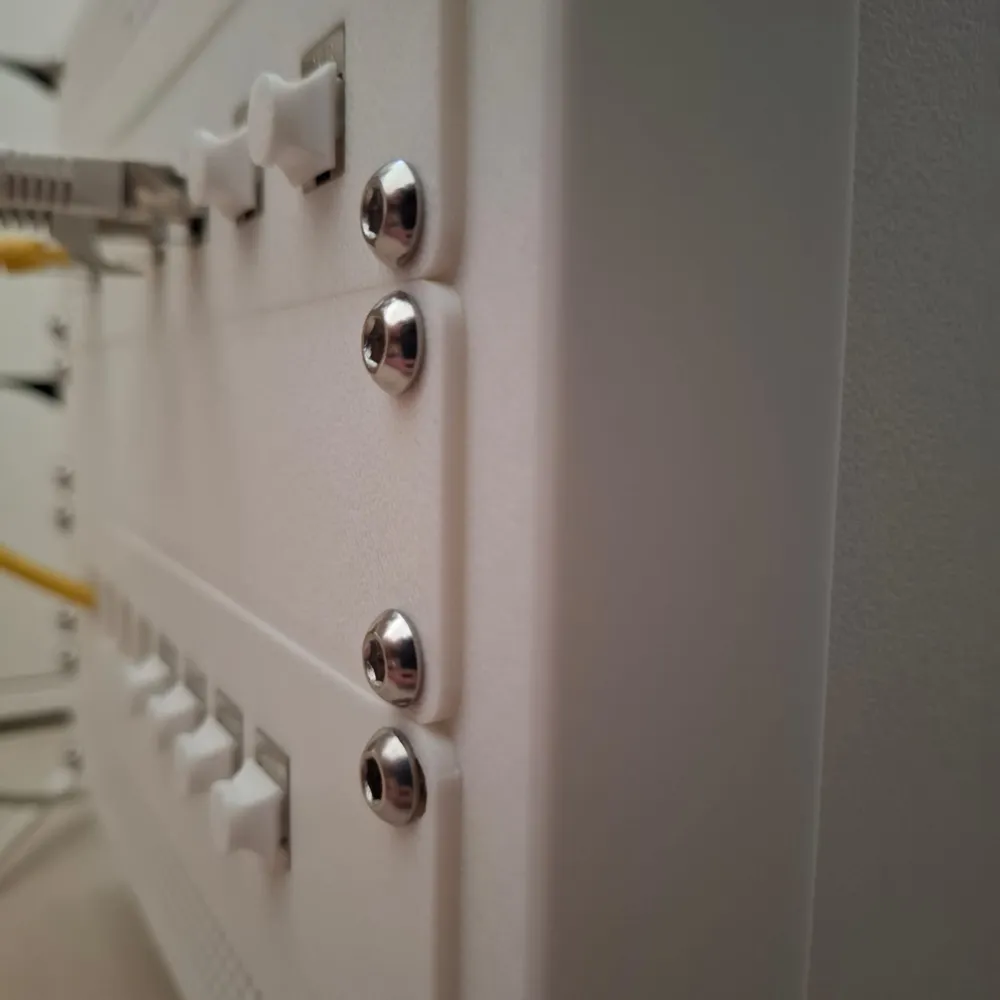

- Mount: No orientation to think about this time - it's a solid plate, so just line it up and use the M6 screws to attach it to your 10" rack. Done.
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
