Modular Chess Pawn - No Glue - Multi Color

Modular Chess Pawn

Create your own unique chess pawn with this modular, multi-part design.

This model is divided into several individual pieces that can be printed in different colors and assembled without glue, screws, or additional hardware. The parts fit together securely, creating a solid finished piece with virtually no play once assembled.

Designed to be both decorative and functional, the interchangeable components allow you to experiment with different color combinations and create a pawn that matches your personal style or chess set.

Features

✔ Modular multi-part design
✔ Multi-color friendly
✔ No glue required
✔ No screws or magnets required
✔ Secure press-fit assembly
✔ Interchangeable components
✔ Customizable color combinations
✔ Most parts print without supports

Dimensions

• Base diameter:  32 mm
• Height:  54 mm

Printing Information

• Recommended material: PLA
• Layer height: 0.20 mm or finer
• Most parts can be printed without supports
• Only 2 parts require supports (Head and Locker)
• No special hardware needed
• Use a brim for better bed adhesion.

Included Parts

The model consists of 11 individual pieces:

• Base
• Main body
• Decorative cape
• Two  small cylinders
• Ring 1
• Ring 2
• Ring 3
• Ring 4
• Head
• Locker

Assembly

Assembly is straightforward and requires no adhesives. Simply print the parts, choose your color combination, and press the pieces together.

The locker keeps the assembly firmly in place while allowing a clean appearance.

Personalization

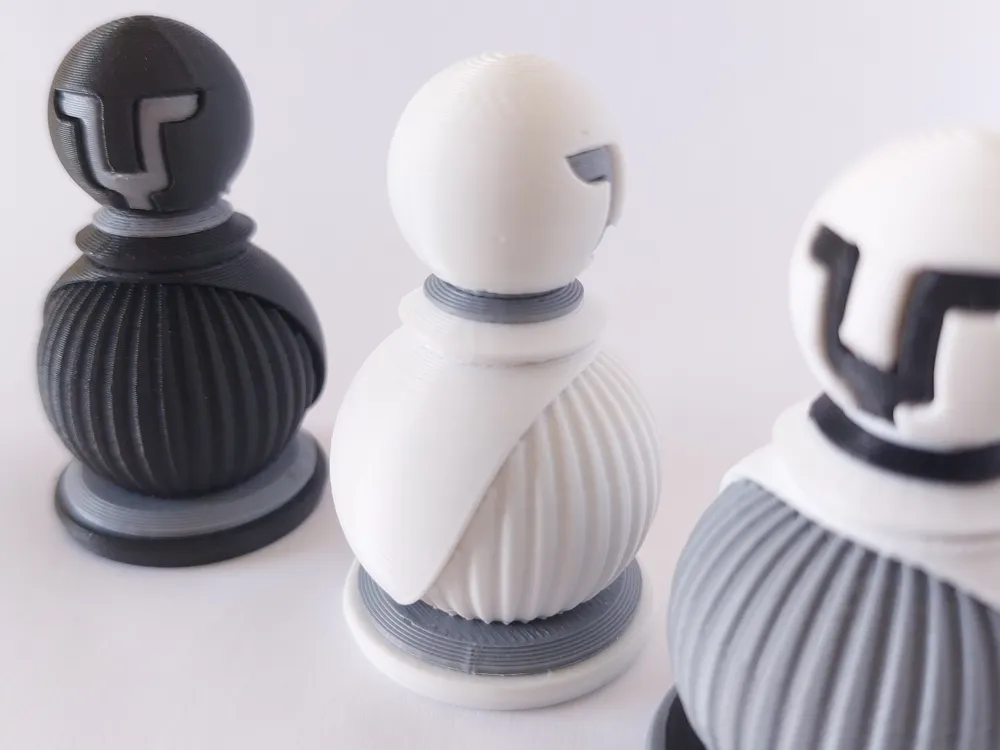

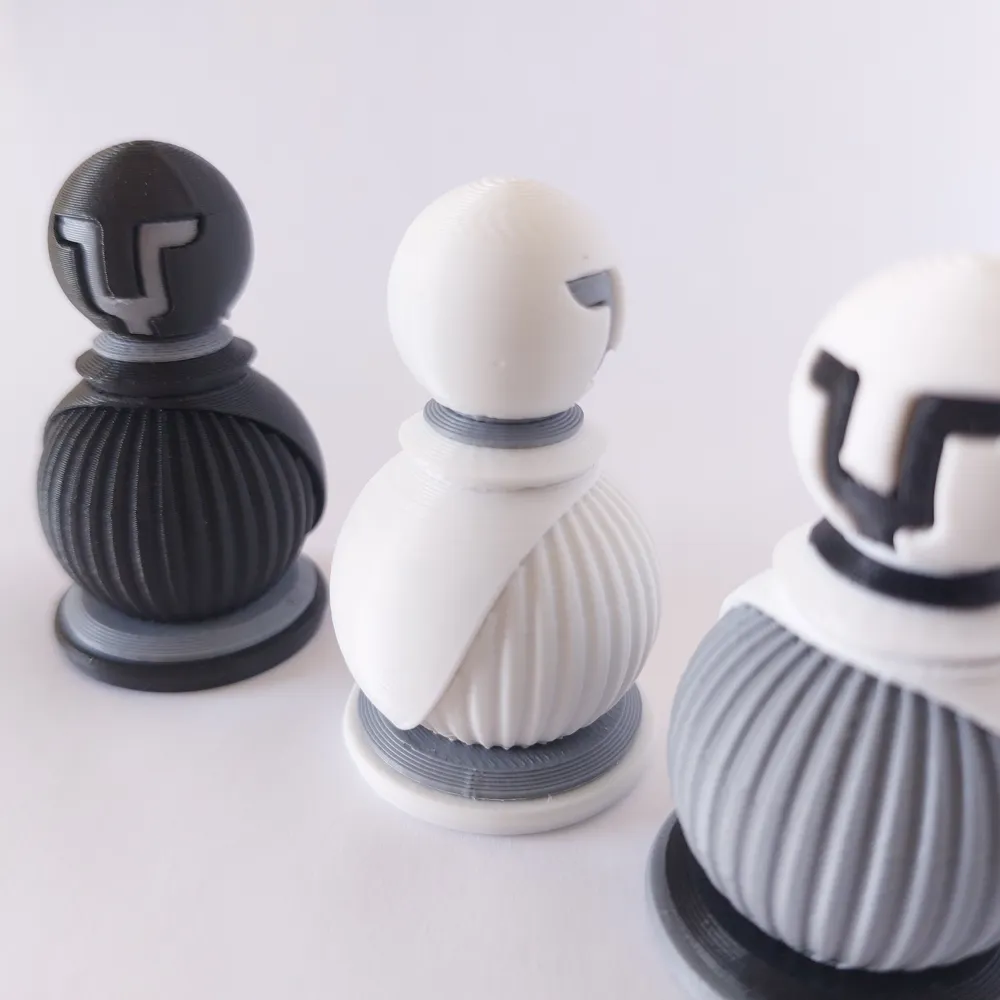

Mix colors between the base, body, cape, rings, and head to create your own custom variants. The design was specifically created to make multi-color combinations easy and visually appealing.

If you print one, I'd love to see your color combination!
