Mac Mini 10 Inch 2U 3x2.5 Inch Drives w/ Keystones
Print Profile(1)
Bill of Materials
- 2 Pack HDMI Keystones x 1: https://a.co/d/05ILamp9
- 3 Pack USB-C Keystones x 1: https://a.co/d/0eozLHb2
- 3 Pack USB to USB-C Adapters x 1: https://a.co/d/0cLS9sre
- USB 3.0 to SATA Adapter Cables x 3: https://a.co/d/0hstqCot
- 2 Pack SATA Interposers x 2: https://a.co/d/0a7v54DW
Description
Boost Me (for free)
Help feed my filament addiction with a boost (or two)! It's free! Reviewing my print profiles also helps a ton! :)

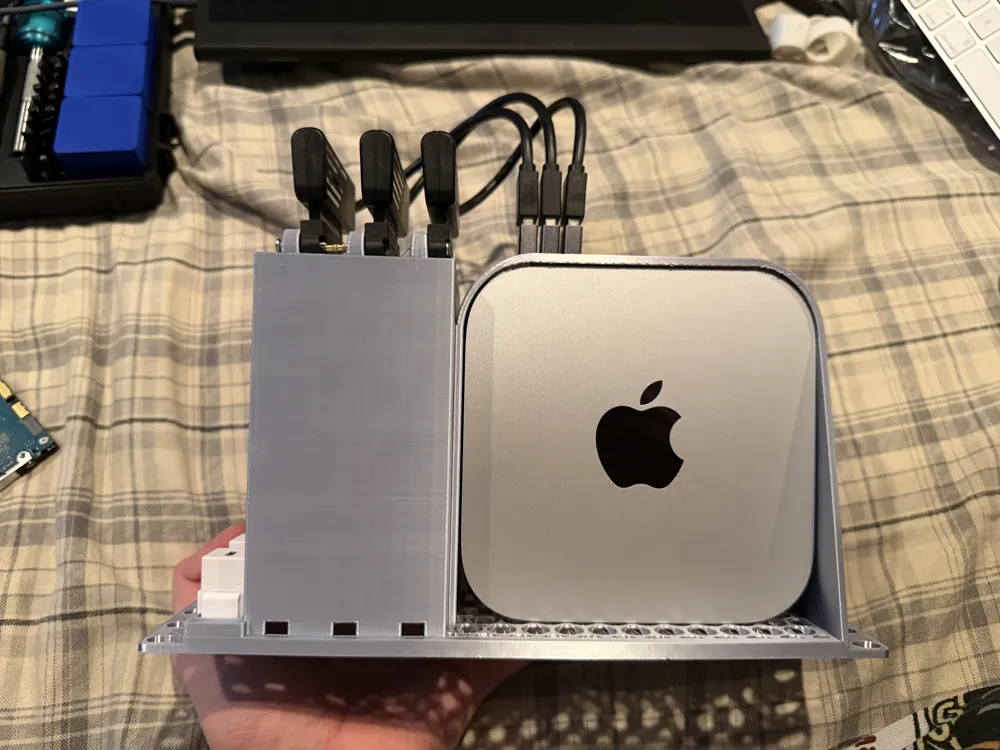

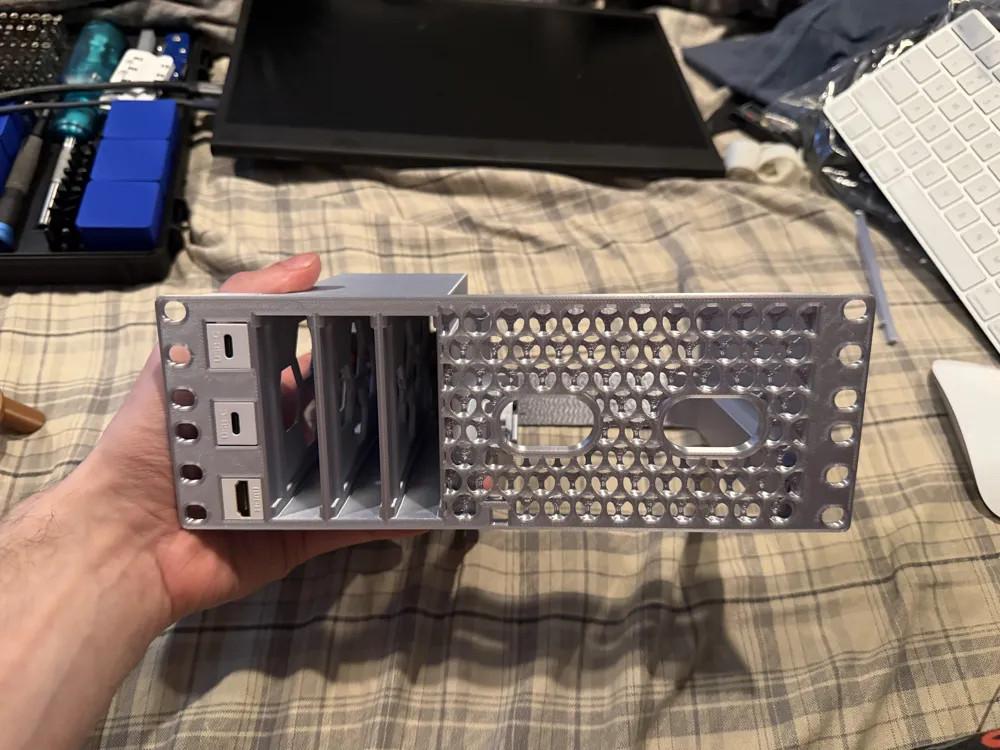

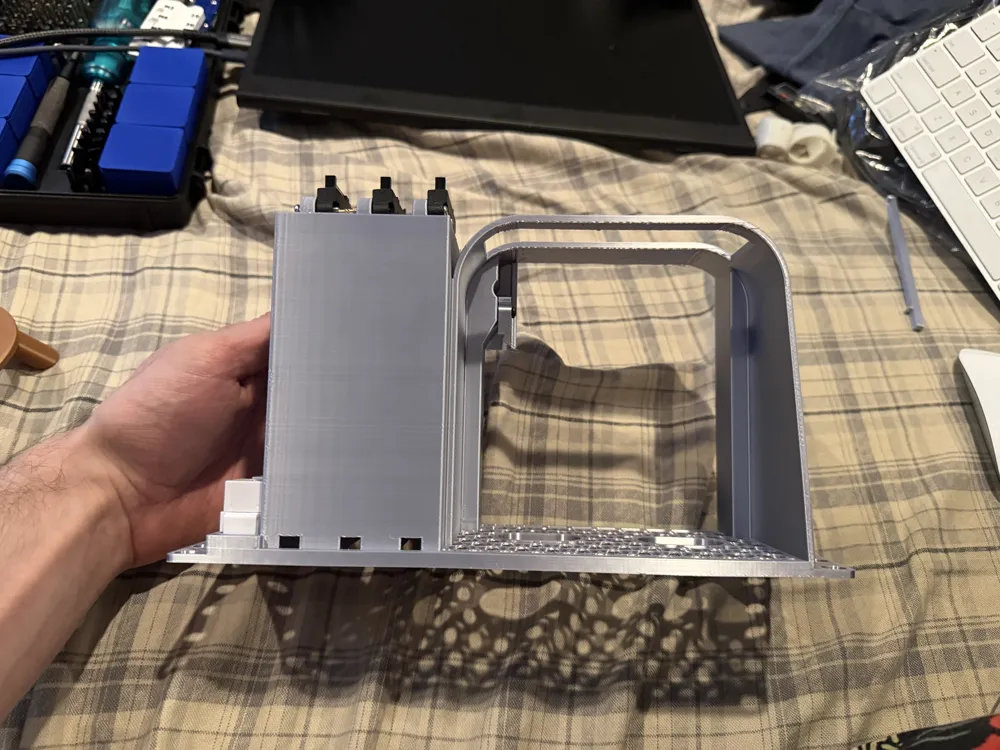

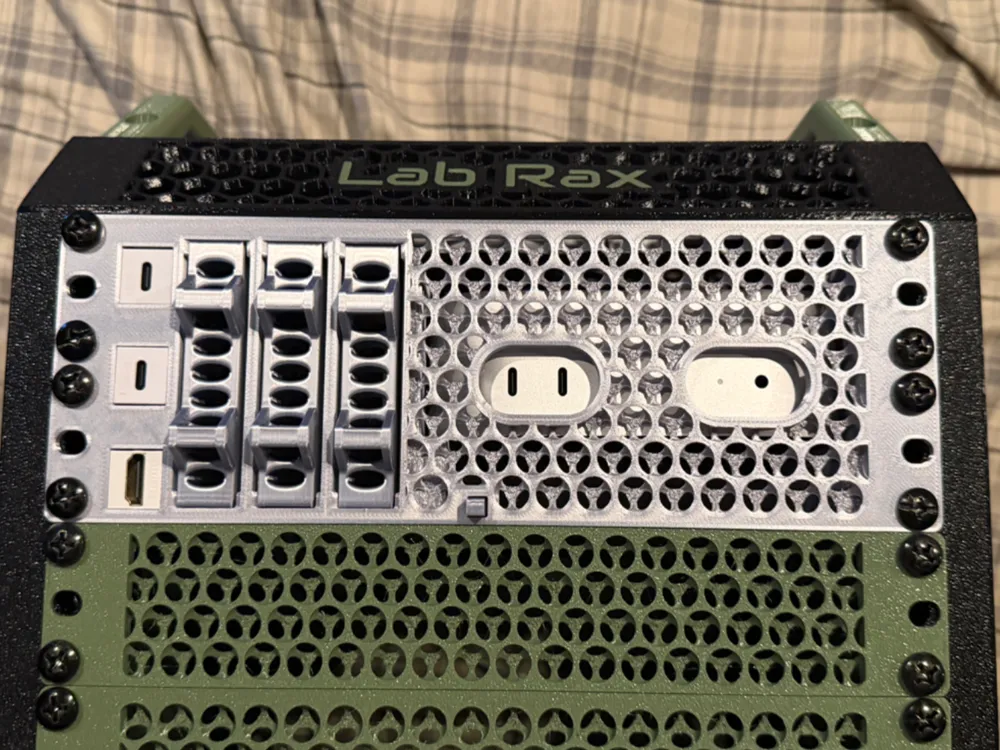

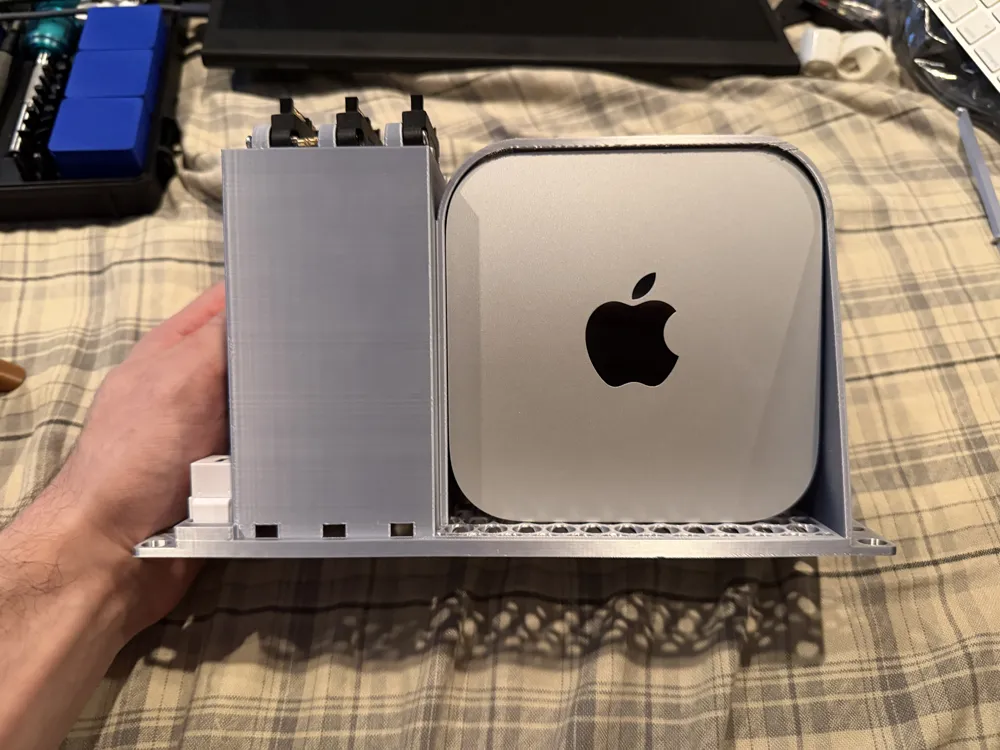

I really liked the look and utility of bastian123f's Apple Mac Mini M4 10inch 2u rack with 3x2,5 SSDs (https://makerworld.com/en/models/2839074-apple-mac-mini-m4-10inch-2u-rack-with-3x2-5-ssds#profileId-3164701), and needed to have it in my rack. So I added three keystone slots to the left of the drive bays, so i can pass through HDMI and a pair of USBC ports to the front of the rack.

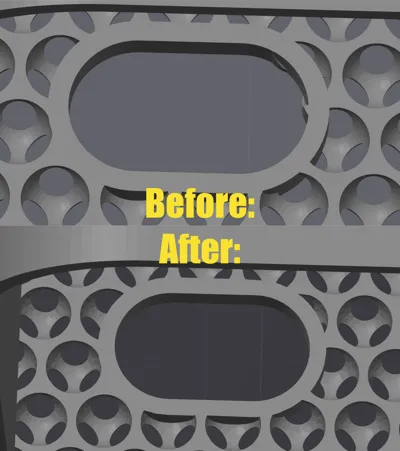

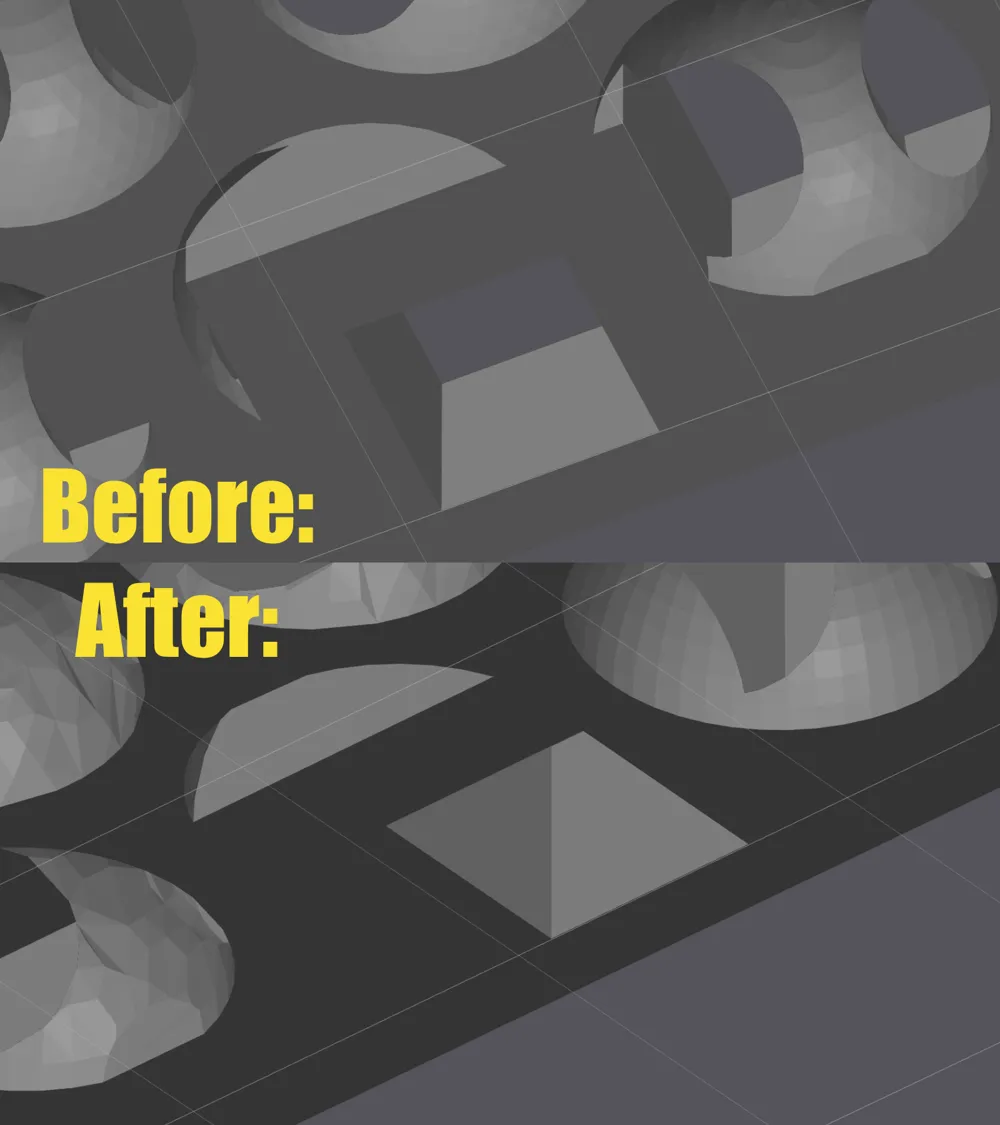

I also cleaned up a few spots around the front USB cutout and the power button arm slot, as pictured above.
Drive sleds pictured are from Cypherous (https://makerworld.com/en/models/942774-tool-less-2-5-hdd-sdd-caddy-for-supermicro-server#profileId-908753)
Things you'll need to fully assemble that aren't on Maker's Supply:
- 1x HDMI Keystones (2 Pack): https://a.co/d/05ILamp9
- 1x USB-C Keystones (3 Pack): https://a.co/d/0eozLHb2
- 1x USB-C to USB-A Adapters (3 Pack): https://a.co/d/0cLS9sre
- 3x USB 3.0 to SATA Cables: https://a.co/d/0hstqCot
- 2x SATA Interposers (2 Pack): https://a.co/d/0a7v54DW
Printed in Sunlu Silk PLA+ Silky Silver.
